Cecotec Bolero Dresscode 7410 Inverter Washing Machine

Introduction

Thank you for choosing the Cecotec Bolero Dresscode 7410 Inverter Washing Machine. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read this manual thoroughly before using the washing machine and keep it for future reference.

Коопсуздук маалыматы

Жараат алуу же шайманга зыян келтирбөө үчүн ар дайым төмөнкү коопсуздук чараларын сактаңыз:

• Ensure the washing machine is properly grounded and connected to a suitable power outlet.
• Do not allow children to operate or play with the appliance. Utilize the Kid Lock коопсуздук үчүн функция.
• Иштеп жатканда эшикти эч качан күч менен ачпаңыз.
• Тазалоо же техникалык тейлөө иштерин жүргүзүүдөн мурун электр кубатынан ажыратыңыз.
• Ensure all transport bolts are removed before initial use to prevent severe vibration and damage.
• Do not install the appliance in areas exposed to freezing temperatures.

Продукт бүттүview

The Cecotec Bolero Dresscode 7410 is a 7 kg front-loading washing machine designed for efficient and thorough laundry care. It features an Inverter Plus Motor for quiet and durable operation, and a Class A energy rating for reduced power consumption.

Негизги өзгөчөлүктөрү:

• 7 кг Жөндөмдүүлүгү: Ideal for families.
• 1200 rpm Max Spin Speed: Adjustable for various fabric types.
• 16 Программа: A wide range of washing options.
• Class A Energy Efficiency: Энергияны олуттуу үнөмдөө.
• Inverter Plus мотору: Efficient, quiet, and durable operation with a 10-year warranty.
• SteamMax: Steam function for sterilization, stain, and odor removal.
• Барабан тазалоо: Self-cleaning program for the drum.
• Аллергияга кам көрүү: Program for sterilizing laundry with high-temperature steam.
• Токтотуу жана кетүү функциясы: Allows pausing and reloading items during a cycle.
• DelayStart Function: Schedule wash start up to 24 hours in advance.
• Kid Lock Technology: Балдардын коопсуздук кулпусу.
• Diamond Care Drum: Designed to protect fabrics.

Камтылган компоненттер:

• 1 x Кир жуугуч машина
• 1 x Water Supply Hose
• 1 x User Manual
• Transport Feet

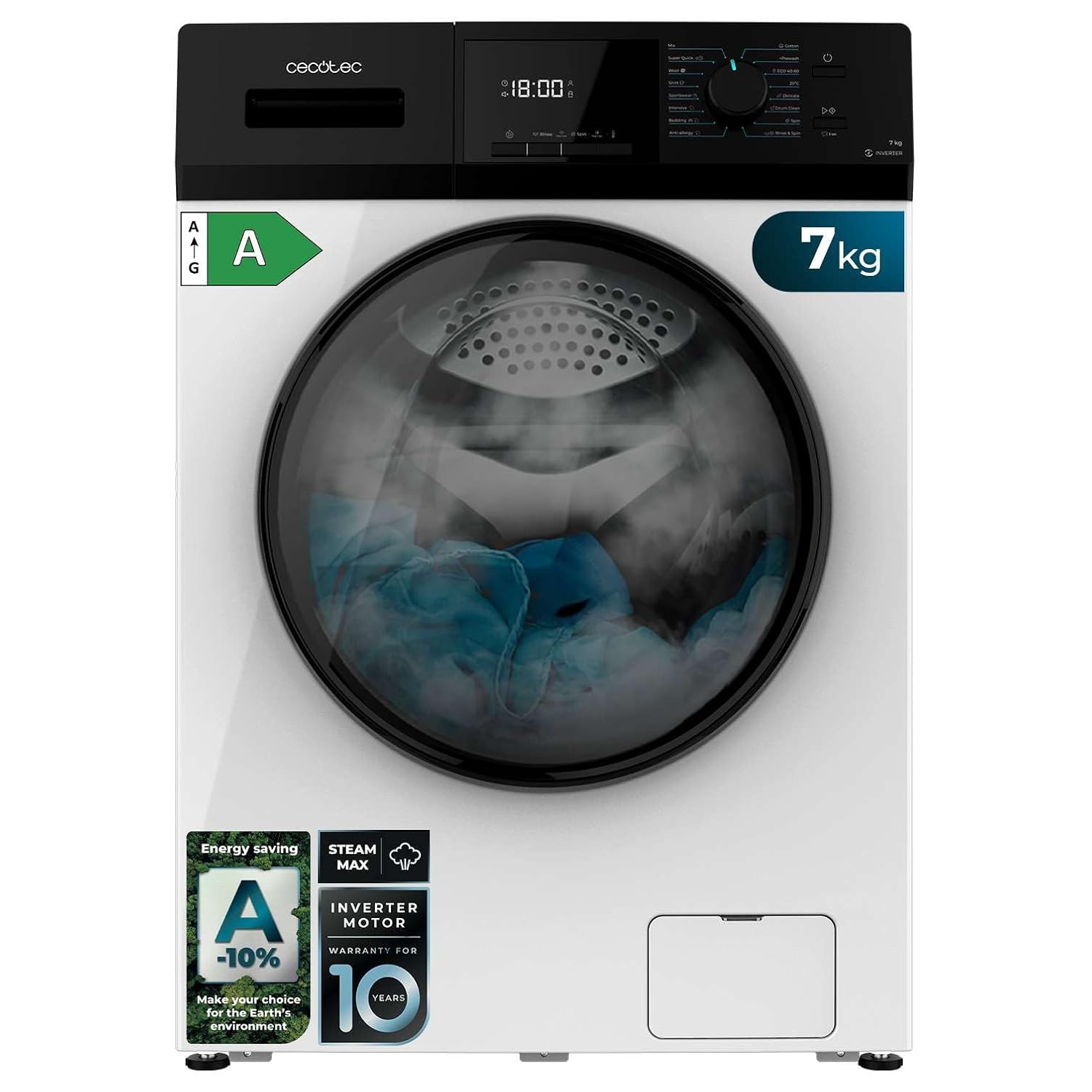

Фронт view of the Cecotec Bolero Dresscode 7410 Inverter Washing Machine, highlighting its modern design and 7 kg capacity.

Орнотуу жана орнотуу

Кир жуугуч машинаңыздын иштеши жана узак иштөөсү үчүн туура орнотуу абдан маанилүү.

1. таңгактан чыгаруу

Carefully remove all packaging materials. Locate and remove the transport bolts from the rear of the machine. These bolts secure the drum during transit and must be removed before operation. Keep them for future transport if needed.

2. Жайгаштыруу

Place the washing machine on a firm, level surface. Ensure there is adequate space around the appliance for ventilation and maintenance. Avoid direct sunlight or extreme temperatures.

3. Тегиздөө

Машинанын түбүндөгү жөнгө салынуучу буттарды тууралап, ал кемчиликсиз деңгээлде болушун камсыз кылыңыз. Бир деңгээл машина иш учурунда титирөөнү жана ызы-чуу азайтат.

4. Суу туташтыруу

Connect the supplied water inlet hose to a cold water tap and to the corresponding inlet on the back of the washing machine. Ensure connections are tight to prevent leaks.

5. Дренаж байланышы

Securely place the drain hose into a standpipe or over the edge of a sink, ensuring it is properly fixed to prevent displacement during draining.

6. Электр байланышы

Электр шнурын жерге туташтырылган электр розеткасына сайыңыз. Узарткычтарды же адаптерлерди колдонбоңуз.

Diagram illustrating the dimensions of the Cecotec Bolero Dresscode 7410 washing machine: 85 cm height, 60 cm width, and 50 cm depth, crucial for installation planning.

Иштөө нускамалары

Кир жуугуч машинаңызды эффективдүү колдонуу үчүн бул кадамдарды аткарыңыз.

1. Кирди жүктөө

Open the door and load your laundry into the drum. Do not overload the machine; ensure there is enough space for clothes to tumble freely. The maximum capacity is 7 kg.

A user loading clothes into the front-loading drum of the Cecotec washing machine, demonstrating the ease of access.

2. Жуучу каражатты кошуу

Pull out the detergent dispenser drawer and add the appropriate amount of detergent and fabric softener to their respective compartments. Refer to your detergent packaging for dosage recommendations.

3. Программаны тандоо

Turn the program selection dial to choose one of the 16 available washing programs. The digital display will show the default settings for the selected program.

A hand adjusting the program selection dial on the washing machine's control panel, showing the digital display and various function buttons.

Notable Programs:

• Аллергияга кам көрүү: Sterilizes laundry using high-temperature water and steam.
• Барабан тазалоо: A self-cleaning cycle for the drum to prevent bacteria and odors.
• Эко режими: Reduces consumption and noise with softer washing power.

4. Орнотууларды тууралоо

After selecting a program, you can adjust settings such as spin speed (up to 1200 rpm) and temperature using the corresponding buttons on the control panel.

The Cecotec washing machine in operation, with a '1200 rpm' overlay, indicating its maximum spin speed for efficient water extraction.

5. Атайын функциялар

• DelayStart: Press the DelayStart button to set a delayed start time for your wash cycle, from 0 to 24 hours.
• Токто жана кет: If you need to add or remove items after a cycle has started, press the Stop & Go button to pause the machine and unlock the door.
• SteamMax: This function infuses steam into the drum to sterilize laundry and effectively remove stains and odors.
• Kid Lock: Activate this function to lock the control panel and prevent accidental changes by children.

Close-up inside the washing machine drum with laundry and a sterilization icon, illustrating the SteamMax and Allergy Care functions.

6. Жууну баштоо

Once the program and settings are selected, press the Start/Pause button to begin the wash cycle.

Техникалык тейлөө жана кам көрүү

Үзгүлтүксүз тейлөө кир жуугуч машинаңыздын оптималдуу иштешин камсыздайт жана иштөө мөөнөтүн узартат.

1. Барабан тазалоо

Utilize the dedicated Барабанды тазалоо program periodically to clean the interior of the drum and prevent the buildup of bacteria and odors.

2. Жуучу каражат тараткыч

Remove and clean the detergent dispenser drawer regularly to prevent residue buildup, which can affect dispensing efficiency.

3. Фильтрди тазалоо

Periodically check and clean the drain pump filter, usually located at the bottom front of the machine. This prevents blockages and ensures proper drainage.

4. Тышкы тазалоо

Кир жуугуч машинанын сырткы беттерин жумшак, г менен сүртүңүзamp кездеме. Абразивдүү тазалагычтардан же эриткичтерден качыңыз.

5. Diamond Care Drum

The unique diamond-shaped drum is designed to be gentle on your clothes. Ensure no sharp objects are loaded that could damage the drum surface.

Деталдаштырылган view of the Diamond Care drum interior, showcasing its unique texture designed to protect fabrics during washing.

Проблемаларды чечүү

Кардарларды тейлөө кызматына кайрылуудан мурун, төмөнкү жалпы маселелерди текшериңиз:

• Машина иштебей жатат: Ensure the power cord is plugged in, the door is fully closed, and the water supply is turned on.
• Ашыкча термелүү: Verify that all transport bolts have been removed and the machine is properly leveled.
• Суу агып кетпейт: Check if the drain hose is kinked or blocked, and clean the drain pump filter.
• Сууну толтурбоо: Ensure the water tap is open and the water inlet hose is not kinked.
• адаттан тыш ызы-чуу: Барабанда же насостун чыпкасында бөтөн нерселердин бар-жогун текшериңиз.

Техникалык шарттар

For detailed energy information, refer to the EPREL database: https://eprel.ec.europa.eu/qr/1829604

Table recommending washing machine capacity based on number of users: 6 kg (up to 2 users), 7 kg (up to 3 users), 8 kg (up to 4 users), 9 kg (up to 5 users), 10 kg (up to 6 users), 12 kg (more than 6 users). Note: Recommendations are indicative and depend on individual usage.

Кепилдик жана колдоо

Your Cecotec Bolero Dresscode 7410 Inverter Washing Machine comes with a standard manufacturer's warranty. The Inverter Plus Motor specifically benefits from a 10-year warranty, ensuring long-term reliability.

For warranty claims, technical support, or spare parts, please contact Cecotec customer service through their official webсайт же сатып алуу документтери менен берилген байланыш маалыматы.
