1. Коопсуздук боюнча маанилүү маалымат
Please read and understand all instructions and safety warnings before assembly and use of this carport. Failure to follow these instructions may result in injury or damage to the product.
- Анкерлөө: Always ensure the carport is securely anchored to the ground using the provided stakes and tensioning system. In windy conditions, additional anchoring may be required.
- Аба ырайы шарттары: This carport is designed for protection against light rain, UV, and debris. It is not intended for use in extreme weather conditions such as heavy snow, strong winds, or severe storms. Disassemble or reinforce the structure during such conditions.
- Ассамблея: Assembly requires at least two adults. Wear appropriate safety gear, such as gloves, during assembly.
- Жайгашкан жери: Choose a level, clear area for installation, away from power lines, trees, or other structures that could cause damage.
- Тейлөө: Regularly inspect the frame, cover, and anchoring points for wear or damage. Replace worn parts immediately.
2. Пакеттин мазмуну
Монтаждоону баштоодон мурун бардык компоненттер бар экендигин текшериңиз. Эгерде кандайдыр бир бөлүктөрү жок же бузулуп калса, кардарларды колдоо менен байланышыңыз.
- Galvanized Steel Frame Pipes (various lengths and connectors)
- Polyethylene (PE) Fabric Cover
- Жер казыктары
- Ratchet Tension Straps
- Монтаждоочу жабдуулар (болт, гайкалар, шайбалар)
- Instruction Manual
Image: The carport is typically shipped in two packages. Ensure both packages are received before starting assembly.
3. Орнотуу жана монтаждоо нускамалары
Туура чогултуу үчүн бул кадамдарды кылдаттык менен аткарыңыз. Чогултуу үчүн кеминде эки адамдын болушу сунушталат.
- Бөлүктөрдү таңгактан чыгаруу жана аныктоо: Lay out all frame pipes, connectors, and the fabric cover. Refer to the parts list in the manual to identify each component.
- Рамканы чогултуу: Connect the galvanized steel pipes according to the diagrams in your detailed manual. Ensure all connections are secure.
- Капкакты тиркөө: Carefully drape the polyethylene fabric cover over the assembled frame. Ensure it is centered and aligned correctly.
- Капкакты бекитиңиз: Fasten the cover to the frame using the integrated straps or ties. Ensure the cover is taut to prevent water pooling and wind damage.
- Жер казынасын орнотуу: Hammer the ground stakes through the designated holes in the feet of the frame. Bury the extended edges of the cover deep into the soil for added stability.
Image: Detail of the stable standing system, showing how to hammer ground stakes through the frame's feet and bury the cover's edges for enhanced stability.
Image: The cover tensioning system uses straps to ensure the cover remains securely attached to the frame, providing better protection and a neat appearance.

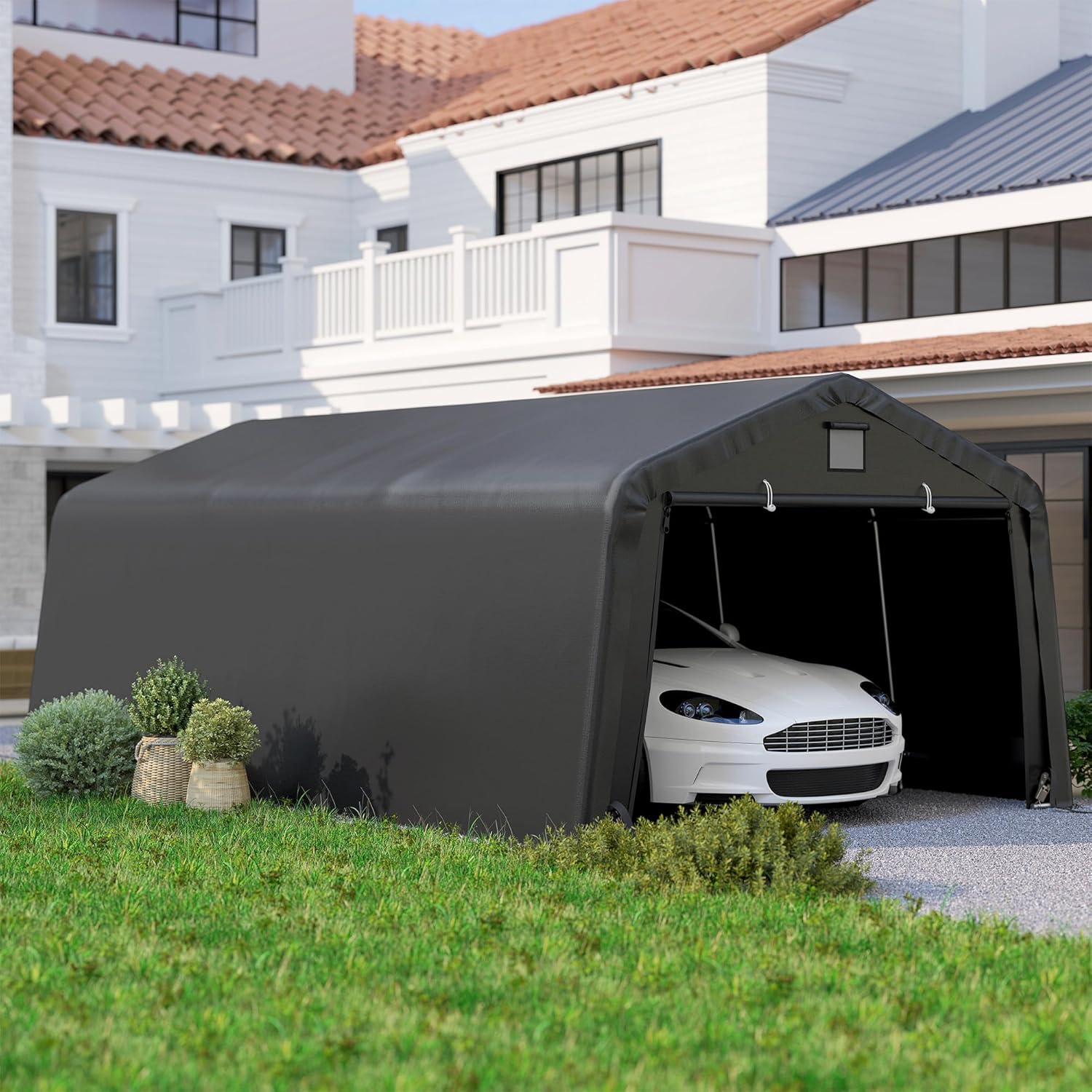

Image: The fully assembled Outsunny carport providing shelter for a vehicle in a residential setting.
Video: This video demonstrates the assembly process and key features of the carport, providing a visual guide for installation.
4. Иштөө нускамалары
This carport is designed for ease of use and versatility.
- Large Zippered Door: The front panel features a large zippered door for convenient access. Roll up the door and secure it with the attached ties to allow vehicles to enter or exit easily.
- Ventilation Windows: The carport includes two ventilation windows. These can be rolled up to allow for air circulation, reducing condensation and heat buildup, or rolled down for increased wind resistance and protection.
Image: The large zippered door provides easy access for vehicles, making it simple to park or retrieve your car.
Image: The two ventilation windows can be rolled up for air circulation or rolled down for wind resistance, optimizing internal conditions.
5. Техникалык тейлөө
Regular maintenance will extend the life of your carport.
- Тазалоо: Кездеменин капкагын жумшак самын жана суу менен маал-маалы менен тазалаңыз. Материалга зыян келтирүүчү катаал химиялык заттардан же абразивдүү тазалагычтардан алыс болуңуз.
- Frame Inspection: Annually inspect the galvanized steel frame for any signs of rust, bending, or loose connections. Tighten any loose bolts.
- Капкакты текшерүү: Check the polyethylene cover for tears, punctures, or excessive wear. Small tears can often be repaired with a suitable patch kit.
- Анкердик текшерүү: Regularly verify that all ground stakes and tensioning straps are secure, especially after strong winds or heavy rain. Re-anchor if necessary.
- Кар тазалоо: In areas with snow, promptly remove any accumulation from the carport roof to prevent structural collapse.
6. Кыйынчылыктарды
Жалпы маселелер жана алардын чечимдери үчүн бул бөлүмдү караңыз.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Carport is unstable or sways in wind. | жетишсиз анкер; бош кадр байланыштары. | Ensure all ground stakes are fully inserted and tensioning straps are tight. Check and tighten all frame bolts. Consider additional anchoring in very windy areas. |
| Water pools on the roof. | Cover not taut enough; improper frame assembly. | Adjust tensioning straps to make the cover tighter. Verify frame assembly is correct and not sagging. |
| Cover tears or rips. | Extreme weather conditions; sharp edges on frame; material fatigue. | Avoid use in severe weather. Inspect frame for sharp points and cover with tape if found. For small tears, use a repair kit. For large tears, replacement cover may be needed. |
| Zipper on door sticks or breaks. | Сыдырмадагы кир/таштандылар; ашыкча күч. | Clean zipper teeth. Apply a zipper lubricant. Operate zipper gently. |
7. Техникалык шарттар
Detailed product specifications for the Outsunny 12' x 20' Heavy Duty Carport.
- Бренд: күнөстүү
- Модель номери: 84C-451V00BK
- Материал: Эритме болот (рамка), полиэтилен (PE) (капкак)
- Түсү: Кара
- Жалпы өлчөмдөрү: 243.25" L x 143.75" В x 95.75" Ж (20.27 фут L x 11.98 фут В x 7.98 фут Ж)
- Карниздин бийиктиги: 75.5" H (6.29 ft H)
- Кабат аянты: Болжол менен 243.3 чарчы фут
- Элемент Салмагы: 123 фунт
- UV коргоо: Ооба
- Сууга туруктуулук деңгээли: Сууга чыдамдуу
- Ассамблея талап кылынат: Ооба
- UPC: 196393036488

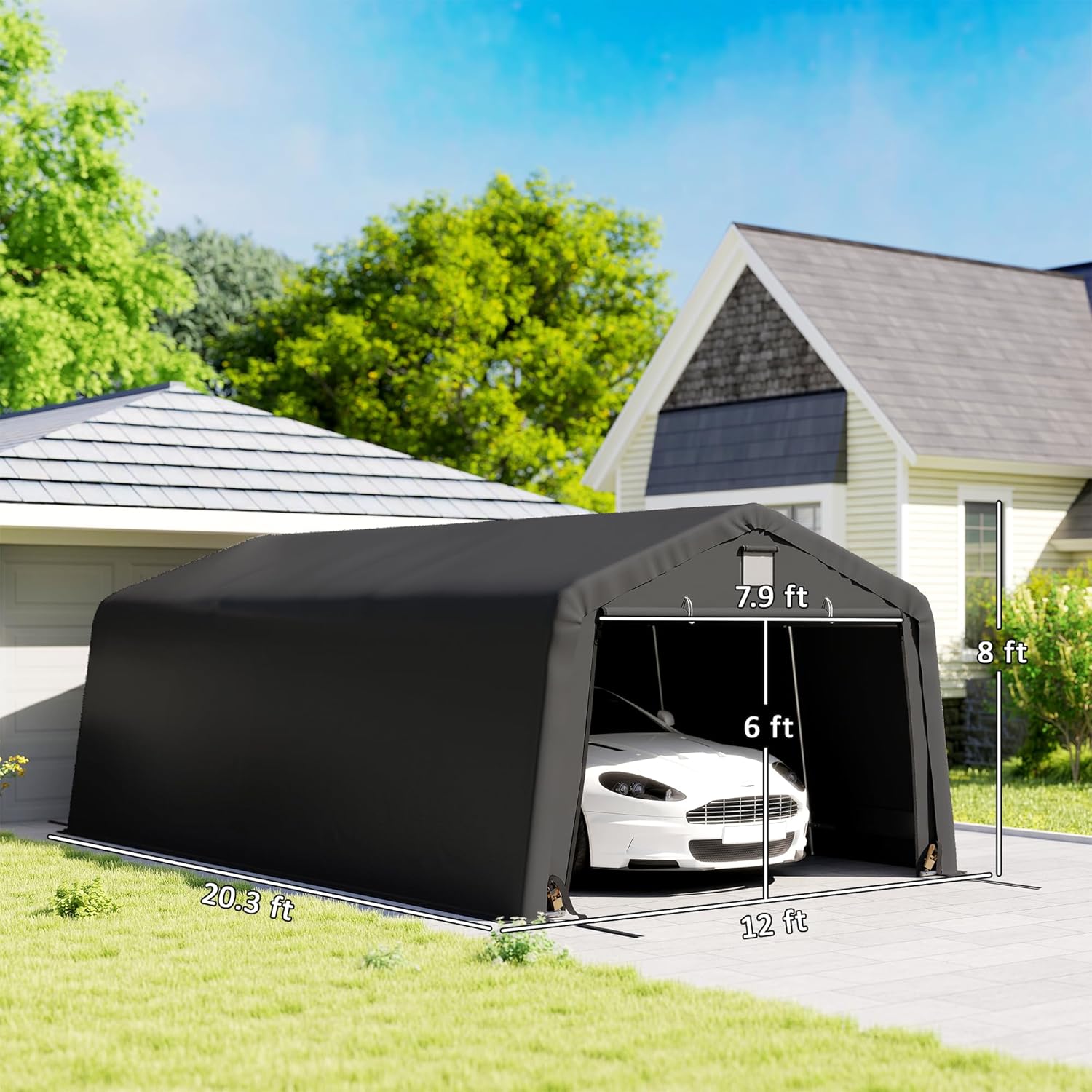

Image: Visual representation of the carport's dimensions, including length, width, and height.
8. Кепилдик жана колдоо
Кепилдик жөнүндө маалымат, алмаштыруучу тетиктер же техникалык колдоо алуу үчүн Outsunny кардарларды тейлөө кызматына кайрылыңыз. Байланыш маалыматы үчүн сатып алуу документтерин караңыз же расмий Outsunny веб-сайтына кириңиз. webсайт.
Please have your model number (84C-451V00BK) and proof of purchase available when contacting support.
