Homdox HD4000 Electric Pressure Washer Instruction Manual

Introduction

The Homdox HD4000 Electric Pressure Washer is a powerful 1700W cleaning machine designed for various outdoor cleaning tasks. It features a 1.8 GPM flow rate, an adjustable gimbaled nozzle, and a lightweight design with 4 quick-locking wheels for easy maneuverability. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your pressure washer.

Image: The Homdox HD4000 pressure washer in use, effectively cleaning a wooden deck.

Коопсуздук эрежелери

Please read and understand all safety instructions before operating the pressure washer.

• The unit is equipped with an Automatic Total Stop System (TSS) which automatically shuts off the pump when the trigger is not engaged, saving energy and prolonging pump life.
• The spray gun includes a коопсуздук кулпу to prevent accidental operation. Always engage the safety lock when the unit is not in use.
• This pressure washer is IPX5 суу өткөрбөйт, providing protection against water jets.
• The power cord features a GFCI плагини to prevent electrical leakage, ensuring safe operation. Do not bypass or modify the GFCI plug.
• Always ensure all connections are secure to prevent water leakage during operation.
• Maintain a safe distance from the spray nozzle to avoid injury or damage to surfaces.

Image: Visual representation of the GFCI protection, Total Stop System, and safety lock features.

Эмне камтылган

Пакет төмөнкү компоненттерди камтыйт:

1. Лэнс
2. Gun
3. Сопло
4. Тазалоо төөнөгүчү
5. Кир жуугуч бөтөлкө
6. Жогорку басымдагы шланг
7. Дөңгөлөк чогултуу
8. Суу чыгаруу
9. Электр кабели
10. Gun Holder
11. Lock-Off Switch
12. Handle
13. КҮЙГҮЗҮҮ/ӨЧҮРҮҮ

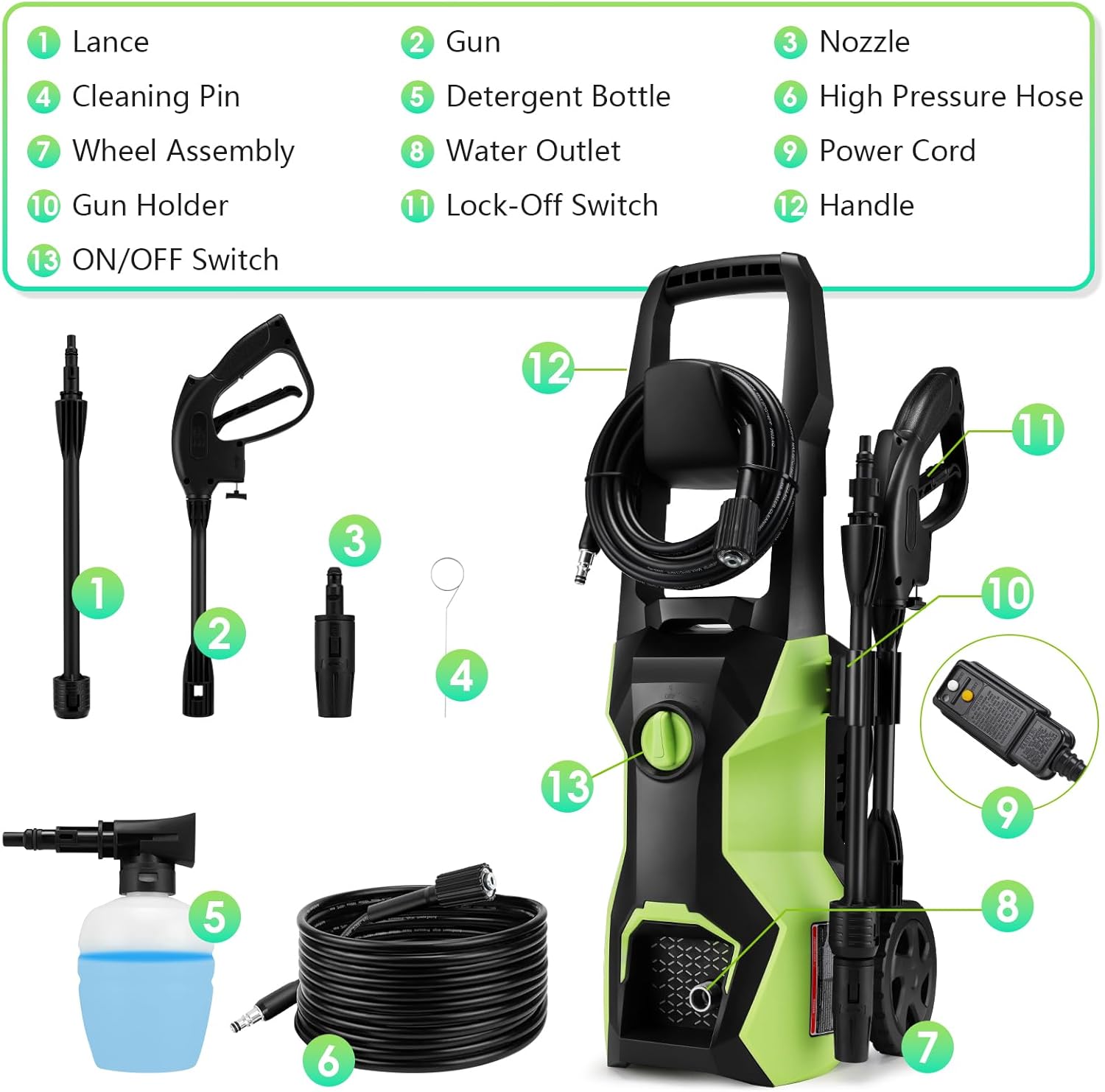

Image: A detailed diagram illustrating all components included with the Homdox HD4000 Pressure Washer.

Орнотуу жана чогултуу

Follow these steps to assemble your Homdox HD4000 Pressure Washer:

1. Дөңгөлөктөрдү тиркөө: Securely attach the wheel assembly to the main unit. The unit features 4 quick-locking wheels for stability and easy movement.
2. Орнотуу туткасы: Insert the handle into the designated slots on the top of the main unit until it clicks into place.
3. Connect Detergent Bottle: Attach the detergent bottle to its holder on the unit.
4. Connect High Pressure Hose: Connect one end of the high-pressure hose to the water outlet on the pressure washer and the other end to the spray gun. Ensure connections are tight.
5. Assemble Spray Gun and Lance: Connect the lance to the spray gun, then attach the adjustable nozzle to the lance.
6. Суу кирүүчү түтүктү туташтырыңыз: Connect your garden hose to the water inlet on the pressure washer.
7. Электр шнуруна сайыңыз: Plug the GFCI-equipped power cord into a suitable electrical outlet.

Image: A visual step-by-step guide for the installation and assembly of the pressure washer.

Иштөө нускамалары

Суу менен камсыздоону туташтыруу

The Homdox HD4000 supports multiple methods for water intake:

• Крандын туташуусу: Connect a standard garden hose to the pressure washer's water inlet and to a household faucet.
• Чака өзүн-өзү праймерлөө: Place the water inlet hose into a bucket of clean water. Ensure the hose remains submerged.
• Бассейнди өзүн-өзү толтуруу: Place the water inlet hose into a pool or other large water source. Ensure the hose remains submerged.

Note: Always ensure a continuous and adequate water supply before starting the unit.

Image: Illustrations of connecting the water supply via faucet, bucket (self-priming), and pool (self-priming).

Соплоду тууралоо

The Homdox HD4000 features an adjustable gimbaled nozzle. Rotate the nozzle to select your desired spray pattern:

• Narrow Fan: For concentrated, high-impact cleaning.
• Wide Fan: For broader coverage and general cleaning.
• Foam Mode: For applying detergent with the foam cannon.

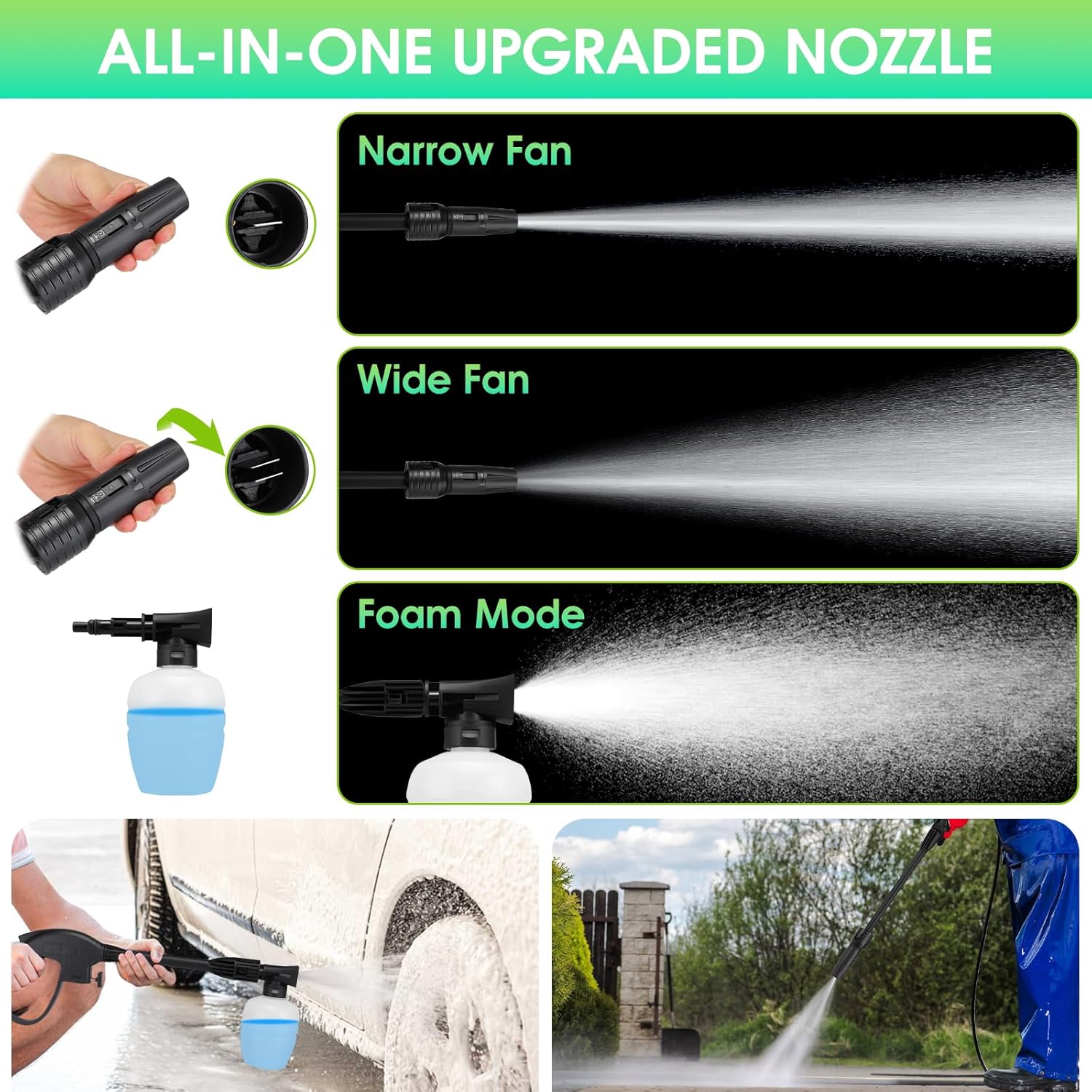

Image: Visual guide to adjusting the nozzle for narrow fan, wide fan, and foam spray patterns.

Басымдагы жуугучту ишке киргизүү

1. Суу менен камсыздоо толугу менен ачык экенин текшериңиз.
2. Turn the ON/OFF switch to the "ON" position.
3. Release the safety lock on the spray gun.
4. Squeeze the trigger to begin spraying. Allow a few seconds for air to purge from the system and for water to flow steadily.

Басымдагы жуугучту токтотуу

1. Release the trigger on the spray gun. The Total Stop System (TSS) will automatically shut off the pump.
2. Engage the safety lock on the spray gun.
3. КҮЙГҮЗҮҮ/ӨЧҮРҮҮ которгучун "ӨЧҮРҮҮ" абалына буруңуз.
4. Суу менен камсыздоону өчүрүңүз.
5. Squeeze the trigger briefly to release any remaining pressure in the system.

Жуучу каражатты колдонуу

1. Кир жуучу каражаттын бөтөлкөсүн тиешелүү басымдагы жуугуч каражат менен толтуруңуз.
2. Attach the detergent bottle to the spray gun or designated port.
3. Select "Foam Mode" on the adjustable nozzle.
4. Apply detergent to the cleaning surface.
5. After applying detergent, switch back to a rinse mode (Narrow or Wide Fan) and rinse the surface thoroughly.

Кароо жана тейлөө

Туура тейлөө сиздин басымдуу жуугучуңуздун узак иштөөсүн жана оптималдуу иштешин камсыз кылат.

• Тазалоо: After each use, clean the exterior of the pressure washer with a damp кездеме.
• Соплолорду тейлөө: If the nozzle becomes clogged, use the provided cleaning pin to clear any debris from the nozzle opening.
• Шланг жана байланыштар: Regularly inspect the high-pressure hose and all connections for wear, damage, or leaks. Replace damaged parts immediately.
• Сактагыч: Store the pressure washer in a dry, frost-free area. Drain all water from the pump and hoses before storing to prevent damage from freezing.

Жалпы көйгөйлөрдү чечүү

Refer to this section for solutions to common operational problems.

• Кубат жок:
  • Электр шнурунун иштеген розеткага бекем сайылганын текшериңиз.
  • Verify the GFCI plug has not tripped. Reset if necessary.
  • ON/OFF которгучу "ON" абалында экенин текшериңиз.
• Төмөн басым:
  • Check if the water supply is fully open and adequate.
  • Inspect the garden hose for kinks or blockages.
  • Clean the nozzle with the provided cleaning pin to remove any clogs.
  • Ensure all hose connections are tight and not leaking.
• Суу агып кетиши:
  • Tighten all hose connections, including the garden hose, high-pressure hose, and nozzle.
  • O-шакекчелерди жана пломбаларды бузулуу бар-жоктугун текшериңиз жана зарыл болсо алмаштырыңыз.

Продукт спецификациялары

Кепилдик жана Кардарларды колдоо

The Homdox HD4000 Electric Pressure Washer comes with a 2-year after-sales warranty service. For any questions, issues, or support needs, please contact Homdox customer service. Refer to your purchase documentation for specific contact details.

Image: Information regarding the 2-year after-sales warranty and customer service availability.
