1. Киришүү
Thank you for choosing the TrustFire MC5 Rechargeable LED Flashlight. This manual provides detailed instructions for the proper use, maintenance, and safety of your device. The MC5 is a high-performance, compact flashlight designed for various applications, including outdoor activities, emergency situations, and daily use. It features multiple lighting modes, a powerful magnetic tail, and a durable, waterproof construction.
2. Пакеттин мазмуну
Сураныч, пакетте төмөнкү нерселерди текшериңиз:
- TrustFire MC5 LED Flashlight
- Rechargeable Lithium-Ion Battery (5000mAh, pre-installed)
- Магниттик кубаттоочу кабель
- Запастык шакек
- User Manual
An overview of the TrustFire MC5 flashlight, showcasing its compact design, magnetic charging port, and included accessories.
3. Продукциянын өзгөчөлүктөрү
- Жогорку жарыктык чыгаруу: Күчтүү жарыктандыруу үчүн 3300 люменге чейин.
- Кеңейтилген нур аралыгы: Illuminates objects up to 362 meters (1187 feet) away.
- Бир нече жарык режимдери: Five modes including High, Medium, Low, Candlelight, and Strobe.
- Кайра заряддалуучу батарея: Equipped with a 5000mAh Lithium-Ion battery for long runtime.
- Магниттик заряддоо: Convenient and efficient magnetic charging port.
- IPX8 суу өткөрбөйт рейтинги: Submersible up to 2 meters for 30 minutes, suitable for all weather conditions.
- Таасирге каршылык: Designed to withstand drops from up to 1 meter.
- Туруктуу курулуш: Made from aviation-grade aluminum alloy (AL6061-T6) with a hard-anodized finish.
- Магниттик куйрук капкагы: Allows for hands-free attachment to metal surfaces.
- Two-Way Pocket Clip: Provides versatile carrying options.
This image demonstrates the powerful beam of the TrustFire MC5 flashlight, capable of illuminating objects up to 362 meters away with its 3300 lumens.
A visual representation of the five distinct lighting modes available on the TrustFire MC5: High (3300 lumens), Medium (550 lumens), Low (160 lumens), Candlelight (7 lumens), and Strobe (3300 lumens).

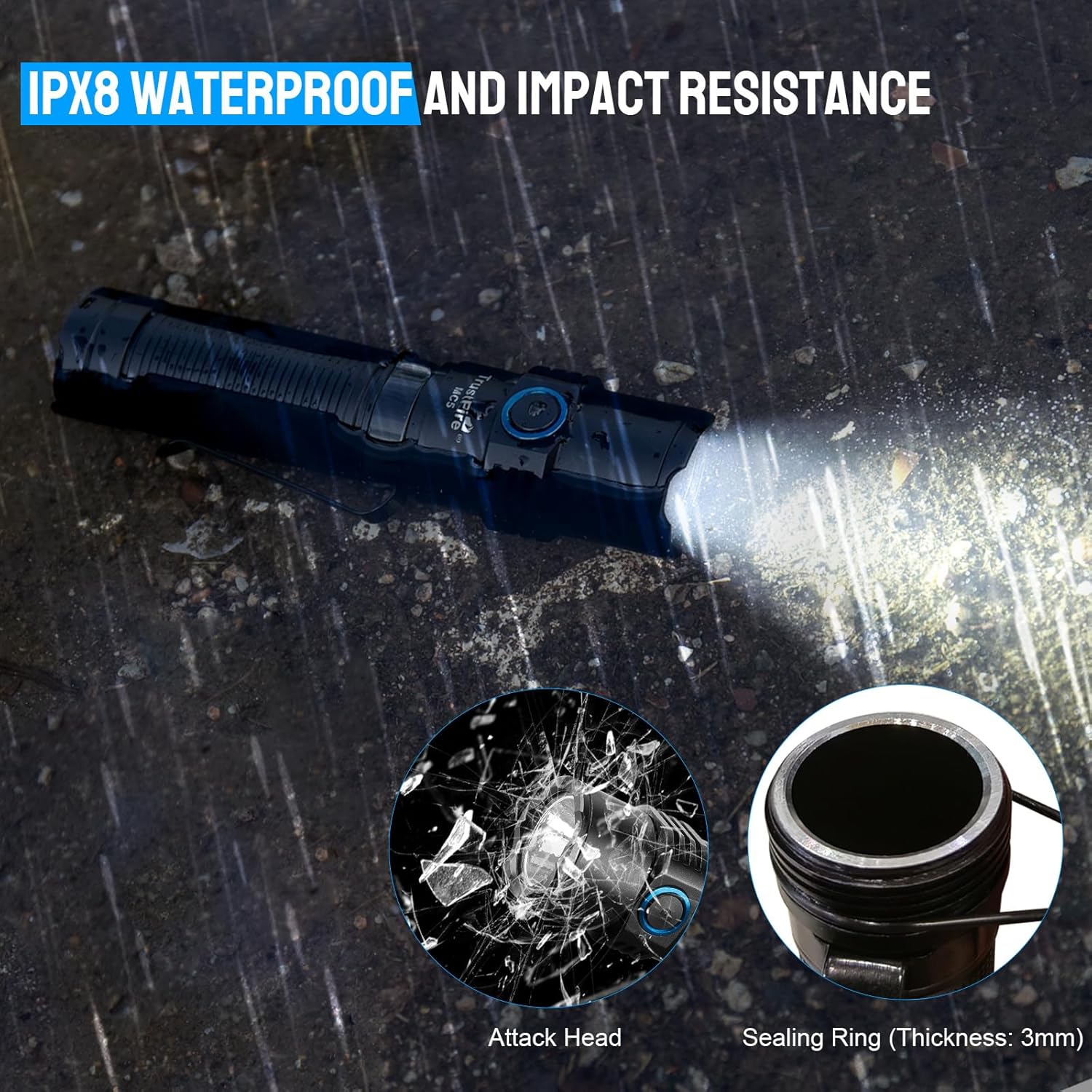

The flashlight is shown partially submerged in water, highlighting its IPX8 waterproof rating, which ensures reliable operation in wet conditions. Insets show the attack head and a thick sealing ring, indicating impact resistance and water protection.
The powerful magnetic tail cap allows the TrustFire MC5 to be attached to metal surfaces, providing hands-free illumination for various tasks.
4. Орнотуу
4.1 Батареяны орнотуу
The TrustFire MC5 comes with a pre-installed 5000mAh Lithium-Ion battery. Ensure the battery is securely seated before first use. If removing or re-inserting the battery, ensure the positive (+) end faces towards the flashlight head.
4.2 Алгачкы заряддоо
Before first use, fully charge the flashlight. Connect the magnetic charging cable to the tail cap of the flashlight and plug the USB end into a compatible USB power source (e.g., wall adapter, power bank, computer USB port). The indicator light on the flashlight will show charging status.
The image shows the magnetic charging cable attached to the flashlight's tail cap, connected to a USB power source, demonstrating the convenient and practical magnetic charging feature.
5. Иштөө нускамалары
5.1 Күйгүзүү/өчүрүү
- Кол чыракты буруш үчүн ON: Press the side switch once.
- Кол чыракты буруш үчүн ӨЧҮРҮҮ: Press and hold the side switch for approximately 1 second.
5.2 Режимди алмаштыруу
When the flashlight is ON, single-press the side switch to cycle through the lighting modes in the following order: High → Medium → Low → Candlelight. The flashlight will remember the last used mode (except Strobe) when turned off and on again.
5.3 Строб режими
Иштетүү үчүн Strobe mode, double-press the side switch quickly from any ON state. Double-press again to return to the previously used mode.
5.4 Батареяны заряддоо
Connect the magnetic charging cable to the charging port on the tail cap. The indicator light on the flashlight will display the charging status:
- Кызыл жарык: Кубатталууда.
- Жашыл жарык: Заряддоо аяктады.
A full charge typically takes approximately 4-5 hours. The flashlight can operate for up to 252 hours on its lowest setting after a full charge.
Ички view diagram illustrating the customized 3.7V 21700 5000mAh rechargeable battery, which provides an extended runtime of up to 252 hours.
6. Техникалык тейлөө
6.1 Тазалоо
Кол чырактын корпусун жумшак менен сүртүңүз, гamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз. Оптималдуу жарык чыгаруу үчүн линзаны таза кармаңыз.
6.2 O-ring Maintenance
Regularly inspect the O-rings for wear and tear. Lubricate them with silicone grease to maintain the waterproof seal. Replace damaged O-rings with the provided spare.
6.3 Сактоо
If the flashlight will not be used for an extended period, it is recommended to remove the battery to prevent potential leakage. Store the flashlight in a cool, dry place away from direct sunlight and extreme temperatures.
7. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Кол чырак күйбөйт. | Батарея түгөнүп калган же туура эмес салынган. | Батареяны кубаттаңыз же анын оң (+) учу башка каратып салынганын текшериңиз. |
| Жарыктын чыгышы күңүрт. | Батареянын деңгээли төмөн. | Батареяны кайра заряддаңыз. |
| Кол чырак заряддалбайт. | Charging cable not properly connected or faulty power source. | Ensure the magnetic cable is securely attached and try a different USB power source. |
| Суу кириши. | Бузулган же туура эмес орнотулган О-шакекче. | Inspect and replace O-rings if damaged. Ensure all parts are tightly screwed. |
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модел | MC5 |
| Жарык булагы | LED |
| Максималдуу жарыктык | 3300 Lumens |
| Beam Distance | 362 метрге чейин |
| Жарык режимдери | High, Medium, Low, Candlelight, Strobe |
| Батарея түрү | 1 x 21700 Lithium-Ion (5000mAh) |
| Заряддоо ыкмасы | Magnetic USB Charging |
| Суу каршылык | IPX8 (2 метр сууга түшүүчү) |
| Таасирге каршылык | 1 метр |
| Материал | Aviation-grade Aluminum Alloy (AL6061-T6) |
| Өлчөмдөр | 1.34"D x 2.24"W x 5.5"H (болжол менен) |
| Салмагы | 6.4 унция (болжол менен) |
9. Коопсуздук маалыматы
- Do not shine the flashlight directly into eyes. The high brightness can cause temporary vision impairment.
- Балдар жетпеген жерде сактаңыз.
- Do not disassemble the flashlight head or modify the internal components, as this may damage the flashlight and void the warranty.
- Use only the specified battery type and charging cable.
- Кол чыракты экстремалдык температурага же ачык отко тийгизбеңиз.
- Ensure the battery is inserted correctly to prevent damage.
10. Кепилдик жана колдоо
TrustFire offers a 3 жылдык алмаштыруу кызматы for the MC5 flashlight. For any questions, concerns, or support needs, please contact our customer service team. We are available Жумасына 7 күн, суткасына 24 саат, to provide a satisfactory solution.
For further assistance, please visit the official TrustFire webсайтка же сатуучуга кайрылыңыз.
