1. Орнотуу
1.1 Кутудан чыгаруу жана алгачкы текшерүү
Upon receiving your BLUETTI AC2P, carefully open the packaging and inspect all included items:
- BLUETTI AC2P көчмө электр станциясы
- AC заряддоо кабели
- Күн кубаттоо кабели
- Колдонуучунун колдонмосу
Figure 1: BLUETTI AC2P Portable Power Station
1.2 Биринчи колдонуу жана кубаттоо
Before first use, it is recommended to fully charge the power station. The AC2P supports multiple charging methods:
- AC заряддоо: Achieve 0-80% charge in just 45 minutes, and 100% in 70 minutes with 270W Turbo Charging.
- Күн кубаты: Max 200W solar input, fully charged in 1.5-2.0 hours.
- Унаа заряддоо: Fully charged in about 2 hours via the car socket.
- Lead-Acid Battery Charging: Supported for versatile charging options.

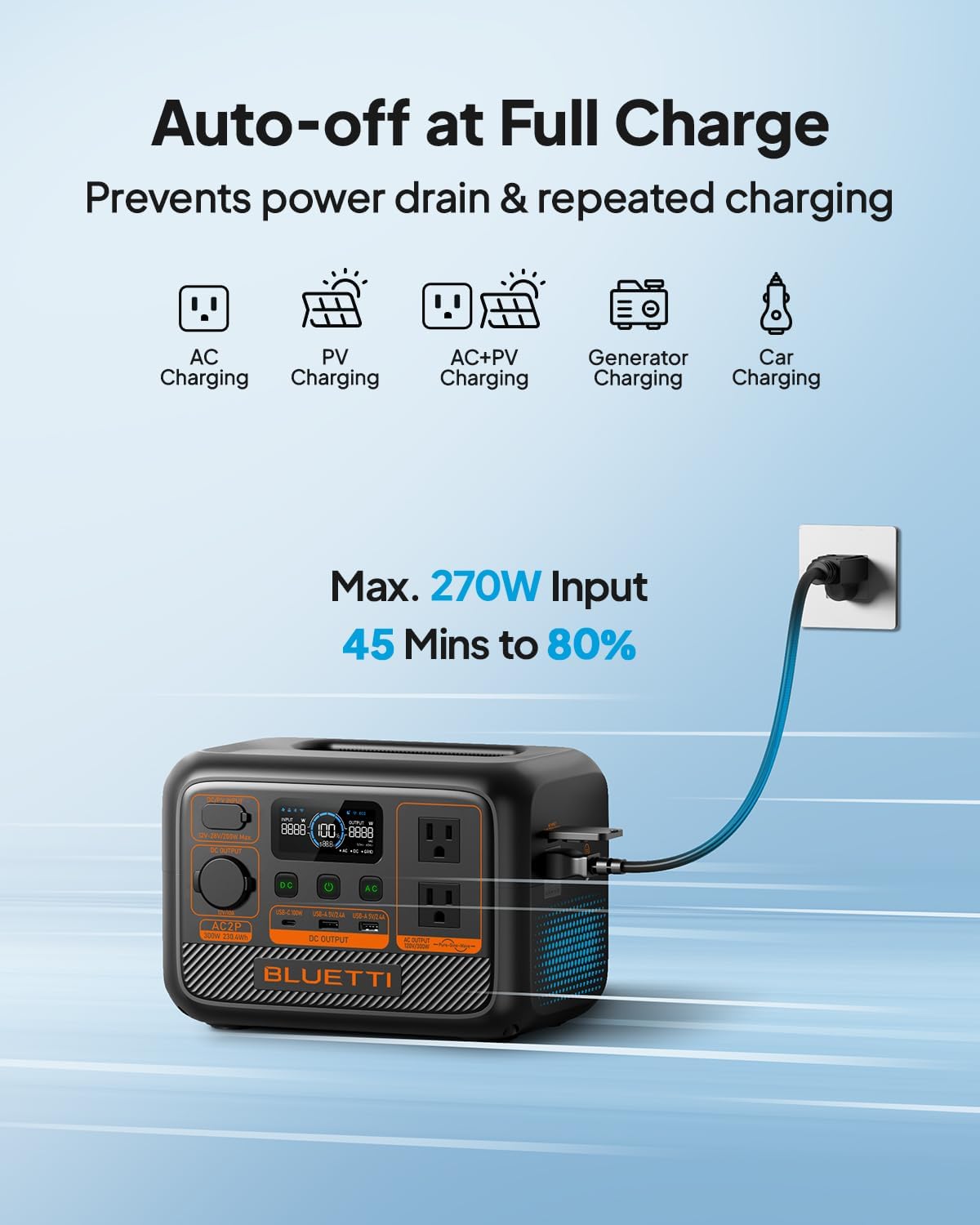

Figure 2: AC Charging the BLUETTI AC2P
Figure 3: Solar Charging the BLUETTI AC2P
Figure 4: Car Charging the BLUETTI AC2P
2. Иштөө нускамалары
2.1 Overview of Ports and Features
The BLUETTI AC2P is designed for versatility and portability, weighing only 7.9 lbs. It features 6 output ports to meet various charging needs:
- 2 x 300W AC розеткалары (600W электр көтөргүч)
- 1 x USB-C (100W)
- 2 x USB-A (5V/2.4A)
- 1 x 12V/10A Cigarette Lighter Port
Figure 5: Portable and Powerful for Outdoor Use
Figure 6: 6-in-1 Charging Capabilities
2.2 Display & Controls
The intuitive LCD display provides real-time information on input/output wattagд, батареянын пайызыtage, and remaining runtime. Dedicated buttons allow easy control of DC and AC outputs.
Figure 7: Smart Control via BLUETTI App
2.3 Power Lifting режими
The AC2P can carry purely resistive loads up to 600W in Power Lifting Mode, allowing you to power higher-wattage appliances like hair dryers or electric kettles.
Figure 8: 600W Power Lifting Capability
2.4 Uninterruptible Power Supply (UPS)
In the event of a power grid failure, the AC2P will kick off within 0.02 seconds to ensure the continuous operation of connected appliances.
Figure 9: UPS Functionality
2.5 ЭКО режими
Activate ECO mode to improve energy efficiency. The AC2P stops charging once fully charged to prevent overcharging and extends battery life.
Figure 10: Improve Energy Efficiency with ECO Mode
2.6 Расмий продукт Video
Video 1: BLUETTI Portable Power Station AC2A Overview. This video provides a comprehensive look at the features and operation of the BLUETTI AC2A, which shares many similarities with the AC2P model.
3. Техникалык тейлөө
3.1 Батареяга кам көрүү
The BLUETTI AC2P is built with a LiFePO4 battery and Battery Management System (BMS) for enhanced safety and longevity, offering 3,000+ life cycles. To maintain optimal battery health, it is recommended to discharge/recharge the battery every 3 months if not in regular use.
11-сүрөт: LiFePO4 батареясынын технологиясы
3.2 Жалпы тазалоо
Keep the power station clean by wiping its exterior with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials that could damage the surface.
3.3 Сактоо
Store the unit in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the battery is partially charged (around 50-80%) before long-term storage.
4. Кыйынчылыктарды
4.1 Жалпы маселелер
- USB порттору иштебейт: Ensure the DC output is activated by pressing the corresponding button on the unit.
- AC Charging Cable Stiffness: Some users have reported the included AC charging cable can be stiff. If experiencing difficulty maintaining a tight connection, an alternative compatible cable may be used.
- Power Lifting Limitations: While rated for 600W Power Lifting, some highly inductive or capacitive loads may not operate optimally. This mode is best suited for purely resistive loads.
4.2 Колдоо кызматы менен байланышуу
If you encounter issues not covered in this manual, please refer to the BLUETTI App for status monitoring or contact BLUETTI customer support for assistance.
5. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | BLUETTI |
| Модель аты | AC2P |
| Батарея түрү | LiFePO4 |
| Батарея сыйымдуулугу | 230.4 Wh |
| AC Output | 300W (600W Power Lifting) |
| AC розеткалары | 2 |
| USB-C чыгышы | 100 Вт |
| USB-A чыгаруу | 5V/2.4A (2 ports) |
| Туруктуу токтун чыгышы (тамеки күйгүзгүч) | 12V/10A |
| DC/PV киргизүү | 12V-28V/200W Max |
| AC киргизүү | 270W макс |
| Продукциянын өлчөмдөрү (L x W x Y) | 6.9" x 6.2" x 9.8" |
| Элемент Салмагы | 7.9 фунт |
6. Кепилдик жана колдоо
6.1 Кепилдик маалыматы
The BLUETTI AC2P Portable Power Station comes with a 5-year warranty, ensuring long-term reliability and peace of mind.
6.2 Кардарларды колдоо
BLUETTI maintains widespread sales and after-service networks. Should you have any questions or require assistance, please do not hesitate to contact our customer support team.
расмий сапар Amazon'догу BLUETTI дүкөнү көбүрөөк маалымат жана колдоо булактары үчүн.
