1. Продукт бүтүп калдыview
The ELECTROPRIME SUITU ST-6638 is a versatile wireless device designed for vehicle cleaning, integrating both vacuum suction and air blowing functionalities. Its compact and lightweight design makes it easy to store and handle. Key features include a powerful motor, built-in lighting for dark areas, and an environmentally friendly, washable filter.
Негизги өзгөчөлүктөрү:
- Integrated Suction and Blowing: Offers dual functionality for comprehensive cleaning.
- Зымсыз Дизайн: Provides freedom of movement without cord limitations.
- Камтылган жарыктандыруу: Illuminates dark spaces for improved visibility during cleaning.
- Кир жуугуч чыпка: Reusable filter element reduces maintenance costs and environmental impact.
- Компакт жана көчмө: Small footprint for easy storage in a vehicle or home.
Камтылган аксессуарлар:
The standard package includes essential accessories to enhance cleaning versatility. Optional accessories may vary based on the specific product version purchased.
- Straw attachment
- Brush тиркемеси
- User Manual
- Type-C Charging Cable (may be optional with some versions)
- Floor Brush (optional)
- оозу (милдеттүү эмес)
- Small Brush (optional)
- Кубаттоочу база (милдеттүү эмес)

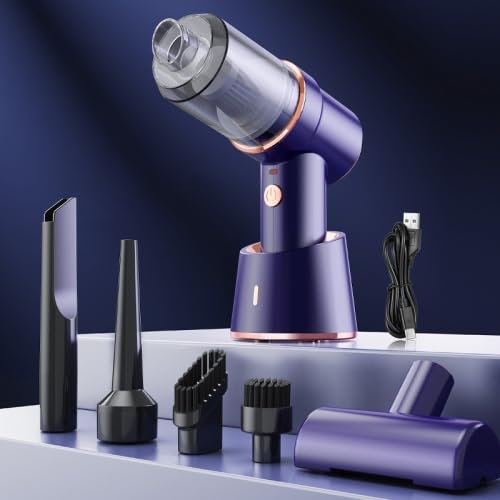

Figure 1: The ELECTROPRIME SUITU ST-6638 wireless vacuum cleaner shown with its charging base and various cleaning attachments, including a long crevice tool, a brush nozzle, and a wider floor brush.
2. Орнотуу
- Батареяны заряддоо: Before first use, ensure the device's battery is fully charged. Connect the Type-C charging cable to the device and a suitable USB power source. The charging indicator will show red during charging and turn green when fully charged.
- Сопло тандаңыз жана бекитиңиз: Choose the appropriate suction or blowing nozzle for your cleaning task. Align the nozzle with the device's intake/outlet and firmly attach it. For example, use the straw attachment for narrow gaps or the brush attachment for upholstery.
3. Иштөө нускамалары
- Күйгүзүү: Locate the power switch on the device and slide or press it to the "ON" position to start operation.
- Тазалоо: Direct the attached nozzle towards the area to be cleaned. For vacuuming, ensure the nozzle makes good contact with the surface to maximize suction. For blowing, aim the nozzle to dislodge dust and debris.
- Нымдуу жана кургак колдонуу: This vacuum cleaner supports both wet and dry cleaning. When absorbing liquids, exercise caution and avoid overfilling the dustbin.
- Өчүрүү: After cleaning, slide or press the power switch to the "OFF" position.

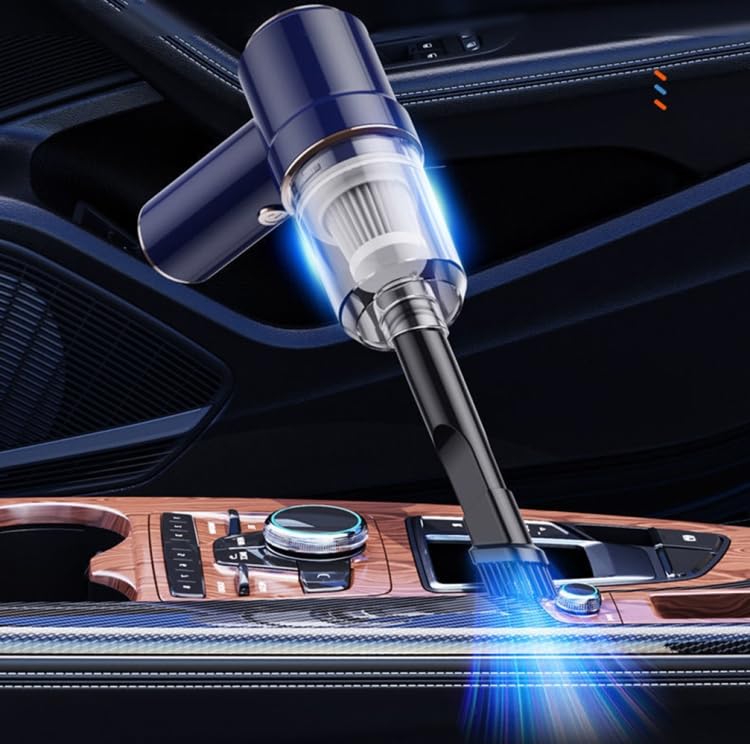

Figure 2: The wireless vacuum cleaner being used to clean the interior of a car, demonstrating its portability and effectiveness in tight spaces.
Аппаратты заряддоо:
- Connect the Type-C charging cable to the charging port on the device or the charging base.
- Plug the other end of the USB cable into a compatible power adapter (not included) or a USB port.
- The charging indicator light will be кызыл заряддоо учурунда.
- Индикатор жарыгы күйөт жашыл батарея толук заряддалганда.
- Толук кубаттоо, адатта, болжол менен талап кылынат 3-4 саат.
- The device can operate continuously for about 30 мүнөт толук зарядда.
Figure 3: Visual representation of the strong suction capability of the vacuum cleaner, showing debris being drawn into the nozzle.
4. Техникалык тейлөө
Regular maintenance ensures optimal performance and extends the lifespan of your ELECTROPRIME SUITU ST-6638.
Фильтрди тазалоо:
- The device features an environmentally friendly, washable filter element.
- To clean, remove the dustbin and carefully extract the filter.
- Чыпканы тазаланганга чейин агын суунун астында чайкаңыз.
- Allow the filter to air dry completely before reinserting it into the device. Do not use the device with a wet filter.
Dustbin Emptying and Wet Use:
- After each use, especially after vacuuming wet debris, empty the dustbin.
- When absorbing water, it is crucial to open the front cover and drain the collected liquid promptly to prevent damage to the device and maintain hygiene.
5. Кыйынчылыктарды
Эгер сиз түзмөгүңүздө көйгөйлөргө туш болсоңуз, төмөнкү жалпы көйгөйлөрдү чечүү кадамдарын караңыз:
- Түзмөк күйбөй жатат:
- Ensure the battery is sufficiently charged. Connect the device to the charger and check if the indicator light turns red.
- Verify the power switch is fully in the "ON" position.
- Төмөн сордуруу күчү:
- Check if the dustbin is full and empty it if necessary.
- Inspect the filter for blockages or excessive dirt. Clean and dry the filter as described in the Maintenance section.
- Ensure all attachments are securely fitted and there are no air leaks.
- If used for wet cleaning, ensure the front cover has been opened to drain water.
- Short Operating Time:
- Ensure the device is fully charged before use (indicator light green).
- Battery performance may decrease over time with prolonged use.
6. Техникалык шарттар
| Параметр | Нарк |
|---|---|
| Материал | ABS |
| Таза Салмак | 0.33 сом |
| Продукт өлчөмү | 180 x 158 x 66 мм |
| Rated Voltage | DC 7.4V |
| Vacuum Degree (Wireless) | Approximately 4000 Pa |
| Номиналдык ылдамдык | 42000 об/мин |
| Литий батарейканын кубаттуулугу | 2 x 1800 мАч |
| Заряддоо ыкмасы | 8.4V USB Booster Line |
| Номиналдуу кубаттуулук | 45 Вт |
| Ызы-чуу деңгээли | ≤ 84 дБ |
| Иштөө температурасы | -20°Cден +50°Cге чейин |
| Filter материалдар | PE+PP+Polyester Hot-Rolled Cloth |
| USB кабелинин узундугу | Болжол менен 1 м |
7. Кепилдик жана колдоо
This product is covered by a warranty policy. For detailed information regarding warranty terms, coverage, and claims, please refer to the official ELECTROPRIME warranty documentation provided with your purchase or visit the manufacturer's webсайт.
For technical support, troubleshooting assistance beyond this manual, or inquiries about replacement parts, please contact ELECTROPRIME customer service. Contact details can typically be found on the product packaging, the official brand webсайты же сатуучу аркылуу.
Өндүрүүчү: ELECTROPRIME
Модель номери: ST-6638 (Item Part Number: TBD0603643303)
