Kerbl 441600 Solar Module Extension Cable Set

Introduction

The Kerbl 441600 Extension Cable Set is an essential accessory designed to extend the connection between your solar module and a 12V battery. This set is particularly useful when the distance between your solar panel and the battery exceeds 2 meters, providing a reliable and efficient solution for power transmission over longer distances. It ensures optimal performance and flexibility for various outdoor applications.

Продукт бүттүview жана компоненттер

The Kerbl 441600 Extension Cable Set includes the following components:

• 1 x Extension Cable Set: Comprising two 5-meter cables (one positive and one negative) with pre-attached connectors.

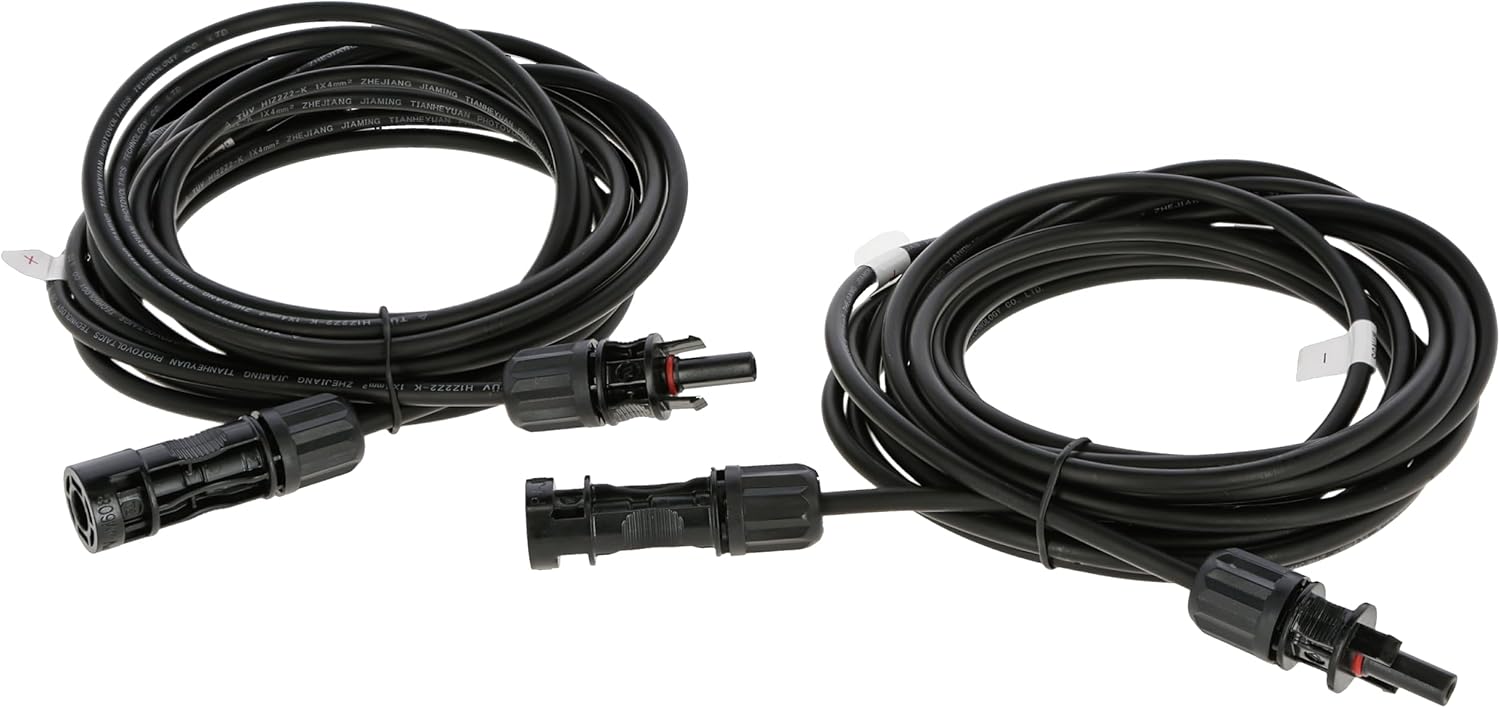

Figure 1: The Kerbl 441600 Extension Cable Set, showing two 5-meter black cables, one positive and one negative, each equipped with compatible connectors for solar modules and 12V batteries.

Жайгашуу

Follow these steps for proper installation of the extension cable set:

1. Шайкештикти текшерүү: Ensure your solar module is either 55W or 100W (article numbers 375559 and 375999). This extension set is designed specifically for these models to ensure optimal performance and safety.
2. Байланыштарды даярдоо: Identify the positive (+) and negative (-) terminals on both your solar module and your 12V battery. The extension cables are color-coded or marked for easy identification (typically red for positive, black for negative, or clearly labeled connectors).
3. Connect to Solar Module: Connect one end of the extension cables to the corresponding output terminals of your solar module. Ensure a secure and firm connection. The connectors are designed for easy plug-and-play installation.
4. Connect to 12V Battery: Connect the other end of the extension cables to the corresponding input terminals of your 12V battery. Again, ensure a secure and firm connection to prevent power loss or short circuits.
5. Кабель багыттоо: Route the cables safely, avoiding sharp edges, pinch points, or areas where they could be tripped over or damaged. The 5-meter length provides ample flexibility for placement. The system can be extended up to 20 meters if additional sets are used.

Сүрөт 2: Жакын пландан view of hands connecting the Kerbl solar extension cables to a 12V battery, demonstrating the simple and secure plug-and-play installation process.

Иштеп жатат

Once the Kerbl 441600 Extension Cable Set is correctly installed, it functions passively to facilitate the transfer of electrical current from your solar module to your 12V battery. There are no active controls or operational steps required for the cables themselves. Their purpose is to extend the reach of your solar power system, allowing for greater flexibility in the placement of your solar module relative to your battery.

Ensure all connections remain secure and free from damage to maintain efficient power transmission.

Техникалык тейлөө

To ensure the longevity and optimal performance of your Kerbl 441600 Extension Cable Set, consider the following maintenance tips:

• Үзгүлтүксүз текшерүү: Periodically inspect the cables and connectors for any signs of wear, fraying, cuts, or corrosion.
• Тазалык: Keep the connectors clean and free from dirt, dust, or moisture. Use a dry, soft cloth for cleaning.
• Коопсуз байланыштар: Ensure all connections remain tight and secure. Loose connections can lead to power loss or overheating.
• Элементтерден коргоо: While designed for outdoor use, protect the cables from extreme weather conditions, prolonged direct sunlight, or standing water if possible, to extend their lifespan.
• Туура сактоо: If the cables are to be stored for an extended period, coil them neatly and store them in a dry, cool place away from direct sunlight and pests.

Проблемаларды чечүү

If you encounter issues with your Kerbl 441600 Extension Cable Set, consider the following troubleshooting steps:

• No Power Transmission:
  • Check all connections: Ensure both ends of the extension cables are securely connected to the solar module and the 12V battery.
  • Verify compatibility: Confirm that your solar module is one of the compatible 55W or 100W models (article numbers 375559 and 375999).
  • Inspect cables for damage: Look for any visible damage, cuts, or breaks in the cable insulation. Damaged cables should be replaced.
• Үзгүлтүктүү кубаттуулук:
  • Tighten connections: Loose connections can cause intermittent power flow. Ensure all plugs are fully inserted and secure.
  • Check for corrosion: Corroded connectors can impede current flow. Clean any corrosion with a suitable electrical contact cleaner.
• Overheating Cables/Connectors:
  • Ensure proper load: Verify that the solar module and battery are within the specified power ratings for the cables.
  • Check for short circuits: Inspect for any exposed wires or accidental contact between positive and negative terminals.
  • Replace if damaged: If cables or connectors show signs of melting or severe discoloration, replace the set immediately.

If problems persist after following these steps, contact Kerbl customer support or a qualified technician.

Техникалык шарттар

Кепилдик жана колдоо

Specific warranty information for the Kerbl 441600 Extension Cable Set is not provided within this manual. For details regarding product warranty, please refer to the product packaging, the official Kerbl website, or contact your point of purchase. For technical support or further assistance, please reach out to Kerbl customer service through their official channels.
