Nuroum C10 All-in-One Conference Webcam Speakerphone User Manual

Introduction

This manual provides comprehensive instructions for the setup, operation, and maintenance of your Nuroum C10 All-in-One Conference Webcam Speakerphone. Please read this manual thoroughly before using the device to ensure optimal performance and longevity.

Продукт бүттүview

The Nuroum C10 is a compact, integrated device designed to streamline your video conferencing and online communication experience. It combines a high-definition webcam, a multi-microphone array, and a powerful speaker into a single, portable unit. This all-in-one solution eliminates the need for multiple separate devices, simplifying your setup.

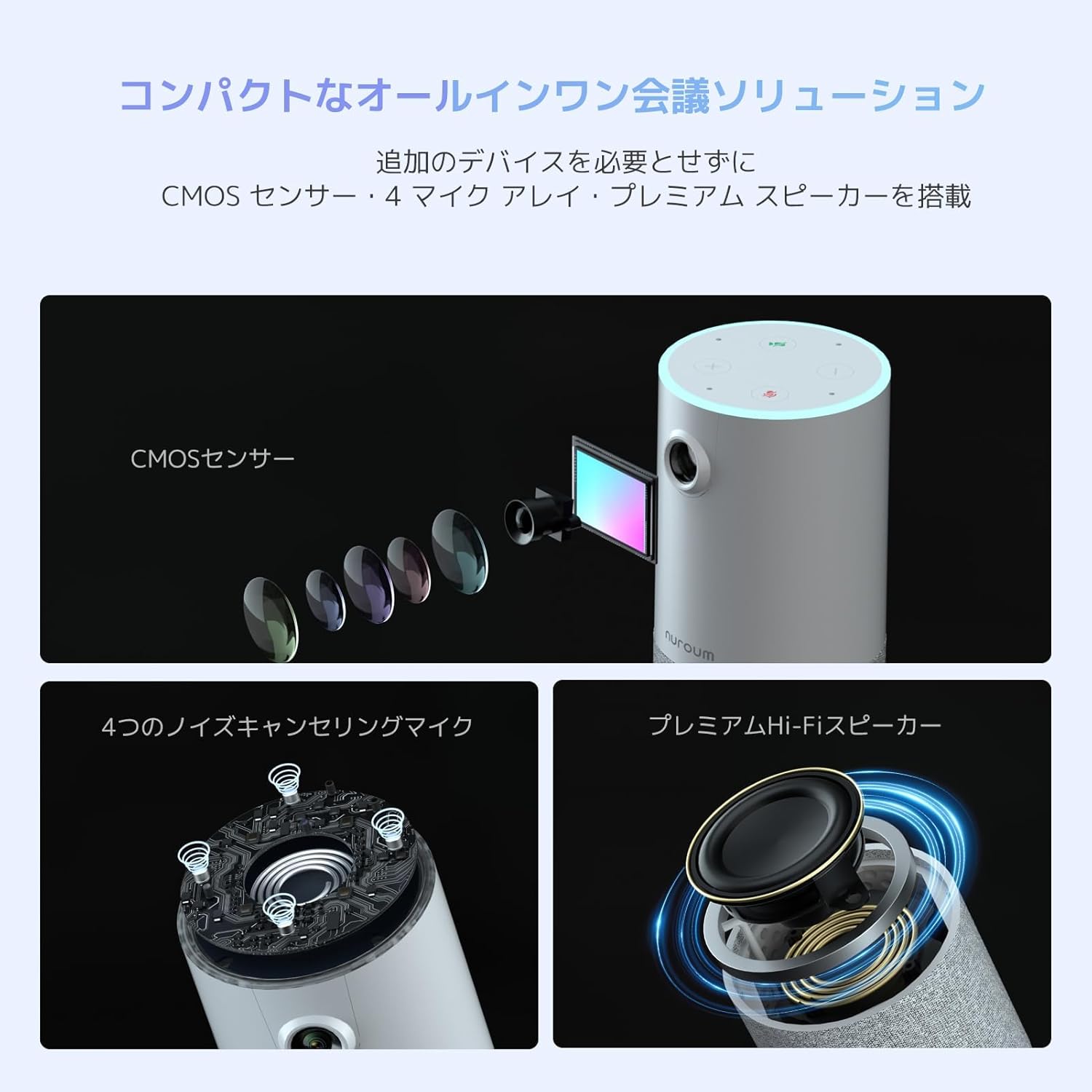

The Nuroum C10 integrates a CMOS sensor for video, a four-microphone array for audio input, and a premium speaker for audio output, providing a complete conference solution.

The Nuroum C10 simplifies your workspace by combining camera, microphone, and speaker functions into one device, contrasting with traditional setups requiring separate components.

Негизги өзгөчөлүктөрү:

• High-Definition Webкамера: 1080P@60fps with HDR functionality and a 90° ultra-wide-angle lens.
• Omnidirectional Microphones: Four built-in microphones with a 3-meter (approx. 10 feet) pickup radius, ensuring clear voice capture from all directions.
• Өркүндөтүлгөн аудио иштетүү: Features proprietary Properclean™ AI noise cancellation, echo cancellation, and automatic gain control for clear, natural sound.
• Интегралдык спикер: Provides clear audio output for all participants.
• Plug-and-Play туташуусу: Simple USB connection with no driver installation required.
• Интуитивдик сенсордук башкаруулар: Easy access to microphone mute, camera on/off, and volume adjustments.
• Automatic HD Light Correction: Adjusts video output for optimal brightness in various lighting conditions.
• Компакт жана портативдик дизайн: Lightweight and easy to transport for use in various locations.

Пакеттин мазмуну

• Nuroum C10 Camera Unit
• USB-C - USB-A адаптер
• USB 2.0 Type-C кабели

Жайгашуу

The Nuroum C10 is designed for quick and easy setup, offering plug-and-play functionality.

1. USB кабелин туташтыруу: Locate the USB Type-C port on the Nuroum C10 and connect one end of the provided USB cable.
2. Компьютерге туташуу: Plug the other end of the USB cable into an available USB port on your desktop or laptop computer. If your computer only has USB-A ports, use the included USB-C to USB-A adapter.
3. Автоматтык таануу: Your operating system (Windows, macOS, Linux, ChromeOS, Android) will automatically detect and install the necessary drivers for the Nuroum C10. No manual driver installation is typically required.
4. Select Device in Application: Open your preferred video conferencing application (e.g., Zoom, Skype, Google Meet) and navigate to its audio and video settings. Select "Nuroum C10" as your camera, microphone, and speaker device.

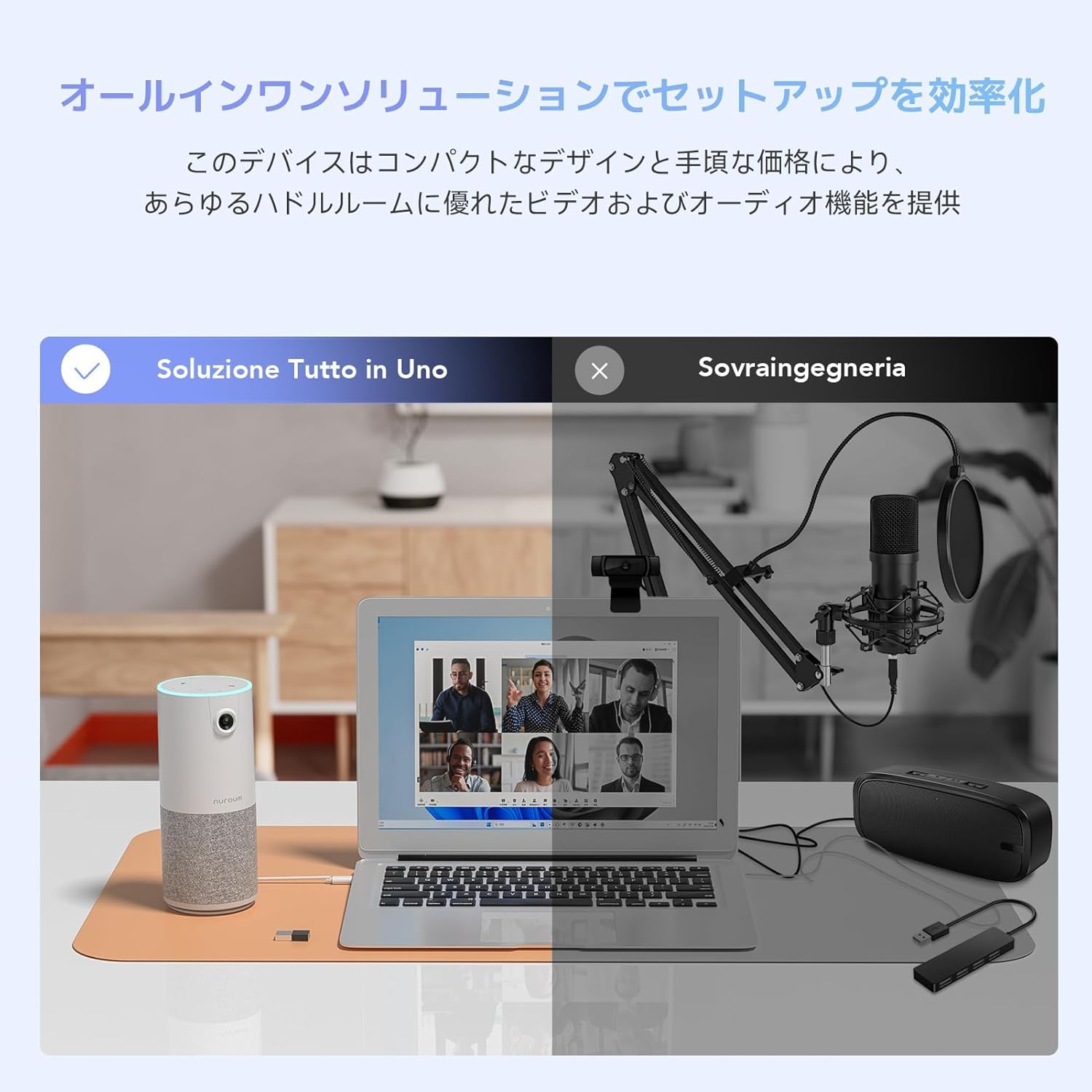

Connect the Nuroum C10 to your computer using the provided USB cable for instant setup and use in video conferencing applications.

Иштөө нускамалары

The Nuroum C10 features a user-friendly touch panel on its top surface for convenient control during meetings.

• Микрофондун үнүн басуу/ачуу:
  • Locate the microphone icon on the top panel.
  • Tap the icon to toggle the microphone on or off.
  • An indicator light will change color to show the microphone's status (e.g., blue for active, red for muted).
• Камера күйгүзүү/өчүрүү:
  • Locate the camera icon on the top panel.
  • Tap the icon to toggle the camera on or off.
  • An indicator light will show the camera's status.
• Үндү көзөмөлдөө:
  • Use the '+' and '-' icons on the top panel to adjust the speaker volume.
  • Tap '+' to increase volume, and '-' to decrease volume.

The top panel of the Nuroum C10 provides easy-to-use touch controls for managing microphone, camera, and speaker volume during calls.

Шайкештик

The Nuroum C10 is designed for broad compatibility with various operating systems and popular video conferencing platforms.

Операциялык системалар:

• Windows
• macOS
• Linux
• ChromeOS
• Android (functionality may vary by device)

Video Conferencing Platforms:

• Чоңойтуу
• Skype
• Slack
• Google Hangouts/Classroom
• GoToMeeting
• BlueJeans
• Twitch/Facebook Live/xsplit/OBS

If you intend to use the device with software or systems not listed above, please contact our support center for compatibility verification.

Техникалык тейлөө

Proper maintenance ensures the longevity and optimal performance of your Nuroum C10.

• Тазалоо:
  • Аппаратты жумшак, кургак чүпүрөк менен аарчыңыз.
  • Do not use liquid cleaners, solvents, or abrasive materials, as these can damage the device.
• Сактагыч:
  • Аппаратты түз күн нурунан жана экстремалдык температурадан алыс салкын, кургак жерде сактаңыз.
• Кабельге кам көрүү:
  • USB кабелин ашыкча ийилип же бурмалоодон алыс болуңуз.
  • Ensure the cable is not pinched or placed under heavy objects.
• Программалык камсыздоонун жаңыртуулары:
  • Periodically check the official Nuroum website for available firmware updates. Updates can improve performance and add new features.

Проблемаларды чечүү

If you encounter issues with your Nuroum C10, refer to the following common solutions.

• No Video or Audio Output:
  • USB туташуусун текшерүү: Ensure the USB cable is securely connected to both the Nuroum C10 and your computer. Try a different USB port.
  • Verify Device Selection: In your video conferencing application's settings, confirm that "Nuroum C10" is selected as the primary camera, microphone, and speaker device.
  • Check Device Controls: Ensure the microphone and camera are not muted or turned off using the touch controls on the device's top panel.
  • Кайра баштоо: Restart your computer and the Nuroum C10.
• Poor Audio Quality (Echo or Background Noise):
  • Түзмөктүн жайгашуусу: Position the Nuroum C10 centrally in your meeting area, away from walls or other reflective surfaces that might cause echoes.
  • Орнотулган программаны жаңыртуу: Check the official Nuroum website for the latest firmware updates, which often include audio performance improvements.
  • Курчап турган чөйрө: Minimize background noise in your environment. The device's noise cancellation feature works best with consistent background sounds.
• Video Image Too Dark or Bright:
  • The Nuroum C10 features automatic HD light correction. Ensure there is adequate and balanced ambient lighting in your meeting space. Avoid strong backlighting.
• Түзмөк компьютер тарабынан таанылбайт:
  • Try Another USB Port/Cable: Компьютериңиздеги башка USB порту же мүмкүн болсо, башка USB кабели менен сынап көрүңүз.
  • Операциялык системанын жаңыртуулары: Ensure your computer's operating system is fully updated.
  • Колдоо кызматы менен байланышуу: If the issue persists, contact Nuroum customer support.

Техникалык шарттар

Detailed technical specifications for the Nuroum C10 All-in-One Conference Webcam Speakerphone.

Кепилдик жана колдоо

Nuroum is committed to providing high-quality products and excellent customer service.

• Сапат кепилдик: The Nuroum C10 comes with a one-year quality warranty from the date of purchase.
• Программалык камсыздоонун жаңыртуулары: Regular firmware updates are released to improve device performance (e.g., audio pickup, speaker EQ) and introduce new functionalities. These updates are available on the official Nuroum webсайт.
• Программалык камсыздоо колдонмосу: A dedicated application for Windows and macOS is available for download from the official Nuroum website, offering additional control and settings.
• Кардарларды колдоо: For any inquiries, technical assistance, or warranty claims, please contact our 7*24 hour service team. Contact details can be found on the official Nuroum webсайт же сатып алуу документтери.
