HENDI блендеринин колдонуучу колдонмосу

1. Продукт бүтүп калдыview

The HENDI Blender is a versatile kitchen appliance designed for efficient blending of fruits and vegetables, preparing cocktails, smoothies, and even crushing ice. It features a robust design with advanced safety mechanisms and intuitive controls.

Figure 1: HENDI Blender - Main Unit

This image shows the HENDI Blender from the front, highlighting its sleek black base with an electronic touch panel and the clear 2.5-liter pitcher with its lid and tampордунда.

Негизги өзгөчөлүктөрү:

• Күчтүү аралаштыруу: Suitable for a wide range of ingredients, including ice.
• Large Capacity Pitcher: Comes with a durable, transparent 2.5-liter polycarbonate pitcher.
• Tamper Камтылган: A polypropylene tamper is provided for processing denser or larger ingredients.
• Туруктуу курулуш: Features an ABS housing, polycarbonate lid, and a removable AISI 420 stainless steel blade with titanium coating.
• Температура каршылык: Designed to withstand temperatures from -40°C to 90°C.
• Коопсуздук өзгөчөлүктөрү: Equipped with overheating and electrical overload protection, and a safety locking system to prevent accidental operation without the pitcher.
• Электрондук башкаруу панели: Easy-to-use touch panel with 3 speed levels (8,350 to 24,800 rpm) and 3 timer settings (30, 45, 90 seconds).

2. Маанилүү коопсуздук нускамалары

Сураныч, шайманды колдонуудан мурун бардык коопсуздук нускамаларын кылдат окуп чыгыңыз. Бул нускамаларды аткарбоо электр шокуна, өрткө же олуттуу жаракатка алып келиши мүмкүн.

• Электр коопсуздугу:
  • VoltagТуташтырардан мурун шайманда көрсөтүлгөн е сиздин жергиликтүү кубат булагыңызга дал келет.
  • Мотордук базаны сууга же башка суюктукка батырбаңыз.
  • Блендерди тазалоодон, чогултуудан же бөлүктөргө ажыратуудан мурун, ар дайым розеткадан сууруп алыңыз.
  • Блендерди бузулган шнур же сайгыч менен иштетпеңиз.
• Бычактын коопсуздугу:
  • The blades are extremely sharp. Handle with extreme care during assembly, disassembly, and cleaning.
  • Never touch the blades while the appliance is plugged in or operating.
• Иштөө коопсуздугу:
  • Always ensure the pitcher is securely locked onto the motor base before starting the blender. The safety locking system prevents operation if not properly installed.
  • Do not overfill the pitcher. Refer to the MAX fill line.
  • Do not operate the blender continuously for extended periods to prevent motor overheating. The appliance has built-in overheating protection.
  • т колдонуңузamper only when the lid is securely in place and the blender is running. Do not use other utensils.
  • Keep hands and utensils out of the pitcher while blending.
• Температураны эске алуу:
  • The pitcher is resistant to temperatures from -40°C to 90°C. Avoid blending extremely hot liquids above 90°C.

3. Продукциянын компоненттери

Familiarize yourself with the main parts of your HENDI Blender:

1. Мотор базасы: Contains the motor, electronic controls, and safety locking mechanism.
2. 2.5L Pitcher: Transparent polycarbonate container with integrated blades.
3. Капкак: Secures the pitcher during operation, with an opening for the tampэ.
4. Tampэ: Used to push ingredients towards the blades during blending.
5. Бычак монтажы: Removable AISI 420 stainless steel blades with titanium coating.

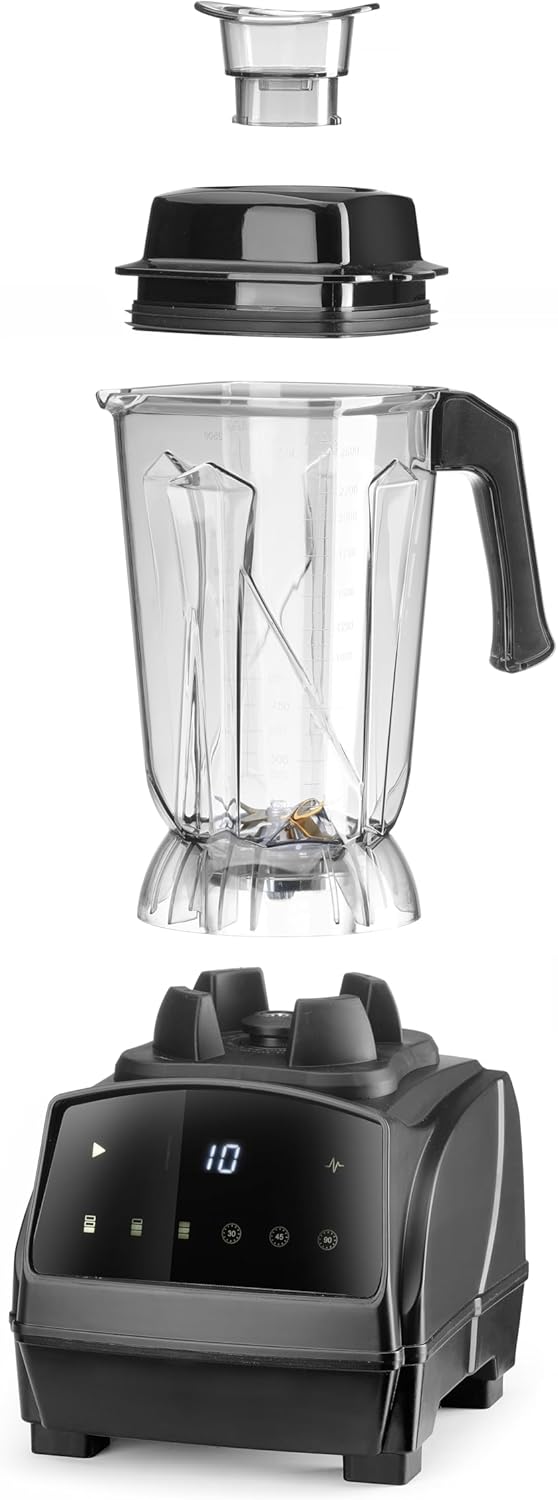

2-сүрөт: жарылган View of Blender Components

This image illustrates the main components of the HENDI Blender: the motor base, the 2.5-liter pitcher with its integrated blade assembly, the lid, and the tampэ.

4. Орнотуу

Блендериңизди биринчи колдонууга коюу үчүн бул кадамдарды аткарыңыз:

1. Таңылганын ачуу: Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз. Келечекте сактоо же ташуу үчүн таңгактарды сактаңыз.
2. Таза: Before first use, wash the pitcher, lid, and tamper with warm soapy water. Rinse thoroughly and dry. Wipe the motor base with a damp кездеме.
3. Жайгашкан жери: Place the motor base on a stable, flat, and dry surface. Ensure there is adequate ventilation around the unit.
4. Кумураны чогултуу: Ensure the blade assembly is securely attached to the bottom of the pitcher.
5. Attach Pitcher to Base: Place the pitcher onto the motor base. Rotate it slightly until it clicks into place, engaging the safety locking system. The blender will not operate if the pitcher is not correctly seated.
6. Туташуу кубаты: Электр шнурын ылайыктуу электр розеткасына сайыңыз (230V).

5. Иштөө нускамалары

Your HENDI Blender features an electronic touch panel for easy operation.

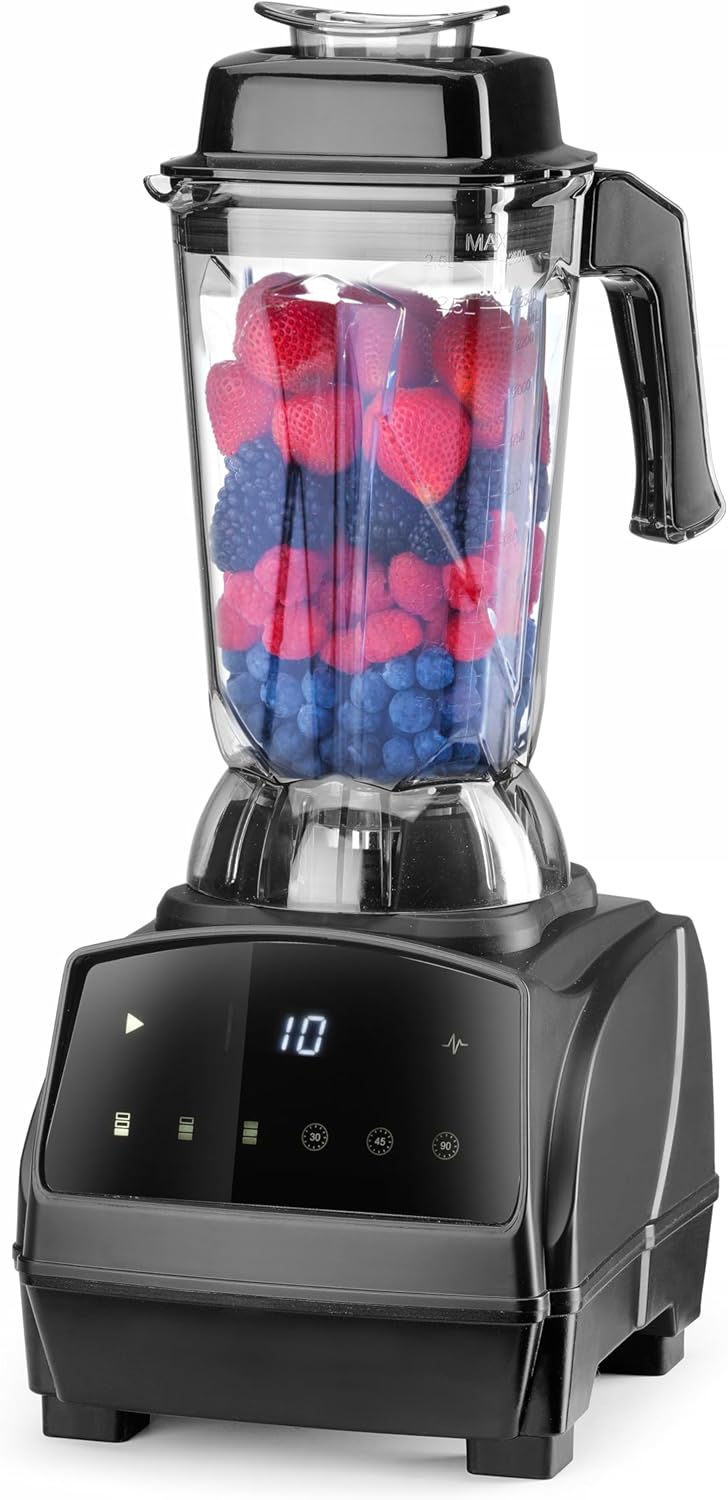

Figure 3: Blender Ready for Operation with Ingredients

This image shows the HENDI Blender with fresh berries inside the pitcher, demonstrating its readiness for blending various ingredients.

1. Ингредиенттерди кошуу: Place your desired ingredients into the pitcher. Do not exceed the maximum fill line. For best results, add liquids first, then soft ingredients, and finally harder ingredients or ice.
2. Коопсуз капкак: Place the lid firmly onto the pitcher. Ensure the small cap is also in place or removed if using the tampэ.
3. Ылдамдыкты тандоо: Use the electronic touch panel to select one of the three speed levels:
   • Төмөн: Approximately 8,350 rpm
   • Орточо: Approximately 13,500 rpm
   • Жогорку: Approximately 24,800 rpm
4. Таймерди коюу (милдеттүү эмес): Choose one of the preset timer settings: 30, 45, or 90 seconds. The blender will automatically stop after the selected time.
5. Аралаштырууну баштоо: Press the start button on the touch panel.
6. колдонуу менен Тampэ: If ingredients are not circulating, remove the small cap from the lid and use the tampингредиенттерди бычактарга карай түртүңүз. Never use fingers or other utensils.
7. Импульс функциясы: For short bursts of power or to chop ingredients, use the pulse function. This provides maximum speed as long as the button is pressed.
8. Аралаштырууну токтотуу: Press the stop button or wait for the timer to complete.
9. Remove Pitcher: Once blending is complete, unplug the blender and carefully remove the pitcher from the base.

6. Техникалык тейлөө жана тазалоо

Үзгүлтүксүз тазалоо оптималдуу иштешин камсыз кылат жана блендериңиздин иштөө мөөнөтүн узартат.

1. Ажыратыңыз: Блендерди тазалоодон мурун дайыма электр розеткасынан сууруп алыңыз.
2. Бөлүп салуу: Remove the pitcher, lid, and tamper from the motor base.
3. Clean Pitcher and Blades:
   • For easy cleaning, fill the pitcher halfway with warm water and a drop of dish soap. Secure the lid and run the blender on low speed for 30 seconds. Rinse thoroughly.
   • For more thorough cleaning, carefully remove the blade assembly from the pitcher (if detachable). Wash the pitcher, lid, tamper, and blade assembly with warm soapy water. Use a brush for the blades, exercising extreme caution due to their sharpness.
   • All removable parts are dishwasher safe (top rack recommended) or can be hand-washed.
4. Таза мотор базасы: Мотор базасын жумшак менен сүртүңүз, гamp кездеме. Мотордун негизин сууга салбаңыз же ага суу чачпаңыз.
5. Кургак: Блендерди кайра чогултуудан же сактоодон мурда бардык бөлүктөрү толугу менен кургагандыгын текшериңиз.
6. Сактагыч: Store the blender in a clean, dry place, away from direct sunlight and heat.

7. Кыйынчылыктарды

If you encounter issues with your HENDI Blender, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact HENDI customer support.

8. Техникалык шарттар

9. Кепилдик жана колдоо

HENDI products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official HENDI webсайт.

Кайтаруу саясаты: This product is eligible for returns within 30 days of receipt, as per Amazon's return policy.

Кардарларды колдоо: For technical assistance, spare parts, or service inquiries, please contact HENDI customer support through their official channels. Information regarding spare parts availability is currently unavailable through general product listings.

Көбүнчө байланыш маалыматтарын өндүрүүчүнүн веб-сайтынан таба аласыз webсайтында же продуктунун таңгагында.
