1. Бүттүview

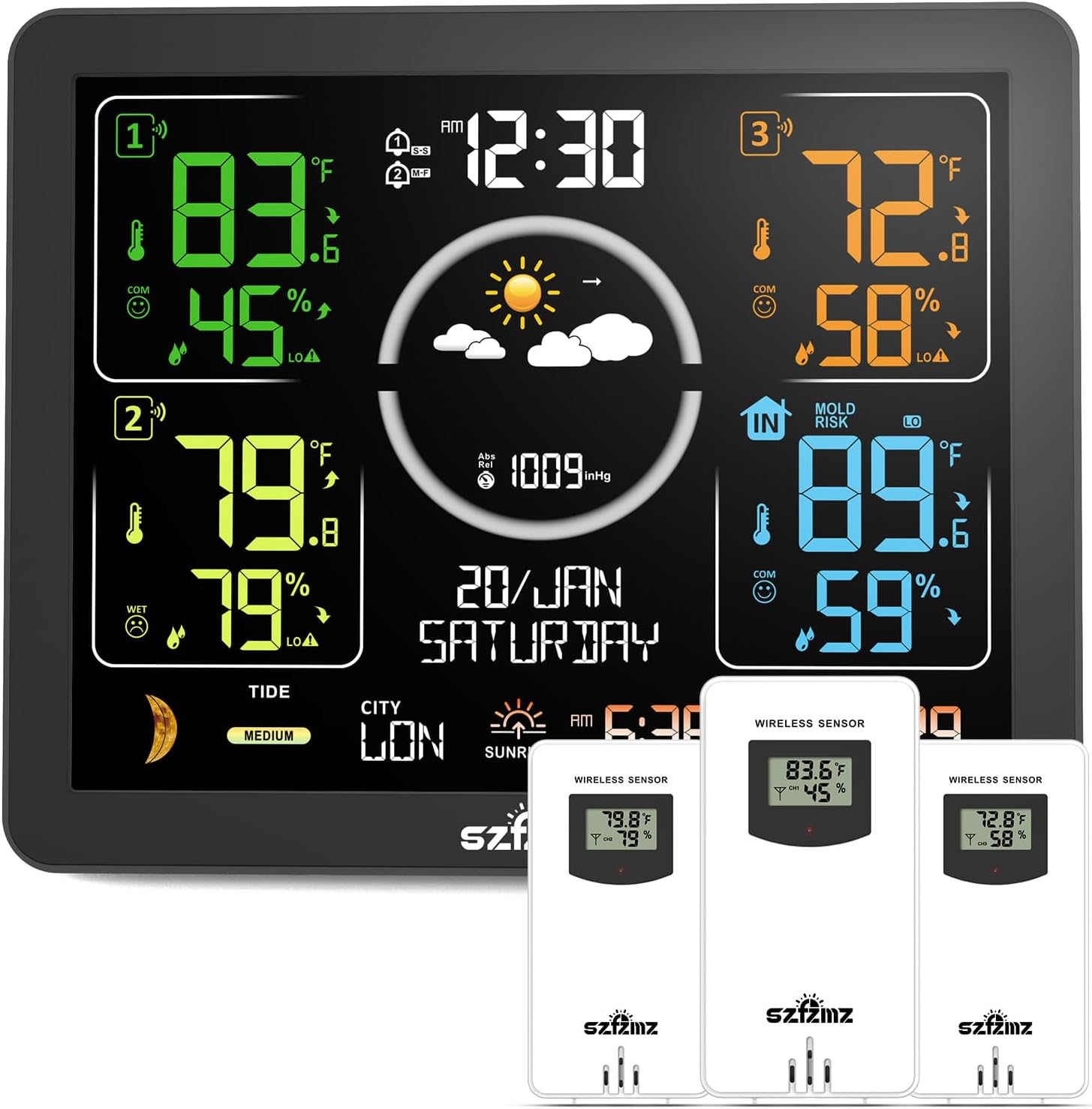

The SZFZMZ ZWS566 Weather Station is a versatile device designed to provide comprehensive weather and environmental data for your home. It features a vibrant VA color display and comes with three wireless outdoor sensors, allowing you to monitor temperature and humidity in multiple locations. This manual provides detailed instructions for setting up, operating, and maintaining your weather station.
2. Пакеттин мазмуну
- 1 x SZFZMZ ZWS566 Main Display Unit
- 3 x Wireless Outdoor Sensors
- 1 x DC кубат адаптери
- 1 x User Manual
3. Продукциянын өзгөчөлүктөрү
The SZFZMZ ZWS566 Weather Station offers a wide array of functions to keep you informed about your environment:
- 14-in-1 көп функциялуулугу: Atomic time, time setting, calendar, 3-sensor temperature and humidity display, max/min temperature/humidity records, temperature and humidity alerts, frost warning, moon phases, tide indicator, 7 time zones, weather forecast, two alarm clocks with snooze, 4-level adjustable backlight, comfort indicator, barometric pressure reading and trend display, and low battery indication.

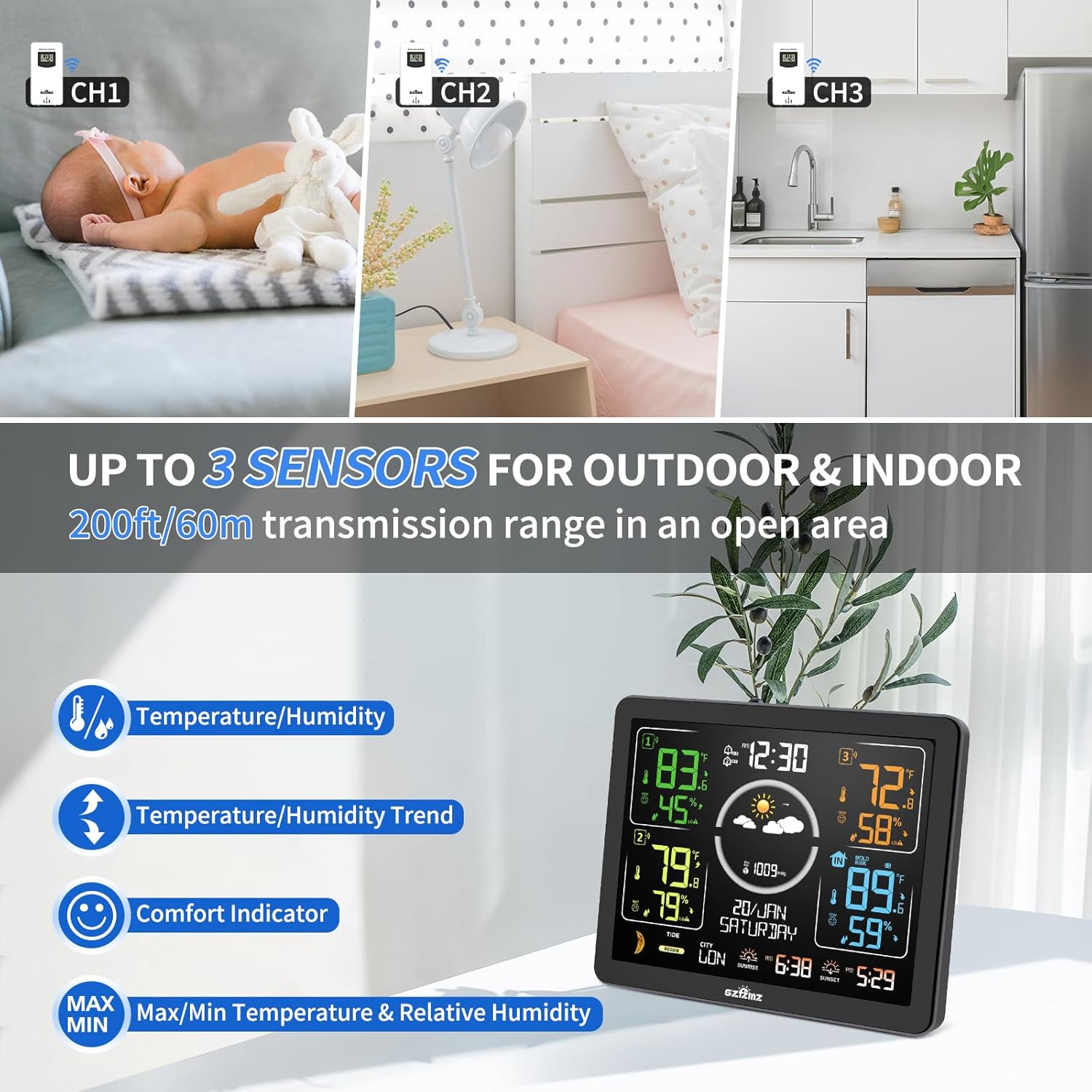

- Wireless Multi-Sensor Monitoring: Equipped with three outdoor sensors providing a long-range transmission of up to 200 feet (60 meters) in open areas. Monitor up to four locations (including the main unit's indoor sensor).
- Кош энергия менен камсыздоо режимдери: Operates via DC adapter (included) for constant backlight or 2 x AAA batteries (not included) for portable use with a 15-second backlight on touch.
- Atomic Clock Function: Automatically or manually searches for WWVB signals to calibrate time. Supports 7 time zones (AST, EST, CST, MST, PST, AKT, HST, HAT).
- 7.5" VA Color Display: Provides clear, vibrant readings with deeper black levels and better overall contrast compared to standard LCDs.
- 12 сааттык аба ырайы божомолу: Calculates future weather based on barometric pressure trends, displayed with six intuitive icons (sunny, slightly cloudy, cloudy, rainy, heavy rainy, snowy).
- Комфорт индикатору: Displays 3 facial icons (Dry, Comfort, Wet) to indicate indoor comfort levels.
4. Орнотуу колдонмосу
4.1 Негизги блокту электр менен камсыздоо
- Using DC Adapter (Recommended): Connect the included DC power adapter to the main unit's power input port and plug it into a standard electrical outlet. The display will light up constantly.
- Using Batteries (Backup/Portable): Open the battery compartment on the back of the main unit. Insert 2 x AAA batteries (not included), ensuring correct polarity. When powered by batteries, the screen will light up for 15 seconds upon touching the top and then automatically turn off to conserve power.
4.2 Installing Batteries in Wireless Sensors
Each wireless sensor requires 2 x AAA batteries (not included). Open the battery compartment on the back of each sensor and insert the batteries, observing polarity.
4.3 Pairing Sensors with Main Unit
For optimal connection, ensure the main unit and sensors are within range (up to 200ft/60m in open areas) and follow these steps:
- On the back of each wireless sensor, select a unique channel (Channel 1, Channel 2, or Channel 3) using the channel switch.
- The main unit will automatically search for and connect to the sensors. This may take a few minutes. Ensure all sensors are powered on.
- Once connected, the temperature and humidity readings from each sensor will appear on the main display.

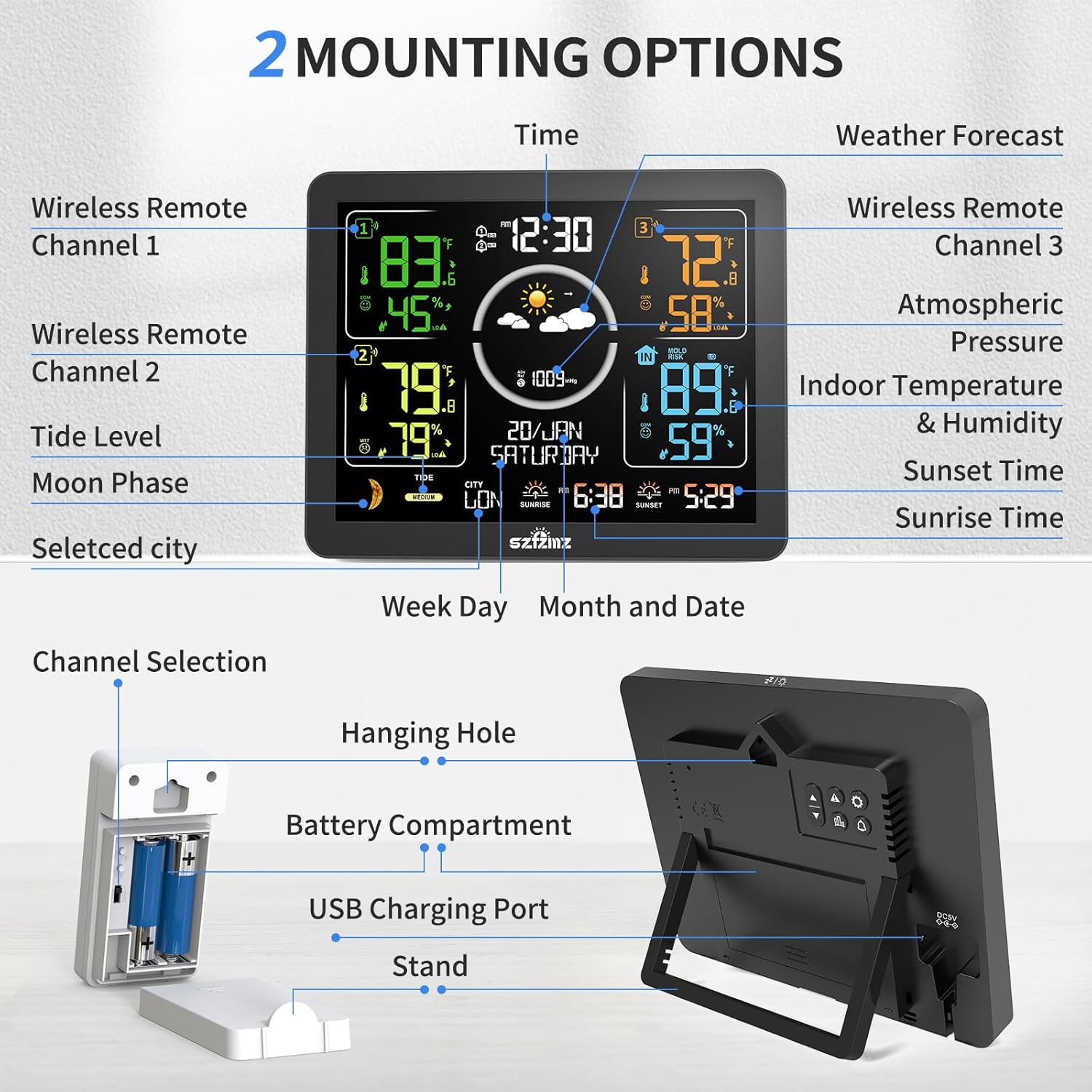

4.4 Орнотуу жана орнотуу
The main unit can be placed on a flat surface using its integrated stand or mounted on a wall using the hanging hole. Position the wireless sensors in desired indoor or outdoor locations, ensuring they are protected from direct rain and sunlight for accurate readings.
5. Иштөө нускамалары
5.1 Убакыт жана дата жөндөөлөрү
The weather station features an atomic clock that automatically calibrates time via WWVB signals. If manual adjustment is needed or for initial setup:
- басыңыз SET убакыт орнотуу режимине өтүү үчүн баскыч.
- колдонуу ЖОГОРУ/ТӨМӨН маанилерди тууралоо үчүн баскычтар.
- Басыңыз SET again to confirm and move to the next setting (e.g., Time Zone, 12/24 hour format, Year, Month, Day).
- Ensure the correct time zone is selected for your location (AST, EST, CST, MST, PST, AKT, HST, HAT).

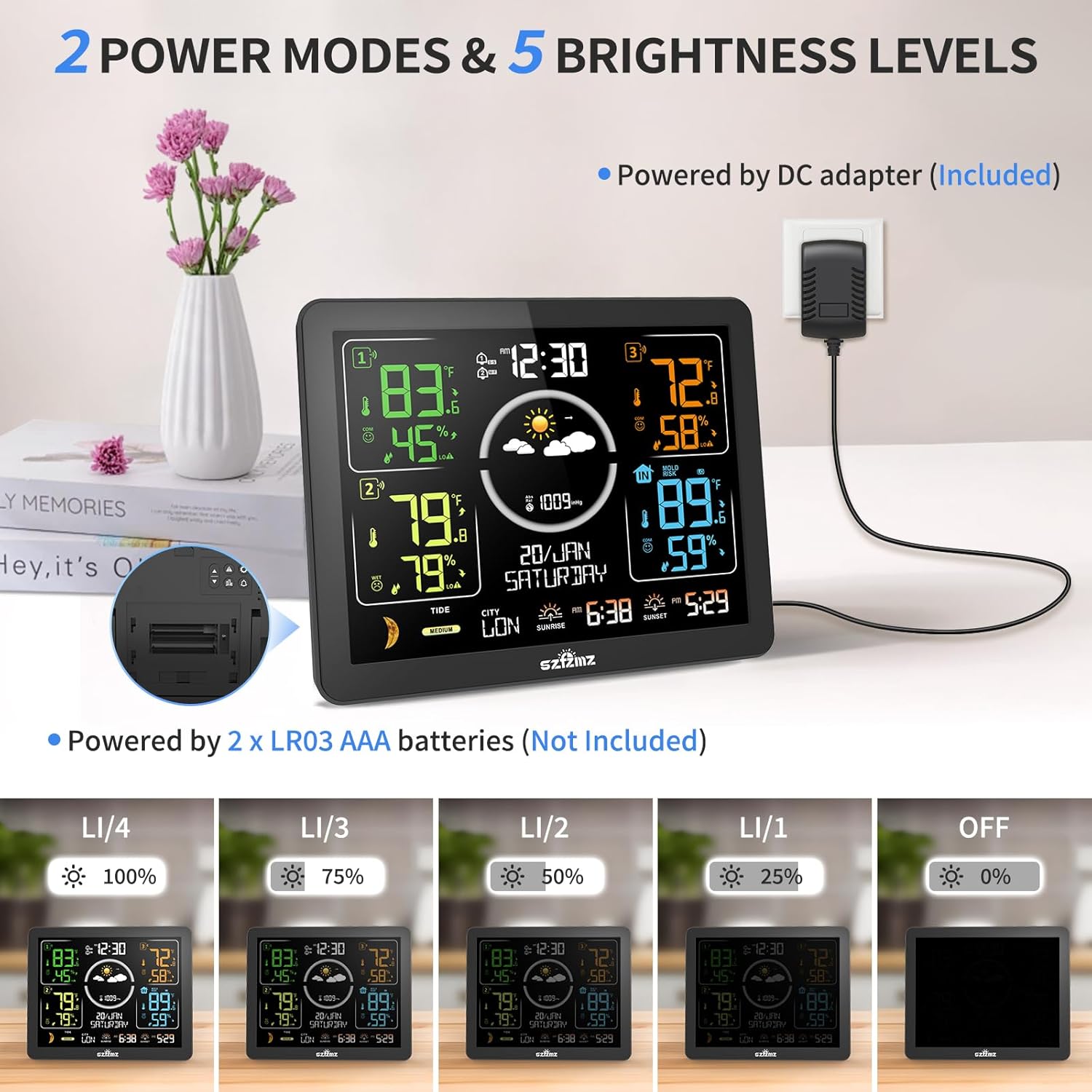

5.2 Дисплейдин жарыктыгын жөндөө
When powered by the DC adapter, the backlight can be adjusted to 4 levels of brightness or turned off completely.
- басыңыз ЖАРЫК button (often represented by a sun icon) on the main unit to cycle through brightness levels (100%, 75%, 50%, 25%, 0%).
5.3 Аба ырайы
The weather station analyzes barometric pressure trends to predict the weather for the next 12 hours. The forecast is displayed using six distinct icons:
- Күн ачык
- Бир аз булуттуу
- Булуттуу
- Жамгырлуу
- Катуу жаан
- Кардуу
5.4 Max/Min Temperature & Humidity Records
The unit records the maximum and minimum temperature and humidity values for all monitored locations.
- басыңыз МАКС/МИН button once to display maximum values.
- басыңыз МАКС/МИН button a second time to display minimum values.
- басыңыз МАКС/МИН button a third time to return to current readings.
5.5 Temperature and Humidity Alerts
Set customizable alerts for extreme temperature and humidity levels.
- Refer to the detailed instructions in the full user manual for setting specific alert thresholds.
- The station will notify you if readings exceed or fall below your set limits.
5.6 Ойготкуч саат функциясы
The weather station includes two daily alarm settings with a snooze function.
- басыңыз АЛАРМ button to set and activate alarms.
- колдонуу СОЮЗ Ойготкучту убактылуу өчүрүү үчүн баскычты басыңыз.
6. Техникалык тейлөө
- Тазалоо: Wipe the display unit and sensors with a soft, dry cloth. Do not use abrasive cleaners or immerse in water.
- Батареяны алмаштыруу: Replace batteries in sensors and the main unit (if using battery power) when the low battery indicator appears on the display.
- Сенсордун жайгашуусу: For outdoor sensors, ensure they are placed in a shaded, well-ventilated area, away from direct sunlight and precipitation, to ensure accurate readings and prolong battery life.
7. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Негизги блокто дисплей жок | No power; batteries dead or adapter unplugged. | Кубат адаптеринин туташуусун текшериңиз же батарейкаларды алмаштырыңыз. |
| Sensor readings not appearing | Sensors not paired; out of range; dead batteries. | Ensure sensors have fresh batteries and are within 200ft of the main unit. Re-pair if necessary (refer to Section 4.3). |
| Туура эмес температура/нымдуулук | Sensor exposed to direct sunlight/rain; main unit heat. | Relocate sensors to a shaded, protected area. Note that the main unit's internal circuitry may slightly affect its own readings; this is normal. Allow 3 hours for readings to stabilize if units are moved. |
| Atomic clock not setting time | Weak WWVB signal; incorrect time zone. | Ensure the unit is placed away from electronic interference. Manually set time zone. The backlight turns off during WWVB signal reception. |
8. Техникалык шарттар
- Модел: ZWS566
- Бренд: SZFZMZ
- Кубат булагы: DC Adapter (Included) or 2 x AAA Batteries (Not Included) for Main Unit; 2 x AAA Batteries (Not Included) for each Sensor.
- Материал: Пластик
- Байланыш технологиясы: Wireless (RF technology)
- Жыштыгы: 433.92 МГц
- Продукциянын өлчөмдөрү (негизги блок): 1.57"D x 5.51"W x 6.89"H
- Температуранын тактыгы: ±1 °C (±1.8 °F)
- Нымдуулуктун тактыгы: ±5%
- Жогорку температура рейтинги: 122 °F
- Зымсыз берүү диапазону: Ачык жерлерде 60 метрге чейин (200 фут)
9. Кепилдик жана колдоо
For warranty information and customer support, please refer to the contact details provided on the product packaging or visit the official SZFZMZ webсайт. Кепилдик дооматтары үчүн сатып алуу дүмүрчөгүңүздү сактаңыз.
