EIGHTREE сырткы Wi-Fi акылдуу сайгычы ET71 колдонуучу колдонмосу

1. Киришүү

Thank you for choosing the EIGHTREE Outdoor Wi-Fi Smart Plug ET71. This smart plug is designed for outdoor use, featuring IP44 waterproofing, energy monitoring, and compatibility with popular smart home platforms like Alexa, SmartThings, and Google Home. This manual provides detailed instructions for safe installation, operation, and maintenance of your device.

2. Коопсуздук боюнча маанилүү маалымат

• Колдонуудан мурун бардык нускамаларды кунт коюп окуп чыгыңыз.
• This device is rated IP44 for outdoor use, protecting against splashing water. Do not immerse in water.
• Ensure the power supply matches the device's specifications (230V, 16A, Max 3680W).
• Do not disassemble, repair, or modify the device. Contact support if issues arise.
• Балдар жетпеген жерде сактаңыз.
• Only connect to a 2.4 GHz Wi-Fi network. 5.0 GHz Wi-Fi is not supported.

Маанилүү эскертүү: This smart plug may not include a ground pin, which could make it incompatible or unsafe for use in certain regions (e.g., France, Belgium) that require a specific type of grounded plug. Please verify compatibility with your local electrical outlets before use.

3. Продукт бүтүп калдыview

The EIGHTREE ET71 Smart Plug is a compact device designed to make your outdoor appliances smart. It features a power button, an indicator light, and a weather-resistant casing.

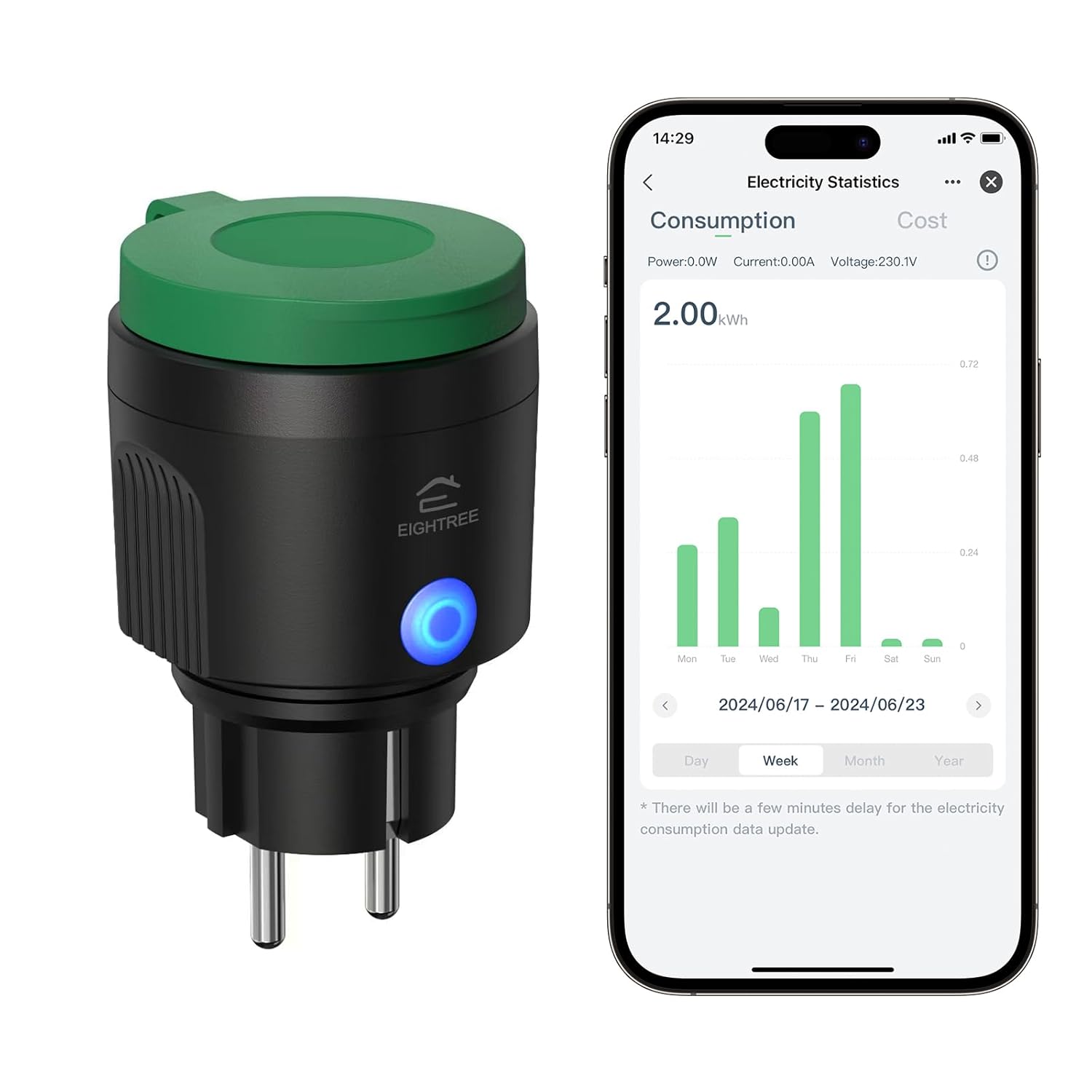

Сүрөт 3.1: EIGHTREE ET71 Outdoor Wi-Fi Smart Plug shown alongside its mobile application interface displaying electricity consumption statistics. The plug is black with a green cap and a blue LED indicator.

Негизги өзгөчөлүктөрү:

• IP44 Суу өткөрбөйт: Designed for outdoor use, resistant to splashing water.
• Энергия мониторинги: Track detailed power consumption of connected devices.
• Үн менен башкаруу: Compatible with Alexa, SmartThings, and Google Home for hands-free operation.
• Алыстан башкаруу: Manage your devices from anywhere using the mobile app.
• Таймер жана График: Set custom schedules for automatic on/off operations.
• Wi-Fi туташуусу: Connects to your home Wi-Fi network (2.4 GHz only).

Сүрөт 3.2: Visual representation of the EIGHTREE ET71 Smart Plug's versatile features, including App Control, Voice Control, Energy Monitoring, Group Control, Set Timers, WiFi Connection, and IP44 Waterproofing.

4. Техникалык шарттар

Сүрөт 4.1: The EIGHTREE ET71 Smart Plug installed in an outdoor socket, demonstrating its IP44 weatherproof design with water splashing on it, indicating reliable operation in various weather conditions.

5. Орнотуу нускамалары

5.1. Smart Life колдонмосун жүктөп алыңыз

1. Scan the QR code (if provided on packaging) or search for "Smart Life" in the Apple App Store (for iOS) or Google Play Store (for Android).
2. Колдонмону жүктөп алып, орнотуңуз.
3. Каттоо эсебиңизди каттаңыз же сизде мурунтан эле бар болсо кириңиз.

5.2. Connect the Smart Plug to Wi-Fi

1. Plug the EIGHTREE ET71 Smart Plug into an outdoor electrical outlet. Ensure the outlet is protected from direct heavy rain and is within Wi-Fi range.
2. Smart Life колдонмосун ачыңыз.
3. Түзмөктү кошуу үчүн жогорку оң бурчтагы "+" сөлөкөтүн таптаңыз.
4. Түзмөктөр тизмесинен "Резетканы" же "Акылдуу сайгычты" тандаңыз.
5. Follow the on-screen instructions to put the smart plug into pairing mode (usually by pressing and holding the power button on the plug until the indicator light blinks rapidly).
6. 2.4 ГГц Wi-Fi тармагынын атын жана сырсөзүн киргизиңиз. Note: 5.0 GHz Wi-Fi networks are not supported.
7. Wait for the app to connect to the device. Once connected, you can rename the plug for easier control.

6. Иштөө нускамалары

6.1. Колдонмону башкаруу

Once connected, you can control the smart plug directly from the Smart Life app:

• Күйгүзүү/өчүрүү: Tap the power icon next to the device name to turn it on or off.
• Энергия мониторинги: Access the device details to view real-time power consumption (Power: W, Current: A, Voltage: V) and historical electricity statistics (kWh) by day, week, or month.
• Electricity Cost Setting: Within the app, you can input your local electricity price to estimate your energy costs. Use a decimal point (e.g., "0.25") for fractional values.

Сүрөт 6.1: The Smart Life app interface showing the energy monitoring function of the EIGHTREE ET71 Smart Plug, displaying consumption data over time, useful for tracking household electricity usage.

6.2. Үн менен башкаруу

The EIGHTREE ET71 Smart Plug is compatible with Amazon Alexa, Google Home, and SmartThings. To enable voice control:

1. Link your Smart Life account to your preferred voice assistant app (Alexa, Google Home, or SmartThings).
2. Discover devices in the voice assistant app.
3. Once discovered, you can use voice commands such as:
   • "Alexa, [Түзмөктүн аталышын] күйгүзүңүз."
   • "Окей Google, [Түзмөктүн аталышын] өчүр."
   • "SmartThings, set [Device Name] to on."

Сүрөт 6.2: A user interacting with a voice assistant (Alexa) to control the EIGHTREE ET71 Smart Plug, demonstrating hands-free operation and compatibility with major smart home platforms.

6.3. Алыстан башкаруу

Control your outdoor devices from anywhere with an internet connection. Simply open the Smart Life app on your smartphone or tablet to manage the smart plug's status.

Сүрөт 6.3: Two images depicting the remote control capability of the EIGHTREE ET71 Smart Plug. One shows a person using a smartphone outdoors, and the other shows a house with festive lights, implying remote management of outdoor lighting.

6.4. Timer and Schedule Functions

Automate your devices by setting timers and schedules:

• Таймер: Set a countdown timer for the plug to turn on or off after a specified duration.
• График: Create daily or weekly schedules for the plug to turn on or off at specific times. This can be used for garden lights, irrigation systems, or other outdoor appliances.
• Артка саноо: Similar to a timer, but often used for temporary operations.

Сүрөт 6.4: The Smart Life app interface showing timer and scheduling options for the EIGHTREE ET71 Smart Plug, with examples like turning on a sprinkler at 5:00 PM and outdoor lights at 7:00 PM (sunrise turn on).

7. Техникалык тейлөө

• Тазалоо: Тазалоодон мурун акылдуу сайгычты розеткадан ажыратыңыз. Бетти сүртүү үчүн жумшак, кургак чүпүрөктү колдонуңуз. Суюк тазалагычтарды же абразивдүү материалдарды колдонбоңуз.
• Сактагыч: Узак мөөнөткө колдонулбаса, смарт сайгычты күн тийбеген жана экстремалдык температурадан алыс, салкын, кургак жерде сактаңыз.
• Текшерүү: Periodically check the plug and cable for any signs of damage. Do not use if damaged.

8. Кыйынчылыктарды

Problem: Device cannot connect to Wi-Fi.

Чечим:

• Wi-Fi тармагыңыз 2.4 ГГц экенин текшериңиз. 5.0 ГГц тармактар ​​колдоого алынбайт.
• Check if the Wi-Fi signal is strong enough at the plug's location.
• Make sure the plug is in pairing mode (indicator light blinking rapidly).
• Wi-Fi сырсөзүңүздүн туура экенин текшериңиз.
• Restart your Wi-Fi router and try again.

Problem: Voice control is not working.

Чечим:

• Ensure your Smart Life account is correctly linked to Alexa, Google Home, or SmartThings.
• Үн жардамчысы колдонмоңуздан түзмөктөрдү кайра таап көрүңүз.
• Check the device name in the Smart Life app and use that exact name in your voice commands.
• Интернет байланышыңыз туруктуу экенин текшериңиз.

Problem: Energy monitoring data is delayed or inaccurate.

Чечим:

• There might be a slight delay (a few minutes) for electricity consumption data to update in the app.
• Ensure the plug has a stable Wi-Fi connection.
• If the issue persists, try unplugging and replugging the smart plug.

Problem: Plug is unresponsive.

Чечим:

• Сайгычтын кубат алып жатканын текшериңиз.
• Unplug the device, wait 10 seconds, and plug it back in.
• If the issue continues, you may need to reset the device and re-pair it with the app.

9. Кепилдик жана колдоо

The EIGHTREE ET71 Smart Plug comes with a 24 айлык кепилдик, which begins upon delivery of the package. This warranty covers mechanical and electrical failures resulting from regular use.

If you encounter any problems or require additional assistance, please contact EIGHTREE customer support directly. Contact information can typically be found on the product packaging or the official EIGHTREE webсайт.
