Introduction
Thank you for choosing the Tchibo Induction Milk Frother. This electric coffee frother is designed to create exceptional silky-smooth milk froth for both hot and cold beverages, including cappuccinos, latte macchiatos, and iced coffees. Featuring innovative induction heating, a touch button, and an automatic switch-off function, this appliance offers convenience and consistent results. The dishwasher-safe design ensures easy cleaning.
Image: The Tchibo Induction Milk Frother, a sleek black and silver appliance, stands next to a clear glass filled with a layered coffee beverage topped with rich milk froth.
Маанилүү коопсуздук нускамалары
Сураныч, шайманды колдонуудан мурун бардык нускамаларды кылдат окуп чыгыңыз. Бул нускамаларды аткарбоо электр шокуна, өрткө же олуттуу жаракатка алып келиши мүмкүн.
- Негизги бөлүктү сууга же башка суюктуктарга батырбаңыз.
- Voltagшаймандагы э рейтинги сиздин жергиликтүү кубат менен камсыздооңузга дал келет.
- Шайманды балдар жетпеген жерде сактаңыз.
- Шайманды шнур же сайгыч бузулуп иштетпеңиз.
- Always unplug the frother when not in use and before cleaning.
- Шайманды ушул колдонмодо сүрөттөлгөн максатта гана колдонуңуз.
- кыймылдуу бөлүктөргө тийбегиле.
- Ыстык газ же электр мешине же ысытылган мештин жанына коюуга болбойт.
Пакеттин мазмуну
Бардык компоненттердин бар экендигин жана жакшы абалда экендигин текшериңиз:
- Tchibo Induction Milk Frother Base Unit
- Stainless Steel Frothing Jug
- Капкак
- Frothing Whisk (magnetic)
- Heating Whisk (magnetic)
- Колдонуучунун Колдонмосу (бул документ)
Image: An exploded diagram showing the individual parts of the Tchibo Induction Milk Frother, including the base, removable stainless steel jug, lid, and whisk attachments, with dimensions indicated.
Жайгашуу
- Бардык компоненттерди таңгактан чыгарып, таңгактоочу материалдарды алып салыңыз.
- Before first use, wash the stainless steel frothing jug and lid thoroughly with warm soapy water. Rinse and dry completely. The base unit should only be wiped with a damp кездеме.
- Place the frother base unit on a clean, dry, flat, and stable surface.
- Ensure the correct whisk attachment is securely placed at the bottom of the frothing jug. Use the frothing whisk for milk froth, or the heating whisk for just heated milk.
Иштөө нускамалары
The Tchibo Induction Milk Frother is designed for fully automated and easy operation.
- Сүт кошуу: Pour your desired amount of milk into the stainless steel frothing jug. Observe the MIN and MAX fill lines inside the jug to avoid overfilling or underfilling. The capacity is up to 16.9 oz.

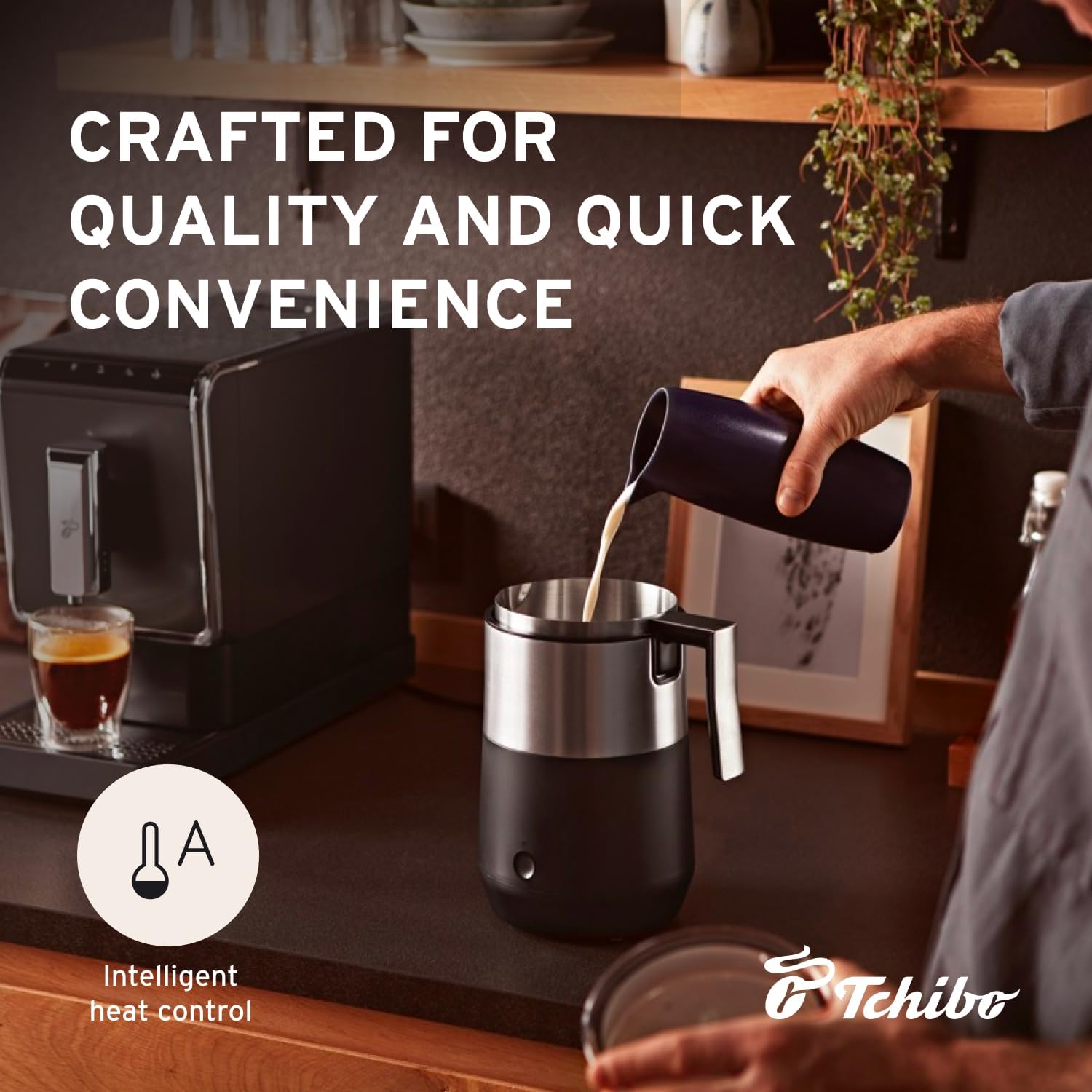

Image: A person is shown pouring milk into the stainless steel jug of the Tchibo Induction Milk Frother, demonstrating the initial step of preparing a beverage.
- Кумураны негизге кой: Carefully place the filled frothing jug onto the base unit. Ensure it is seated correctly.
- Select Function (Hot or Cold):
- үчүн Hot Froth/Milk: Press the power button once. The indicator light will illuminate red.
- үчүн Cold Froth: Press and hold the power button for approximately 2 seconds. The indicator light will illuminate blue.
Image: A hand is shown pressing the single touch button on the front of the Tchibo Induction Milk Frother, highlighting its one-touch operation for starting the frothing process.
- Frothing/Heating Process: The frother will begin its cycle. The innovative induction heating system ensures quick and consistent results without burning the milk. The process typically takes about 60 seconds for frothing.

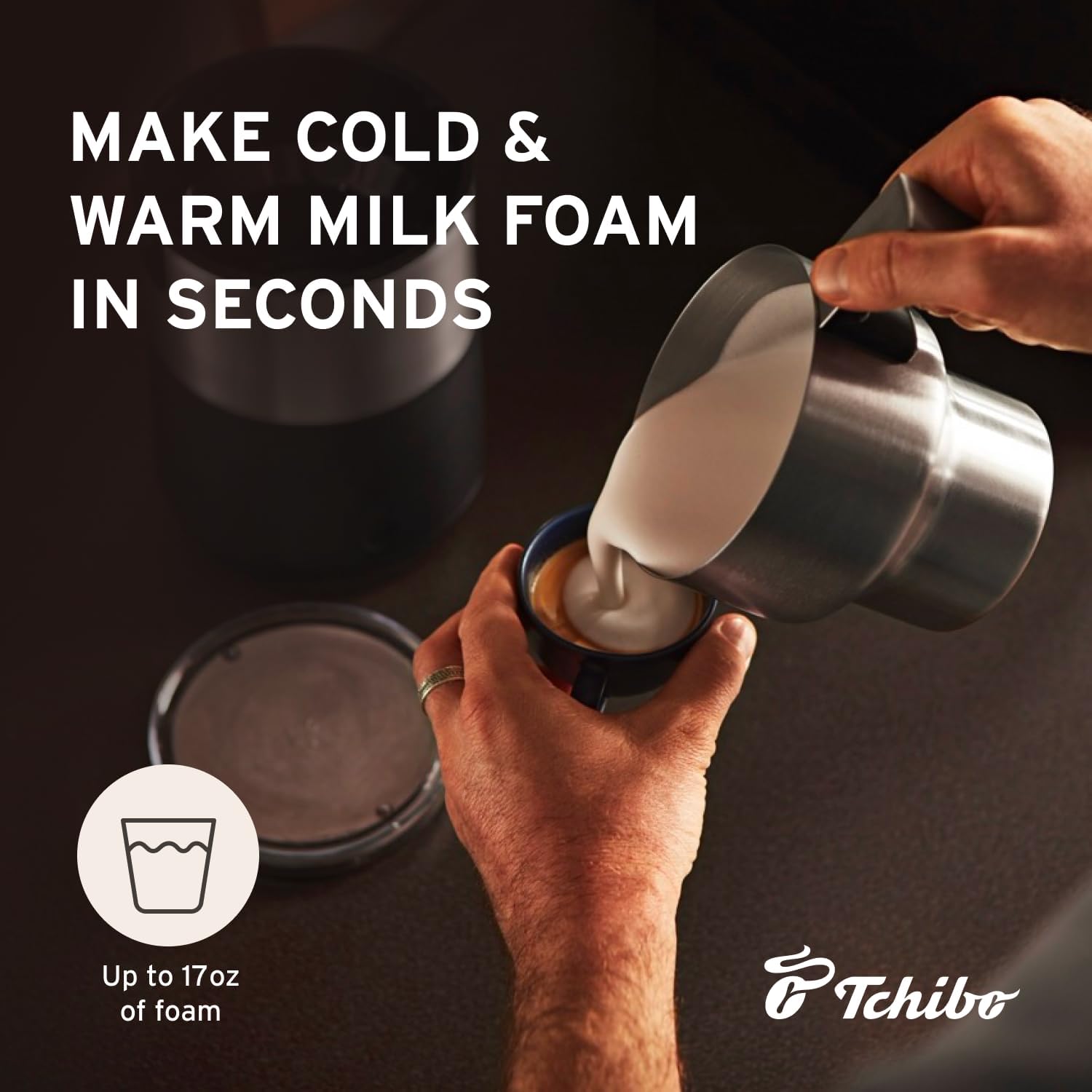

Image: Hands are shown pouring rich, frothed milk from the Tchibo Induction Milk Frother into a cup, illustrating the result of the frothing process.
- Автоматтык түрдө өчүрүү: The frother will automatically shut off after approximately 3 minutes or when the cycle is complete. The indicator light will turn off.
- Кызмат кылуу: Carefully remove the frothing jug from the base and pour the frothed or heated milk into your beverage.
Тейлөө жана тазалоо
Көбүктөндүргүчтү үзгүлтүксүз тазалоо анын оптималдуу иштешин жана узак убакытка иштешин камсыз кылат.
- Ажыратыңыз: Тазалоодон мурун шайманды ар дайым розеткадан сууруп алыңыз.
- Clean Frothing Jug and Lid: The stainless steel frothing jug and lid are dishwasher safe. Alternatively, they can be washed by hand with warm soapy water and a non-abrasive sponge. Rinse thoroughly and dry completely.
Image: A hand is shown placing the removable stainless steel jug of the frother into a dishwasher rack, demonstrating its dishwasher-safe feature for easy cleaning.
- Clean Whisk Attachments: Remove the magnetic whisk attachments from the jug and rinse them under running water. Use a small brush if necessary to remove any milk residue.
- Таза негизги бирдиги: Негизги блоктун сыртын жумшак, г менен сүртүңүзamp кездеме. Негизги блокту сууга же башка суюктукка батырбаңыз.
- Сактагыч: Store the frother in a clean, dry place when not in use.
Проблемаларды чечүү
If you encounter issues with your Tchibo Induction Milk Frother, please refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Frother күйбөйт. | Not plugged in; power outlet issue; frother not properly seated on base. | Ensure the power cord is securely plugged into a working outlet. Check if the frothing jug is correctly placed on the base unit. |
| Milk is not frothing or froth is poor. | Incorrect whisk used; insufficient milk; type of milk; whisk not properly installed. | Ensure the frothing whisk is used for frothing. Check milk level is between MIN and MAX lines. Some milk types (e.g., skim milk) froth better than others. Ensure whisk is securely attached. |
| Milk is not heating. | Cold froth setting selected; heating whisk not used (if only heating is desired). | Press the button once for hot froth/milk (red light). Ensure the heating whisk is used if you only want to heat milk without frothing. |
| Түзмөк күтүүсүздөн токтоп калат. | Automatic shut-off activated; overheating protection. | The frother has an automatic shut-off after 3 minutes. If it stops earlier, allow it to cool down before attempting to use it again. |
Техникалык шарттар
| Бренд | Tchibo |
| Модель аты | Индукциялык сүт көбүртгүч |
| Элемент моделинин номери | 681590 |
| Өзгөчөлүктөр | Auto Shut-Off, Induction Heating, Non-Slip |
| Түс | Silver |
| Материал | Дат баспаган болот |
| Сунушталган Колдонуулар | Турак жай |
| Камтылган компоненттер | Stainless Steel Bowl (Jug) |
| Элемент Салмагы | 1.95 килограмм (4.29 фунт) |
| Продукцияга кам көрүү боюнча нускамалар | Идиш жуугучта коопсуз |
| Кубаттуулугу | 1.1 Pounds (approx. 16.9 oz) |
| Стиль | Заманбап |
| Power Source | Электр зымдары |
| Өндүрүүчү | Tchibo |
| UPC | 195155323552 |
| Пакеттин өлчөмдөрү | 11.85 x 10.5 x 8 дюйм |
| Дата биринчи жеткиликтүү | 26-июнь, 2024-жыл |
Кепилдик жана колдоо
For detailed warranty information, please refer to the warranty card included with your product or visit the official Tchibo website. If you require technical support or have questions not covered in this manual, please contact Tchibo customer service.
Tchibo Customer Service:
Visit Tchibo US Contact Page
(Please note: Contact methods may vary by region. Refer to the website for the most current information.)
