Nimble NB-CPC-10K2C

Чапталгыч Чamp Портативдик заряддагычтын колдонуучусу

Model: NB-CPC-10K2C

1. Киришүү

Thank you for choosing the Nimble Champ Portable Charger. This 10,000mAh power bank is designed to provide fast and reliable charging for your electronic devices on the go. This manual provides essential information for safe and efficient use of your device.

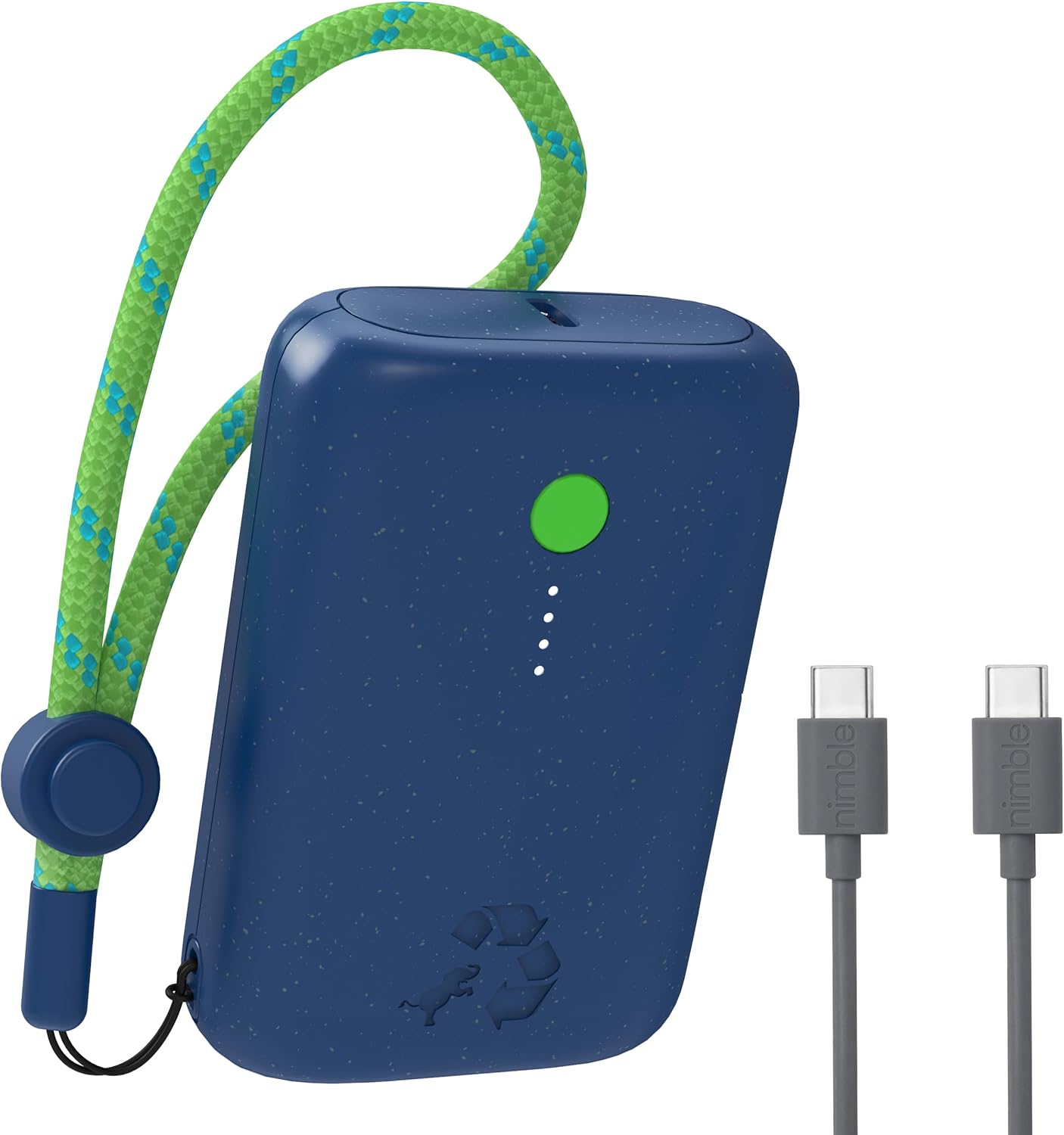

Чапталгыч Чamp Portable Charger in Nebula Blue with two USB-C cables

Image 1.1: The Nimble Champ Portable Charger in Nebula Blue, showcasing its compact design and the included USB-C charging cables.

2. Коопсуздук маалыматы

  • Кубат банкын экстремалдык температурага, тике күн нуруна же отко чыгарбаңыз.
  • Аппаратты түшүрүп алуудан, ажыратуудан же өзүңүз оңдоого аракет кылуудан качыңыз.
  • Суу жана башка суюктуктардан алыс кармаңыз.
  • Оптималдуу иштөө жана коопсуздук үчүн сертификатталган кабелдерди жана кубаттагычтарды гана колдонуңуз.
  • Балдар жетпеген жерде сактаңыз.
  • Жергиликтүү эрежелерге ылайык кубат банкын жоопкерчилик менен жок кылыңыз.

3. Пакеттин мазмуну

Пакетиңизде бардык буюмдар бар экенин текшериңиз:

  • Чапталгыч Чamp 10,000mAh портативдик заряддагыч
  • USB-Cден USB-Cге чейин кубаттоочу кабель
  • Колдонуучунун Колдонмосу (бул документ)

4. Продукт бүтүп калдыview

Чапталгыч Чamp Portable Charger features a compact design with essential indicators and ports for efficient charging.

  • Күйгүзүү / Өчүрүү баскычы: Powerbankты иштетип, батареянын кубаттуулугун текшерет.
  • LED кубаттуулук көрсөткүчтөрү: Four small LEDs indicate the remaining battery capacity. Each LED represents approximately 25% charge.
  • Эки USB-C порттору: Used for both input (recharging the power bank) and output (charging devices).
  • Adjustable Lanyard Loop: Ыңгайлуу алып жүрүү үчүн.
Чапталгыч Чamp Portable Charger connected to a wall adapter and a smartphone, illustrating pass-through charging

Сүрөт 4.1: Жакын пландан view of the power bank showing the power button, LED indicators, and USB-C ports during a pass-through charging operation.

5. Орнотуу

5.1 Power банктын алгачкы заряддоосу

  1. Connect the included USB-C cable to one of the USB-C ports on the Nimble Champ.
  2. USB-C кабелинин экинчи учун шайкеш келген USB дубал адаптерине туташтырыңыз (кошулмада жок).
  3. The LED indicators will illuminate and blink to show the charging progress. All four LEDs will be solid when fully charged.
  4. A full charge typically takes approximately 1.85 hours with a 20W power adapter.

6. Иштөө нускамалары

6.1 Түзмөктөрдү заряддоо

  1. Connect your device (e.g., smartphone, tablet) to one of the USB-C ports on the Nimble Champ using a compatible USB-C cable.
  2. The power bank will automatically begin charging your device. If not, press the Power On/Off button once.
  3. The LED indicators will show the remaining power bank battery level during charging.
  4. To stop charging, disconnect your device. The power bank will automatically power off after a period of inactivity.
Чапталгыч Чamp Portable Charger simultaneously charging two smartphones

Image 6.1: The Nimble Champ Portable Charger demonstrating its ability to charge two devices concurrently via its dual USB-C ports.

6.2 Dual Device Charging

Чапталгыч Чamp features two USB-C ports, allowing you to charge two devices simultaneously. Connect each device to a separate USB-C port on the power bank. The 20W maximum output will be shared between the two devices.

6.3 кубаттоо

The power bank supports pass-through charging, meaning you can recharge the Nimble Champ while it is simultaneously charging another device. Connect the power bank to a wall adapter and then connect your device to the power bank.

6.4 Батареянын деңгээлин текшерүү

Press the Power On/Off button once to view the current battery level indicated by the four LED lights:

  • 4 катуу светодиод: 75% - 100% заряддалган
  • 3 катуу светодиод: 50% - 75% заряддалган
  • 2 катуу светодиод: 25% - 50% заряддалган
  • 1 LED катуу: 0% - 25% charge (recharge soon)
Чапталгыч Чamp Portable Charger connected to a smartphone, surrounded by icons of various compatible devices like iPhones, iPads, Apple Watches, Samsung phones, Google Pixel phones, cameras, gaming devices, headphones, wearables, e-readers, and speakers.

Image 6.2: Illustration of the Nimble Champ's universal compatibility with a wide range of electronic devices.

7. Техникалык тейлөө

7.1 Тазалоо

Power bankты жумшак, кургак чүпүрөк менен сүртүңүз. Катуу химиялык заттарды же абразивдүү материалдарды колдонбоңуз.

7.2 Сактоо

Store the power bank in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, it is recommended to charge the power bank to approximately 50% every three months to maintain battery health.

8. Кыйынчылыктарды

  • Power банк кубатталбай жатат: Ensure the charging cable is securely connected to both the power bank and the wall adapter. Try a different cable or adapter.
  • Түзмөк кубат банкынан кубатталбай жатат: Ensure the power bank has sufficient charge. Press the power button to activate it. Try a different cable or device.
  • Жай кубаттоо: Ensure you are using a compatible fast-charging cable and adapter. Some devices may limit charging speed based on their battery status.
  • LED индикаторлору иштебей жатат: If the power bank is completely depleted, the LEDs may not light up immediately. Charge the power bank for a few minutes and check again. If the issue persists, contact support.

9. Техникалык шарттар

ӨзгөчөлүкСпецификация
Модель номериNB-CPC-10K2C
Батарея сыйымдуулугу10,000 мАч
Чыгуу20W Max (Dual USB-C)
КиргизүүUSB-C
Продукциянын өлчөмдөрү3.38 x 2.28 x 0.98 дюйм
Элемент Салмагы7.4 унция (болжол менен 210 г)
ӨзгөчөлүктөрAuto Shut-Off, Portable, Travel, Pocket Size, Lightweight, Eco Print, LED Indicator Lights, Dual USB-C Ports, Fast Charging, Slim
МатериалCertified Recycled Plastic

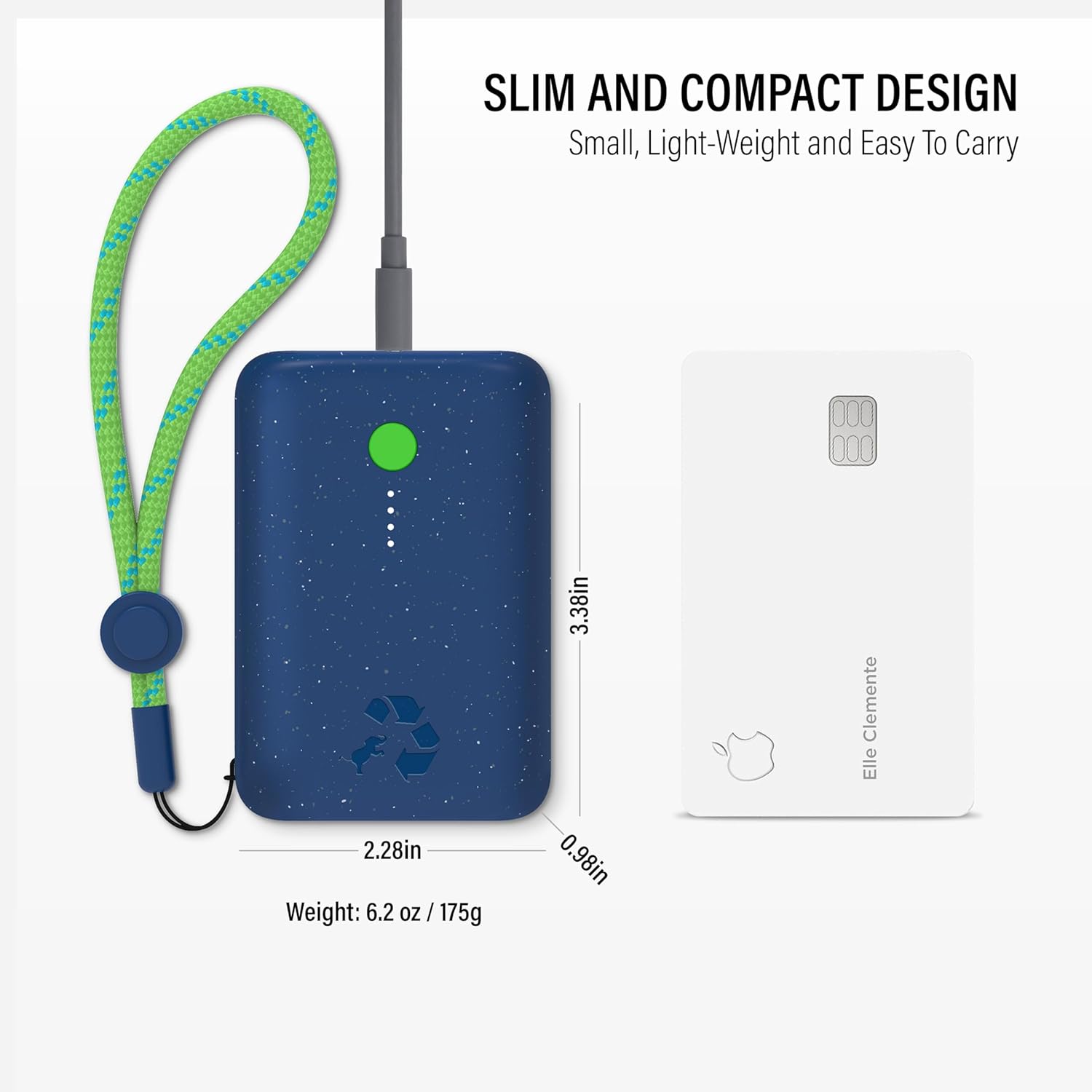

Чапталгыч Чamp Portable Charger next to a credit card, showing its compact dimensions

Image 9.1: The compact size of the Nimble Champ Portable Charger, illustrated by its comparison to a standard credit card.

Diagram listing 6 advanced protection features of the Nimble Champ Portable Charger: TSA Approved, Temperature Protection, Certified Charging Components, Overcharge Protection, Adaptive Charging Rates, Short Circuit Protection.

Сүрөт 9.2: Бүттүview of the advanced 6-layer protection features integrated into the Nimble Champ Portable Charger for enhanced safety.

Чапталгыч Чamp Portable Charger with text highlighting its eco-friendly design, including 90% certified recycled plastic and average CO2 savings of 7.4 lbs per unit.

Image 9.3: Details on the eco-friendly design of the Nimble Champ, emphasizing its use of recycled materials and reduced carbon footprint.

10. Кепилдик жана колдоо

Чапталгыч Чamp Portable Charger comes with a 2 жылдык кепилдик from the date of purchase, covering defects in materials and workmanship. This warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.

For warranty claims, technical support, or any questions regarding your product, please visit the official Nimble webсайтка же түздөн-түз кардарларды тейлөөгө кайрылыңыз. Кепилдикти текшерүү үчүн сатып алганыңыздын далилин сактаңыз.

Көбүрөөк маалымат жана колдоо таба аласыз Nimble Store on Amazon.
