SHARPAL 129N Multipurpose Garden Tool Blade Sharpener and SHARPAL 181N Dual-Grit Diamond Sharpening Stone File User Manual

1. Киришүү

This user manual provides comprehensive instructions for the SHARPAL 129N Multipurpose Garden Tool Blade Sharpener and the SHARPAL 181N Dual-Grit Diamond Sharpening Stone File. These tools are designed to maintain and restore the sharpness of a wide variety of blades, from garden tools to kitchen knives and other hard materials. Please read this manual thoroughly before use to ensure safe and effective operation.

2. Продукт бүтүп калдыview

2.1 SHARPAL 129N Multipurpose Garden Tool Blade Sharpener

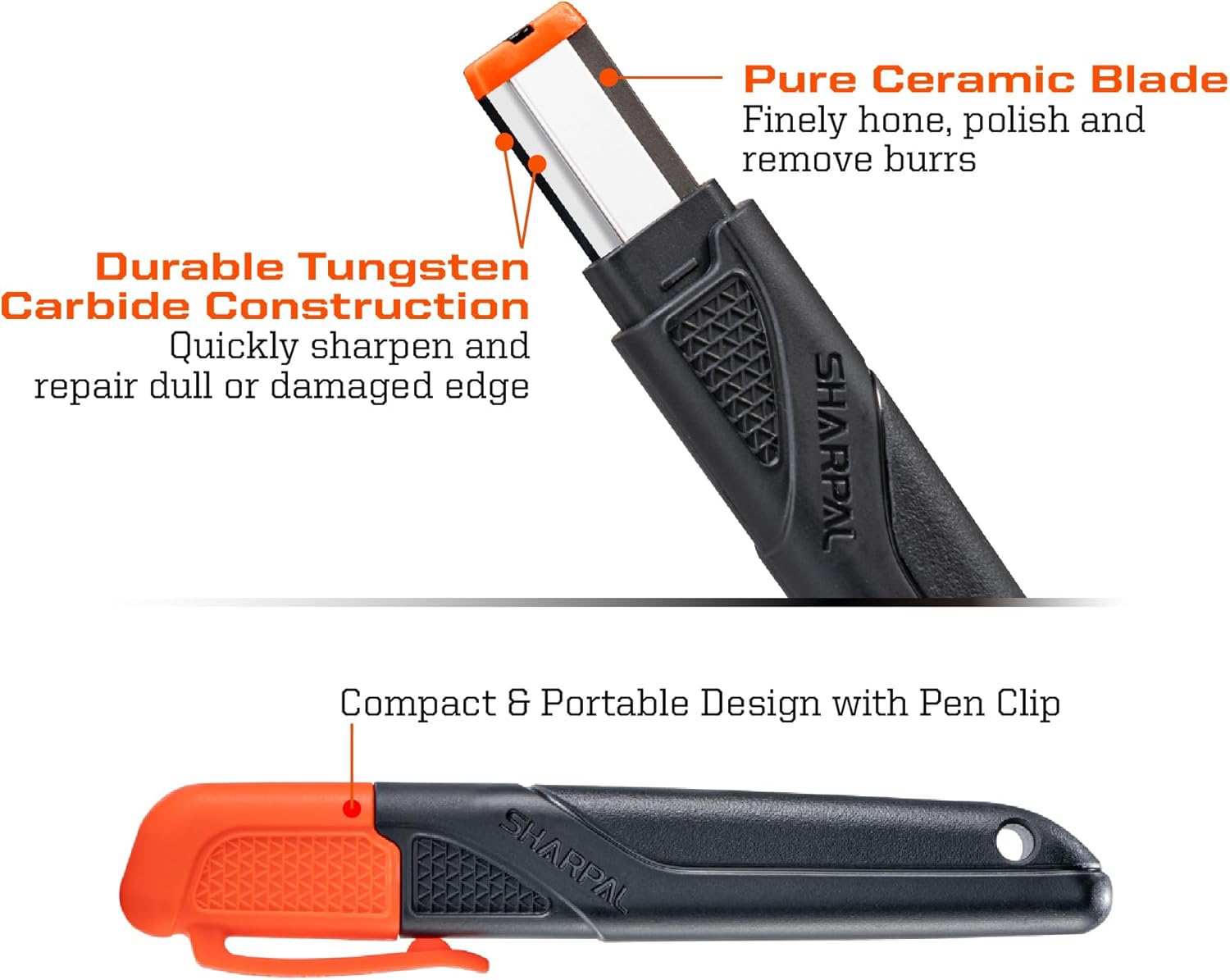

Image: SHARPAL 129N sharpener highlighting its durable tungsten carbide and pure ceramic blades.

• Durable Tungsten Carbide Blade: Used for quickly sharpening or repairing dull and damaged blades. Ideal for most garden tools.
• Pure Ceramic Blade: Designed for fine honing tasks, removing burrs, and sharpening delicate blades like kitchen knives.
• Компакт жана портативдик дизайн: Features a pen clip for easy carrying.

2.2 SHARPAL 181N Dual-Grit Diamond Sharpening Stone File

Image: SHARPAL 181N diamond sharpening stone, illustrating its dual grit surfaces, dimensions, paracord handle, and leather sheath.

• Dual Grit Surfaces:
  • Coarse 325 Grit (45 micron): For quick sharpening of dull or damaged blades, or for resetting a new edge.
  • Extra Fine 1200 Grit (12 micron): For fine honing and polishing to achieve a razor-sharp edge.
• Industrial Monocrystalline Diamonds: Electroplated onto a stainless steel base for fast and durable sharpening.
• Көп функциялуу: Suitable for sharpening all hard materials including knives, axes, hatchets, machetes, lawn mower blades, spades, drills, chisels, shears, carbide, high-speed steel, titanium, ceramics, and most super hard materials.
• Кургак курчутуу: No oil or water is needed for operation.
• Leather Sheath & Paracord: Includes a genuine cowhide leather sheath for protection and a 6.6 ft / 2m paracord for survival tasks.

3. Орнотуу

Both the SHARPAL 129N and 181N sharpeners are ready for immediate use out of the packaging. No assembly is required. Ensure the sharpening surfaces are clean before use.

4. Иштөө нускамалары

Always exercise caution when sharpening blades. Wear appropriate protective gloves to prevent injury.

4.1 Using the SHARPAL 129N Multipurpose Garden Tool Blade Sharpener

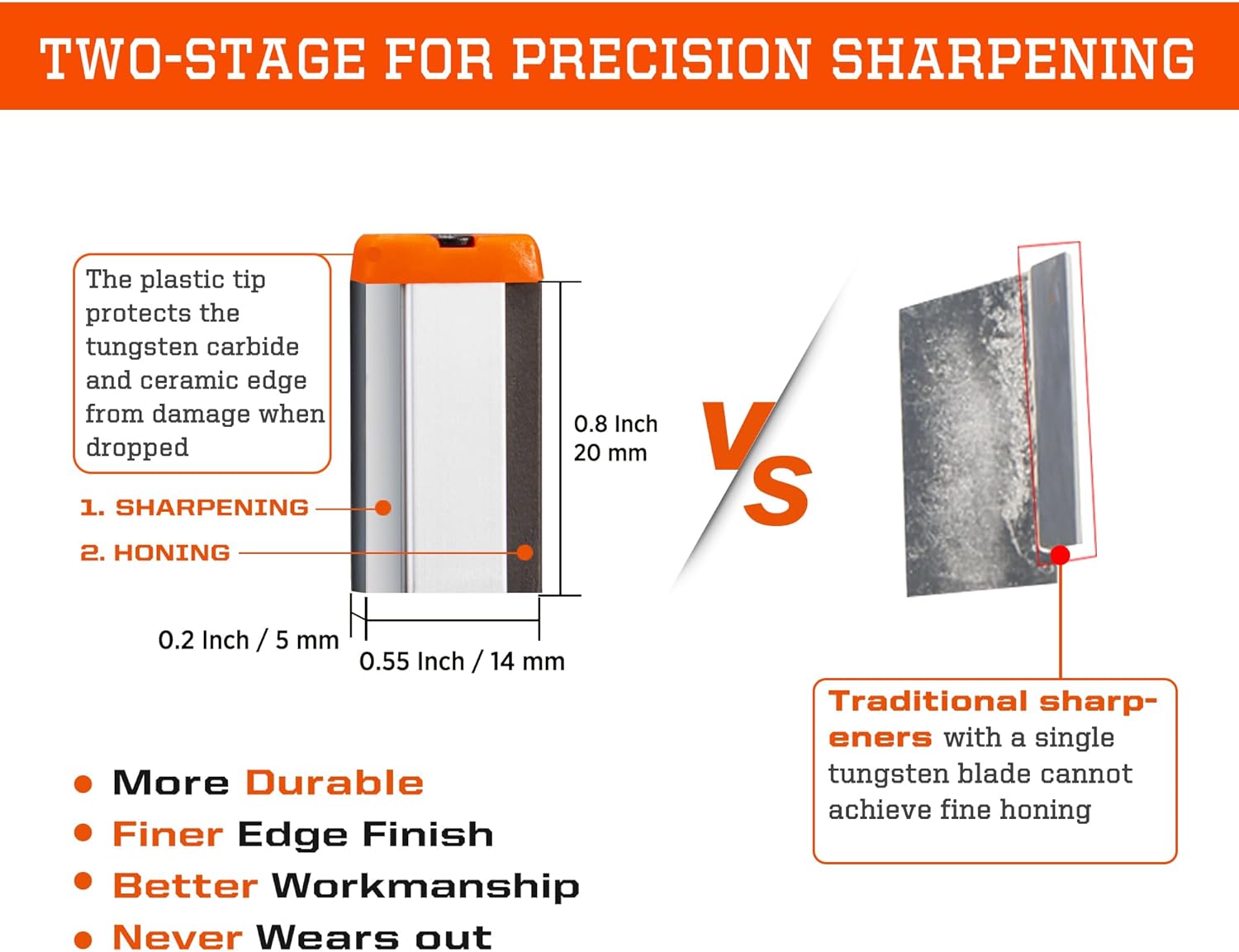

Image: Diagram illustrating the two-stage sharpening process of the SHARPAL 129N, showing the tungsten carbide for sharpening and ceramic for honing.

1. Identify the Blade Type:
   • For dull or damaged garden tools (e.g., pruners, shears, lawn mower blades, axes), start with the Tungsten Carbide Blade.
   • For fine honing, polishing, or delicate blades (e.g., kitchen knives), use the Pure Ceramic Blade.
2. Sharpening with Tungsten Carbide:
   • Hold the sharpener firmly.
   • Place the tungsten carbide slot over the blade edge.
   • Pull the sharpener across the blade with light, consistent pressure, moving from the base to the tip. Repeat 3-5 times or until the blade is sharp.
   • The plastic tip protects the tungsten carbide and ceramic edge from damage if dropped.


   Image: Demonstrating the use of SHARPAL 129N to sharpen a lawn mower blade.


   Image: Demonstrating the use of SHARPAL 129N to sharpen garden shears and pruners.



   Image: Demonstrating the use of SHARPAL 129N to sharpen a knife and an axe.

3. Honing with Pure Ceramic:
   • After using the tungsten carbide, or for fine sharpening, use the ceramic slot.
   • Pull the sharpener across the blade with very light pressure, ensuring the ceramic rods make contact with the edge. Repeat 5-10 times.
   • This step removes burrs and refines the edge for superior sharpness.

4.2 Using the SHARPAL 181N Dual-Grit Diamond Sharpening Stone File

Image: Demonstrating the use of SHARPAL 181N on a knife, for stropping with the leather sheath, and on an axe.

1. Select the Grit:
   • колдонуу Coarse 325 Grit side for very dull, damaged, or chipped blades, or when you need to quickly establish a new edge.
   • колдонуу Extra Fine 1200 Grit side for refining the edge, general sharpening of moderately dull blades, or for achieving a razor-sharp finish.
2. Sharpening Technique:
   • Hold the blade at a consistent angle against the diamond surface. The SHARPAL 181N has a built-in 20-degree angle guide to assist.
   • Apply moderate pressure and push the blade across the stone, moving from the heel to the tip, maintaining the chosen angle.
   • Flip the blade and repeat on the other side, pulling the blade across the stone.
   • Alternate sides, reducing pressure with each pass, until a burr forms along the edge.
   • Once a burr is felt, switch to the Extra Fine 1200 Grit side (if not already using it) and make lighter passes to remove the burr and polish the edge.
   • For optimal results, finish by stropping the blade on the rough side of the leather sheath.
3. Кургак курчутуу: The SHARPAL 181N is designed for dry sharpening. Do not use water or oil.

5. Техникалык тейлөө

• Тазалоо: After use, wipe the sharpening surfaces of both tools with a damp cloth to remove any metal particles or debris. Ensure they are completely dry before storage.
• Сактагыч: Store the sharpeners in a dry place. The SHARPAL 181N comes with a leather sheath for protection.
• Узак жашоо: The tungsten carbide and diamond surfaces are highly durable and designed for long-term use. Avoid dropping the sharpeners, especially the SHARPAL 129N, to protect the ceramic and carbide elements.

6. Кыйынчылыктарды

7. Техникалык шарттар

8. Кепилдик жана колдоо

SHARPAL products are manufactured to high-quality standards. For specific warranty information or technical support, please refer to the product packaging or visit the official SHARPAL webсайт. Кепилдик дооматтары үчүн сатып алуу дүмүрчөгүңүздү сактаңыз.
