1. Пакеттин мазмуну
Please inspect the package contents to ensure all items are present and in good condition.
- AZDOME M01 Pro Dual Dash Cam (Front Unit)
- Арткы камера
- 128 ГБ SD карта
- Mini USB OBD Hardwire Kit
- Сорох кубогын таһыгар
- Жабыштыруучу тоо
- USB кубат кабели
- Pry куралы
- User Manual
Image 1.1: All components included in the AZDOME M01 Pro Dual Dash Cam package.
2. Орнотуу
2.1 SD картаны салуу
Locate the SD card slot on the side of the main dash cam unit. Gently insert the provided 128GB micro SD card until it clicks into place. Ensure the card is inserted correctly to avoid damage.
Image 2.1: The included 128GB micro SD card for video storage.
2.2 Mounting the Front Dash Cam
- Clean the area on your windshield where you intend to mount the dash cam. Ensure it is free from dust and grease.
- Attach the suction cup mount or adhesive mount to the main dash cam unit.
- Press the mount firmly against the windshield and secure it. Adjust the angle to ensure a clear view алдыдагы жолдун.
Image 2.2: Front dash cam mounted on the windshield using the suction cup mount.
2.3 Арткы камераны орнотуу
- Арткы камера үчүн арткы алдыңкы айнегиңизге ылайыктуу жерди аныктап, так көрүнүштү камсыз кылыңыз view.
- Тандалган жерди кылдат тазалаңыз.
- Attach the rear camera using its adhesive backing.
- Connect the rear camera cable to the main dash cam unit. Route the cable discreetly along the vehicle's headliner and A-pillar using the provided pry tool to tuck it under trim panels.
2.4 Кубатты туташтыруу
The AZDOME M01 Pro comes with a Mini USB OBD Hardwire Kit for continuous power and parking mode functionality.
- Locate your vehicle's OBD-II port (usually under the dashboard on the driver's side).
- Plug the OBD connector of the hardwire kit into the vehicle's OBD-II port.
- Connect the Mini USB end of the hardwire kit to the main dash cam unit.
- Route the power cable discreetly, similar to the rear camera cable, to avoid obstructing your view же айдоого тоскоолдук кылуу.

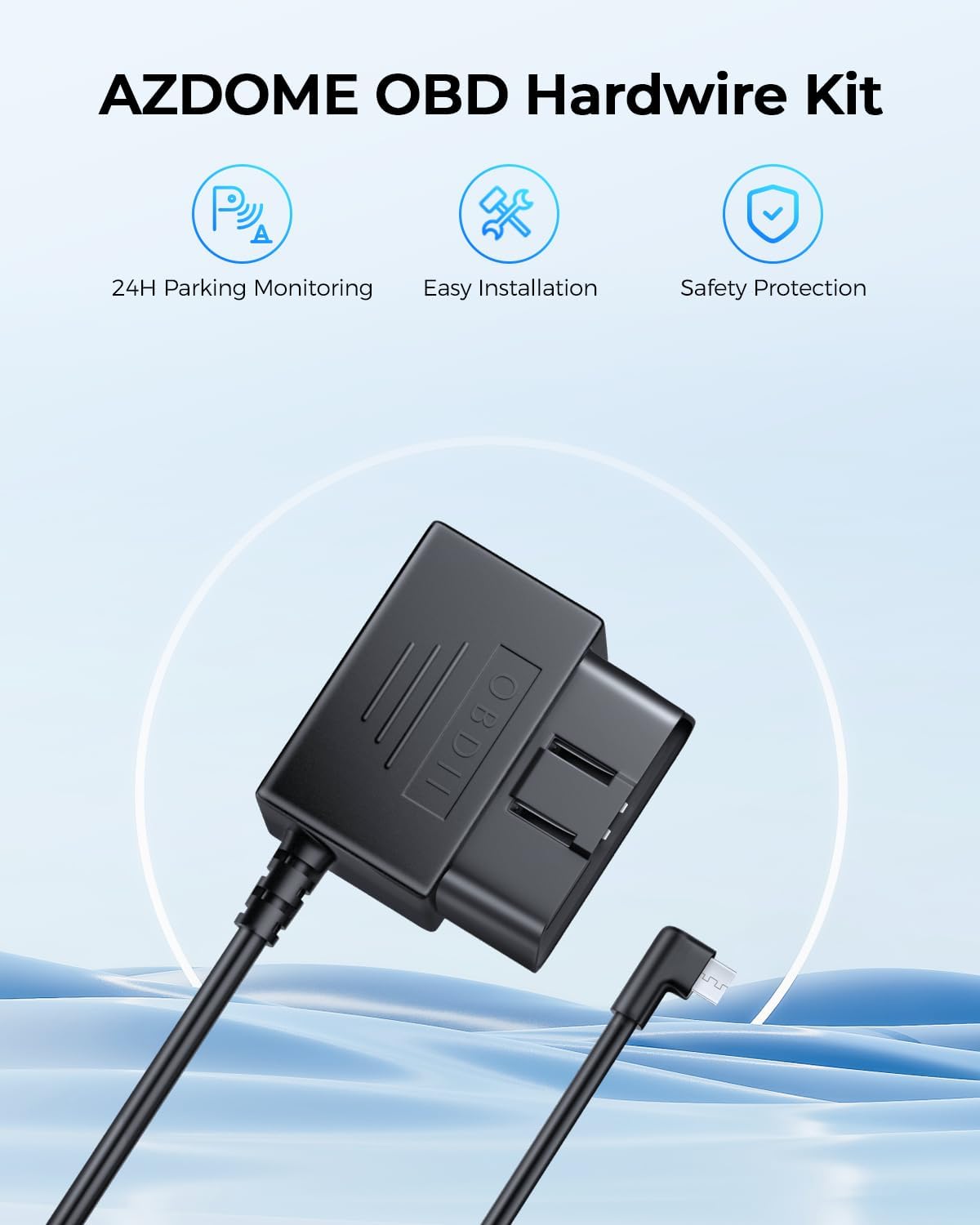

Image 2.3: The Mini USB OBD Hardwire Kit for power connection.

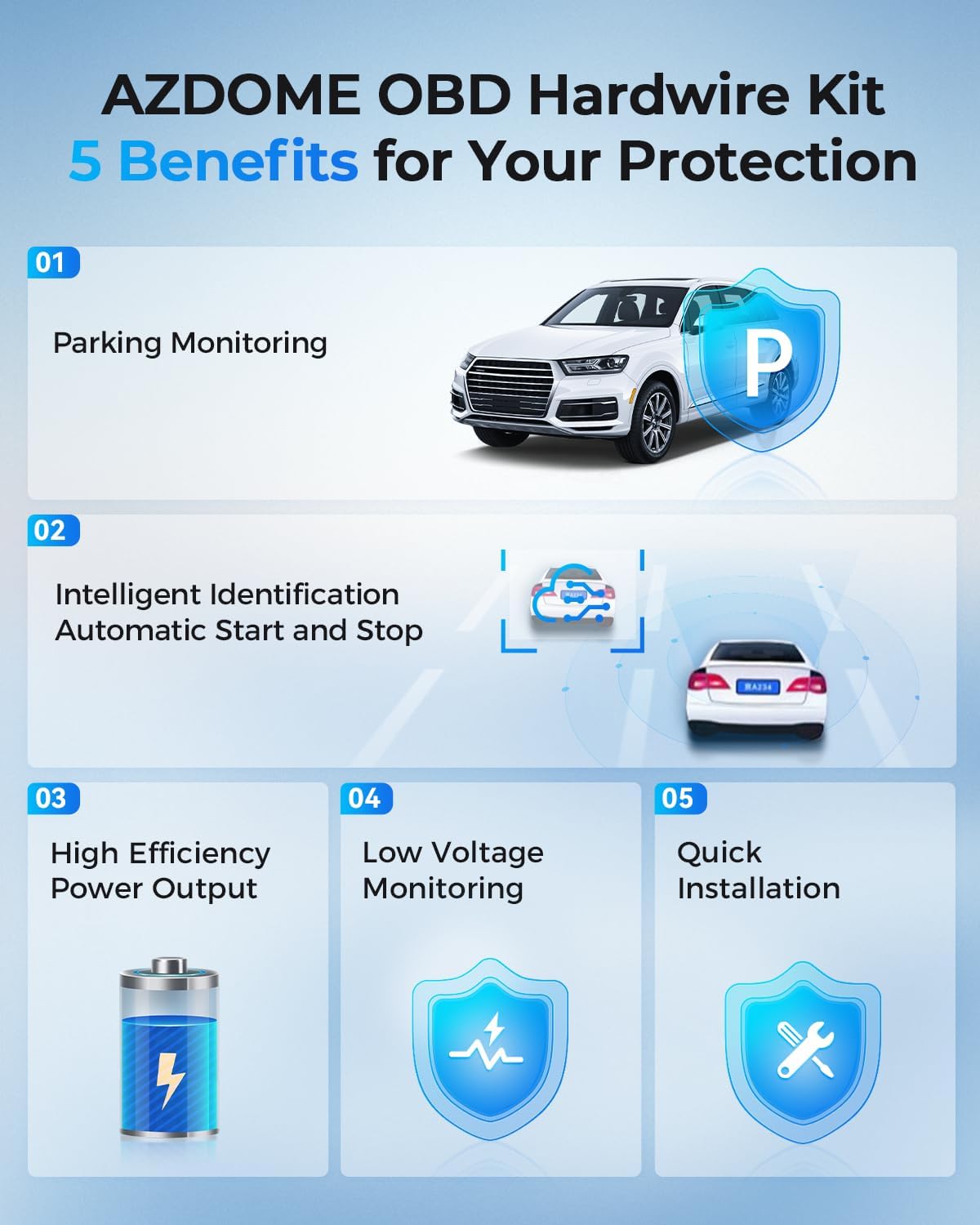

Image 2.4: Key benefits of using the OBD Hardwire Kit, including 24H parking monitoring and easy installation.
3. Иштөө нускамалары
3.1 Күйгүзүү/өчүрүү
The dash cam will automatically power on and begin recording when your vehicle's ignition is turned on (if connected via OBD hardwire kit). It will power off automatically when the ignition is turned off.
3.2 Негизги башкаруу каражаттары
The dash cam features a 3-inch 2.5D curved IPS screen and intuitive buttons for navigation and control. Refer to the on-screen interface for specific menu options.
3.3 Цикл жаздыруу
The dash cam continuously records video in short segments (e.g., 1, 3, or 5 minutes). When the SD card is full, the oldest unlocked video files will be automatically overwritten by new recordings. This ensures continuous recording without manual intervention.
3.4 G-Sensor & Emergency Lock
The built-in G-sensor detects sudden movements or impacts (e.g., collisions). When an event is detected, the current video segment is automatically locked and saved to a protected folder, preventing it from being overwritten by loop recording.
3.5 24H Parking Mode
With the Mini USB OBD Hardwire Kit, the dash cam supports 24-hour parking monitoring. There are two primary modes:
- Кагылышууну аныктоо паркинг режими: The G-sensor detects impacts while parked and records a short video segment.
- Time-lapse Parking Mode: The dash cam records continuously at a low frame rate (e.g., 1fps) for 24 hours, compressing long periods into short videos.
Image 3.1: Explanation of 24H Parking Monitoring modes: Collision Detection and Time-Lapse recording.
3.6 ADAS (Айдоочуга жардам берүүчү өркүндөтүлгөн системалар)
The M01 Pro features ADAS functions, including a Lane Departure Warning System and Forward Collision Warning. These systems provide timely alerts to help reduce the risk of driving accidents.
3.7 Dual Recording & Reverse View
The dash cam records simultaneously from both the front (Full HD 1080P, 150° wide-angle) and rear (120° wide-angle) cameras. The display can show both views, and when reversing, it can provide a reverse view паркинг көрсөтмөлөрү менен.
Image 3.2: Dual recording display showing front and rear views, with reverse view parking guidelines.
3.8 Супер түнкү көрүү
Equipped with a Starvis Sensor and F2.0 large aperture, the dash cam provides enhanced night vision capabilities, capturing clear footagал тургай, аз жарык шарттарда e.
Image 3.3: Super Night Vision technology details, including 6-Glass Lens, Starvis Sensor, and F2.0 Aperture for clear low-light recording.
4. Техникалык тейлөө
4.1 SD картаны башкаруу
Regularly format your SD card (at least once a month) to maintain optimal performance and prevent data corruption. Back up any important video files форматтоодон мурун.
4.2 Тазалоо
Use a soft, dry cloth to clean the dash cam lenses and screen. Avoid using abrasive cleaners or solvents that could damage the device.
5. Кыйынчылыктарды
- Dash Cam күйбөй жатат: Ensure the OBD hardwire kit is correctly installed and receiving power from the vehicle. Check the Mini USB connection to the dash cam.
- Жаздыруу маселелери: Verify the SD card is properly inserted and not full. Format the SD card if necessary. Ensure loop recording is enabled.
- Видеонун сапаты начар: Clean the camera lenses. Check the resolution settings in the menu. Ensure the protective film has been removed from the lenses.
- Арткы камера көрүнбөйт: Check the cable connection between the front and rear cameras. Ensure the rear camera is properly installed.
- Унаа токтотуу режими иштебей жатат: Confirm the OBD hardwire kit is correctly installed and providing continuous power. Check parking mode settings in the menu.
6. Техникалык шарттар
| Бренд | AZDOME |
| Модель аты | AZDOME Dual Dash Cam (M01 Pro) |
| Байланыш технологиясы | USB |
| Видео тартуунун резолюциясы | 1080p (Front: Full HD 1080P, Rear: 1080P) |
| Монтаж түрү | Windshield Mount (Suction Cup / Adhesive) |
| Башкаруу ыкмасы | Touch / Buttons |
| Flash эс тутум түрү | SD (128 ГБ кошулган) |
| Өзгөчөлүктөр | Dual Dash Cam, ADAS, Loop Recording, 24H Parking Mode, G-Sensor, Super Night Vision, 150° Front Lens, 120° Rear Lens |
7. Кепилдик жана колдоо
Кепилдик жөнүндө маалымат же техникалык колдоо алуу үчүн, расмий AZDOME сайтына кайрылыңыз website or contact their customer service directly. Contact details are typically found in the packaging or on the product's official support page.
