Introduction
Thank you for choosing the Conserv 14 cu. ft. Convertible Upright Freezer/Refrigerator. This appliance is designed for versatility, allowing you to switch between freezer and refrigerator modes to suit your storage needs. It features a garage-ready design, frost-free technology, and adjustable shelving for optimal convenience. Please read this manual thoroughly before operating your new appliance to ensure safe and efficient use.

1-сүрөт: Фронт view of the Conserv 14 cu. ft. upright freezer/refrigerator in stainless steel, showing the digital display on the door.
Негизги өзгөчөлүктөрү
- Кабриолеттик функция: Easily switch between freezer and refrigerator modes.
- Garage Ready: Suitable for use in unheated spaces, maintaining optimal performance in varying temperatures.
- Digital Door Display: Conveniently adjust settings and monitor temperature from the exterior.
- Frost-Free Design: Муздун топтолушунун алдын алат, кол менен эритүүнүн кажети жок.
- Жөнгө салынуучу айнек текчелер: Four shelves can be repositioned to accommodate various item sizes.
- Reversible эшик: Door hinges can be reversed to open from the left or right side.
- Low Sound Operation: Quiet compressor operates at approximately 45 dB(A).
- Energy Star рейтинги: Ensures energy efficiency.
Орнотуу жана орнотуу
Пакеттен чыгаруу жана жайгаштыруу
Carefully remove all packaging materials. Ensure the appliance is placed on a level, stable surface. Allow adequate clearance around the unit for proper ventilation (at least 4 inches from walls). This unit is designed to be freestanding.

2-сүрөт: The freestanding design allows for flexible placement in various environments, including kitchens or garages.
Электр байланышы
Connect the appliance to a dedicated 110V AC outlet. Do not use extension cords or adapter plugs. Allow the unit to stand upright for at least 2-4 hours before plugging it in to allow refrigerants to settle.
Reversible эшик орнотуу
The door hinges are reversible, allowing the door to open from either the left or right side. Refer to the detailed instructions in the included physical manual for the reversal procedure. This feature provides flexibility for placement in your home.

3-сүрөт: Illustrates the reversible door and handle feature, allowing the door to be configured for left or right opening. Two units are shown side-by-side to demonstrate a French door style setup.
Текчелерди жөндөө
The unit includes 4 adjustable glass shelves. To adjust, carefully lift the shelf and slide it out. Reinsert into desired slots. This allows for customized storage configurations.

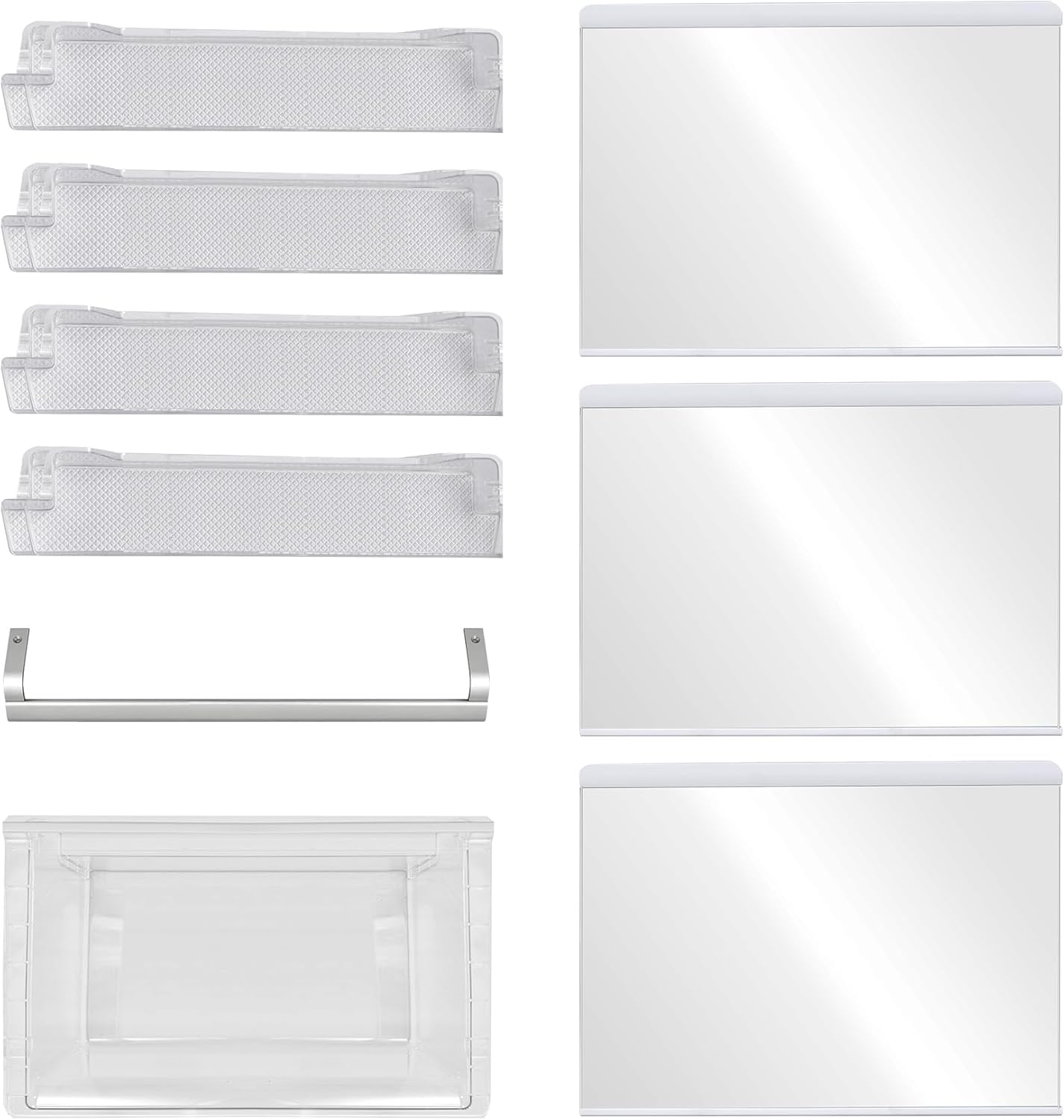

4-сүрөт: Components such as adjustable glass shelves and door bins, which can be configured to optimize storage space.
Иштөө нускамалары
Башкаруу панелиview
The digital control panel is located on the exterior of the door, providing easy access to settings without opening the appliance. It displays the current temperature and allows for mode selection.

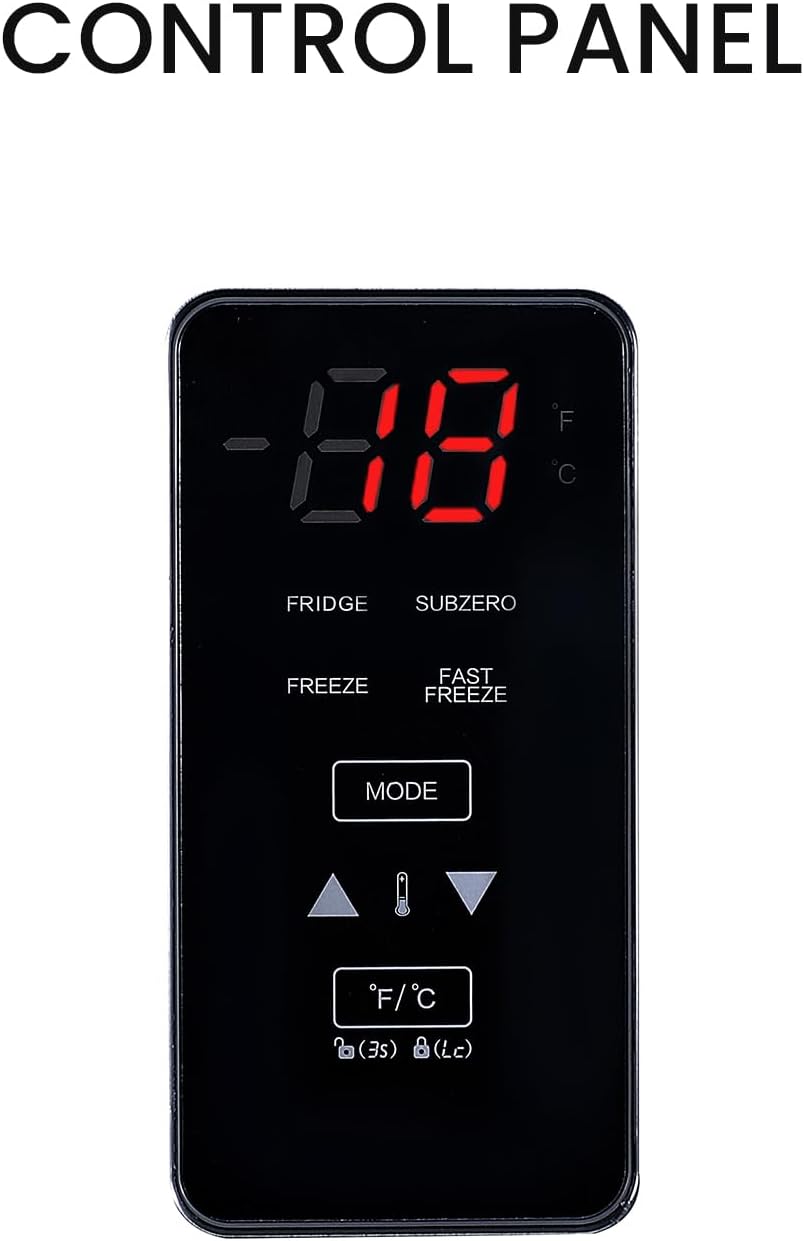

5-сүрөт: Деталдаштырылган view of the digital control panel, showing temperature display and mode selection buttons.
Switching Modes (Freezer/Refrigerator)
To switch between freezer and refrigerator modes, press the 'MODE' button on the digital control panel. The display will indicate the selected mode. Ensure the appliance has sufficient time to reach the new temperature after switching modes.
- Freezer Mode Temperature Range: 6.8°F to -11.2°F (-14°C to -24°C)
- Refrigerator Mode Temperature Range: 32°F – 46°F (0°C – 8°C)
Температураны жөндөө
Use the up and down arrow buttons on the control panel to adjust the temperature within the selected mode. The display will show the set temperature. Allow several hours for the temperature to stabilize after adjustment.
Door Ajar Ойготкуч
The appliance is equipped with a door alarm that will sound if the door is left open for more than 3 minutes. Close the door to silence the alarm and prevent temperature fluctuations.

6-сүрөт: Интерьер view showcasing the storage capacity and organization with various food items.
Техникалык тейлөө
Интерьерди тазалоо
Unplug the appliance before cleaning. Use a soft cloth and a mild, non-abrasive detergent with warm water to clean the interior surfaces, shelves, and door gaskets. Rinse thoroughly and dry with a clean cloth. Do not use harsh chemicals or abrasive cleaners.
Frost-Free Technology
This appliance features frost-free technology, which automatically prevents ice buildup on the interior walls. This eliminates the need for manual defrosting, simplifying maintenance.
Сырты тазалоо
Сырткы беттерин жумшак менен сүртүңүз, гamp cloth and a mild detergent. For stainless steel finishes, use a stainless steel cleaner and polish in the direction of the grain. Avoid spraying water directly onto the control panel or electrical components.
Конденсатордун катушкасын тазалоо
Periodically clean the condenser coils located at the back of the unit to ensure efficient operation. Use a vacuum cleaner with a brush attachment to remove dust and debris. Ensure the appliance is unplugged before cleaning the coils.

7-сүрөт: Арткы view of the appliance, highlighting the location of the compressor and condenser coils for maintenance.
Проблемаларды чечүү
Кардарларды колдоо кызматына кайрылуудан мурун, төмөнкү кеңири таралган көйгөйлөрдү жана алардын мүмкүн болгон чечимдерин карап чыгыңыз:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Шайман иштебейт. | розеткага кошулбаган; өчүргүч өчүрүлдү; күч уtage. | Сайгычтын бекем орнотулганын текшериңиз; автоматтык өчүргүчтү кайра орнотуңуз; үйдөгү электр энергиясын текшериңиз. |
| Температура жетиштүү суук эмес. | Door not closed properly; excessive door openings; warm food added; unit in direct sunlight; temperature setting too high. | Check door seal; reduce door openings; allow warm food to cool before storing; relocate unit; adjust temperature setting lower. |
| Эшиктин сигнализациясы бат-баттан угулат. | Door left ajar; door gasket dirty or damaged. | Ensure door is fully closed; clean or inspect door gasket for damage. |
| адаттан тыш үндөр. | Appliance not level; items rattling inside; normal operating sounds (compressor, fan). | Level the appliance; rearrange items; normal sounds are expected. |
Техникалык шарттар
| Спецификация | Нарк |
|---|---|
| Бренд | Conserv |
| Модель номери | FR 1400 REV |
| Кубаттуулугу | 14 куб фут |
| Орнотуу түрү | бурун |
| Түс | Дат баспас |
| Тtage | 110 вольт |
| Ватtage | 396 кВт.саат |
| Эритүү системасы | Автоматтык (Үшүксүз) |
| Эшик илгичтери | Reversible |
| Текчелердин саны | 4 (Жөнгө салынуучу айнек) |
| Продукциянын өлчөмдөрү (D x W x Y) | 28 x 28 x 68 дюйм |
| Элемент Салмагы | 108 фунт |
| Сертификация | CSA |

8-сүрөт: Dimensional drawing of the appliance, indicating its height (68 inches), width (28 inches), and depth (28 inches).
Продукт видеолору
Видео 1: Бүттүview of the Conserv 14cf and 17cf Upright Freezer, highlighting its convertible and garage-ready features. This video provides a general introduction to the product line.
Видео 2: Detailed presentation of the Conserv 14cf Upright Freezer, focusing on its convertible functionality, frost-free technology, and design features. This video offers a closer look at the specific model.
Кепилдик жана колдоо
Кепилдик маалымат
This Conserv appliance comes with a 1 жылдык кепилдик сатып алынган күндөн тартып. Бул кепилдик нормалдуу колдонуудагы материалдардагы жана жасалгадагы кемчиликтерди камтыйт. Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
Кардарларды колдоо
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Conserv customer support. Refer to the contact information provided in your purchase documentation or visit the official Conserv webсайт.
Камтылган компоненттер: Your product package includes the appliance, a power cord, and this user manual.
