1. Продукт бүтүп калдыview
This manual provides instructions for the CINOTON 100W LED Flood Light and the CINOTON Outdoor Solar Landscape Pathway Lights. These products are designed for outdoor illumination, offering efficient and versatile lighting solutions for various applications.

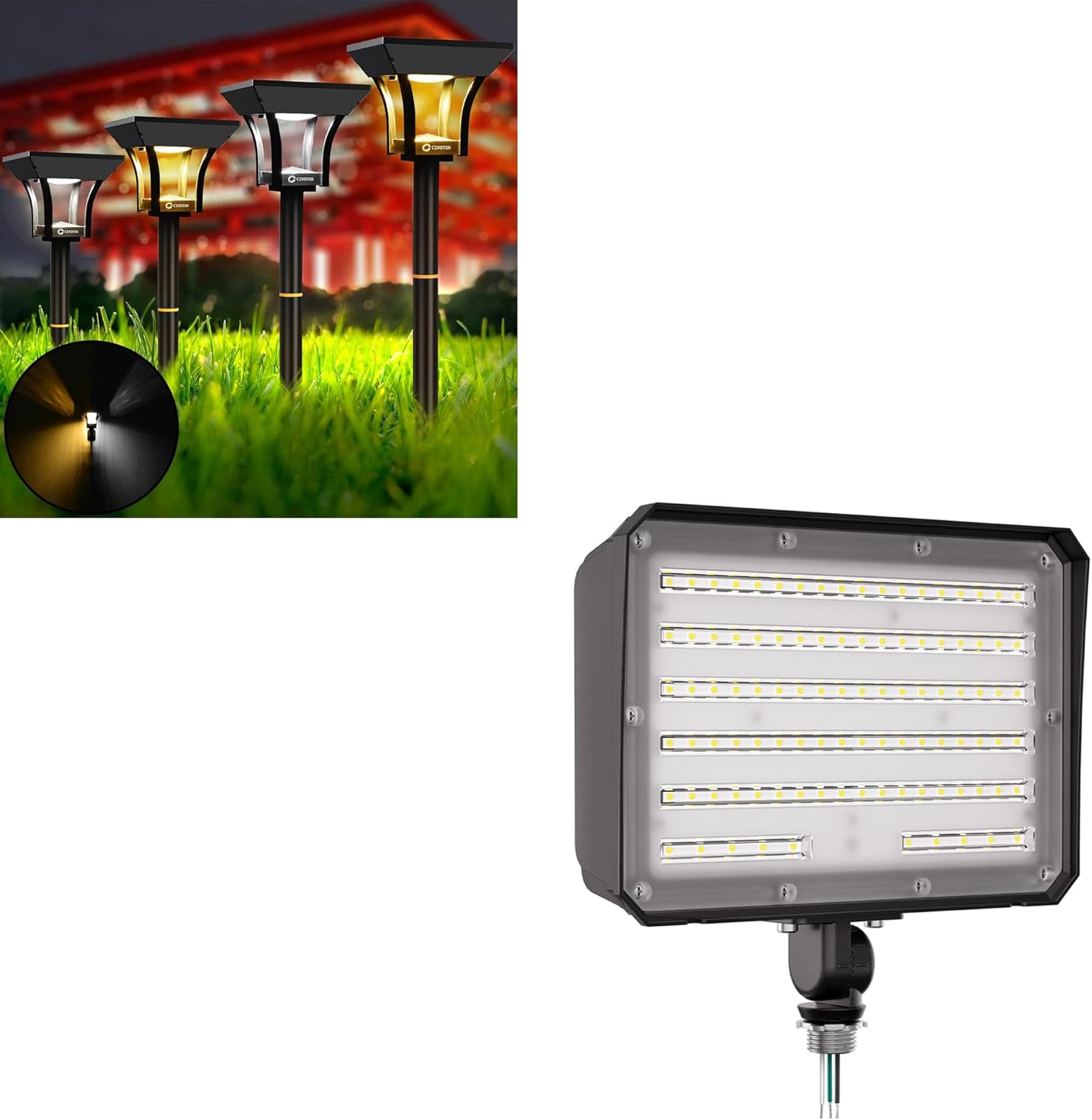

Сүрөт 1.1: Бүттүview of the CINOTON 100W LED Flood Light and Solar Landscape Pathway Lights.
1.1 100W LED Flood Light
The 100W LED Flood Light provides powerful, energy-efficient illumination for outdoor areas. It features a 5000K daylight color temperature and an adjustable mounting bracket for flexible positioning.
Image 1.2: Key features of the 100W LED Flood Light, including 14000 lumens, 120° beam angle, and IP65 waterproof rating.
1.2 Outdoor Solar Landscape Pathway Lights
The Outdoor Solar Landscape Pathway Lights are designed to provide ambient lighting for pathways and gardens. They are solar-powered, feature multiple lighting modes, and offer both cold white and warm white color options.
Image 1.3: CINOTON Solar Landscape Pathway Lights illuminating an outdoor area.
2. Коопсуздук маалыматы
Орнотуудан жана колдонуудан мурун бардык коопсуздук нускамаларын окуп чыгыңыз. Бул колдонмону келечектеги маалымат үчүн сактаңыз.
- Electrical Safety (Flood Light): Ensure power is disconnected before installation or maintenance. All electrical connections should be performed by a qualified electrician if you are unsure.
- Сыртта колдонуу: Both products are rated for outdoor use (IP65). Ensure all connections for the flood light are properly sealed to prevent water ingress.
- Монтаждоо: Securely mount the flood light and pathway lights to prevent them from falling.
- Жылуулук: The flood light may become warm during operation. Avoid touching it directly when in use.
- Күн панели: Do not attempt to open or modify the solar panel or battery compartment of the pathway lights.
- Жоюу: Dispose of electronic components and batteries according to local regulations.
3. Пакеттин мазмуну
Орнотууну баштоодон мурун бардык компоненттер бар экендигин текшериңиз:
- 1 x CINOTON 100W LED Flood Light
- CINOTON Outdoor Solar Landscape Pathway Lights (Quantity as per package)
- Mounting hardware for Flood Light (e.g., screws, anchors)
- Ground stakes and/or wall mounts for Solar Pathway Lights
- Колдонуучунун Колдонмосу (бул документ)
4. Орнотуу жана орнотуу
4.1 100W LED Flood Light Installation
- Жайгашкан жерди тандоо: Select a suitable outdoor location for the flood light, ensuring it can be securely mounted and provides the desired illumination coverage.
- Монтаждоо: The flood light is equipped with a 180° adjustable knuckle mount and a 1/2 NPT arm mount for versatile installation.
- Дубалга орнотуу: Use appropriate screws and anchors (not included) to secure the mounting bracket to a solid surface.
- Колго орнотуу: Attach the 1/2 NPT arm mount to a compatible junction box or conduit.
- Бурчту тууралоо: Loosen the adjustment screw on the knuckle mount, position the light to the desired angle (up to 180°), and then tighten the screw firmly.
- Электр байланышы: Connect the flood light's wiring to your main power supply. Ensure proper grounding and insulation. Consult a qualified electrician if you are unfamiliar with electrical wiring.
Image 4.1: Illustration of the 1/2 NPT arm mount for easy installation of the flood light.
Image 4.2: The 180° adjustable knuckle mount allows for precise light direction.
4.2 Outdoor Solar Landscape Pathway Lights Installation
- Таңылганын ачуу: Carefully remove the pathway lights from their packaging.
- Иштетүү: Locate the power switch (usually on the underside of the solar panel or base) and switch it to the "ON" position.
- Жайгашкан жери: Choose a location where the solar panel will receive direct sunlight for at least 6-8 hours daily to ensure optimal charging. Avoid shaded areas.
- Монтаждоо параметрлери:
- Ground Insertion: Attach the ground stake to the bottom of the light and firmly insert it into soft ground.
- Дубалга орнотуу: For models with a wall-mounted style (Flying Wings Pattern), use appropriate screws to secure the light to a vertical surface.
Image 4.3: The solar panel on the pathway light, designed for efficient charging.
5. Иштөө нускамалары
5.1 100W LED Flood Light Operation
Once installed and connected to power, the flood light will operate when the power supply is active. It provides a consistent 5000K daylight illumination.
5.2 Outdoor Solar Landscape Pathway Lights Operation
The solar pathway lights operate automatically:
- Автоматтык заряддоо: During daylight hours, the integrated solar panel charges the internal battery (typically 4-6 hours for a full charge).
- Автоматтык жарыктандыруу: At dusk, the lights will automatically turn on and operate for 9-14 hours, depending on the charge received and the selected mode.
- Жарык режимдери: The lights feature 4 distinct lighting modes, selectable via a button (refer to the specific product for button location):
- Cold White with Steady-on (Max. 16 hours / 32LM)
- Cold White with Breathing (Max. 24 hours / 5-32LM)
- Warm White with Steady-on
- Warm White with Breathing
- Режимдин эс тутум функциясы: The lights will automatically recall the last selected lighting mode when they turn on the following day.
Image 5.1: Diagram illustrating the solar charging process and automatic lighting operation of the pathway lights.
6. Техникалык тейлөө
Regular maintenance ensures optimal performance and longevity of your CINOTON lights.
- Тазалоо: Periodically wipe the surfaces of both the flood light and solar pathway lights with a soft, damp cloth to remove dirt, dust, and debris. For solar lights, ensure the solar panel is kept clean for efficient charging.
- Текшерүүлөр:
- Сел жарык: Check electrical connections for any signs of wear or damage. Ensure mounting hardware remains secure.
- Solar Pathway Lights: Verify that the lights are still securely mounted (ground stake or wall mount) and that the solar panel is free from obstructions.
- Battery (Solar Lights): The internal battery is generally sealed and not user-replaceable. If the light's performance significantly degrades after extended use, consider replacing the unit.
7. Кыйынчылыктарды
If you encounter issues with your CINOTON lights, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| 100W LED Flood Light does not turn on. | Электр энергиясы жок; зымдары бош; түзмөк бузук. | Check power source and circuit breaker. Verify all electrical connections are secure. If issues persist, contact customer support. |
| Solar Pathway Light does not turn on at night. | Switch is OFF; insufficient sunlight; solar panel is dirty; faulty battery. | Ensure the power switch is in the "ON" position. Relocate the light to an area with direct sunlight. Clean the solar panel. Allow 1-2 days for full charge. |
| Solar Pathway Light is dim or runs for a short duration. | Insufficient charging; solar panel obstructed; old battery. | Ensure solar panel receives maximum direct sunlight. Clean the solar panel. If the light is several years old, the battery capacity may have diminished. |
8. Техникалык шарттар
8.1 100W LED Flood Light
| Өзгөчөлүк | Деталь |
|---|---|
| Күч | 100 Вт |
| Жарык эффективдүүлүгү | 140 LM/W |
| Түс температурасы | 5000K Күндүзгү жарык |
| Beam Angle | 120° |
| Монтаж түрү | 180° Adjustable Knuckle Mount, 1/2 NPT Arm Mount |
| Суу өткөрбөйт рейтинги | IP65 |
| Эквивалент Wattage | Replaces standard 500-Watt incandescent bulbs |
| Өлчөмдөрү (болжол менен) | 8.6 дюйм (W) x 6 дюйм (H) x 2.7 дюйм (D) |
Image 8.1: Dimensions of the 100W LED Flood Light.
8.2 Outdoor Solar Landscape Pathway Lights
| Өзгөчөлүк | Деталь |
|---|---|
| Power Source | Күн энергиясы |
| Күн панелинин түрү | монокристалл Кремний |
| Заряддоо убактысы | 4-6 саат (түз күн нуру) |
| Жарыктандыруунун узактыгы | 9-14 hours (depending on mode and charge) |
| Жарык режимдери | 4 modes: Cold White Steady-on, Cold White Breathing, Warm White Steady-on, Warm White Breathing |
| Түс температурасы | 7000K Cold White, 2700K Warm White |
| Суу өткөрбөйт рейтинги | IP65 |
| Иштөө температурасы | -30°Cден +55°Cге чейин |
| Стиль параметрлери | Diffused Four-leaf Clover Pattern (Ground-inserted), Flying Wings Pattern (Wall-mounted) |
Image 8.2: The solar pathway lights are certified to withstand various outdoor weather conditions, including heat, snow, rain, and frost, with an IP65 rating.
9. Кепилдик жана колдоо
CINOTON provides customer support for its products. If you encounter any issues or have questions, please contact the CINOTON professional customer service team.
- Кардарларды тейлөө: CINOTON offers 24/7 troubleshooting assistance.
- Кайтаруу саясаты: Hassle-free return policies are available through Amazon. Refer to Amazon's return policy for specific details (typically 30 days from purchase).
- Сатып алуу кепилдиги: Your purchase is guaranteed.
Кошумча жардам алуу үчүн, сураныч, баш багыңыз CINOTON Store on Amazon.
