Firecore FRL300R айланма лазердик деңгээл үчүн колдонмо

1. Киришүү

This manual provides detailed instructions for the safe and effective operation, maintenance, and troubleshooting of the Firecore FRL300R Rotary Laser Level. Please read this manual thoroughly before using the device to ensure optimal performance and safety.

2. Коопсуздук маалыматы

Жаракат алуунун жана түзмөктүн бузулушунун алдын алуу үчүн ар дайым төмөнкү коопсуздук көрсөтмөлөрүн аткарыңыз:

• Лазердик нурлануу: This product emits Class 2 laser radiation. Do not stare directly into the laser beam. Avoid direct eye exposure.
• Иштөө чөйрөсү: Use the device in a well-ventilated area. Avoid operating in extremely dusty, humid, or explosive environments.
• Батареянын коопсуздугу: Use only the specified rechargeable battery. Do not short-circuit, disassemble, or expose the battery to high temperatures.
• Тейлөө: Түзмөктү өз алдынча оңдоого же өзгөртүүгө аракет кылбаңыз. Бардык тейлөө иштерин ыйгарым укуктуу кызматкерлерге тапшырыңыз.
• Сактагыч: Түзмөктү коргоочу кутучасында, салкын, кургак жерде, күн нуру түз тийбеген жана өтө жогорку температурадан алыс сактаңыз.

3. Пакеттин мазмуну

Төмөндө тизмеленген нерселердин баары пакетиңизге камтылганын текшериңиз:

• Firecore FRL300R Rotary Laser Level Unit
• Dedicated Laser Receiver (FRD100)
• Алыстан башкаруу
• Rechargeable Battery (1 unit)
• AC адаптер
• C түрүндөгү кубаттоочу кабель
• Сактоочу куту
• Japanese Instruction Manual (Please refer to this English manual for detailed instructions)

Image: The Firecore FRL300R Rotary Laser Level, its dedicated receiver, remote control, and accessories neatly packed within the durable storage case.

4. Продукт бүтүп калдыview

The Firecore FRL300R is a robust and precise rotary laser level designed for various leveling and surveying tasks. Its ergonomic design ensures ease of handling and durability in demanding work environments.

Image: The main unit of the Firecore FRL300R Rotary Laser Level, its accompanying laser receiver, and the protective carrying case.

Сүрөт: жакын план view of the Firecore FRL300R's control panel and the visible semiconductor red laser technology in operation.

Image: A hand holding the Firecore FRL300R, illustrating its ergonomic design with four handles for comfortable and secure grip.

5. Орнотуу

1. Батареяны заряддоо: Before first use, fully charge the included rechargeable battery using the AC adapter and Type-C charging cable. The 3-stage indicator on the unit will show the charging status. Charging is possible even when the unit is in its case or mounted on a tripod.
2. Батареяны салуу: Open the battery compartment and insert the charged battery, ensuring correct polarity.
3. Агрегатты орнотуу: For accurate measurements, mount the FRL300R on a stable tripod. Ensure the tripod is placed on a firm, level surface.
4. Алгачкы жайгаштыруу: Place the unit as level as possible manually before turning it on. The auto-leveling function will fine-tune the level within its 5° range.

Image: The Firecore FRL300R Rotary Laser Level connected to a power strip via its Type-C charging cable, indicating its charging capability.

6. Иштөө нускамалары

The FRL300R offers various modes for different surveying needs. Use the control panel on the unit or the remote control for operation.

6.1. Power On/Off and Auto-Leveling

• Press the power button to turn the unit on. The FRL300R will automatically begin self-leveling within a ±5° range. No bubble tubes or leveling screws are required.
• Once leveled, the laser beam will rotate, indicating it is ready for use.

Image: The Firecore FRL300R Rotary Laser Level mounted on a tripod, demonstrating its automatic leveling function within a ±5° range.

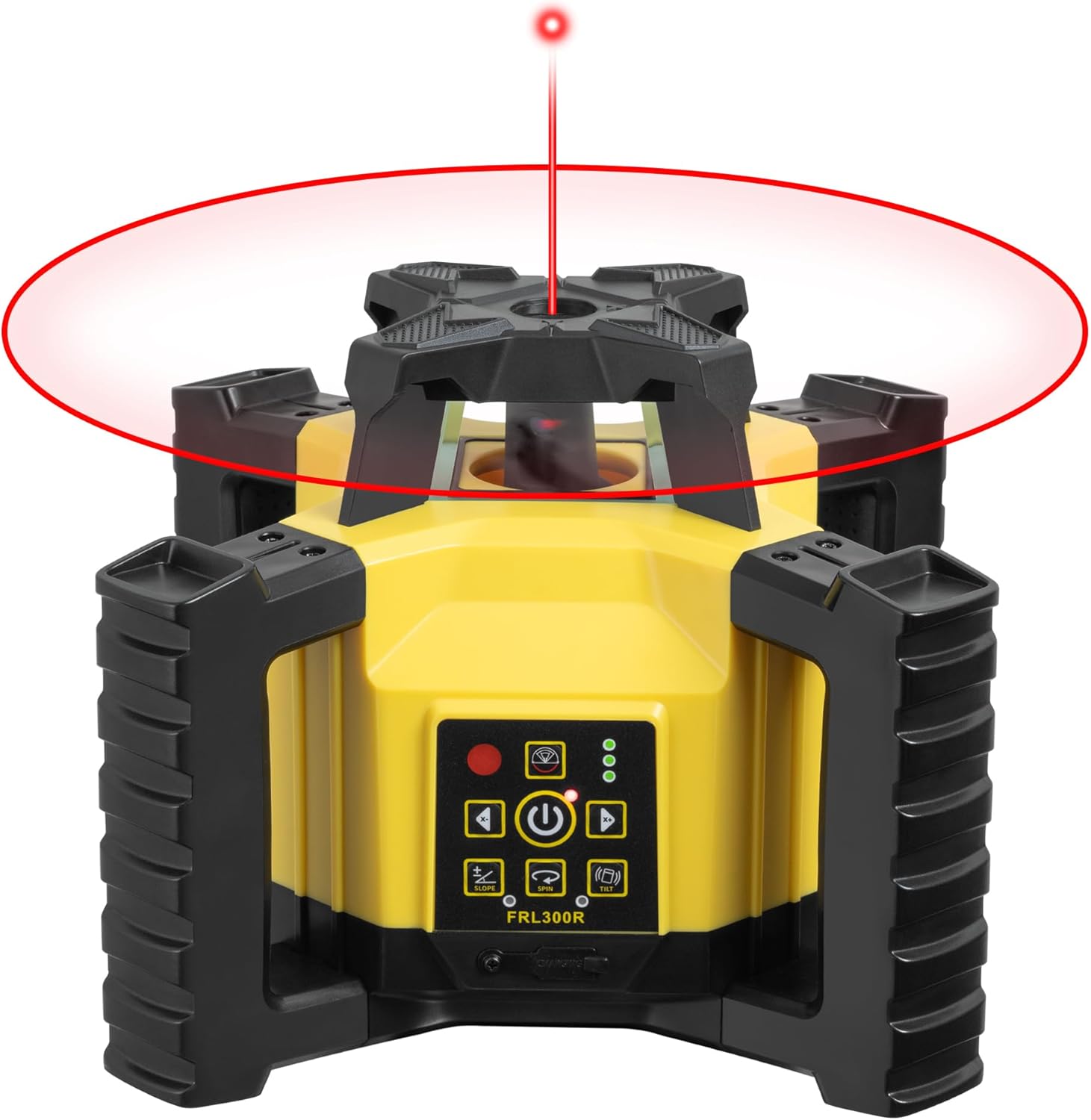

Image: The Firecore FRL300R Rotary Laser Level actively emitting a 360-degree rotating red laser beam, creating a visible horizontal plane.

6.2. Slope Setting Function

• The FRL300R features a convenient slope mode for setting gradients along the X-axis.
• Activate the slope mode using the dedicated button on the control panel or remote.
• Adjust the slope as required for specific civil engineering or construction tasks.

Image: The Firecore FRL300R Rotary Laser Level on a tripod, with an overlay indicating its slope setting capability for X-axis gradient adjustments.

6.3. Импульс режими

• Engage pulse mode for use with the dedicated laser receiver (FRD100) in bright conditions or over long distances (up to 300m diameter).
• The receiver will detect the pulsed laser beam, providing audible and visual indications for precise leveling.

Image: A construction worker using the Firecore FRL300R Rotary Laser Level with the laser receiver in pulse mode to accurately measure a level line on a construction site.

6.4. Impact/Tilt Warning Mode

• The unit is equipped with an impact/tilt warning mode. If the device experiences significant shaking or impact while the laser is active, it will stop rotating.
• The laser head will flash to alert the operator of the disturbance, ensuring measurement accuracy is maintained.

Image: The Firecore FRL300R Rotary Laser Level in a construction setting, illustrating its warning mode where the unit stops rotation if moved or impacted.

6.5. Алыстан башкаруу операциясы

• The included remote control allows for convenient operation of the FRL300R from a distance, mirroring the functions available on the main unit.

Image: A hand holding the remote control for the Firecore FRL300R Rotary Laser Level, demonstrating its remote operation capability on a construction site.

7. Техникалык тейлөө

• Тазалоо: After each use, wipe the device with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure the laser output window is clean for optimal performance.
• Сактагыч: Always store the FRL300R in its original protective case when not in use. This protects it from dust, moisture, and physical damage.
• Батареяга кам көрүү: If storing for an extended period, ensure the battery is partially charged (around 50%) and remove it from the unit. Recharge periodically to maintain battery health.
• IP55 рейтинги: The device has an IP55 dustproof and waterproof rating, making it resistant to dust ingress and low-pressure water jets. However, it is not designed for submersion. Clean off any mud or debris promptly.

Image: The Firecore FRL300R Rotary Laser Level being subjected to dust and water, illustrating its IP55 dustproof and waterproof capabilities.

8. Кыйынчылыктарды

If the problem persists after attempting these solutions, please contact Firecore customer support.

9. Техникалык шарттар

10. Кепилдик жана колдоо

For warranty information, technical support, or service inquiries, please contact Firecore customer service through the official channels provided at the time of purchase or on the Firecore brand website. Please have your product model (FRL300R) and purchase details ready when contacting support.
