NUROUM A05B Bluetooth Conference Speaker and Microphone User Manual

1. Орнотуу

1.1 Кутуда эмне бар

• 1x NUROUM A05B Speakerphone
• 1x USB кабели
• Quick Start Guide

1.2 Түзмөк бүттүview

The NUROUM A05B features a compact design with intuitive touch controls on the top panel. These controls include power, call answer/end, volume up/down, microphone mute, and Bluetooth pairing. The device also includes a USB-C port for charging and wired connection.

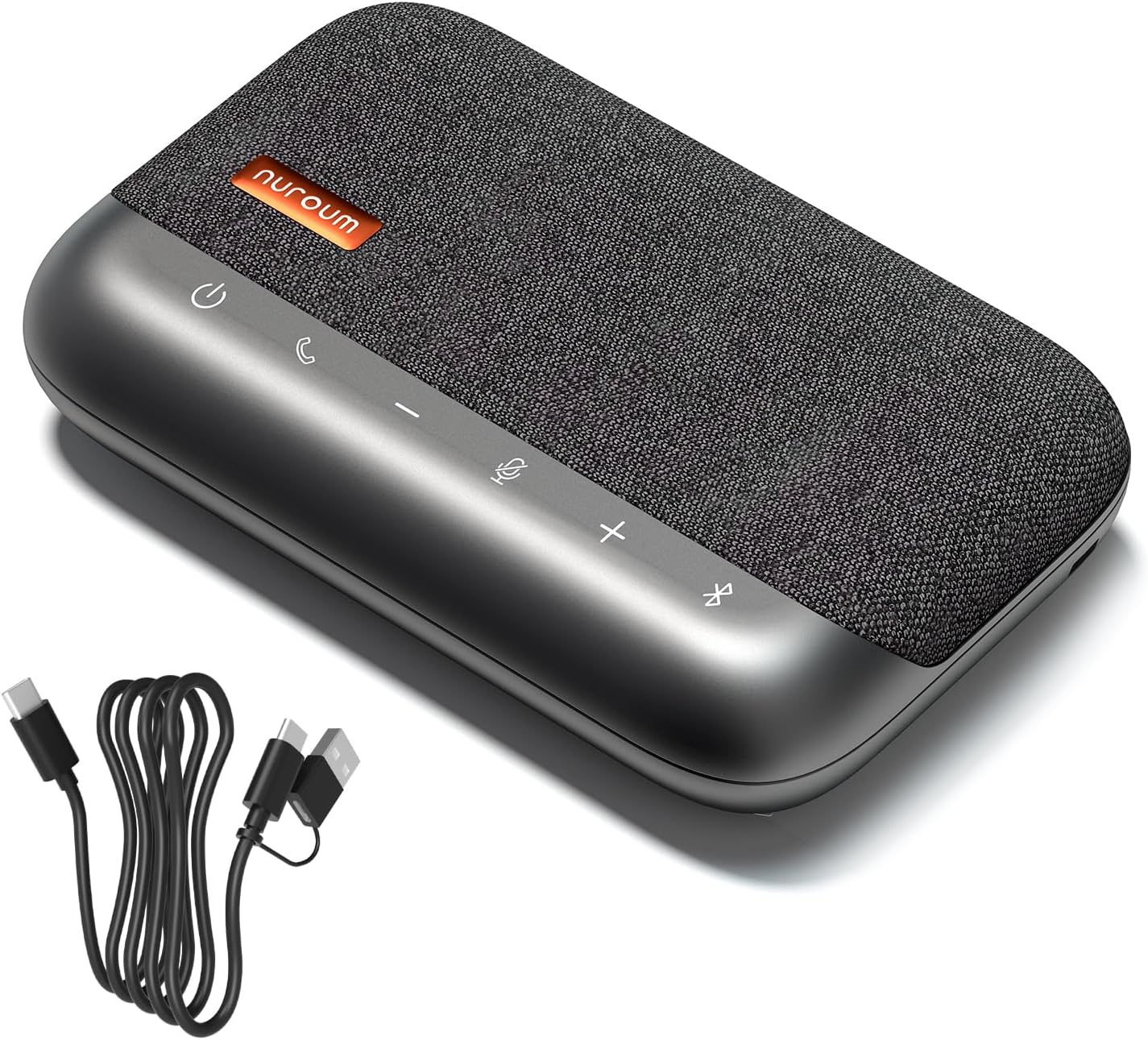

Image: The NUROUM A05B speakerphone, showcasing its top-mounted touch controls and included USB cable.

1.3 Аппаратты заряддоо

Before initial use, fully charge your NUROUM A05B. Connect the provided USB cable to the device's USB-C port and a compatible USB power adapter (not included) or a computer's USB port. A full charge takes approximately 3 hours. The device has a 2600 mAh battery capacity.

1.4 Байланыш параметрлери

The NUROUM A05B offers both Bluetooth and USB connectivity for versatile use.

1.4.1 Bluetooth байланышы

1. Press and hold the Bluetooth button on the speakerphone until the indicator light flashes, indicating pairing mode.
2. On your device (smartphone, tablet, laptop), navigate to Bluetooth settings and select 'NUROUM A05B' from the list of available devices.
3. Туташтырылгандан кийин, индикатор жарыгы туруктуу күйөт.

For mobile devices, Bluetooth connection is generally recommended. The Bluetooth range is up to 20 meters.

Image: Illustration of connecting the NUROUM A05B via Bluetooth to a smartphone and via USB to a laptop.

1.4.2 USB туташуу

1. Connect the provided USB cable from the NUROUM A05B to an available USB port on your computer (PC or Mac).
2. The device will be automatically recognized as an audio input and output device.
3. Select 'NUROUM A05B' as your speaker and microphone in your computer's sound settings or your conferencing software.

For PC/Mac devices, a USB cable connection is strongly recommended for a more stable connection and optimal performance.

Image: A laptop screen showing audio settings with the NUROUM A05B connected via USB, ready for use.

1.4.3 Универсалдуу шайкештик

The NUROUM A05B is compatible with various operating systems including Windows, macOS, and Linux. It works seamlessly with major conferencing platforms such as Zoom, Microsoft Teams, Google Meet, Webex, FaceTime, Skype, and more.

Image: A graphic displaying logos of popular conferencing platforms and operating systems, highlighting the wide compatibility of the A05B.

2. Иштөө нускамалары

2.1 Күйгүзүү/өчүрүү

• Күйгүзүү үчүн, индикатор жарыктары күйгөнгө чейин күйгүзүү баскычын басып, кармап туруңуз.
• Өчүрүү үчүн, индикатор жарыктары өчкөнгө чейин күйгүзүү баскычын басып, кармап туруңуз.

2.2 Аудио өзгөчөлүктөрү

The NUROUM A05B is engineered with advanced audio technologies to ensure clear and effective communication.

2.2.1 360° Omnidirectional Microphone

The professional-grade 360° microphone captures voices from all directions within a 16-foot (3-meter) radius, ensuring all participants are heard clearly in a conference setting. The integrated HiFi4 DSP chip processes audio to maintain high fidelity, providing an immersive meeting experience.

Video: A demonstration of the NUROUM A05B's 360° omnidirectional voice capture and AI-based audio processing technology in a conference room setting.

2.2.2 Echo, Reverberation, and AI Noise Cancellation

Utilizing the ProperClean ENC algorithm, the A05B effectively suppresses echo, reverberation, and ambient noise. This AI-based technology filters out distractions such as keyboard clicks and background conversations, ensuring crystal-clear audio even in noisy environments or rooms with challenging acoustics.

Image: Two individuals in a modern office with glass walls, demonstrating how the A05B's advanced echo cancellation ensures clear conversations.

2.2.3 Full Duplex Communication

The full duplex audio processing allows multiple participants to speak simultaneously without any loss of conversation, facilitating natural and uninterrupted discussions.

2.2.4 Автоматтык пайданы башкаруу (AGC)

AGC technology automatically adjusts the volume of voices within a 10-foot (3-meter) range. This ensures that all participants are heard at a consistent and clear volume level, regardless of their distance from the speakerphone or individual speaking volume.

Image: A conference room with multiple people, illustrating the A05B's Automatic Gain Control (AGC) technology balancing voice levels for clear communication.

2.3 Башкаруу

• Кубат баскычы: Аппаратты күйгүзүү же өчүрүү үчүн басып туруңуз.
• Чалуу баскычы: Чалууга жооп берүү же аяктоо үчүн басыңыз.
• Көлөмдү өйдө / ылдый баскычтары: Динамиктин үнүн тууралаңыз.
• Микрофондун үнүн басуу баскычы: Press once to mute or unmute the microphones. An indicator light will show the mute status.
• Bluetooth баскычы: Bluetooth жупташтыруу режимине кирүү үчүн басып туруңуз.

Сүрөт: жакын план view of the NUROUM A05B's touch controls, highlighting the microphone mute button.

2.4 Батареянын иштөө мөөнөтү

The NUROUM A05B provides up to 20 hours of music playback or 18 hours of conference call time at 50% volume on a full charge. You can continue using the device while it is charging via the USB cable.

3. Кароо жана тейлөө

3.1 Тазалоо

To clean your NUROUM A05B, gently wipe the exterior surfaces with a soft, dry, lint-free cloth. Avoid using abrasive cleaners, solvents, or chemical sprays, as these can damage the device's finish and internal components.

3.2 Сактоо

When not in use, store the speakerphone in a cool, dry place, away from direct sunlight and extreme temperatures. Use the provided carrying case for protection during transport or storage.

Image: The portable NUROUM A05B speakerphone with its dedicated travel case, emphasizing its convenience for mobile use.

3.3 Батареяга кам көрүү

To prolong battery life, avoid fully discharging the battery frequently. If storing the device for an extended period, ensure it has a partial charge (around 50%) and recharge it every few months.

4. Көйгөйлөрдү чечүү боюнча колдонмо

If you encounter issues with your NUROUM A05B, refer to the following common problems and solutions:

4.1 Кубат жок / Түзмөк күйбөй жатат

• Батареяны текшерүү: Аппараттын заряддалганын текшериңиз. Аны USB кабели аркылуу кубат булагына туташтырыңыз.
• Кубат баскычы: Confirm you are pressing and holding the power button for a few seconds until the indicator lights appear.

4.2 Bluetooth туташуу маселелери

• Түзмөктү кайра жупташтыруу: Delete 'NUROUM A05B' from your device's Bluetooth list and attempt to pair again.
• Аралык: Ensure the speakerphone is within the 20-meter Bluetooth range of your connected device.
• Интерференция: Башка зымсыз түзмөктөрдүн кийлигишүүсүн азайтыңыз.
• USB туташуу: If persistent Bluetooth issues occur, consider using the USB cable for a more stable connection, especially with computers.

4.3 Poor Sound Quality / Microphone Pickup

• Түзмөктүн жайгашуусу: Ensure the speakerphone is centrally located on a flat surface, free from obstructions, to optimize 360° microphone pickup.
• Үн деңгээли: Check both the speakerphone's volume and your connected device's volume settings.
• Үнсүз абал: Микрофондун үнсүз эместигин текшериңиз.
• Программалык камсыздоонун жөндөөлөрү: Confirm 'NUROUM A05B' is selected as the default microphone and speaker in your conferencing application's audio settings.
• Курчап турган чөйрө: While the device has noise cancellation, extremely loud or reverberant environments can still impact performance.

4.4 Device Not Recognized by Computer (USB)

• Кабель туташуу: Ensure the USB cable is securely connected to both the speakerphone and the computer. Try a different USB port.
• Кайра баштоо: Restart your computer and reconnect the device.
• Айдоочулар: Most operating systems will automatically install necessary drivers. If issues persist, check your computer's device manager for any driver-related problems.

5. Техникалык шарттар

6. Кепилдик маалыматы

The NUROUM A05B Bluetooth Conference Speaker and Microphone comes with a limited manufacturer's warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your product or visit the official NUROUM webсайт.

7. Кардарларды колдоо кызматы

For further assistance, technical support, or to access additional resources, please visit the official NUROUM website or contact their customer service department. Contact information can typically be found on the product packaging or the NUROUM webсайт.
