Philips Fortimo SLM C 930 PW 1309 L15 2024 G8 UHE COB LED Module

1. Киришүү

This manual provides essential information for the safe and effective use of the Philips Fortimo SLM C 930 PW 1309 L15 2024 G8 UHE COB LED Module. This high-performance LED chip is designed for various lighting applications, including projector, spotlight, and horticultural grow light systems, offering a 3000K color temperature and 90CRI for excellent light quality.

Please read this manual thoroughly before installation and operation to ensure proper functionality and longevity of the product.

2. Коопсуздук маалыматы

• Электр коопсуздугу: Always disconnect power before installing, servicing, or cleaning the LED module. Installation should be performed by qualified personnel in accordance with local electrical codes.
• Жылуулук башкаруу: COB LED modules generate heat during operation. Adequate heat sinking is crucial to prevent overheating and ensure optimal performance and lifespan. Do not operate the module without a suitable heat sink.
• Көздү коргоо: Do not stare directly into the illuminated LED module. The intense light can cause eye strain or damage.
• Колдонуу: Handle the LED module by its edges. Avoid touching the light-emitting surface to prevent contamination or damage.
• Шайкештик: Ensure that the power supply (LED driver) is compatible with the module's electrical specifications (current and voltagжана).

3. Пакеттин мазмуну

Сиздин пакетиңиз төмөнкүлөрдү камтыйт:

• Philips Fortimo SLM C 930 PW 1309 L15 2024 G8 UHE COB LED Modules (5 units)

4. Орнотуу

Proper setup is critical for the performance and longevity of your LED module.

1. Монтаждоо: Securely mount the COB LED module to an appropriate heat sink using thermal paste or a thermal pad to ensure efficient heat transfer. The module dimensions are approximately 20x24mm.
2. Электр байланышы: Connect the positive (+) and negative (-) terminals of the LED module to a constant current LED driver. The module operates within a current range of 240-750mA and a voltage of approximately 37 Volts. Ensure correct polarity.
3. Системалык интеграция: Integrate the LED module into your lighting fixture or system, ensuring all connections are secure and insulated.

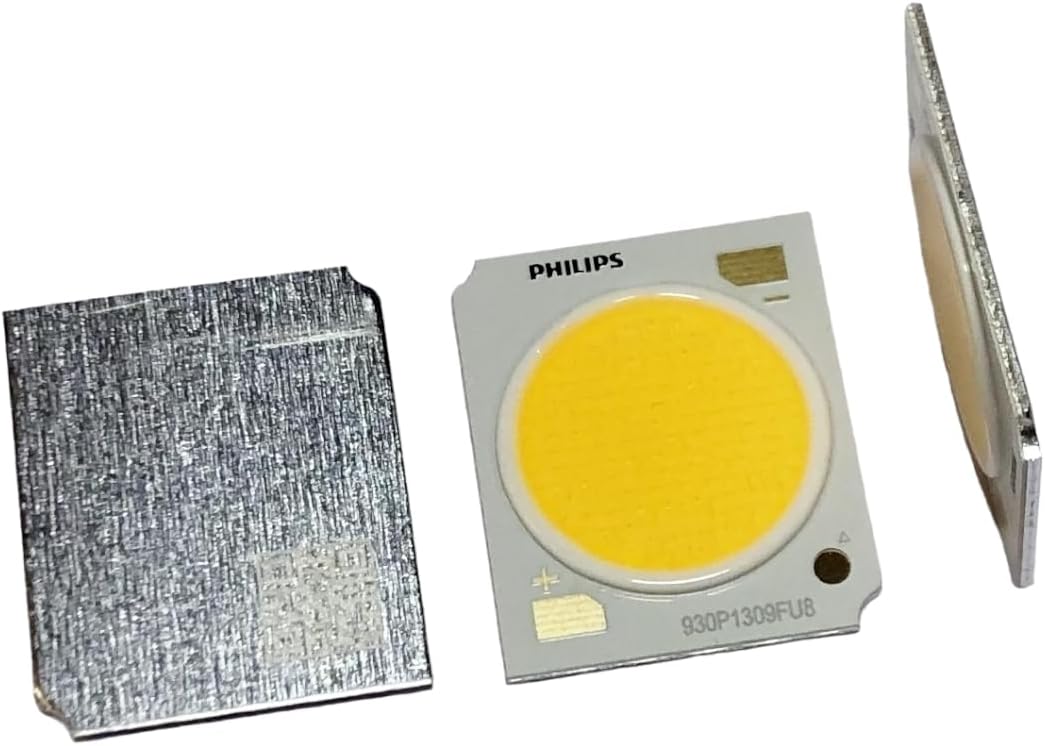

Figure 1: Philips Fortimo COB LED Module. This image shows the top view of the COB LED module, highlighting its compact design and the light-emitting surface.

Figure 2: Technical drawing of the Philips Fortimo COB LED Module. This diagram provides precise dimensions and connection points for accurate integration into lighting systems.

5. Иштөө нускамалары

The Philips Fortimo COB LED module is designed for integration into various lighting systems. Its operation is controlled by the external LED driver and associated control mechanisms of the host system.

• Күйгүзүү/өчүрүү: The LED module will illuminate when the compatible LED driver is supplied with power.
• Dimming/Control: If your system includes dimming capabilities (e.g., via an app or push button controller), these functions will regulate the current supplied to the LED module by the driver, thereby adjusting light output. The COB module itself does not have integrated controls.
• Жарык мүнөздөмөлөрү: The module provides a warm white light with a color temperature of 3000 Kelvin and a high Color Rendering Index (CRI) of 90, suitable for applications requiring accurate color representation.

6. Техникалык тейлөө

Minimal maintenance is required for the COB LED module itself, but regular checks of the overall lighting system are recommended.

• Тазалоо: If necessary, gently clean the light-emitting surface with a soft, lint-free cloth. Avoid abrasive cleaners or solvents. Ensure the module is cool and powered off before cleaning.
• Жылуулук раковинасын текшерүү: Periodically check the heat sink for dust accumulation. Clean any dust or debris to maintain optimal thermal performance.
• Туташуу текшерүү: Бардык электр туташууларынын бекем жана коррозияга туруктуу экенине ынаныңыз.

7. Кыйынчылыктарды

If the LED module is not functioning as expected, consider the following:

• Module Not Lighting Up:
  • Verify that the power supply to the LED driver is active.
  • Check all electrical connections for proper polarity and secure contact.
  • Ensure the LED driver is compatible with the module's current and voltage requirements and is functioning correctly.
• Күңүрт же бүлбүлдөгөн жарык:
  • Confirm the LED driver is providing the correct current.
  • Бош байланыштарды текшериңиз.
  • Ensure the heat sink is adequately dissipating heat; overheating can lead to reduced output.
• Ашыкча ысып кетүү:
  • Ensure the heat sink is properly sized for the module's wattage and application.
  • Verify that thermal paste or a thermal pad is correctly applied between the module and the heat sink.
  • Check for adequate airflow around the heat sink.

If issues persist after performing these checks, consult a qualified electrician or contact Philips support.

8. Техникалык шарттар

9. Кепилдик жана колдоо

Philips products are manufactured to high standards and undergo rigorous testing. For specific warranty details regarding your Philips Fortimo COB LED module, please refer to the warranty information provided at the point of purchase or on the official Philips Lighting webсайт.

For technical support, troubleshooting assistance, or inquiries about product integration, please visit the official Philips support website or contact their customer service department. You can often find detailed product datasheets and application guides on the Philips Lighting professional webсайт.

Philips расмий Webсайт: www.lighting.philips.com
