myGEKOgear Orbit T100 4-Channel 1080P Dash Cam System for Trucks

1. Киришүү

This manual provides detailed instructions for the installation, operation, and maintenance of your myGEKOgear Orbit T100 4-Channel 1080P Dash Cam System. This system is designed for trucks and other large vehicles, offering comprehensive video recording and monitoring capabilities with its 10.1-inch IPS screen and four 1080P cameras. Please read this manual thoroughly before using the product to ensure proper function and safety.

2. Пакеттин мазмуну

Төмөндө тизмеленген нерселердин баары пакетиңизге камтылганын текшериңиз:

• 1 x Monitor Display
• 4 x камералар
• 1 х Электр шнуру
• 3 x 16.5 Ft (5m) camera cables
• 2 x 50 Ft (15m) camera cables

Image: The myGEKOgear Orbit T100 system, showing the 10.1-inch monitor and four individual cameras.

3. Продукт бүтүп калдыview

The myGEKOgear Orbit T100 is a robust dash camera system designed for comprehensive vehicle surveillance. It features a central 10.1-inch IPS display and four independent 1080P cameras, providing multiple viewing angles and high-definition recording.

Негизги өзгөчөлүктөрү:

• 4-Channel 1080P Recording: Simultaneously records from four cameras in Full HD resolution.
• 10.1 дюймдук IPS экран: ачык жана кенен камсыз кылат viewing angle for real-time monitoring.
• G-сенсор: Automatically detects sudden impacts or collisions and locks the current video file кайра жазуунун алдын алуу үчүн.
• IP67 суу өткөрбөй турган камералар: Cameras are rated for dust and water resistance, suitable for outdoor vehicle mounting.
• Кең талаа View: Each camera offers a 139-degree field of view.

Image: The 10.1-inch IPS monitor display, designed for clear visibility.

Сүрөт: арткы view of the monitor, showing mounting bracket and connection ports.

Image: A close-up of one of the IP67 waterproof cameras.

4. Орнотуу жана орнотуу

Туура орнотуу оптималдуу аткаруу үчүн абдан маанилүү болуп саналат. Бул системаны квалификациялуу адиске орнотуу сунушталат.

4.1. Мониторду орнотуу

1. Select a suitable location on your dashboard for the monitor display, ensuring it does not obstruct your view же транспорт каражаттарын башкарууга тоскоолдук кылуу.
2. Secure the monitor using the provided dashboard mount. Ensure it is firmly attached to prevent movement during vehicle operation.

4.2. Камераны орнотуу

The system includes four cameras for comprehensive coverage. Typical placements include front, rear (backup), and two side cameras.

1. Identify optimal mounting points for each camera to cover desired blind spots and recording areas.
2. Mount each camera securely using appropriate hardware. Ensure the cameras are oriented correctly for the intended view.
3. Route the camera cables carefully, avoiding sharp edges, moving parts, and heat sources. Use the provided 5m and 15m cables as needed.

Image: A diagram illustrating typical camera placements on a truck for front, side, and backup views.

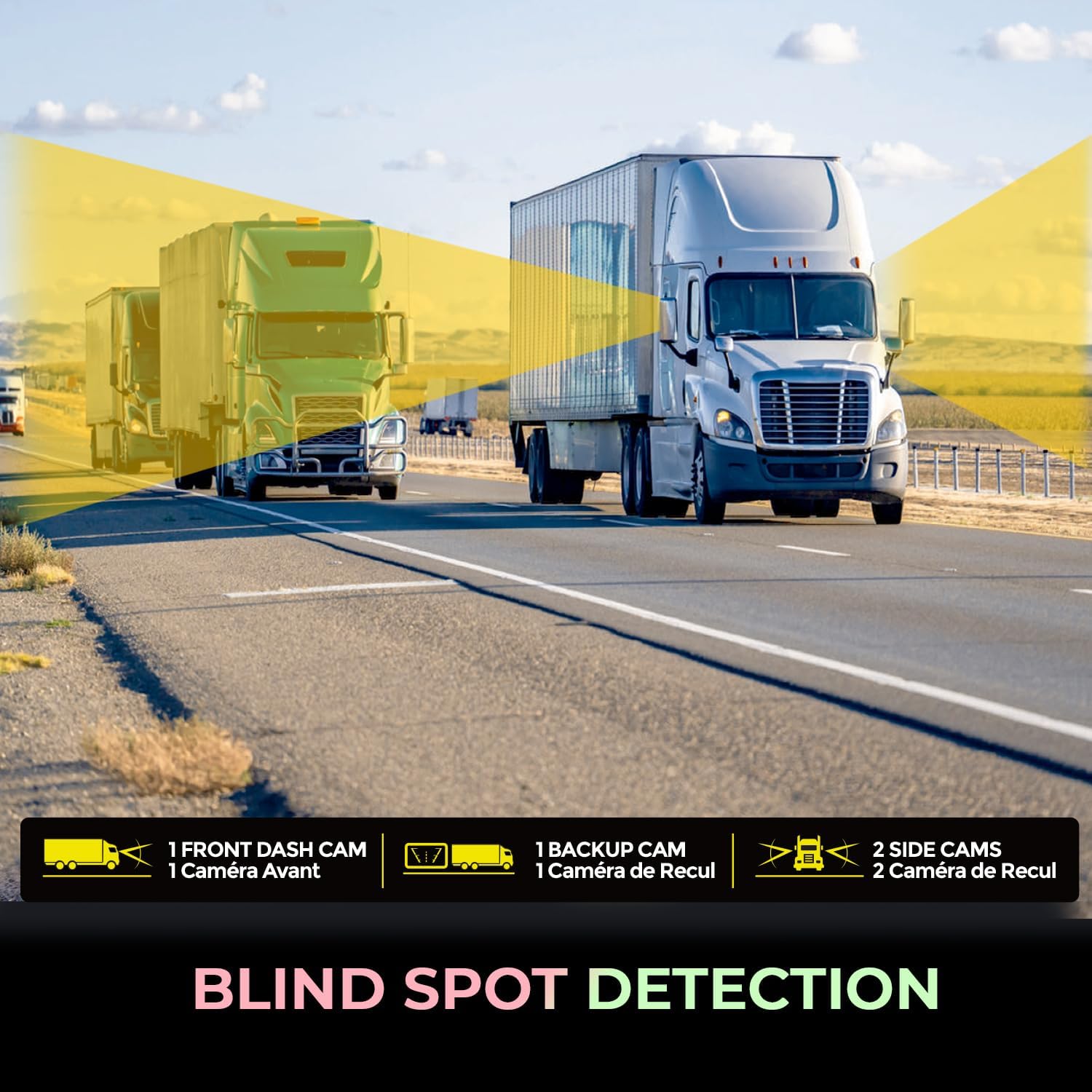

Image: Visual representation of blind spot detection with camera coverage on a truck.

4.3. Зымдар жана электр туташтыруу

1. Connect each camera cable to the corresponding input ports on the monitor.
2. Connect the power cord to the monitor and then to a 12V power source in your vehicle.
3. Бардык байланыштар коопсуз экенин текшериңиз.

5. Иштөө нускамалары

Once installed and powered on, the Orbit T100 system will typically begin recording automatically.

5.1. Негизги операция

• Күйгүзүү/өчүрүү: The system powers on with the vehicle's ignition and powers off when the ignition is turned off. A manual power button may also be present on the monitor.
• Live View: The 10.1-inch IPS screen displays live feeds from the connected cameras. You can typically switch between single-camera views or a multi-camera split view.
• Жаздыруу: Continuous loop recording is the default mode. Older files are overwritten by new ones when the storage card is full, unless protected by the G-Sensor.

Image: A driver's perspective of the monitor displaying real-time footage from multiple cameras, monitoring truck activity.

5.2. G-сенсорунун функционалдуулугу

The integrated G-Sensor detects sudden acceleration, braking, or impacts. When triggered, it automatically locks the current video segment, preventing it from being overwritten during loop recording. These protected files are stored in a separate folder on the memory card.

Image: An accident scene, symbolizing the G-Sensor's role in emergency file сактоо.

5.3. Ойнотуу

Refer to the on-screen menu options for accessing recorded footage. You can typically browse by date and time, and play back videos directly on the monitor.

6. Техникалык тейлөө

Regular maintenance ensures the longevity and optimal performance of your dash cam system.

• Мониторду тазалоо: Use a soft, dry cloth to clean the screen. For stubborn smudges, slightly dampen the cloth with water or a screen-safe cleaner. Avoid abrasive materials.
• Камераларды тазалоо: Periodically check camera lenses for dirt, dust, or water spots. Clean gently with a soft, lint-free cloth. The cameras have an IP67 rating, meaning they are protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes.
• Кабелдик текшерүү: Regularly inspect all cables for signs of wear, fraying, or damage. Replace damaged cables immediately to prevent system malfunction.
• Эстутум картасы: Format the memory card periodically (e.g., once a month) to maintain optimal recording performance and prevent data corruption. Back up any important files форматтоодон мурун.

Image: A camera shown in adverse weather conditions (rain and snow), demonstrating its IP67 waterproof rating.

7. Кыйынчылыктарды

If you encounter issues with your Orbit T100 system, refer to the following common problems and solutions:

Бул чечимдерди колдонуу аракетинен кийин көйгөй чечилбесе, кардарларды колдоо кызматына кайрылыңыз.

8. Техникалык шарттар

9. Кепилдик жана колдоо

For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official myGEKOgear webсайт. Ошондой эле жардам алуу үчүн сатуучуга түздөн-түз кайрылсаңыз болот.

Өндүрүүчү: Adesso, Inc.

Бренд: myGEKOgear
