EPLO iX7 акылдуу дааратканасын колдонуучунун колдонмосу

1. Киришүү

This manual provides detailed instructions for the installation, operation, and maintenance of your EPLO iX7 Smart Toilet. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.

2. Коопсуздук маалыматы

Observe all safety warnings and precautions to prevent injury or damage to the product.

• Кандайдыр бир орнотуудан же техникалык тейлөөдөн мурун электр кубаты өчүрүлгөнүн текшериңиз.
• Do not expose the product to excessive moisture or direct water spray, except as intended for cleaning.
• Only use authorized service personnel for repairs.
• Keep children and pets away from the toilet during operation of automatic features.
• Даараткананын эч бир бөлүгүндө абразивдүү тазалоочу каражаттарды же катуу химиялык заттарды колдонбоңуз.

3. Пакеттин мазмуну

Пакетте бардык компоненттер бар экенин текшериңиз:

• Smart Toilet Unit
• Алыстан башкаруу
• Sealing Wax Ring
• Фланец
• Three-Way Angle Valve
• Монтаждоо комплекттери
• Орнотуу картон
• User Manual
• 2 AAA батарейка (алыстан башкаруу үчүн)

4. Продукциянын өзгөчөлүктөрү

The EPLO iX7 Smart Toilet offers a range of advanced features for enhanced comfort and hygiene.

Image: The EPLO iX7 Smart Toilet with its remote control mounted on the wall.

4.1. Auto Open/Close Lid

The toilet lid can automatically open and close. This function can be toggled on or off. When off, the lid can still be opened/closed via foot kick or remote control.

Image: Illustration of the automatic lid opening and closing feature, alongside the remote control.

4.2. Foam Dispenser (Foam Shield)

The integrated foam dispenser creates a foam layer in the bowl to help isolate odors, prevent splashing, and reduce bacterial adhesion. Foam liquid can be created using body wash and water (60% water).

Image: Visual representation of the foam shield feature, showing its ability to prevent splashing and isolate odors.

4.3. Heated Seat & Night Light

The seat provides adjustable heating for comfort. A built-in night light guides users in the dark, automatically activating in low light conditions.

Сүрөт: Жакын план view of the elongated heated seat and the integrated night light.

4.4. Warm Water Bidet & High-Speed Dryer

The bidet offers instant warm water for female and rear wash functions, with adjustable temperature and nozzle position. After washing, a high-speed dryer with adjustable air temperature and speed provides efficient drying.

Image: Diagram showing UVC cleaning of the nozzle and various bidet wash modes (Rear/Front, H/C Massage, Moving Wash).

Image: Illustration of the high-speed dryer function with adjustable temperature and speed settings.

4.5. Siphonic Jet Flushing Technology

The iX7 utilizes siphonic jet flushing technology for powerful and efficient cleaning. It is tankless and features a built-in backup battery, allowing flushing even during a power outage.

Image: Diagram illustrating the siphonic jet flushing mechanism, showing whirlpool flush, jet flow push, and siphon blowdown.

4.6. LED Temperature Display

An LED display shows real-time temperatures for water, seat, and air dryer. It also features an ECO mode for energy efficiency.

Image: Close-up of the LED display showing water, dryer, and seat temperature settings, including ECO mode.

4.7. Japanese SIAA Certified Seat

The toilet seat is covered with a hygienic coating, certified by Japanese SIAA, for enhanced cleanliness.

Image: Graphic indicating Japanese SIAA certification for the hygienic coating on the toilet seat.

5. Орнотуу

The EPLO iX7 Smart Toilet is designed for floor-mounted installation with a standard 12-inch rough-in. Professional installation is recommended.

5.1. Орнотууга чейинки текшерүүлөр

• Ensure your bathroom has a standard 12-inch rough-in.
• Verify that the water pressure is at least 35 PSI.
• Confirm availability of a grounded electrical outlet (US style with ground plug).
• Do not use with LSP Pull Stop Box Valves.

5.2. Өлчөмдөр

The toilet dimensions are approximately 27.2"D x 16"W x 18.8"H. The seat height is 17 inches.

Image: Technical drawing showing the dimensions of the EPLO iX7 Smart Toilet, including seat height and rough-in requirement.

5.3. Орнотуу кадамдары

Refer to the included 'Installation Cardboard' and detailed instructions within the user manual for step-by-step guidance. Key steps include:

1. Prepare the floor flange and water supply line.
2. Install the wax ring and secure the toilet to the floor using the mounting kits.
3. Connect the water supply to the three-way angle valve.
4. Кубат шнурын жерге туташтырылган розеткага туташтырыңыз.

6. Иштөө нускамалары

The EPLO iX7 Smart Toilet offers multiple ways to control its functions.

6.1. Flushing Methods

The toilet supports various flushing methods:

• Remote Control Flush: Use the dedicated flush button on the remote.
• Каптал баскычын жуу: Press the flush button located on the side of the toilet.
• Foot Kick Flush: A sensor at the base allows for flushing by gently kicking the foot sensor.
• Off-Seat Auto Flush: The toilet automatically flushes after the user stands up and moves away from the seat. This function can be enabled/disabled.

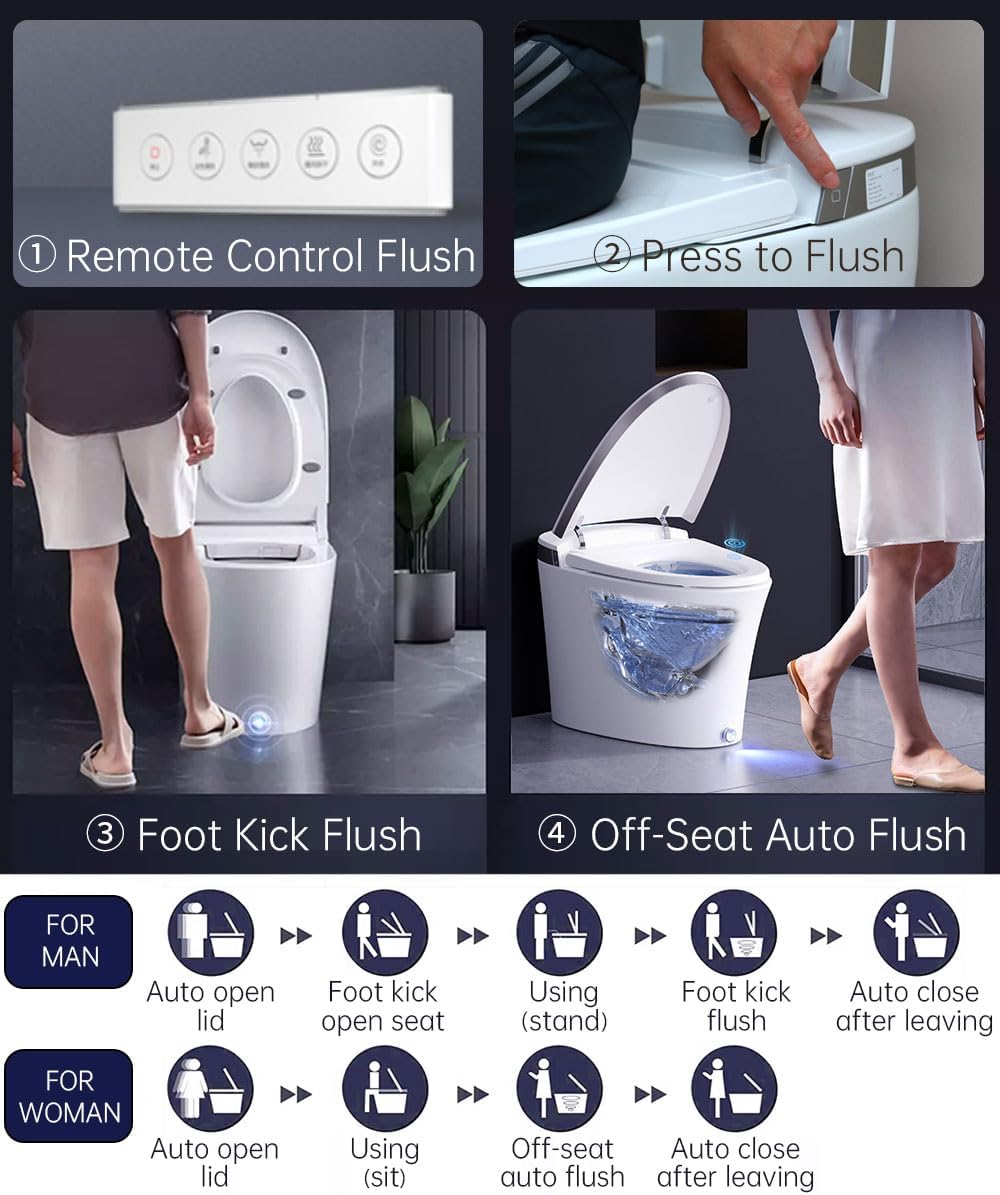

Image: Visual guide to the four flushing methods (remote, press, foot kick, off-seat auto flush) and the auto open/close sequence for male and female users.

6.2. Bidet Functions

Use the remote control to activate and adjust bidet functions:

• Арткы жуу: Арткы жагын тазалоо үчүн.
• Аял жуугуч: Аялдык тазалоо үчүн.
• Moving Wash: The nozzle moves back and forth for a wider cleaning area.
• H/C массажы: Alternating hot and cold water for a massage effect (10 seconds hot, 5 seconds cold).
• Adjust water temperature and pressure using the remote.

6.3. Dryer Operation

After bidet use, activate the dryer function via the remote control. Adjust air temperature and speed to your preference.

6.4. Алыстан башкаруу

The wireless remote control provides access to all smart toilet functions. Ensure the included AAA batteries are installed correctly.

7. Техникалык тейлөө

Regular cleaning and maintenance ensure optimal performance and longevity of your EPLO iX7 Smart Toilet.

7.1. Cleaning the Toilet Bowl

Clean the ceramic bowl with a mild, non-abrasive toilet cleaner and a soft brush or cloth. Avoid harsh chemicals that could damage the glaze.

7.2. Cleaning the Seat and Lid

Wipe the seat and lid with a damp cloth and mild soap. Do not use chemical cleaners on the SIAA certified hygienic coating, as it may cause adverse reactions.

7.3. Соплолорду тазалоо

The bidet nozzle is removable for cleaning. Periodically clean the nozzle with a soft brush and water. The UVC cleaning function helps maintain nozzle hygiene before each use.

7.4. Foam Dispenser Maintenance

Regularly refill the foam dispenser with the recommended mixture of body wash and water (60% water).

8. Кыйынчылыктарды

If you encounter issues, refer to the following common troubleshooting tips. For persistent problems, contact customer support.

• Кубат жок: Check if the power cord is securely plugged in and the circuit breaker is not tripped.
• Суу агымы жок: Ensure the water supply valve is fully open. Check for kinks in the water supply hose.
• Lid Not Opening/Closing Automatically: Verify the auto open/close function is enabled in the settings. Check for obstructions.
• Bidet Not Functioning: Ensure the seat sensor is activated (user is seated). Check water temperature settings.
• Алыстан башкаруу жооп бербейт: Replace the AAA batteries in the remote control. Ensure there are no obstructions between the remote and the toilet.
• Алсыз жууш: Check water pressure. Ensure the siphonic jet is not obstructed.

9. Техникалык шарттар

10. Кепилдик жана колдоо

EPLO provides a 30 күндүк акчаны кайтарып берүү кепилдиги жана а 12-Month Replacement for the entire toilet unit. For any problems or inquiries, please contact EPLO customer service. They aim to reply within 24 hours.

10.1. How to Contact Support

If you purchased through Amazon, you can typically find the seller's contact information by navigating to your order details or by clicking on the seller's name on the product page and selecting 'Ask a question'.

Image: Instructions on how to access customer support by clicking 'Sold by EPLO US' and then 'Ask a question' on the Amazon product page.
