Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your RBROHANT Wall Mount Outdoor Shower Kit, model JK0145. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product. Keep this manual for future reference.
Image: The RBROHANT Outdoor Shower Kit, model JK0145, featuring a matte black finish, installed on a rustic wooden fence. Water is actively flowing from the large rain shower head, demonstrating its use in an outdoor setting.

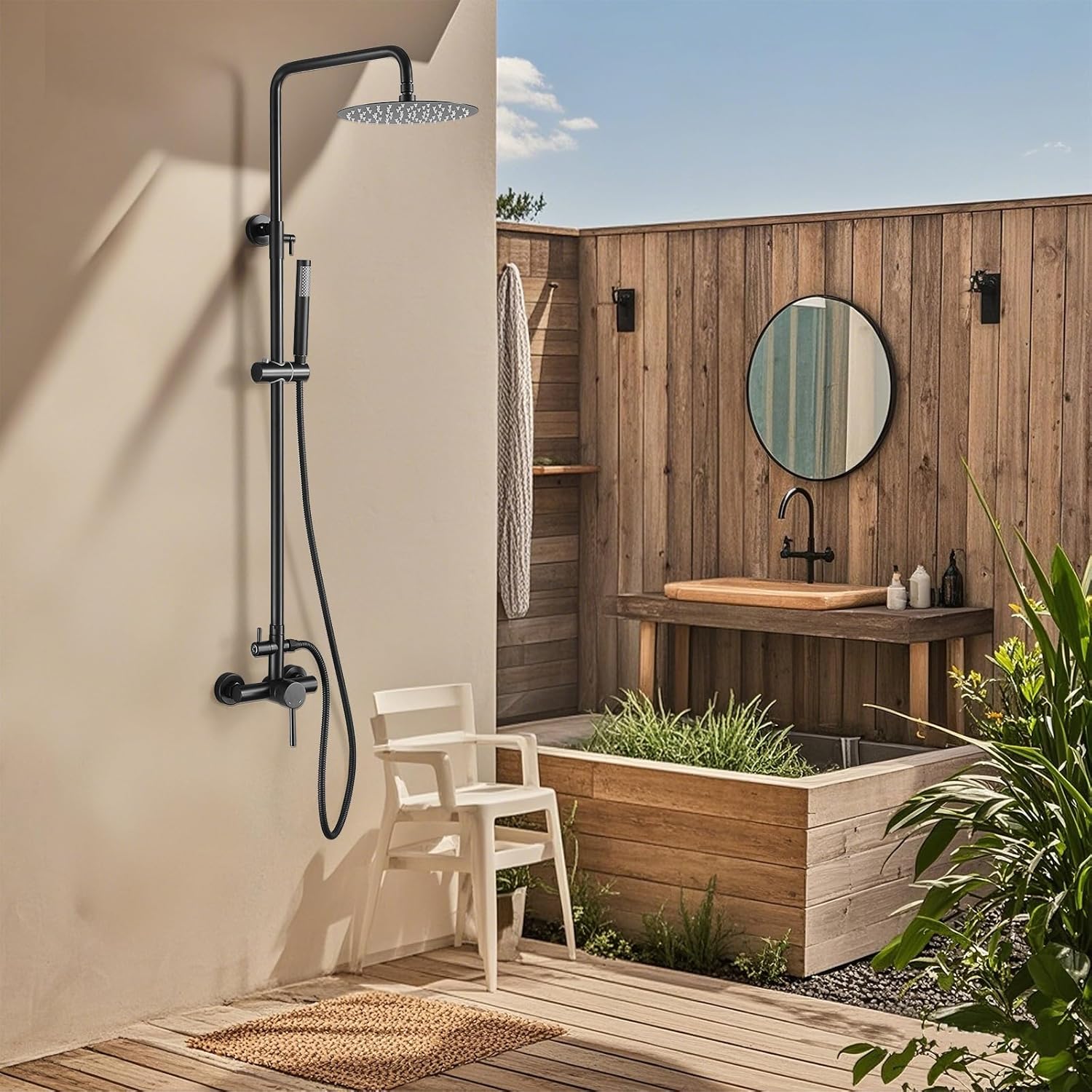

Image: The RBROHANT Outdoor Shower Kit, model JK0145, mounted on an exterior wall, complementing a modern outdoor living space with a wooden sink and lush greenery.
Коопсуздук маалыматы
Сураныч, төмөнкү коопсуздук чараларын сактаңыз:
- Суу агып кетпеши үчүн бардык туташуулардын коопсуз жана суу өткөрбөгөндүгүн текшериңиз.
- Do not use abrasive cleaners or harsh chemicals on the finish, as this may cause damage.
- Verify that the water supply is turned off before beginning installation or maintenance.
- If installing outdoors in freezing climates, ensure proper winterization procedures are followed to prevent pipe damage.
Орнотуу жана орнотуу
Пакеттин мазмуну
Орнотууну баштоодон мурун, бардык компоненттер бар экендигин текшериңиз:
- Dual Function Shower Valve and Trim Kit
- Hand Shower and 59-inch Shower Hose
- Height Adjustable Shower Arm and Slide Bar
- High Pressure 10-inch Rain Shower Head
- Necessary Installation Adaptor and Tool Kits
Сүрөт: үстүнкү view displaying all individual components of the RBROHANT Outdoor Shower Kit, including the shower valve, rain shower head, handheld shower, hose, and mounting hardware.
Орнотуу кадамдары
The RBROHANT Outdoor Shower Kit features a standard US 1/2-inch NPT connection for easy wall-mount installation. A detailed installation guide and necessary tools are included with your purchase. Follow the provided instructions carefully.
Image: A technical diagram illustrating the dimensions of the shower system and highlighting the standard 1/2-inch NPT connection size for plumbing.
Маанилүү: Protect the finish carefully during installation to avoid scratches.
Иштөө нускамалары
Dual Function Valve
The shower system is equipped with a dual-function valve, allowing you to switch between the 10-inch overhead rain shower head and the handheld shower. The valve also controls both hot and cold water supply.
Image: A close-up diagram of the dual-function valve, indicating how to switch between the rain shower and handheld shower, and illustrating the hot and cold water mixing.
Душтун бийиктигин жөнгө салуу
Both the rain shower head and the handheld shower are height-adjustable to accommodate different user preferences.
- Rain Shower Head: Loosen the adjustment knob on the shower arm, then press down or lift up the shower arm to set the desired height. The total length of the shower pipe is adjustable from 39 3/8 inches to 52 1/8 inches.
- Колго кармалуучу душ: Press and hold the button on the handheld shower holder to slide it up or down the slide bar to adjust its height.
Image: A detailed diagram showing the mechanisms for adjusting the height of both the main rain shower head and the handheld shower along the vertical bar.
Жогорку басымдагы жамгыр душ
The 10-inch rain shower head utilizes Air-in technology, which injects air into the water stream. This mixes air and water to create a higher pressure, bubbly spray, enhancing the shower experience while conserving water by at least 30%.
Image: A visual explanation of the Air-in technology in the 10-inch rain shower head, showing air mixing with water. It also highlights the 360-degree rotatable design and soft silicone nozzles for easy cleaning.
Техникалык тейлөө
Regular cleaning and maintenance will ensure the optimal performance and appearance of your shower kit.
- Тазалоочу саптамалар: The rain shower head features soft silicone nozzles. To remove mineral buildup or scale, simply rub the nozzles with your finger.
- Жалпы тазалоо: Күңүрт кара түстөгү каптаманы жумшак, d менен тазалаңызamp кездеме. Абразивдүү тазалоочу каражаттарды, катуу химиялык заттарды же кыргыч губкаларды колдонуудан алыс болуңуз, анткени алар капталга зыян келтириши мүмкүн.
- Exposed Structure: The exposed pipe design facilitates easier access for maintenance and cleaning compared to concealed systems.
Проблемаларды чечүү
If you encounter issues with your RBROHANT Outdoor Shower Kit, consider the following common solutions:
- Төмөн суунун басымы: Check if the main water supply valve is fully open. Ensure there are no kinks in the shower hose. Clean the shower head nozzles for any blockages.
- Агышуулар: Verify that all connections are tightened properly. Check the O-rings and washers for proper seating and damage. If leaks persist, professional assistance may be required.
- Температуранын өзгөрүшү: Ensure both hot and cold water supply lines are correctly connected. Adjust the mixing valve slowly to find the desired temperature.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | RBROHANT |
| Модель номери | JK0145 |
| Түс | Matte Black |
| Материал | Brass (valve, cover plates, handheld), SUS304 Stainless Steel (rain shower head, shower pipe, hose), Zinc Alloy (handles), ABS (handheld holder) |
| Аяктоо түрү | боёлгон |
| Туткалардын саны | 3 |
| Монтаж түрү | Дубалга орнотуу |
| Жаан чачыраган душтун башынын өлчөмү | 10 дюйм |
| Shower Pipe Length (Adjustable) | 39 3/8 inches - 52 1/8 inches |
| Душ шлангынын узундугу | 59 дюйм (150 см) |
| Туташуу өлчөмү | Standard US 1/2-inch NPT |
| Элемент Салмагы | 10.83 фунт (4.92 килограмм) |
Кепилдик жана колдоо
RBROHANT offers a lifetime warranty for all its shower fixtures. If you encounter any problems with your outdoor shower kit, please do not hesitate to contact customer service. We aim to respond within 24 hours and will provide free replacement parts if necessary.
Image: An infographic detailing RBROHANT's customer support commitments, including a lifetime warranty, free replacement parts, parts customization, and a 12-hour fast reply service.
For support, please visit the RBROHANT store on Amazon or contact the manufacturer directly through the provided contact information in your product packaging.
