1. Продукт бүтүп калдыview
The RBROHANT Exposed Shower System is a wall-mounted fixture designed to provide a versatile and comfortable showering experience. This system features a 3-functional shower valve, allowing selection between a rain shower head, a handheld sprayer, and a tub spout. Its adjustable height mechanism caters to various user preferences, ensuring optimal comfort for every family member.
Constructed with durable materials such as brass and stainless steel, and finished in matte black, this shower system combines functionality with modern aesthetics. It is designed for easy installation and maintenance, compatible with standard US 1/2'' NPT connections.
Image: The RBROHANT Exposed Shower System installed in a contemporary bathroom setting, showcasing its sleek matte black design and the rain shower in operation.
2. Продукциянын өзгөчөлүктөрү
- 3-Functional Shower Valve: Offers a 10-inch high-pressure rain shower head for full body coverage, a handheld sprayer with a 59-inch hose for targeted washing, and a tub spout for filling bathtubs.
- Adjustable Shower Height: Both the rainfall shower head and the hand shower can be adjusted in height to suit individual preferences, providing a customized showering experience.
- 10-inch High Pressure Rain Shower Head: Features Air-in technology to inject air into the water, creating higher pressure bubble water while saving up to 30% water. The shower head is 360-degree rotatable.
- Сертификатталган сапаты: This exposed shower fixture has passed CEC and cUPC certifications, ensuring safety and durability.
- Премиум материалдар: The 10-inch rain shower head, shower pipe, and 59-inch shower hose are made of 304SUS stainless steel. The shower valve, trim kit, and handheld are brass, with an ABS handheld holder and zinc alloy handles.
- Оңой орнотуу жана тейлөө: Designed with a standard US 1/2'' NPT connection for compatibility with American and Canadian plumbing. The exposed structure simplifies maintenance compared to concealed systems.
3. Пакеттин мазмуну
Please verify that all components listed below are present in your package before beginning installation. If any parts are missing or damaged, please contact customer support.
- 10 Inch Round Stainless Steel Rain Shower Head
- 3-Way Brass Shower Valve and Handle Trim Kit
- Brass Handheld and Holder
- SUS304 59-Inch Hose
- Brass Tub Spout with High End NEOPERL Aerator
- Height Adjustable Slide Bar Pipe and Shower Arm
- Necessary Tools Kit and Installation Guide
Image: This image displays all the parts you should find in your product package, including the rain shower head, shower pipe, shower valve, handheld sprayer, hose, tub spout, and installation hardware.
4. Техникалык шарттар
| Атрибут | Нарк |
|---|---|
| Бренд | RBROHANT |
| Модель номери | RWST81005-* |
| Түс | Matte Black |
| Материал | Brass, Stainless Steel, Zinc, ABS |
| Аяктоо түрү | боёлгон |
| Туткалардын саны | 1 |
| Монтаж түрү | Дубалга орнотуу |
| Элемент Салмагы | 11.68 фунт |
| Продукциянын өлчөмдөрү | 35.8 x 16.9 x 4.1 дюйм |
| Туташуу өлчөмү | Standard US 1/2'' NPT |
Image: This diagram provides detailed measurements for the shower system, including the adjustable height range for both the rain shower head and the handheld shower.
5. Орнотуу жана орнотуу
The RBROHANT Exposed Shower System is designed for straightforward wall-mounted installation. A detailed installation guide and necessary tools are included in your package to facilitate the process.
Маанилүү орнотуу боюнча кеңештер:
- Ensure the standard US 1/2'' NPT connection is compatible with your existing plumbing.
- It is highly recommended to wear gloves during installation to protect the matte black finish from scratches or fingerprints.
- Carefully follow the step-by-step instructions provided in the included installation manual for proper and secure setup.
- Before final tightening, ensure all components are correctly aligned and positioned.
Сүрөт: альтернатива view of the installed shower system, highlighting its aesthetic integration into a contemporary bathroom design.
6. Иштөө нускамалары
This shower system offers three distinct functions for a customized bathing experience.
Функция тандоо:
The main shower valve allows you to easily switch between the tub spout, handheld shower, and rain shower head. Rotate the diverter knob on the valve to select your desired water outlet.
Image: This image details the operation of the main valve, allowing users to switch between the tub spout, handheld shower, and rain shower functions.
Adjusting Shower Height:
- Rain Shower Head: Loosen the adjustment knob on the shower arm, then press down or lift up the shower arm to set the rain shower head to your preferred height. Securely tighten the knob once adjusted.
- Колго кармалуучу душ: Press and hold the button on the handheld shower holder to slide it up or down the slide bar. Release the button to lock it in place at the desired height.
Image: This image demonstrates how to adjust the height of both the main rain shower head and the handheld shower for personalized comfort.
Tub Spout Operation:
The tub spout features an adjustable flow angle and a high-end NEOPERL aerator, ensuring a gentle and quiet water flow while filling your tub efficiently.

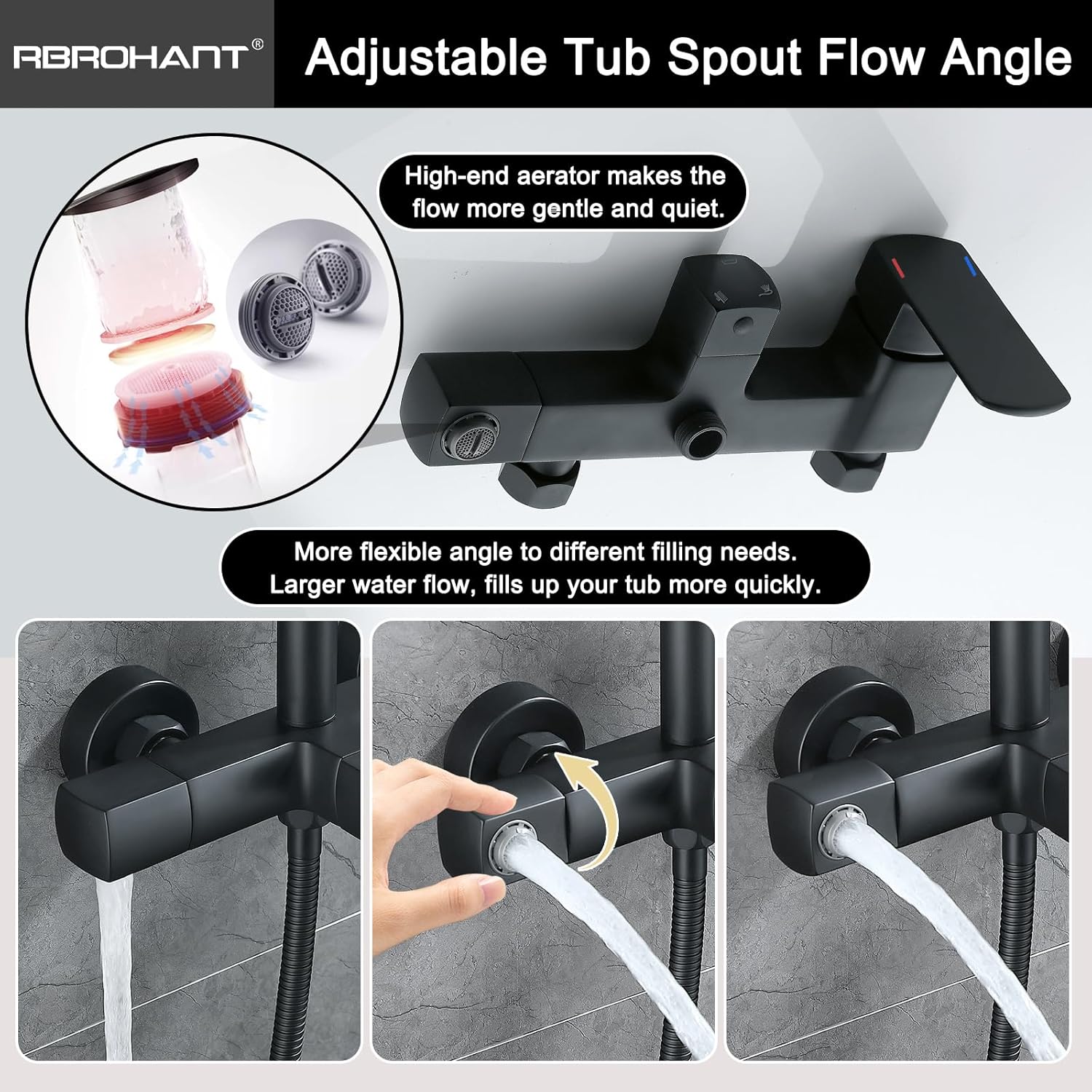

Image: This image highlights the flexible tub spout, which can be adjusted for different filling needs, and mentions the aerator for gentle water flow.
Rain Shower Head Features:
The 10-inch rain shower head utilizes Air-in technology for a powerful yet water-saving shower. Its soft silicone nozzles are designed for easy cleaning; simply rub them with your finger to remove any mineral buildup.
Image: This image focuses on the rain shower head, explaining its 360-degree rotation and the easy-to-clean silicone nozzles.
Сүрөт: жакын план view of the 10-inch rain shower head delivering a consistent and full spray, demonstrating its performance.
7. Техникалык тейлөө
Regular cleaning and proper care will ensure the longevity and optimal performance of your RBROHANT Exposed Shower System.
Жалпы тазалоо:
- Clean the matte black finish regularly with a soft, damp кездеме жана жумшак самын. Абразивдүү тазалоочу каражаттардан, катуу химиялык заттардан же кыргыч губкалардан алыс болуңуз, анткени алар бетине зыян келтириши мүмкүн.
- Wipe the surface dry immediately after cleaning to prevent water spots.
Соплолорду тейлөө:
- The rain shower head features soft silicone nozzles. To remove mineral buildup or limescale, simply rub the nozzles with your finger. This helps maintain consistent water flow.
Advantages of Exposed Structure:
The exposed design of this shower system makes it inherently easier to access and maintain compared to concealed shower systems, simplifying any necessary cleaning or adjustments.
8. Кыйынчылыктарды
While the RBROHANT Exposed Shower System is designed for reliability, minor issues may occasionally arise. Here are some general troubleshooting tips:
- Төмөн суунун басымы: Check if the main water supply is fully open. Ensure the shower head nozzles are clear of debris by rubbing the silicone tips.
- агып жатат: Verify that all connections are securely tightened. If leaks persist from the valve or connections, professional assistance may be required.
- Бийиктигин тууралоо кыйынчылыгы: Ensure the adjustment knobs or buttons are fully loosened before attempting to slide components. Clean any debris that might obstruct movement.
- Суунун температурасы боюнча маселелер: Confirm that both hot and cold water supplies are connected correctly to the valve.
For persistent issues not resolved by these steps, please refer to the Warranty & Support section for contact information.
9. Кепилдик жана колдоо
RBROHANT is committed to customer satisfaction and stands behind the quality of its products.
Өмүр бою кепилдик:
RBROHANT offers a lifetime warranty for all its shower fixtures. This warranty covers defects in material and workmanship under normal use and service.
Кардарларды колдоо:
If you encounter any problems with your RBROHANT Exposed Shower System, please do not hesitate to contact our customer service team. We are dedicated to providing prompt assistance and will reply to inquiries within 24 hours.
- Акысыз алмаштыруу бөлүктөрү: If necessary, free new replacement parts will be sent to resolve any issues covered under warranty.
- Байланыш маалыматы: Please refer to the contact details provided in your product packaging or on the official RBROHANT webтүздөн-түз колдоо үчүн сайт.
Image: This image summarizes the customer-oriented services offered by RBROHANT, including a lifetime warranty and responsive support.
