Dierya DK98se Mechanical Gaming Keyboard User Manual

1. Киришүү

Thank you for choosing the Dierya DK98se Mechanical Gaming Keyboard. This manual provides detailed instructions on how to set up, operate, and maintain your new keyboard. Please read this manual carefully before use to ensure optimal performance and longevity of your device.

2. Продукт бүтүп калдыview

The Dierya DK98se is a compact yet functional 98-key mechanical keyboard designed for both gaming and professional use. It features durable mechanical switches, customizable backlighting, and an ergonomic design for comfortable extended use.

Figure 2.1: Dierya DK98se Mechanical Gaming Keyboard in white.

Figure 2.2: ашыкview of the DK98se 98-key layout and dimensions (378 x 120 x 45 mm).

Пакеттин мазмуну:

Figure 2.3: Contents of the Dierya DK98se package.

• Dierya DK98se Mechanical Keyboard x 1
• Type-C Data Cable x 1
• Баскыч капкагын тарткыч x 1
• Колдонуучунун колдонмосу x 1

3. Орнотуу

Баскычтопту туташтыруу:

1. Locate the USB Type-C port on the back of the keyboard.
2. Connect the provided Type-C data cable to the keyboard's Type-C port.
3. USB кабелинин экинчи учун компьютериңиздеги жеткиликтүү USB портуна сайыңыз.
4. Баскычтоп плагин жана ойнотуу болуп саналат жана операциялык тутумуңуз тарабынан автоматтык түрдө таанылышы керек.

Figure 3.1: Connecting the keyboard via its Type-C port.

Шайкештик:

• Толук шайкештик: Windows 11 / 10 / 8 / 7 / XP.
• Чектелген шайкештик: Mac OS, Vista, and Linux are compatible for basic typing and desktop use only. Advanced features may not be supported.

4. Иштөө нускамалары

Механикалык өчүргүчтөр:

The Dierya DK98se keyboard is equipped with durable mechanical switches, offering a lifespan of 60 million keystrokes. This model features Көк өчүргүчтөр, known for their clicky, medium resistance, and audible click sound, providing crisp, precise tactile feedback suitable for typists.

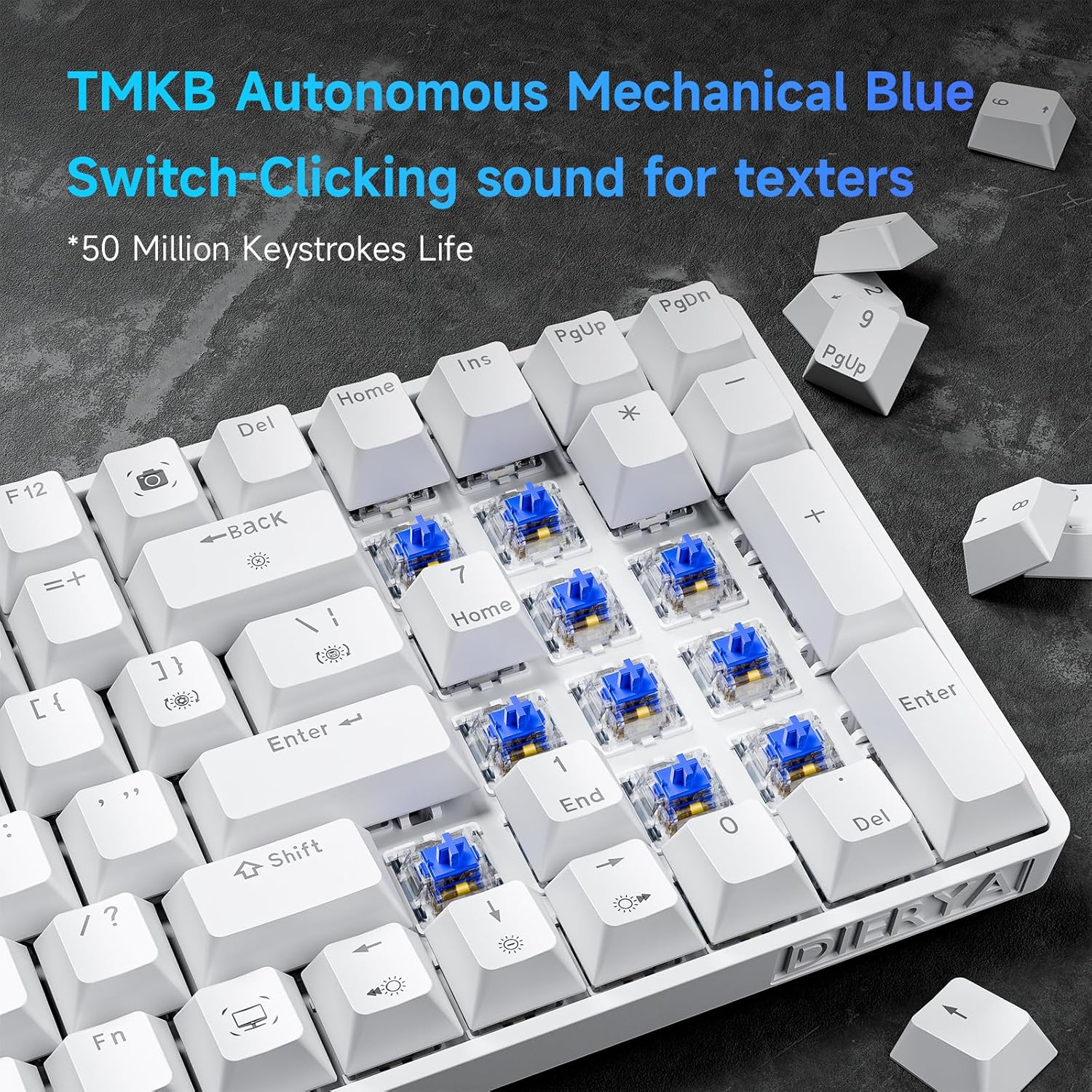

Сүрөт 4.1: Жакын пландан view of the TMKB Autonomous Mechanical Blue Switches.

Figure 4.2: Detailed specifications of the Mechanical Blue Switches, including actuation force and key travel.

Толук ачкыч Анти-Гостинг:

The keyboard supports full key anti-ghosting, ensuring that all key presses are registered accurately, even when multiple keys are pressed simultaneously. This feature is crucial for fast-paced gaming and efficient typing.

Figure 4.3: Demonstration of full key anti-ghosting, allowing multiple simultaneous key presses.

Эргономикалык дизайн:

The DK98se features an ergonomic design with two-level adjustable tilt stands and anti-slip rubber pads to provide maximum comfort and reduce hand fatigue during prolonged use. The scientifically designed keycap shape further enhances typing comfort.

Figure 4.4: Illustration of the ergonomic design with adjustable rear feet and anti-skid pads.

5. Backlight Modes

The keyboard features a monochrome ice blue backlight with 15 different lighting modes. You can control the backlight effects using the following FN key combinations:

Figure 5.1: Visual guide for backlight controls.

• FN + | (Backslash key): 15 ар кандай арткы жарык режимдеринин ортосунда которулуңуз.
• FN + Backspace: Арткы жарыкты күйгүзүңүз/өчүңүз.
• FN + ↑ (Өйдө жебе): Арткы жарыктын жарыктыгын жогорулатыңыз.
• FN + ↓ (Төмөн жебе): Арткы жарыктын жарыктыгын азайтыңыз.
• FN + ← (Сол жебе): Жарыктын ылдамдыгын азайтыңыз.
• FN + → (Оңго жебе): Арткы жарыктын ылдамдыгын жогорулатыңыз.

The keycaps are made with double-shot injection molding, allowing the backlight to shine through clearly and uniformly.

Figure 5.2: Illustration of crystal clear uniform backlighting and different keycap designs.

6. Техникалык тейлөө

Баскычтопту тазалоо:

• Тазалоодон мурун клавиатураны компьютерден ажыратыңыз.
• Бир аз жумшак, түксүз кездемени колдонуңуз dampened with water or a mild cleaning solution to wipe the keycaps and keyboard surface.
• For deeper cleaning, use the provided keycap puller to carefully remove keycaps. Clean the area underneath with compressed air or a small brush.
• Клавиатураны кайра туташтыруудан мурун, анын толугу менен кургак экенин текшериңиз.

Сактагыч:

When not in use for extended periods, store the keyboard in a dry, dust-free environment away from direct sunlight and extreme temperatures.

7. Кыйынчылыктарды

If you encounter any issues with your Dierya DK98se keyboard, please refer to the following common solutions:

• Баскычтоп жооп бербей жатат:
  • USB-C кабели клавиатурага жана компьютерге бекем туташып турганын текшериңиз.
  • Баскычтопту компьютериңиздин башка USB портуна туташтырууга аракет кылыңыз.
  • Компьютериңизди өчүрүп күйгүзүңүз.
  • Системага тиешелүү маселелерди жокко чыгаруу үчүн баскычтопту башка компьютерде сынап көрүңүз.
• Арткы жарык иштебейт:
  • Басыңыз FN + Backspace арткы жарыкты күйгүзүү/өчүрүү үчүн.
  • Ensure backlight brightness is not set to minimum (use FN + ↑).
• Keys not registering correctly (ghosting):
  • The keyboard features full anti-ghosting. If you experience issues, ensure no software conflicts are present.
  • Clean under the keycaps as per the maintenance section.

If the problem persists after trying these steps, please contact Dierya customer support for further assistance.

8. Техникалык шарттар

9. Кепилдик жана колдоо

Dierya is committed to providing high-quality products and excellent customer service. Your Dierya DK98se keyboard comes with the following:

Figure 9.1: Summary of Dierya's customer support and warranty.

• 24 сааттык Кардарларды колдоо кызматы: Our dedicated support team is available to assist you with any questions or issues.
• 30 күндүк алмаштыруу: Enjoy a 30-day replacement policy for any manufacturing defects.
• 1 жылдык сапат кепилдиги: Your keyboard is covered by a 1-year quality warranty from the date of purchase.

For support, please refer to the contact information provided on the product packaging or visit the official Dierya webсайт.
