1. Киришүү жана коопсуздук маалыматы
This manual provides essential instructions for the safe and effective operation, setup, and maintenance of your Einhell TC-SB 245 L Bandsaw. Read all instructions carefully before use to prevent injury and ensure proper function.
Жалпы коопсуздук эскертүүлөрү
- Ар дайым тиешелүү жеке коргонуу шаймандарын (ЖКК), анын ичинде коопсуздук көз айнектерин, угууну коргоону жана чаң маскасын кийиңиз.
- Иш аянты таза, жакшы жарык жана тоскоолдуктар жок болушун камсыз кылыңыз.
- Keep children and bystanders away from the operating machine.
- Disconnect the power supply before making any adjustments, changing accessories, or performing maintenance.
- Never operate the bandsaw with guards removed or damaged.
- Use the provided push bar for feeding small workpieces to maintain a safe distance from the blade.
- Ensure the safety switches on the machine's access doors are functioning correctly. The machine will not start if these doors are not securely closed.
2. Продукт бүтүп калдыview
The Einhell TC-SB 245 L Bandsaw is designed for precise cutting of various materials, primarily wood. It features a robust induction motor and a stable design for consistent performance.
Сүрөт 2.1: Бүттүview of the Einhell TC-SB 245 L Bandsaw, showcasing its red and black housing, saw table, and blade assembly.
Негизги өзгөчөлүктөрү
- Large, Stable Desk: The aluminum work table provides a generous working surface with a 245 mm gap width, suitable for medium-sized workpieces.
- Интегралдык LED жарык: Illuminates the work area for improved visibility during operation.
- Infinitely Adjustable Tilting Saw Table: Allows for precise miter cuts.
- Adjustable Angled Fence: Ensures flexibility and accuracy for various cutting angles.
- Tool-Free Saw Blade Change: Simplifies blade replacement.
- Durable Induction Motor: Provides strong pulling force, operates smoothly, and requires minimal maintenance.
- Safety Push Bar: Included for safe material handling.
Сүрөт 2.2: Детальдуу view of the saw table, blade, and adjustable fence, highlighting the precision components.
3. Орнотуу
3.1 Таңгактан чыгаруу жана чогултуу
- Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз.
- Inspect all parts for damage. Do not use the machine if any parts are damaged.
- Assemble the stand (if applicable) and securely mount the bandsaw. Ensure the machine is stable on a level surface.
3.2 Saw Blade Installation/Change
The Einhell TC-SB 245 L features a tool-free saw blade change mechanism.
Сүрөт 3.1: Мисample of bandsaw blades, illustrating the type of blade used with this machine.
- Электр кубатын өчүрүү: Always unplug the machine before changing the blade.
- Open access doors: Unlock and open the upper and lower access doors to expose the blade wheels.
- Release blade tension: Use the tension knob (usually located at the top) to loosen the blade.
- Remove old blade: Carefully remove the old blade from the wheels and blade guides.
- Install new blade: Place the new blade onto the wheels, ensuring the teeth are pointing downwards towards the table. Guide the blade through the upper and lower blade guides.
- Tension blade: Adjust the tension knob until the blade is properly tensioned. Refer to the markings or a tension gauge if available.
- Adjust blade tracking: Rotate the upper wheel by hand to check blade tracking. Adjust the tracking knob (if present) until the blade runs centrally on the wheels.
- Close access doors: Securely close both access doors. The machine will not operate if these doors are not fully closed due to integrated safety switches.
3.3 Adjusting the Saw Table and Fence

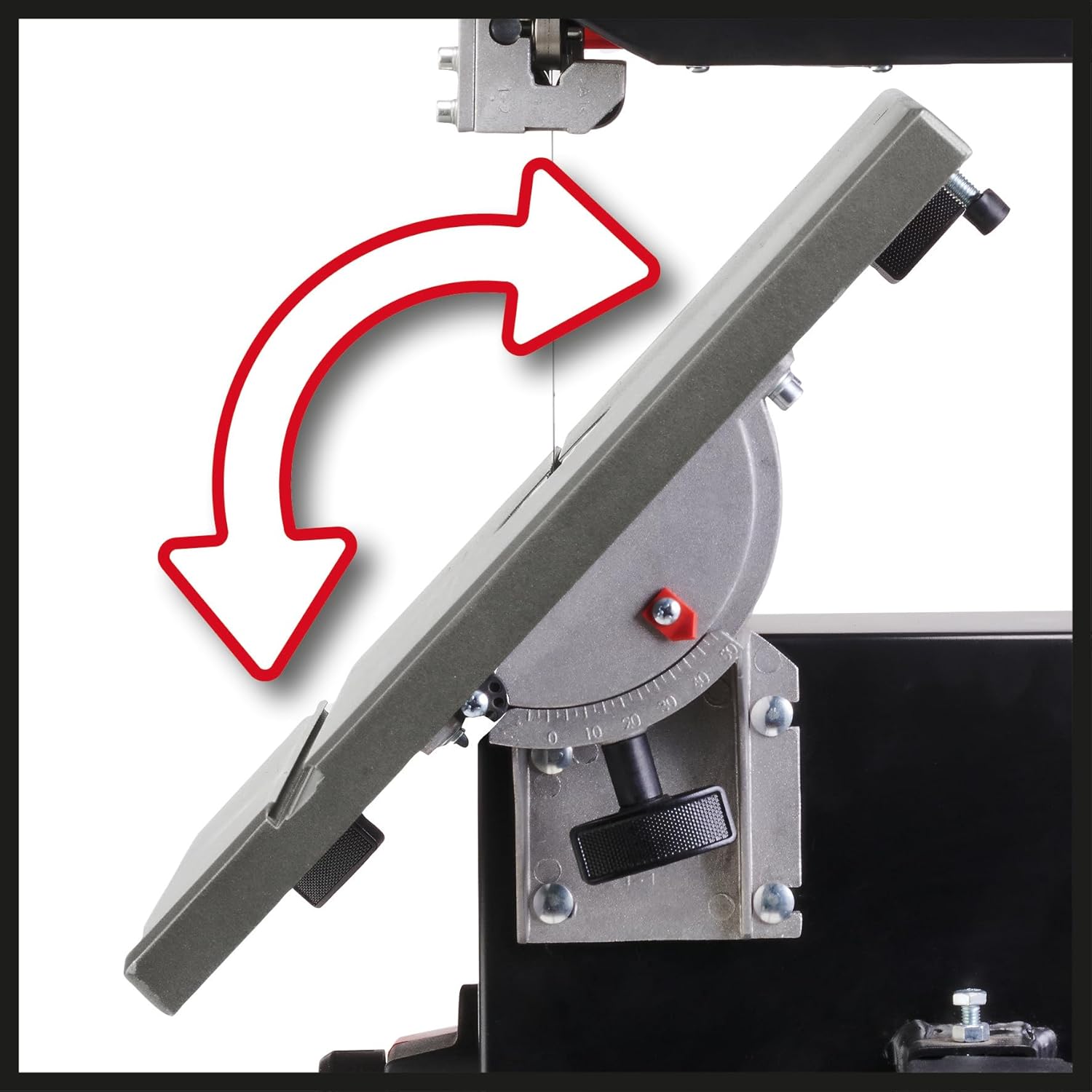

Image 3.2: Illustration of the saw table tilting mechanism, indicating its adjustable range for miter cuts.
- Tilting Saw Table: Loosen the locking knob beneath the table to adjust the tilt angle. Use the angle scale for precise settings. Tighten the knob firmly once the desired angle is set.
- Angled Fence: The fence can be adjusted along the table for parallel cuts. Loosen its locking mechanism, slide it to the desired position, and secure it. The fence can also be angled for specific cuts.

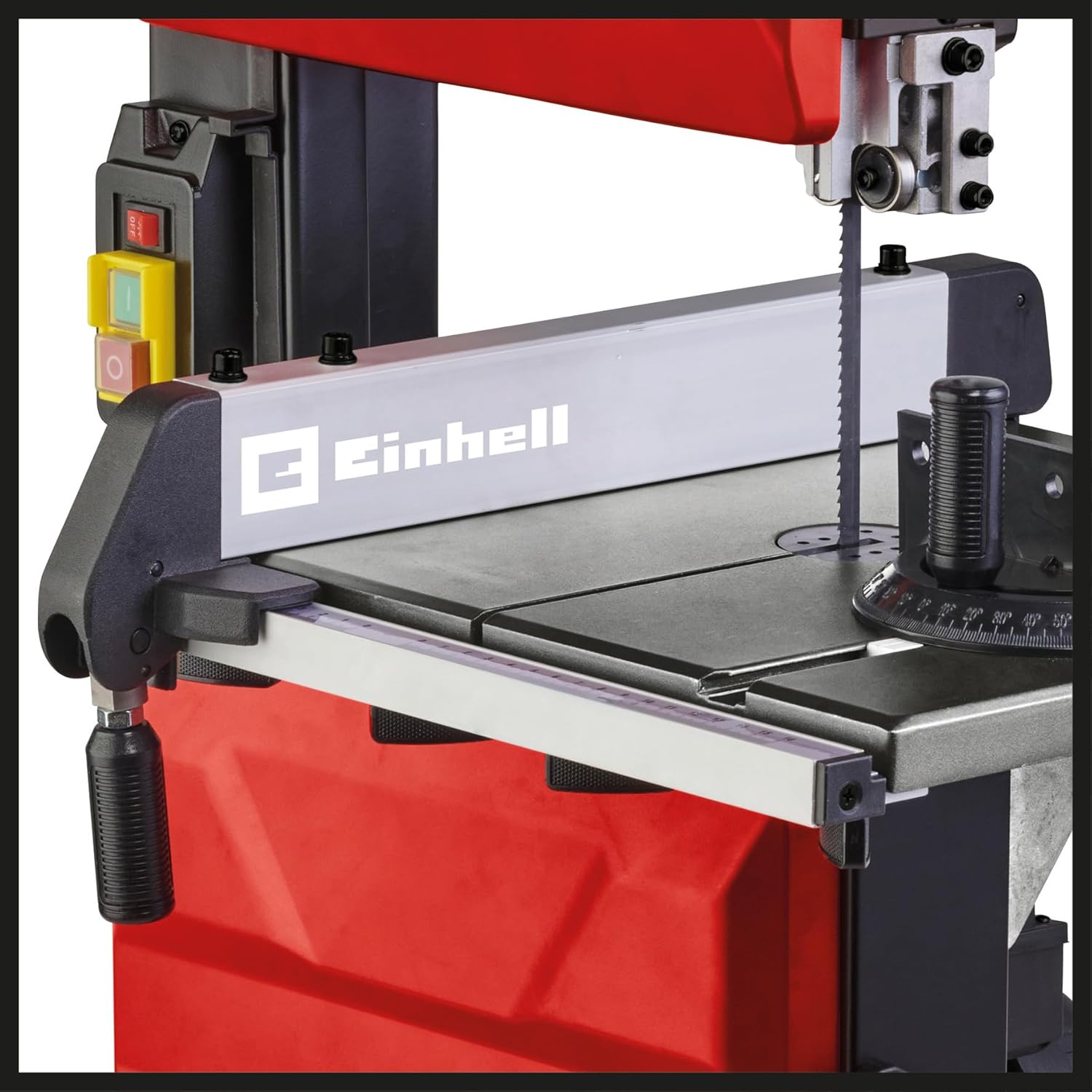

Сүрөт 3.3: Жакын пландан view of the adjustable angled fence, showing its positioning and locking mechanism.
4. Операция
4.1 Баштоо жана токтотуу
- Ensure all safety guards are in place and access doors are closed.
- Connect the machine to a suitable power outlet.
- Press the green 'ON' button to start the bandsaw.
- Press the red 'OFF' button to stop the bandsaw.
4.2 Кесүү процедуралары
Image 4.1: A user demonstrating the proper technique for cutting a wooden workpiece on the bandsaw.
- Жумушчу бөлүгүн даярдоо: Mark your cut line clearly on the material.
- Adjust Blade Guides: Position the upper blade guide assembly so it is approximately 3-6 mm (1/8-1/4 inch) above the workpiece.
- Машинаны ишке киргизүү: Turn on the bandsaw and allow the blade to reach full speed before beginning the cut.
- Тоют материалы: Gently feed the workpiece into the blade, following your marked line. Use the push bar for smaller pieces or when hands are close to the blade. Maintain a steady, even pressure.
- LED жарыгын колдонуу: The integrated LED light can be switched on to improve visibility of the cutting line.

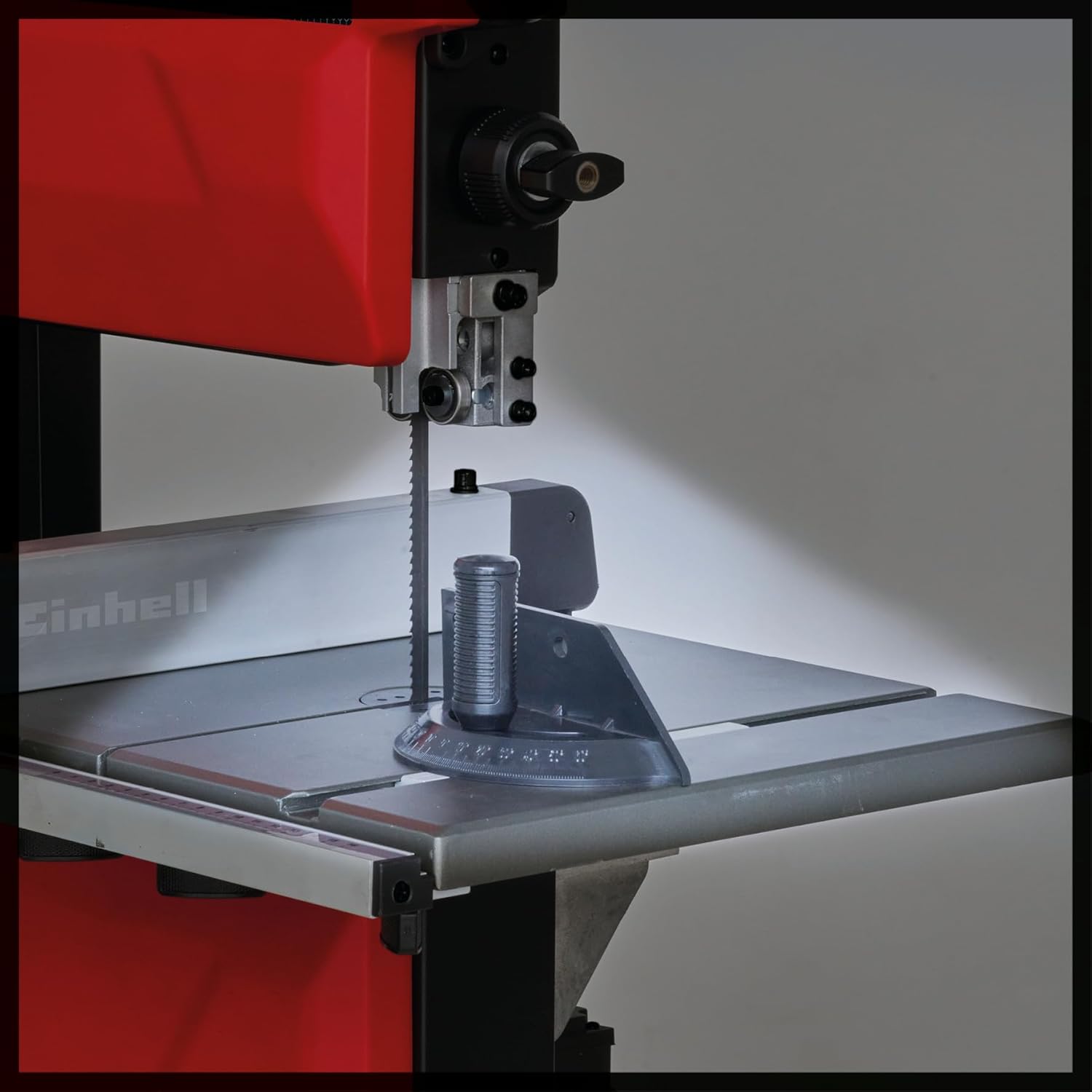

Image 4.2: The integrated LED light providing illumination to the cutting area for enhanced precision.
5. Техникалык тейлөө
Regular maintenance ensures the longevity and safe operation of your bandsaw.
5.1 Тазалоо
- Электр кубатын өчүрүү: Тазалоодон мурун ар дайым машинаны розеткадан ажыратыңыз.
- Чаң чыгаруу: The bandsaw is equipped with a dust extraction port. Connect a suitable dust extractor or shop vacuum to this port during operation to minimize sawdust accumulation.
Image 5.1: Demonstrating the connection of a vacuum hose to the bandsaw's dust extraction port for efficient chip removal.
- Жалпы тазалоо: Use a brush or compressed air to remove sawdust and debris from the table, blade guides, and motor vents. Do not use solvents that could damage plastic parts.
5.2 Бычактарды текшерүү жана алмаштыруу
- Regularly inspect the blade for sharpness, cracks, or missing teeth. A dull or damaged blade can lead to poor cuts and increased risk of kickback.
- Replace worn or damaged blades promptly following the instructions in Section 3.2.
6. Кыйынчылыктарды
Бул бөлүмдө сиз ленталуу араа менен кездешиши мүмкүн болгон жалпы көйгөйлөр каралат.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Машина иштебейт | Power cord not plugged in; Safety access doors not closed; Faulty power switch. | Check power connection; Ensure all access doors are securely closed; Contact service if switch is faulty. |
| Бычак тентип кетет же так эмес кесип алат | Dull blade; Incorrect blade tension; Improperly adjusted blade guides; Incorrect blade tracking. | Replace blade; Adjust blade tension; Adjust blade guides; Adjust blade tracking. |
| Ашыкча титирөө же ызы-чуу | Loose components; Damaged blade; Unbalanced wheels. | Check all fasteners; Replace damaged blade; Contact service for wheel balancing. |
If you encounter problems not listed here or if solutions do not resolve the issue, contact Einhell customer support.
7. Техникалык шарттар
Technical data for the Einhell TC-SB 245 L Bandsaw (Model 4308036).
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | 4308036 |
| Өндүрүүчү | Эйнхелл |
| Элемент Салмагы | 24.6 килограмм |
| Продукциянын өлчөмдөрү | 53.5 x 42 x 83.5 см |
| Power Source | Электр зымдары |
| Handle Material | Алюминий |
| Бычактын материалы | Carbon Steel (Kohlenstoffstahl) |
| Өзгөчөлүктөр | Brushless (Bürstenlos) |
| Камтылган компоненттер | Жылаңач курал |
8. Кепилдик жана колдоо
For warranty information, please refer to the warranty card included with your product or visit the official Einhell webсайт. Сатып алганыңыздын далили катары сатып алуу дүмүрчөгүңүздү сактаңыз.
For technical support, spare parts, or service inquiries, please contact Einhell customer service directly. Contact details can typically be found on the Einhell webсайтында же продукт документациясында.
