1. Киришүү
Thank you for choosing the SUNOL GS08 Smart Glasses. These open-ear audio glasses combine stylish eyewear with advanced audio technology, allowing you to enjoy music, make calls, and access navigation while remaining aware of your surroundings. This manual provides detailed instructions for the proper use and maintenance of your device.
Негизги өзгөчөлүктөр төмөнкүлөрдү камтыйт:
- Ачык кулак аудио: Enjoy sound without blocking your ears, maintaining situational awareness.
- Bluetooth 5.3 туташуусу: Stable and efficient wireless connection to your smart devices.
- Интегралдык микрофон: For clear hands-free calls and voice assistant interaction.
- Поляризацияланган линзалар: 100% UV protection to shield your eyes from harmful rays and reduce glare.
- IPX4 сууга туруктуулугу: Designed to resist sweat and light rain, suitable for various activities.
- AI үн менен башкаруу: Access navigation, phone calls, and music without needing to pull out your phone.

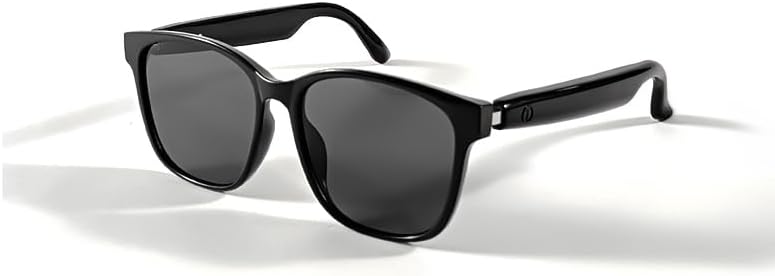

Image 1.1: The SUNOL GS08 Smart Glasses in gray, showcasing алардын жарашыктуу дизайны.

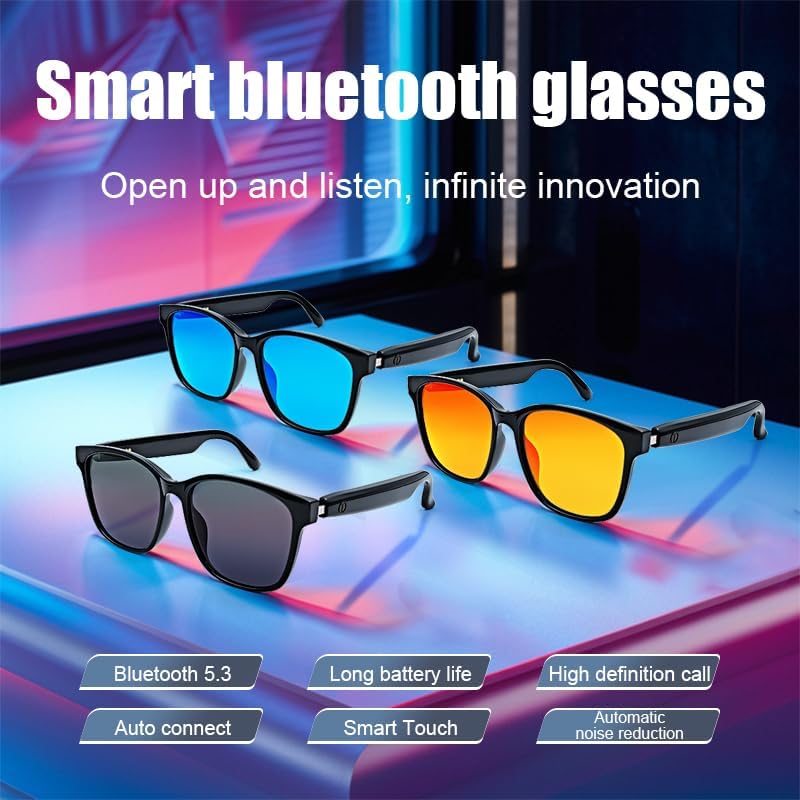

Image 1.2: Multiple color variants of the smart glasses highlighting features like Bluetooth 5.3, long battery life, high-definition calls, auto-connect, smart touch, and automatic noise reduction.
2. Орнотуу
2.1. Пакеттин мазмуну
Улантуудан мурун, пакетте бардык элементтер бар экенин текшериңиз:
- SUNOL GS08 Smart Glasses
- Заряддоо кабели
- User Manual
- Cleaning Cloth (may vary by package)
2.2. Көз айнекти заряддоо
For optimal performance, fully charge your smart glasses before first use.
- Connect the charging cable to the charging port on the glasses.
- Кубаттоочу кабелдин экинчи учун USB кубат адаптерине (кошулмада жок) же компьютердин USB портуна сайыңыз.
- The indicator light on the glasses will illuminate during charging and turn off or change color when fully charged.
- Толук заряддоо, адатта, болжол менен 1.5-2 саатты талап кылат.
2.3. Bluetooth Жупташтыруу
Follow these steps to pair your SUNOL GS08 Smart Glasses with your smartphone or other Bluetooth-enabled device:
- Ensure the glasses are charged and powered off.
- Press and hold the power button on the glasses until the indicator light flashes rapidly (usually blue and red), indicating pairing mode.
- On your smart device, go to Bluetooth settings and turn Bluetooth on.
- Издөө available devices. You should see "GS08" or "SUNOL GS08" in the list.
- Select "GS08" to connect. Once connected, the indicator light on the glasses will typically stop flashing and remain solid blue or turn off.
- The glasses will automatically connect to the last paired device when powered on, if the device's Bluetooth is active and within range.
3. Иштөө нускамалары
3.1. Күйгүзүү/өчүрүү
- Күйгүзүү: Press and hold the power button for approximately 3 seconds until you hear a power-on prompt or see the indicator light.
- Өчүрүү: Press and hold the power button for approximately 5 seconds until you hear a power-off prompt or the indicator light turns off.
3.2. Музыканы ойнотуу
Control your music directly from the smart glasses:
- Ойнотуу/тындыруу: Single press the multi-function button (often the power button or a dedicated button).
- Кийинки трек: Көп функциялуу баскычты эки жолу басыңыз.
- Мурунку трек: Көп функциялуу баскычты үч жолу басыңыз.
3.3. Чалууларды башкаруу
Manage phone calls hands-free:
- Чакырууга жооп берүү: Single press the multi-function button when a call comes in.
- Чакырууну аяктоо: Single press the multi-function button during a call.
- Чакырууну четке кагуу: Press and hold the multi-function button for 2 seconds when a call comes in.
3.4. Voice Assistant (AI Voice Control)
Activate your device's voice assistant for navigation, information, and more:
- Иштетүү: Press and hold the multi-function button for 2 seconds (when not on a call) to activate your smartphone's voice assistant (e.g., Siri, Google Assistant).
Image 3.1: The smart glasses in use while driving, demonstrating features such as Smart Wake for voice navigation, reduced glare, eye protection, and open-ear audio for hearing protection.
3.5. Үндү башкаруу
Adjust the audio volume using the dedicated volume buttons on the glasses (if available) or directly from your connected smart device.
Сүрөт 3.2: Мисamples of the smart glasses being used in various activities such as cycling, hiking, driving, and fishing, highlighting their versatility.
4. Техникалык тейлөө
4.1. Cleaning the Glasses
To maintain clarity and hygiene:
- Use the provided cleaning cloth or a soft, lint-free cloth to gently wipe the lenses and frame.
- өжөр тактар үчүн, жеңил гampen the cloth with water or a lens cleaning solution specifically designed for eyewear.
- Avoid using harsh chemicals, abrasive materials, or paper towels, as these can scratch the lenses or damage the frame.
4.2. Сактоо
When not in use, store your smart glasses in their protective case to prevent scratches and damage. Avoid exposing them to extreme temperatures, direct sunlight for prolonged periods, or high humidity.
4.3. Сууга туруктуулук (IPX4)
The SUNOL GS08 Smart Glasses are rated IPX4, meaning they are resistant to splashing water from any direction. This makes them suitable for use during workouts or in light rain. However, they are not designed for submersion in water. Do not wear them while swimming, showering, or in heavy rain.
5. Кыйынчылыктарды
If you encounter issues with your smart glasses, please refer to the following common solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Glasses won't power on. | Батарея аз. | Көз айнекти толук заряддаңыз. |
| Түзмөк менен жупташтыруу мүмкүн эмес. | Bluetooth off on device; glasses not in pairing mode; too far from device. | Ensure Bluetooth is on. Put glasses in pairing mode (see Section 2.3). Move glasses closer to the device. Try unpairing and re-pairing. |
| Үн жок же үнү төмөн. | Volume too low on glasses or device; glasses not connected; audio source paused. | Increase volume on both glasses and connected device. Verify Bluetooth connection. Check if audio is playing on the source device. |
| үзгүлтүктүү байланыш. | кийлигишүү; аппарат өтө алыс; аз батарея. | Move closer to the connected device. Avoid areas with strong Wi-Fi or other Bluetooth interference. Ensure glasses are charged. |
Бул чечимдерди колдонуп көргөндөн кийин көйгөй чечилбесе, кардарларды колдоо менен байланышыңыз.
6. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | F06 |
| Bluetooth версиясы | 5.3 |
| Батарея түрү | 1 Литий Полимердик батарейка (кошулган) |
| Суу каршылык | IPX4 (чачууга туруктуу) |
| Линзанын түрү | Polarized, 100% UV Protection |
| Аудио ойнотуу убактысы | Approximately 3 hours (on a full charge) |
| Бөлүм | Unisex-чоңдор |
| Дата биринчи жеткиликтүү | 24-июнь, 2024-жыл |
| Origin | Импорттолгон |
7. Кепилдик маалыматы
SUNOL products are manufactured to the highest quality standards. This product is covered by a limited warranty against defects in materials and workmanship from the date of original purchase. Please retain your proof of purchase for warranty claims.
The warranty does not cover damage caused by misuse, accident, unauthorized modification, or normal wear and tear. For specific warranty terms and conditions, please refer to the warranty card included with your product or contact customer support.
8. Кардарларды колдоо кызматы
If you have any questions, require technical assistance, or need to make a warranty claim, please contact our customer support team:
- Электрондук почта: support@sunol.com
- Webсайт: www.sunol.com/support
Please have your product model number (F06) and purchase date ready when contacting support.
