1. Киришүү
Thank you for choosing the BWE Wall Mounted Shower System. This manual provides essential information for the safe installation, operation, and maintenance of your new shower system. Please read these instructions thoroughly before installation and retain them for future reference.
Сүрөт: бүттүview of the BWE Wall Mounted Shower System, showcasing the rain shower head, handheld shower, and the main control valve.
2. Коопсуздук маалыматы
- Ар кандай орнотууну же тейлөөнү баштоодон мурун ар дайым негизги суу менен камсыздоону өчүрүңүз.
- Бардык суу түтүктөрүнүн туташтыргычы агып кетпеши үчүн коопсуз экендигин текшериңиз.
- Орнотуу процессинин кандайдыр бир бөлүгүнө ишенбесеңиз, квалификациялуу сантехникке кайрылыңыз.
- Do not use harsh chemicals or abrasive cleaners on the brushed nickel finish, as this may damage the surface.
- The pressure-balanced valve is designed to prevent scalding from sudden changes in water pressure. Do not tamper with this mechanism.
3. Пакеттин мазмуну
Орнотуудан мурун бардык компоненттердин бар экендигин жана бузулбагандыгын текшериңиз:
- 6.10 inch Round Rainfall Shower Head (ABS)
- 9 Spout Modes 4.53-inch Handheld Shower Spray (ABS)
- Shower Faucet Bracket with Decorative Cover (Brass)
- 14.57-inch Shower Arm with Decorative Cover (304 Stainless Steel)
- Pressure-Balanced Shower Faucet Valve with Decorative Cover (Brass)
- 59.05-inch Shower Hose (Stainless Steel)
4. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | BWE |
| Модель номери | 8056-Н |
| Түс | Brushed Nickel |
| Материал | Stainless Steel, Brass, ABS |
| Аяктоо түрү | Brushed |
| Туткалардын саны | 1 |
| Монтаж түрү | Дубалга орнотуу |
| Жаан чачыраган душтун башынын өлчөмү | 6.10 дюйм |
| Handheld Shower Head Modes | 9 |
| Душ шлангынын узундугу | 59.05 дюйм |
| Элемент Салмагы | 8.98 фунт |
| Продукциянын өлчөмдөрү | 18.39 x 13.23 x 4.96 дюйм |
Image: Detailed dimensions of the shower system components for installation planning.
Image: Internal components of the pressure-balanced shower valve, highlighting the anti-scald cartridge and connectors.
5. Орнотуу (Орнотуу)
The BWE shower system is designed for straightforward installation. Detailed step-by-step instructions are included with the product packaging. It is recommended to follow these instructions carefully or consult a professional plumber for installation.
Орнотуу бүттүview:
- Орнотуу аймагын даярдоо: Ensure the wall is prepared for a wall-mounted system and the main water supply is turned off.
- Клапан корпусун орнотуу: Secure the pressure-balanced valve body within the wall according to the provided rough-in dimensions. Connect hot and cold water lines.
- Install Shower Arm and Rain Head: Attach the shower arm to the valve outlet and then secure the rain shower head.
- Install Handheld Shower Bracket and Hose: Mount the handheld shower bracket to the wall. Connect the shower hose to the valve and the handheld spray.
- Install Trim and Handles: Attach the decorative cover and control handles to the valve body.
- Агышуу үчүн сыноо: Негизги суу менен камсыздоону күйгүзүп, бардык туташуулардын агып кетүүсүн текшериңиз.
6. Иштөө нускамалары
6.1. Shower Mixer Valve Control
The shower system features a single handle control for both water temperature and flow, and a diverter knob to switch between the rain shower head and the handheld shower spray.
- Температураны жана агымын башкаруу: Rotate the main handle to adjust water temperature (typically counter-clockwise for hotter, clockwise for colder) and pull it outwards to increase water flow.
- Кайтарым функция: Use the smaller knob or lever to switch water output between the rain shower head and the handheld shower. Note that only one outlet can be active at a time.

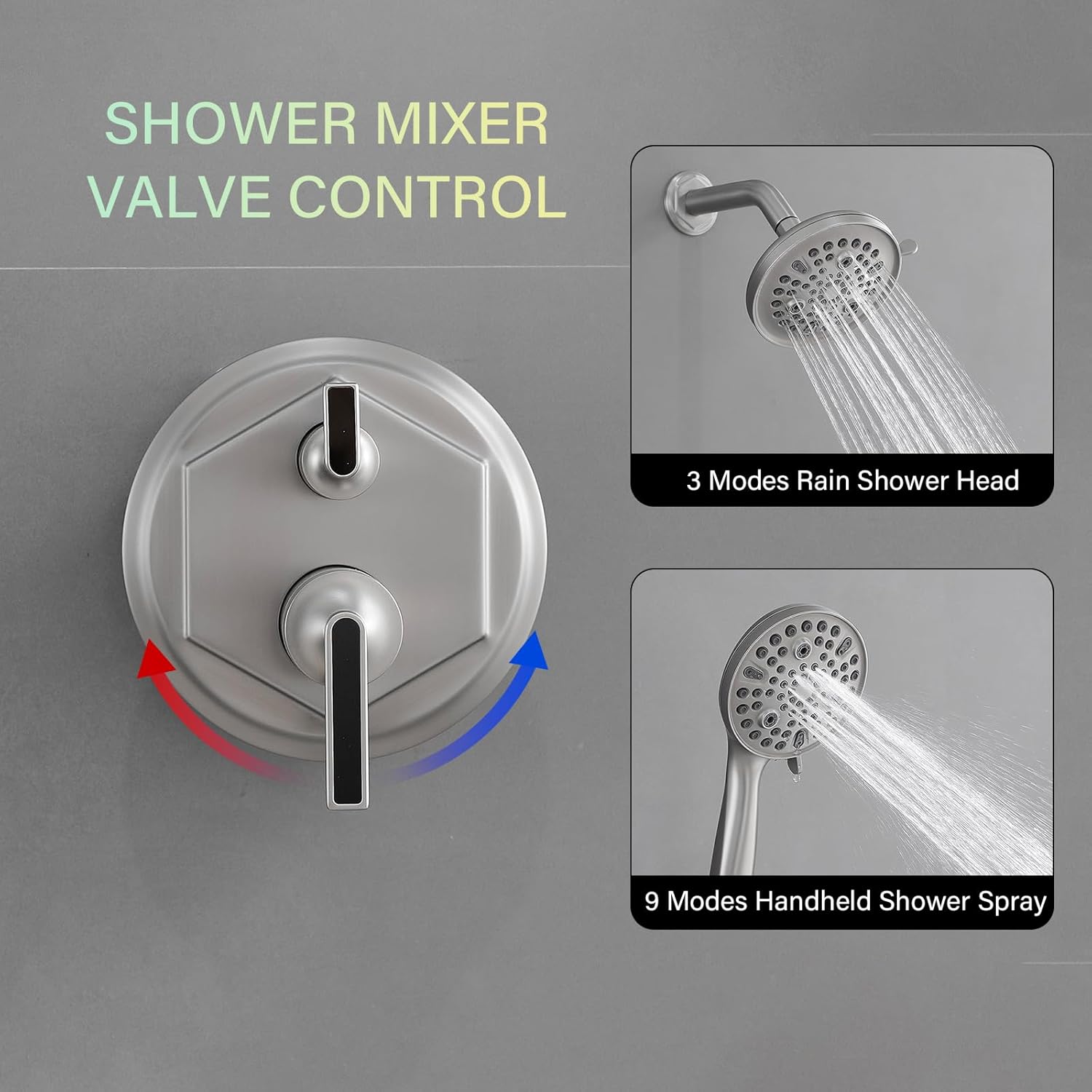

Image: Illustration of the shower mixer valve, indicating controls for temperature and diverter function.
6.2. Rain Shower Head Functions
The 6.10-inch rain shower head offers three distinct spray modes, selectable by rotating the button on the shower head:
- Жаан-чачын: Simulates natural rainfall for a gentle, full-body rinse.
- Массаж: Provides a more focused, invigorating spray.
- Rainfall + Massage: A combination of both modes for a comprehensive shower experience.

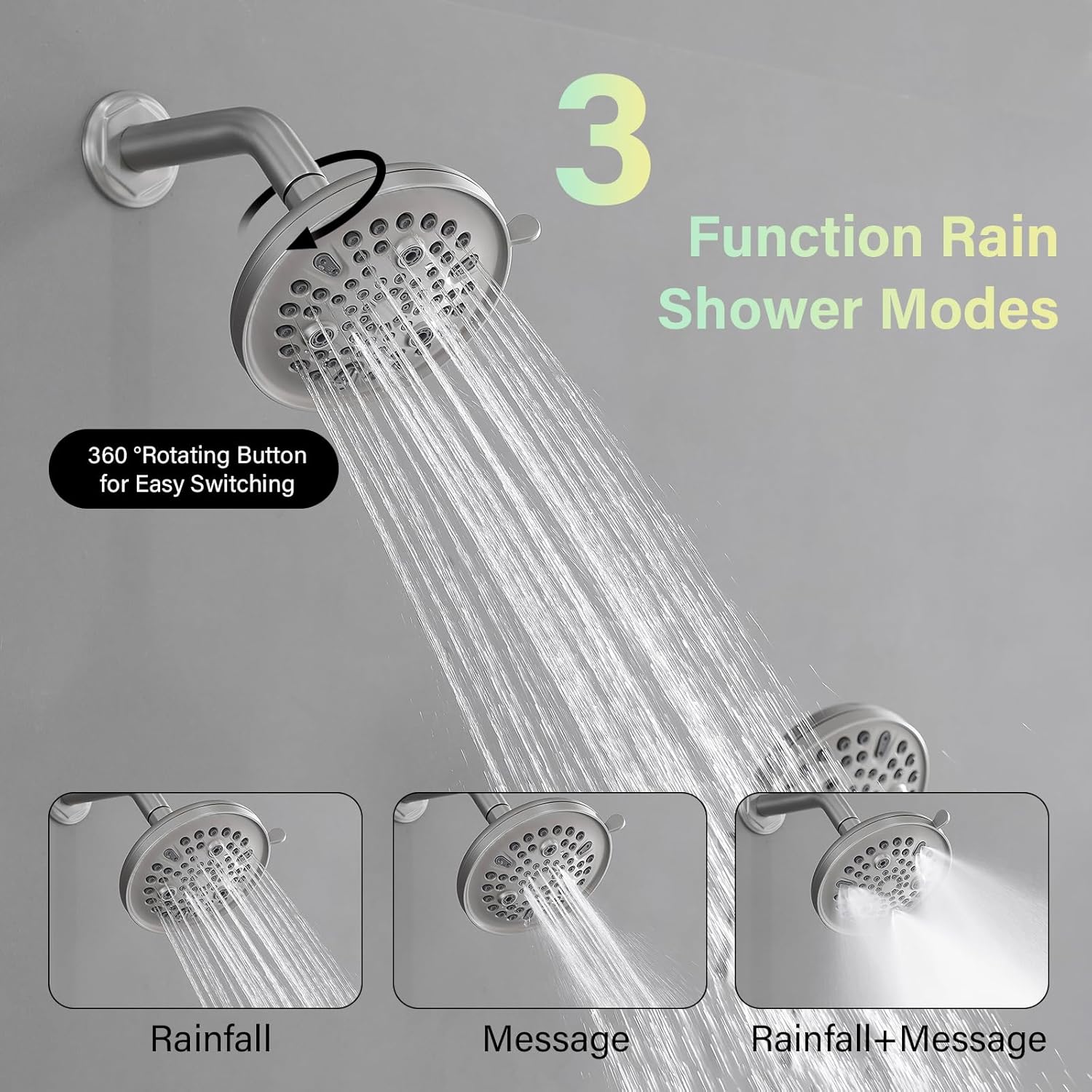

Image: Visual representation of the three spray patterns available from the rain shower head.
Image: Explanation of the air injection technology, which enhances water pressure and simulates natural rainfall.
6.3. Handheld Shower Spray Settings
The handheld shower features 9 distinct spray settings for personalized use. These settings can be changed by rotating the spray face or pressing a button on the handheld unit, depending on the specific design.
Image: Display of the nine spray settings available on the handheld shower head.
Image: The handheld shower in use, illustrating its flexibility for various showering needs.
7. Техникалык тейлөө
Regular cleaning and maintenance will ensure the longevity and optimal performance of your BWE shower system.
- Аягын тазалоо: Щеткаланган никель каптамасын жумшак, d менен тазалаңызamp cloth. For stubborn spots, use a mild soap solution and rinse thoroughly. Avoid abrasive cleaners, scouring pads, or chemicals containing ammonia, bleach, or alcohol, as these can damage the finish.
- Тазалоочу саптамалар: The silicone nozzles on both the rain shower head and handheld shower are designed to be easy to clean. Simply rub the nozzles with your finger or a soft brush to dislodge any mineral buildup and prevent clogging.
- Үзгүлтүксүз текшерүү: Periodically check all connections for any signs of leaks or wear. Tighten connections as needed.
Image: Close-up of the self-cleaning nozzles, designed for easy removal of mineral deposits.
8. Кыйынчылыктарды
If you encounter any issues with your BWE shower system, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Төмөн суу басымы | Бүтөлүп калган форсункалар; жарым-жартылай жабык жабылган жапкыч клапан; үйдөгү суунун басымы төмөн. | Clean shower head nozzles. Ensure shut-off valves are fully open. Consult a plumber if household pressure is consistently low. |
| Туташуулардан суу агып жатат | бош байланыштар; бузулган O-шакекчелер же пломбалар. | Tighten connections. Inspect and replace O-rings or seals if damaged. Use plumber's tape on threaded connections during installation. |
| Суунун ыраатсыз температурасы | Басымдын тең салмактуулугун сактоочу клапандагы көйгөй; ысык/муздак суу менен камсыздоонун дисбалансы. | Ensure hot and cold water supplies are stable. If the problem persists, the pressure balance cartridge may need inspection or replacement by a professional. |
| Кайтарым багыттоочу туура эмес которулууда | Өткөргүч механизминдеги таштандылар; өткөргүчтүн картриджи эскирген. | Flush the system. If the issue continues, the diverter cartridge may need to be serviced or replaced. |
9. Кепилдик жана колдоо
For warranty information, please refer to the documentation included with your purchase or contact BWE customer service directly. If you have any questions regarding the installation, operation, or maintenance of your shower system, please do not hesitate to contact us. Our team is committed to assisting you.
Байланыш маалыматы: Please refer to the contact details provided on the product packaging or the official BWE webкардарларды колдоо сайты.
