1. Киришүү
This manual provides essential information for the safe and effective use of your GEARGO RV Surge Protector 50 Amp with Smart LED Display. This device is designed to protect your RV's electrical system from power surges, high/low voltage, and wiring faults at campgrounds or other power sources. Please read this manual thoroughly before installation and operation.

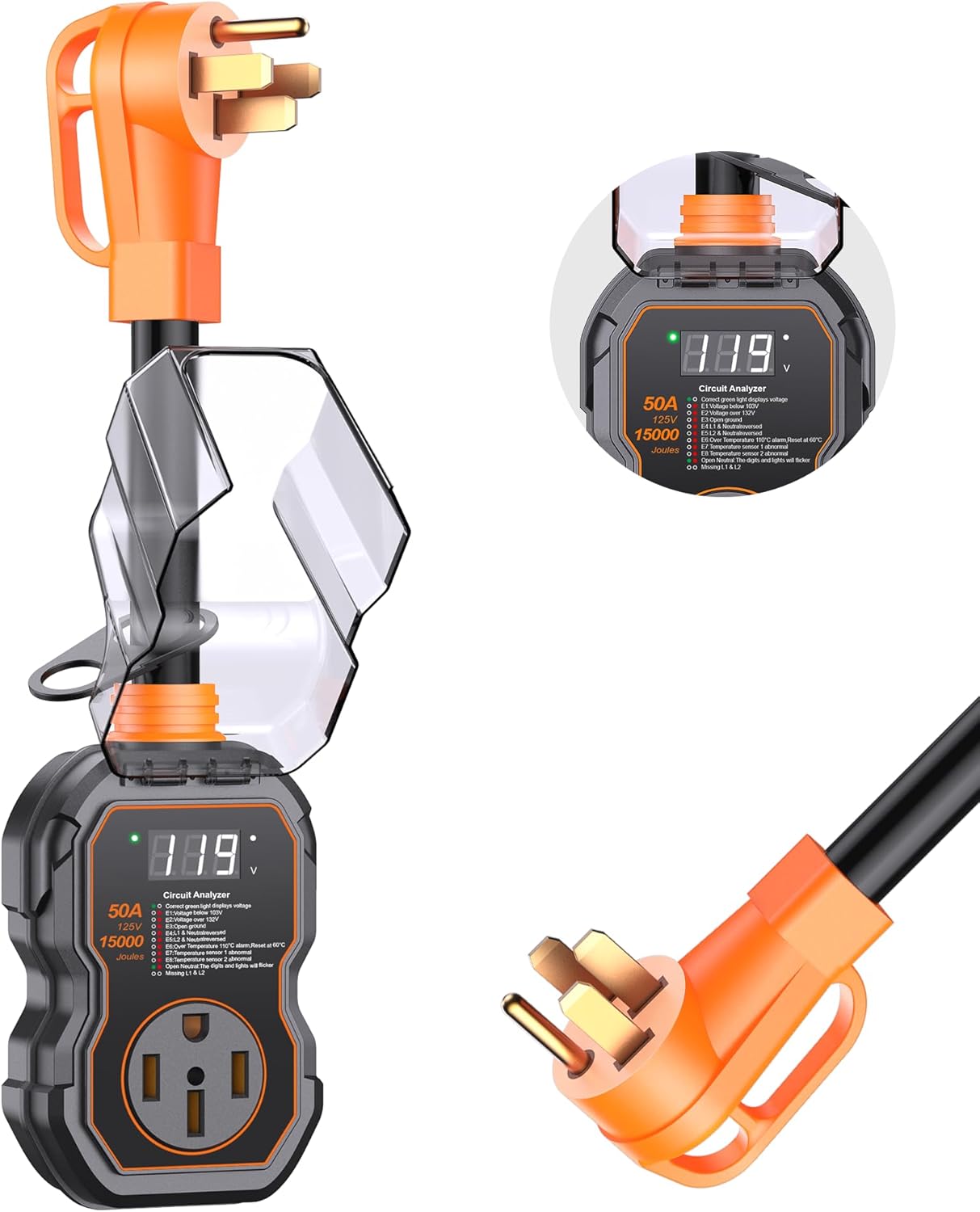

Image 1.1: GEARGO RV Surge Protector 50 Amp with Smart LED Display.
2. Коопсуздук маалыматы
- Always ensure the power source is off before connecting or disconnecting the surge protector.
- Түзмөктү ачууга же өзгөртүүгө аракет кылбаңыз. Бардык тейлөө иштерин квалификациялуу адистерге тапшырыңыз.
- Аппаратты балдардан алыс кармаңыз.
- Ensure the protective cover is properly sealed to maintain IP68 waterproof rating, especially in wet conditions.
- Regularly inspect the surge protector for any signs of damage. Do not use if damaged.
3. Пакеттин мазмуну
- 1 x GEARGO RV Surge Protector 50 Amp with Smart LED Display
4. Продукциянын өзгөчөлүктөрү
- 15000 Джоуль толкундан коргоо: Жогорку көлөмдү сиңиретtage spikes to protect RV electrical systems from disturbances and sudden power surges.
- Smart LED Display & Circuit Analyzer: Provides real-time display of line voltage and wiring status codes, allowing verification of power source integrity.
- Automatic Shut-off and Reset: Automatically cuts power when voltage drops below 103V or exceeds 132V, and resets once the circuit stabilizes.
- IP68 Waterproof Cover: Features a large, durable cover to protect against rain, wind, and sandstorms.
- Эргономикалык дизайн: Includes an easy-grip handle for convenient plugging and unplugging.
- Temperature Control Feature: Alerts with a flashing red light (E6) if internal temperature exceeds 110°C, preventing damage from overheating.
Image 4.1: High-rated 15000 Joules surge protection.
Image 4.2: Temperature control protection feature with E6 alarm indication.
Image 4.3: The large waterproof cover ensures protection in various weather conditions.
5. Орнотуу жана орнотуу
Follow these steps to properly set up your GEARGO RV Surge Protector:
- Step 1: Plug Protector into AC Power. Insert the surge protector's male plug into the campground's 50 Amp electrical pedestal receptacle.
- Step 2: Verify Power Source. Observe the LED display. Ensure both the green 'Correct Wiring' and 'Surge Protection' lights are on, and the voltage reading is between 103-132V. If not, refer to the 'Display Indications' section or contact the RV park management to address potential wiring issues.
- Step 3: Connect to RV. Once the power source is verified as safe, plug your RV's power cord into the female receptacle of the surge protector.
Image 5.1: Visual guide for connecting the RV surge protector.
Image 5.2: The surge protector is designed for use in various outdoor conditions.
6. Operating Instructions and Display Indications
The Smart LED Display provides real-time feedback on the power status and any detected faults. Understanding these indications is crucial for safe operation.

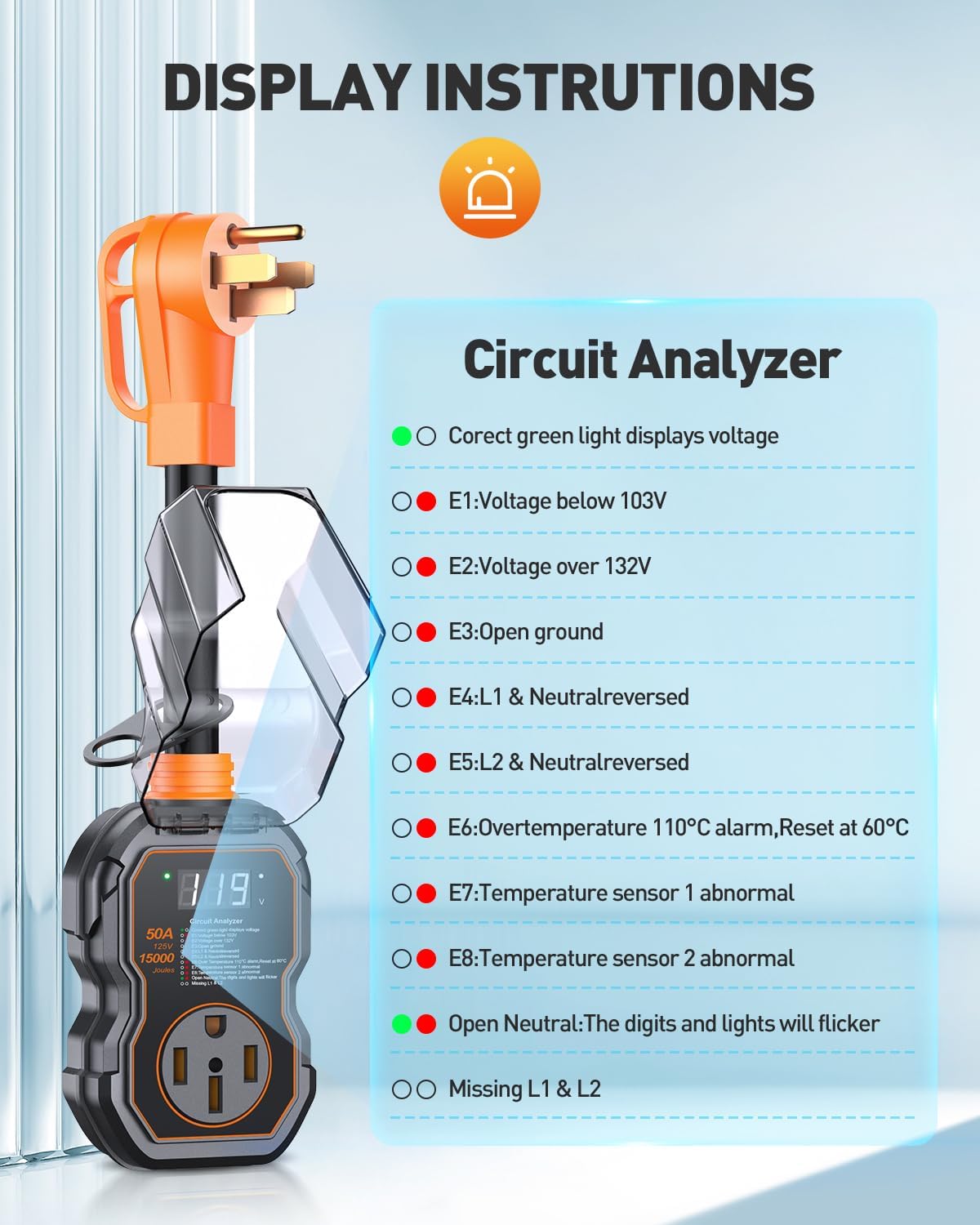

Сүрөт 6.1: Детальдуу view of the circuit analyzer display and its indications.
Circuit Analyzer Codes:
| Дисплей | Көрсөтмө | Жыйынтык |
|---|---|---|
| ● | Correct green light displays voltage | ✔ |
| ● E1 | Тtage 103V төмөн | ✖ |
| ● E2 | Тtage 132V жогору | ✖ |
| ● E3 | Ачык жер | ✖ |
| ● E4 | L1 & Neutral reversed | ✖ |
| ● E5 | L2 & Neutral reversed | ✖ |
| ● E6 | Overtemperature 110°C alarm, Reset at 60°C | ✖ |
| ● E7 | Temperature sensor 1 abnormal | ✖ |
| ● E8 | Temperature sensor 2 abnormal | ✖ |
| ● Ачык нейтралдуу | The digits and lights will flicker | ✖ |
| ● Missing L1 & L2 | Missing L1 & L2 | ✖ |
If the display shows a green light and voltage between 103-132V, the power source is safe. Any other indication requires investigation before connecting your RV.
7. Техникалык тейлөө
- Тазалоо: Wipe the exterior of the surge protector with a damp кездеме. Катуу химиялык заттарды же абразивдүү тазалагычтарды колдонбоңуз.
- Сактагыч: When not in use, store the surge protector in a dry, cool place, away from direct sunlight and extreme temperatures.
- Текшерүү: Periodically check the plugs, receptacle, and cable for any signs of wear, corrosion, or damage. Ensure the waterproof cover is intact.
8. Кыйынчылыктарды
- No Power to RV: Check the surge protector's display for error codes. If an error code is present, do not connect your RV until the power source issue is resolved.
- Surge Protector Shuts Off: The device automatically shuts off if voltage is outside the safe range (below 103V or above 132V) or if an over-temperature condition (E6) is detected. It will automatically reset once conditions stabilize. If it repeatedly shuts off, there is a persistent issue with the power source or an appliance in your RV.
- Flickering Display/Lights: This indicates an open neutral condition. Disconnect immediately and have the power source inspected by a qualified electrician.
- High Temperature Alarm (E6): If the display shows E6, the internal temperature has exceeded 110°C. Unplug the power supply immediately and allow the unit to cool down. Check for potential overloading or poor ventilation around the unit.
9. Техникалык шарттар
| Спецификация | Деталь |
|---|---|
| Бренд | GEARGO |
| Модел | Led-display (RV-04) |
| Power Source | Электр зымдары |
| Ampөчүрүү | 50 Amp |
| Тоскоолдуктан коргоо | 15000 Джоуль |
| Мин. Operating Voltage | 103 вольт |
| Макс. Operating Voltage | 132 вольт |
| Жогорку температура рейтинги | 110 градус |
| Суу өткөрбөйт рейтинги | IP68 |
| Продукциянын өлчөмдөрү (L x W x Y) | 10 x 7 x 5 дюйм |
| Элемент Салмагы | 3.36 фунт |

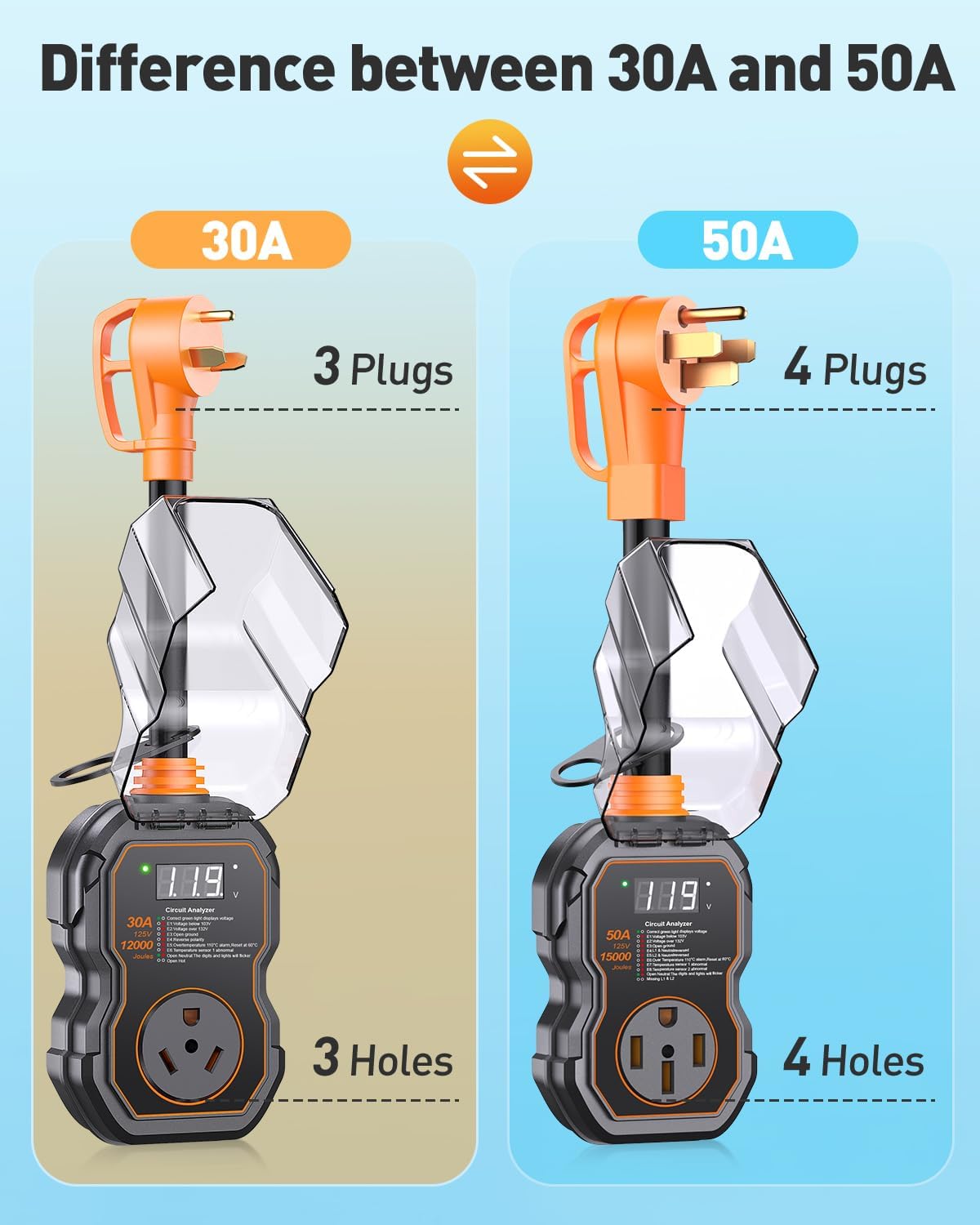

Image 9.1: Visual difference between 30 Amp (3 plugs/holes) and 50 Amp (4 plugs/holes) models.
10. Кепилдик жана колдоо
The GEARGO RV Surge Protector comes with a 5-year warranty, as indicated by customer feedback. For warranty claims, technical support, or any inquiries, please refer to the contact information provided with your purchase or visit the official GEARGO webсайт.
