ETONSUNNY Water Rowing Machine ET707 User Manual

1. Киришүү

Thank you for choosing the ETONSUNNY Water Rowing Machine ET707. This manual provides essential information for the safe assembly, operation, and maintenance of your new fitness equipment. The ET707 features an innovative vertical water tank for consistent resistance, Bluetooth connectivity for app integration (Kinomap, Fitshow), and an LCD digital monitor to track your workout progress. Designed for home use, it offers a full-body workout with a maximum user weight capacity of 330 lbs.

2. Коопсуздук маалыматы

• Кандайдыр бир жаңы көнүгүү программасын баштоодон мурун дарыгер менен кеңешиңиз.
• Ensure all parts are securely fastened before each use. Do not use the machine if any components are loose or damaged.
• Place the rowing machine on a flat, stable surface with adequate clear space around it (at least 2 feet on all sides).
• The maximum user weight capacity for this machine is 330 lbs (149.69 kg). Do not exceed this limit.
• Иш учурунда балдарды жана үй жаныбарларын машинадан алыс кармаңыз.
• ылайыктуу спорттук бут кийим жана кийим кийүү.
• Maintain proper rowing form to prevent injury. If you experience pain or dizziness, stop exercising immediately.
• Do not attempt to modify the machine. Use only manufacturer-approved replacement parts.

3. Пакеттин мазмуну

Сураныч, монтаждоону баштоодон мурун бардык компоненттер бар экенин текшериңиз. Эгерде кандайдыр бир бөлүктөрү жок же бузулуп калса, кардарларды колдоо менен байланышыңыз.

• Main Frame with Vertical Water Tank
• Орун
• Slide Rail
• Front Stabilizer
• Арткы стабилизатор
• Foot Pedals (pre-assembled or separate)
• Руль
• LCD Digital Monitor
• Планшет/Телефон кармагыч
• Аппараттык жана шаймандарды чогултуу
• Water Pump and Water Treatment Tablets

4. Орнотуу

4.1 Кураштыруу боюнча нускамалар

1. Компоненттерди таңгактан чыгаруу: Carefully remove all parts from the packaging and lay them out on a clean, flat surface. Ensure all packing materials are removed.
2. Стабилизаторлорду тиркөө: Secure the front and rear stabilizers to the main frame using the provided bolts and tools. Ensure they are tightened firmly for stability.
3. Assemble Slide Rail and Seat: Attach the slide rail to the main frame. Slide the seat onto the rail, ensuring the rollers are properly seated in the track.
4. Connect Water Tank Unit: Connect the main water tank unit to the assembled rail and frame, following the specific instructions for securing the connection points.
5. Install Monitor and Tablet Holder: Attach the LCD digital monitor and the adjustable tablet holder to the designated post on the main frame. Connect any necessary cables for the monitor.

Image: The adjustable LCD monitor and tablet holder, ready for device placement.

4.2 Суу резервуарын толтуруу

1. Суу куюлуучу резервуардын үстүнкү бетинен резина тыгынды алып салыңыз.
2. Use the provided water pump to fill the tank with clean tap water to the desired resistance level, indicated by markings on the tank. Do not overfill.
3. Add one water treatment tablet to the tank to prevent algae growth.
4. Replace the rubber stopper firmly to prevent leaks.

5. Иштөө нускамалары

5.1 Баштоо

1. Sit on the seat and place your feet securely in the foot pedals, adjusting the straps for a snug fit.
2. Grasp the handlebar with an overhand grip, hands shoulder-width apart.
3. Begin rowing with proper form: push off with your legs, then lean back slightly and pull the handlebar towards your abdomen. Reverse the motion smoothly.

Image: Proper rowing posture on the ETONSUNNY Water Rowing Machine, highlighting the full-body engagement.

5.2 LCD Digital Monitor Functions

The integrated LCD monitor tracks your workout data. Press the 'MODE' button to cycle through display functions:

Image: Visual representation of the LCD monitor's tracking capabilities, including Scan, Time, Count, Distance, Calorie, and Total Count.

• СКАН: Бардык функцияларды автоматтык түрдө айлантат.
• TIME: Учурдагы машыгууңуздун узактыгын көрсөтөт.
• COUNT: Shows the number of strokes performed during the current workout.
• Дистанция: Басып өткөн аралыкты болжолдойт.
• КАЛОРИЯ: күйгөн калорияларды эсептейт.
• БАРДЫГЫ САН: Displays the cumulative number of strokes from all workouts.

5.3 Bluetooth and App Connectivity

The ET707 rowing machine is equipped with Bluetooth functionality, allowing connection to smart workout applications such as Kinomap and Fitshow (available on iOS and Android).

1. Download the desired app (e.g., Fitshow) from your device's app store.
2. Смартфонуңузда же планшетиңизде Bluetooth иштетилгенин текшериңиз.
3. Open the app and follow the on-screen instructions to pair with your ETONSUNNY rowing machine.
4. Place your device in the integrated tablet holder for easy viewмашыгуу учурунда.

Image: The rowing machine's monitor with a smartphone displaying the Fitshow app, illustrating Bluetooth connectivity.

5.4 Каршылыкты тууралоо

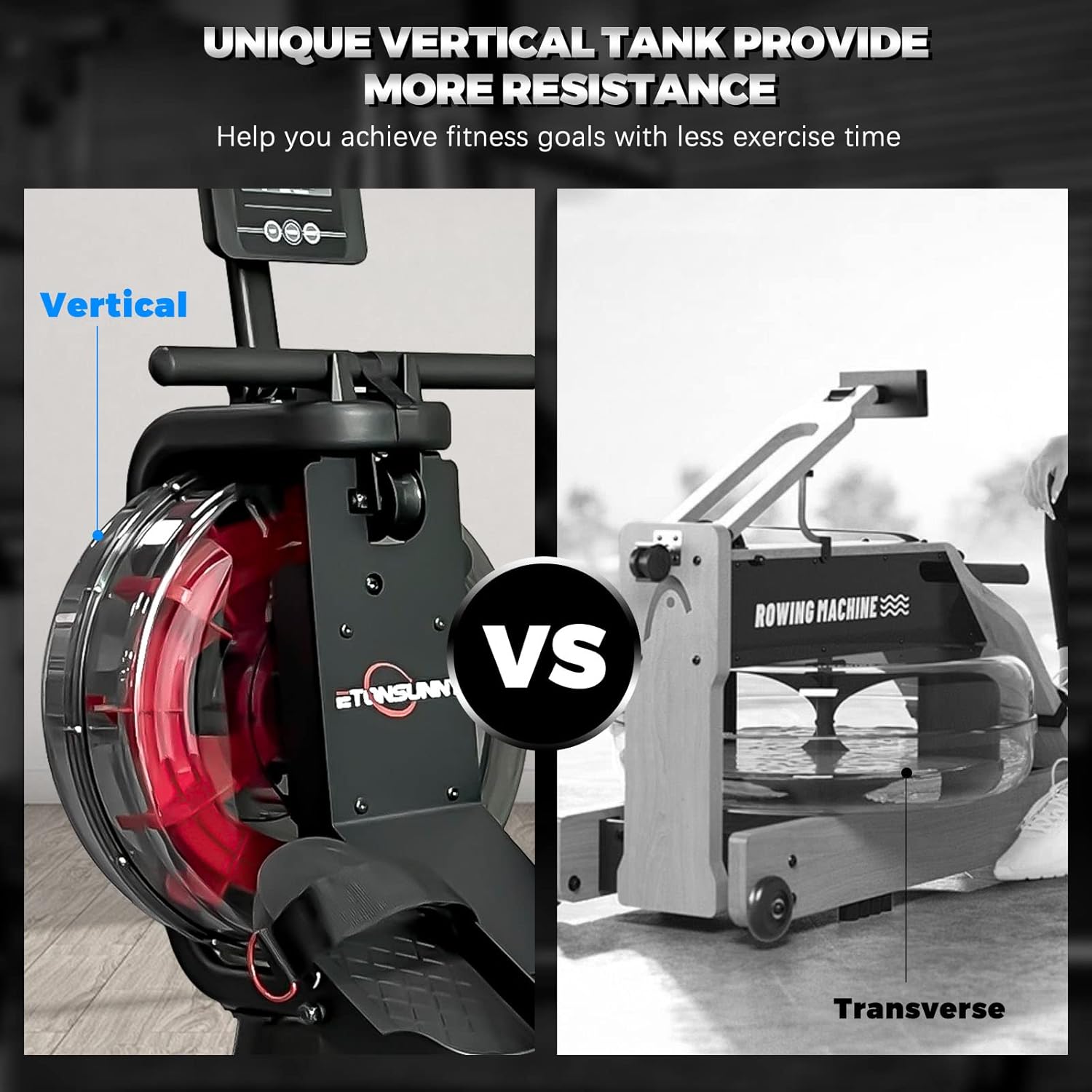

The resistance of the ETONSUNNY Water Rowing Machine is determined by the amount of water in the tank and the intensity of your stroke. More water or a stronger stroke will increase resistance. The unique vertical tank design provides consistent and challenging resistance.

6. Техникалык тейлөө

6.1 Суу резервуарына кам көрүү

• Add a water treatment tablet every 6-12 months, or as needed, to prevent algae and bacterial growth.
• If the water becomes discolored, drain the tank using the provided pump and refill with fresh water and a new treatment tablet.
• Ensure the tank stopper is always securely in place to prevent leaks.

6.2 Тазалоо

• Wipe down the frame, seat, and handlebars with a damp терди жана чаңды кетирүү үчүн ар бир колдонуудан кийин чүпүрөк менен сүртүңүз.
• Финишке зыян келтирүүчү абразивдүү тазалагычтарды же эриткичтерди колдонуудан алыс болуңуз.
• Periodically check the slide rail for debris and clean as necessary to ensure smooth seat movement.

6.3 Сактоо

The ETONSUNNY Water Rowing Machine is designed for convenient vertical storage to save space.

1. Ensure the machine is clean and dry.
2. Carefully lift the rear of the machine and pivot it upwards until it rests securely in a vertical position. The transportation wheels will assist in moving it.
3. Store in a corner or against a wall where it will not be easily knocked over.

Image: The ETONSUNNY Water Rowing Machine stored vertically, showcasing анын мейкиндикти үнөмдөөчү дизайны.

7. Кыйынчылыктарды

• Суу агып кетиши: Check that the rubber stopper on the water tank is securely in place. Inspect the tank for any cracks or damage. If a leak persists, contact customer support.
• Monitor Not Displaying Data: Ensure the monitor batteries are correctly installed and not depleted. Check all cable connections between the monitor and the machine.
• Bluetooth туташуу маселелери: Make sure Bluetooth is enabled on your device and the rowing machine is powered on. Try restarting both your device and the rowing machine. Ensure you are within range of the machine.
• Unsmooth Seat Movement: Inspect the slide rail for any dirt or debris. Clean the rail and the seat rollers. Ensure all rail connections are tight.
• адаттан тыш үндөр: Stop exercising immediately. Inspect all bolts and connections for tightness. Check for any foreign objects obstructing moving parts.

8. Техникалык шарттар

9. Кепилдик жана колдоо

ETONSUNNY provides a one-year warranty for all water rowing machines. This warranty covers free replacement parts for any manufacturing defects within the warranty period.

For any questions, concerns, or warranty claims, please contact our customer support team. We are committed to responding to all inquiries within 24 hours and providing appropriate solutions to meet your needs.

Кепилдикти текшерүү үчүн сатып алганыңыздын далилин сактап коюңуз.
