Introduction
The WOLFANG WB01 Baby Car Camera system is designed to provide parents with a clear and wide view of their child in the backseat, enhancing driving safety and peace of mind. Featuring a 1080P HD camera, a 5-inch display, and advanced night vision, this monitor allows for continuous observation, photo capture, and video recording of precious moments.
Продукт компоненттери
Before installation, please ensure all components are present in the package:
- 1 x 5 дюймдук дисплей
- 1 x Baby Car Mirror Camera
- 2 x 5M Video Cable
- 1 x Тайгаланбай турган төшөк
- 1 x Тамеки от алгыч адаптер
- 2 x кайыш
- 1 x User Manual
Орнотуу жана орнотуу
The WOLFANG WB01 is designed for quick and easy installation, typically taking less than 3 minutes.
- Камераны орнотуу: Securely attach the baby car camera to the headrest of the backseat using the provided straps. Ensure the camera has a clear line of sight to your child. The camera offers 120° adjustable rotation for optimal viewing.
Image: The baby car camera securely attached to a car headrest, providing a clear view арткы отургучтун. - Мониторду жайгаштырыңыз: Place the 5-inch display on your car's dashboard or center console. Use the anti-slip mat to prevent it from sliding. The monitor features a 0-90° foldable design for convenient placement and storage.
Image: The WOLFANG 5-inch display positioned on a car dashboard, demonstrating its foldable design. - Туташуу кубаты: Connect the monitor to your car's power supply using the cigarette lighter adapter. The system will automatically power on when the car starts.
- Connect Camera to Monitor: Use one of the provided 5M video cables to connect the camera to the monitor. Ensure a secure connection for stable video feed.
Иштөө нускамалары
Негизги операция
Once connected to power, the monitor will automatically turn on and display the camera feed. The system is designed for plug-and-play convenience.
Негизги өзгөчөлүктөрү
- HD 1080P Image: The upgraded chip technology ensures clear images during both day and night. The camera features a 6-piece spherical glass lens group and a 120° wide-angle field of view, capable of monitoring up to three babies in the back row.
Image: A close-up of the WOLFANG camera lens and a clear 1080P display showing a baby in a car seat, highlighting the superior image quality. - Lightless Night Vision: Equipped with two infrared night vision lights and 940nm technology, the camera provides clear night vision without glare or noise, protecting your baby's eyes from harsh light.

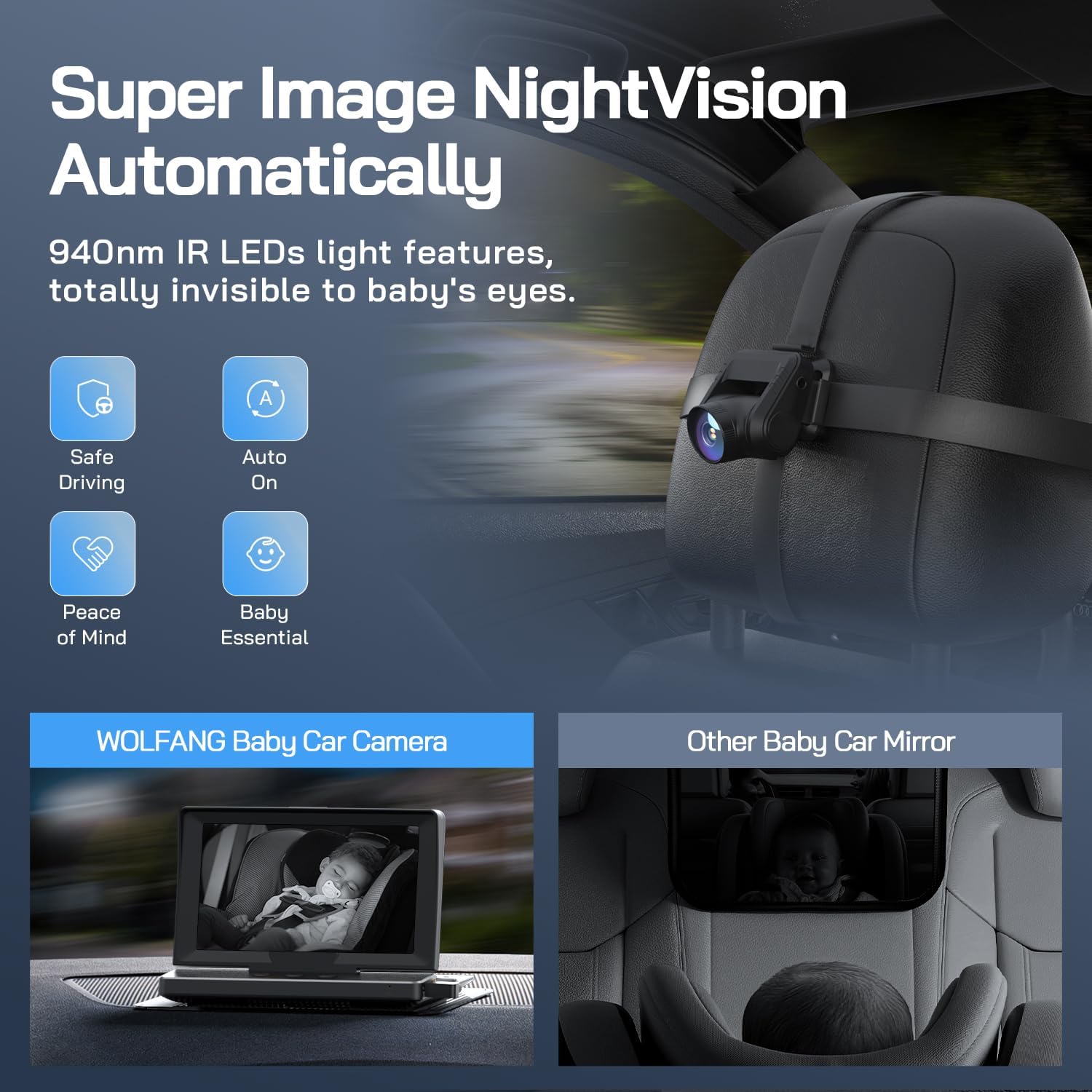

Image: A comparison showing the WOLFANG Baby Car Camera's superior night vision capability compared to a standard baby car mirror in low light conditions. - Photography and Recording Function: The WB01 supports a TF card slot (not included) for capturing photos and recording videos. This allows you to review precious moments later. The system supports loop recording, overwriting the oldest video when the card is full.
Image: The WOLFANG monitor displaying options for recording, menu, and photograph modes, indicating multi-language support. - Бир ачкыч операция: Easily switch between recording, menu, and photograph modes with a single key. The system supports 12 languages.
Техникалык тейлөө
To ensure the longevity and optimal performance of your WOLFANG Baby Car Camera system, follow these maintenance guidelines:
- Тазалоо: Gently wipe the display screen and camera lens with a soft, dry, lint-free cloth. For stubborn smudges, slightly dampen the cloth with water. Avoid using harsh chemicals or abrasive cleaners, as they can damage the surfaces.
- Сактагыч: Узак мөөнөткө колдонулбаганда, аспапты кургак, салкын жерде, тике күндүн нурунан жана өтө температурадан алыс сактаңыз.
- Кабельге кам көрүү: Бардык кабелдердин кысылып же өтө ийилип калбагандыгын текшериңиз, анткени алар бузулушу мүмкүн.
Проблемаларды чечүү
If you encounter any issues with your WOLFANG Baby Car Camera, please refer to the following common solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Дисплейде сүрөт жок | Power cable disconnected; Camera cable disconnected; Faulty power source. | Check if the cigarette lighter adapter is securely plugged in. Ensure the video cable connecting the camera to the monitor is firmly attached. Test the cigarette lighter socket with another device. |
| Сүрөт бүдөмүк же так эмес | Camera lens dirty; Poor lighting; Camera not focused correctly. | Clean the camera lens with a soft cloth. Ensure sufficient lighting, especially if not in night vision mode. Adjust the camera's position and angle. |
| Түнкү көрүнүш иштебейт | Insufficient darkness for activation; Infrared lights obstructed. | Ensure the environment is dark enough for automatic night vision activation. Check if anything is blocking the infrared lights on the camera. |
| Monitor not turning on/off with car ignition | Cigarette lighter socket is always on; Power adapter issue. | Some car cigarette lighter sockets remain powered even when the ignition is off. Disconnect the adapter manually if this is the case. Contact customer support if the adapter seems faulty. |
Эгерде бул чечимдерди колдонуп көргөндөн кийин да көйгөй чечилбесе, кошумча жардам алуу үчүн WOLFANG кардарларды тейлөө кызматына кайрылыңыз.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | WB01 |
| Дисплей өлчөмү | 5 дюйм |
| Video Resolution | 1080P HD |
| Түнкү көрүнүш | 940nm Lightless Infrared |
| Камера бурч | 120° Wide-Angle, Adjustable Rotation |
| Жазуу функциясы | Supports TF card (not included), Loop Recording |
| Power Source | Тамеки күйгүзүүчү адаптер |
| Продукциянын өлчөмдөрү (L x W x Y) | 13.6 x 12.1 x 2.1 см |
| Элемент Салмагы | 428 грамм |
| Түс | Кара |
Кепилдик жана Кардарларды колдоо
WOLFANG provides a comprehensive warranty and dedicated customer service to ensure your satisfaction.
- Кепилдик: The WOLFANG baby car monitor comes with a 24-month warranty.
- Кайтаруулар жана алмашуулар: 1 айлык акысыз кайтаруу жана алмаштыруу саясатынан пайдаланыңыз.
- Техникалык колдоо: Lifetime technical support is provided for all WOLFANG products.
- Биз менен байланышыңыз: If you encounter any problems or have questions, please contact our customer service team. We aim to solve issues within 24 hours.
Расмий электрондук почта: support.vc@wolfang.co
Webсайт: www.wolfang.co
