1. Киришүү
This manual provides essential instructions for the safe and effective installation, operation, and maintenance of your DALY Waterproof Battery Management System (BMS). Please read this manual thoroughly before use and retain it for future reference.
2. Продукт бүтүп калдыview
The DALY Waterproof BMS is designed to protect and manage various lithium battery chemistries, including Lithium-ion (ternary) and LiFePO4 (lithium iron phosphate) battery packs. It offers comprehensive protection features and efficient thermal management, suitable for a wide range of applications.
2.1-сүрөт: Фронт view of the DALY Waterproof BMS. This image displays the compact design of the BMS unit, featuring connection points for battery cells (B- and P-) and an NTC temperature sensor.
2.2-сүрөт: Dimensions of the DALY Waterproof BMS. The diagram illustrates the physical measurements of the BMS unit, including its length (110mm), width (34mm), and thickness (9mm), along with the length of the connecting wires (59mm).
2.3-сүрөт: жарылды view of the DALY BMS internal components. This diagram shows the heat dissipation aluminum alloy plates, the main circuit board (AFE, MOS), sampling cable, and thermally conductive ABS injection casing, highlighting the robust construction.
2.4-сүрөт: Illustration of the rapid heat dissipation feature. This image demonstrates how the aluminum alloy heat sink material efficiently dissipates heat, improving the overall performance and longevity of the BMS.
2.5-сүрөт: DALY BMS application scenarios. This image shows the versatility of the BMS, being suitable for single cell battery packs, cylindrical cell battery packs, and soft pack battery packs, used in various applications like e-bikes, scooters, and portable power stations.

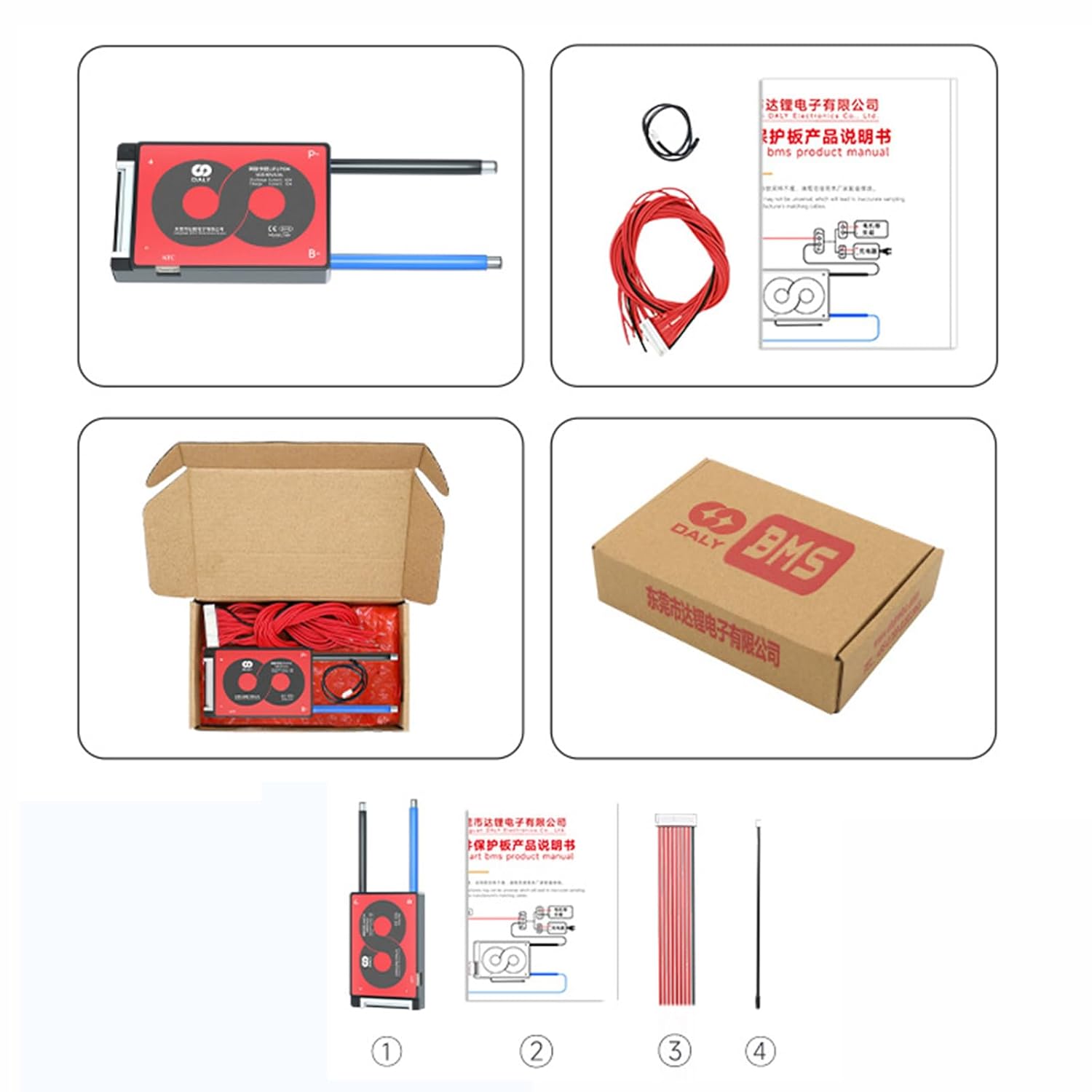

2.6-сүрөт: Product contents and packaging. This image displays the typical items included with the DALY BMS, such as the protection board, manual, cable, and NTC thermistor (if applicable), along with its retail packaging.
3. Коопсуздук нускамалары
- Always wear appropriate personal protective equipment (PPE) when handling batteries and BMS units.
- Ensure all connections are correct and secure before applying power. Incorrect wiring can cause damage to the BMS, battery, or connected devices, and poses a fire risk.
- Do not short-circuit the battery terminals or the BMS output.
- Keep the BMS away from water, moisture, and flammable materials unless specifically designed for such environments (this model is waterproof, but general caution is advised).
- Do not attempt to open or repair the BMS unit. Refer to qualified personnel for service.
- Батареянын көлөмүн текшерүүtage and polarity before connecting to the BMS.
4. Техникалык шарттар
The DALY Waterproof BMS is available in various configurations to suit different battery pack requirements. Key specifications are detailed below.
| Параметр | Мааниси/аралыгы |
|---|---|
| Колдоого алынган клеткалардын саны | 3S - 16S |
| Discharge Current (Continuous) | 15A, 20A, 30A, 40A, 50A, 60A (model dependent) |
| Charge Current (Continuous) | 15A, 20A, 40A, 60A (model dependent) |
| Main Circuit Conduction Internal Resistance | 20 мΩ |
| Иштөө температурасы | -40°Cден 85°Cге чейин |
| Сактоо температурасы | -40°Cден 85°Cге чейин |
| Суу өткөрбөйт рейтинги | Yes (fully sealed "one-piece molding injection" technology) |
| Коргоо өзгөчөлүгү | Ternary Lithium (Li-ion) | Литий темир фосфаты (LiFePO4) |
|---|---|---|
| Charging Overvoltage (ар бир клетка үчүн) | 4.075В - 4.125В | 3.475В - 3.525В |
| Discharge Overcurrent Protection Value | 35±10A to 180±30A (model dependent) | |
| Charging Overcurrent Protection Value | 15±2A to 70±10A (model dependent) | |
| Passive Equalization Current | 100 ± 20mA | 70 ± 20mA |
| Кыска туташуулардан коргоо | External load short circuit. Release by removing load. | |
| Коргоо кечигүү убактысы | 1 ± 0.5 секунд | |
| Temperature Protection (Charging) | -20°Cден 55°Cге чейин | |
| Temperature Protection (Discharging) | -40°Cден 75°Cге чейин | |
5. Орнотуу жана орнотуу
Proper wiring is crucial for the correct function and safety of the BMS and battery pack. Follow these steps carefully.
- Step 1: Soldering Wires
Connect the first wire (black wire) to the total negative terminal of the battery (B-). Connect the second wire (red wire) to the first series battery positive terminal. Continue connecting subsequent red wires to each successive series battery positive terminal until all balance wires are connected. - Step 2: Test the Wires
After connecting the balance wires, measure the voltage between two adjacent wires from the header. Ensure that the voltage readings are consistent with individual cell voltages, confirming that the wires are not connected in the wrong order. - Step 3: Connect Output Wires and Activate
Connect the B- wire of the protection board to the total negative terminal of the battery. Then, plug the sampling row wires (balance wires) into the protection board. After activating the protection board, confirm that the voltage before the board (battery voltage B+ to B-) and the voltage after the board (P+ to P-) are the same.
5.1-сүрөт: Detailed wiring diagram for DALY BMS installation. This diagram illustrates the connections for the sampling line (balance wires), B- (main negative), and P- (load negative), showing how the BMS integrates with the battery pack and external loads/chargers.
Эскертүү: The NTC (Negative Temperature Coefficient) thermistor is integrated into G series models. Ensure it is positioned correctly to monitor battery temperature.
6. Иштөө нускамалары
Once properly installed, the DALY BMS operates automatically to manage and protect your battery pack.
- Заряддоо: Connect your compatible battery charger to the P+ and P- terminals (or designated charge terminals if separate). The BMS will monitor cell voltages and temperatures, initiating passive balancing as needed and terminating charging if overvoltage or overcurrent conditions are detected.
- Заряддоо: Connect your load to the P+ and P- terminals. The BMS will monitor discharge current, cell voltages, and temperature, disconnecting the load if overcurrent, undervoltage, or over-temperature conditions occur.
- Баланстоо: The BMS features passive equalization to help maintain cell voltage consistency during charging. This function activates when cells reach a certain voltage босого.
7. Техникалык тейлөө
- Бардык зымдарды туташтыргычтын бекемдигин жана коррозиясын дайыма текшерип туруңуз.
- Keep the BMS unit clean and free from dust and debris.
- While the unit is waterproof, avoid prolonged submersion or exposure to harsh chemicals.
- Monitor battery pack performance. Any significant deviation in capacity or voltagи иликтөө керек.
8. Кыйынчылыктарды
If you encounter issues with your DALY BMS, consider the following:
- BMS not activating / No output voltage:
- Check all wiring connections, especially the balance wires and main power connections (B- and P-).
- Ensure the battery pack voltage is within the operational range.
- Verify that the balance wires are connected in the correct sequence and that no wires are swapped.
- If the BMS has a separate activation switch or procedure, ensure it has been followed.
- Battery not charging / Discharging:
- Ашыкча көлөмүн текшериңизtage же undervoltage protection activation. Measure individual cell voltages.
- Verify charger and load connections.
- Check for overcurrent protection activation. Reduce load or charging current.
- Inspect the NTC temperature sensor for proper placement and connection.
- Unbalanced cells:
- Ensure the BMS has sufficient time to balance cells during charging. Passive balancing is a slow process.
- Verify that the balance wires are correctly connected to each cell.
- If cell imbalance persists, individual cell testing may be required.
Туруктуу маселелер үчүн кардарларды колдоо кызматына кайрылыңыз.
9. Кепилдик жана колдоо
This DALY BMS product is covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to your purchase documentation for specific warranty terms and duration.
For technical support, troubleshooting assistance, or warranty claims, please contact your retailer or the manufacturer directly. Provide your product model number (e.g., LPF50) and purchase details when seeking support.
