MELOKEA Office Chair Instruction Manual

1. Коопсуздук маалыматы

Please read all safety warnings and instructions carefully before assembling and using the MELOKEA Office Chair. Retain this manual for future reference.

• Максималдуу Салмак сыйымдуулугу: Do not exceed the maximum load capacity of 200 kg (440 lbs). Exceeding this limit may cause damage to the chair and lead to injury.
• Туруктуулук: Ensure the chair is stable during assembly and use. Avoid sudden movements or leaning excessively, especially when adjusting components.
• Adjustable Parts: Exercise caution when adjusting movable parts such as the 4D armrests and 2D headrest to prevent pinching or injury.
• Ассамблея: Follow all assembly instructions precisely. Ensure all screws and fasteners are securely tightened before use. Periodically check all connections for tightness.
• Балдар жана үй жаныбарлары: Keep children and pets away from the chair during assembly. Do not allow children to play on or with the chair.
• Колдонуу чөйрөсү: Use the chair on a flat, stable surface. Avoid using it on uneven ground or near heat sources.

2. Продукт бүтүп калдыview

The MELOKEA Office Chair Model D060 is an ergonomically designed chair built for comfort and support, featuring multiple adjustment options to suit various body types and preferences. It is certified to European standards EN12520 for home and EN1335 for professional office chairs.

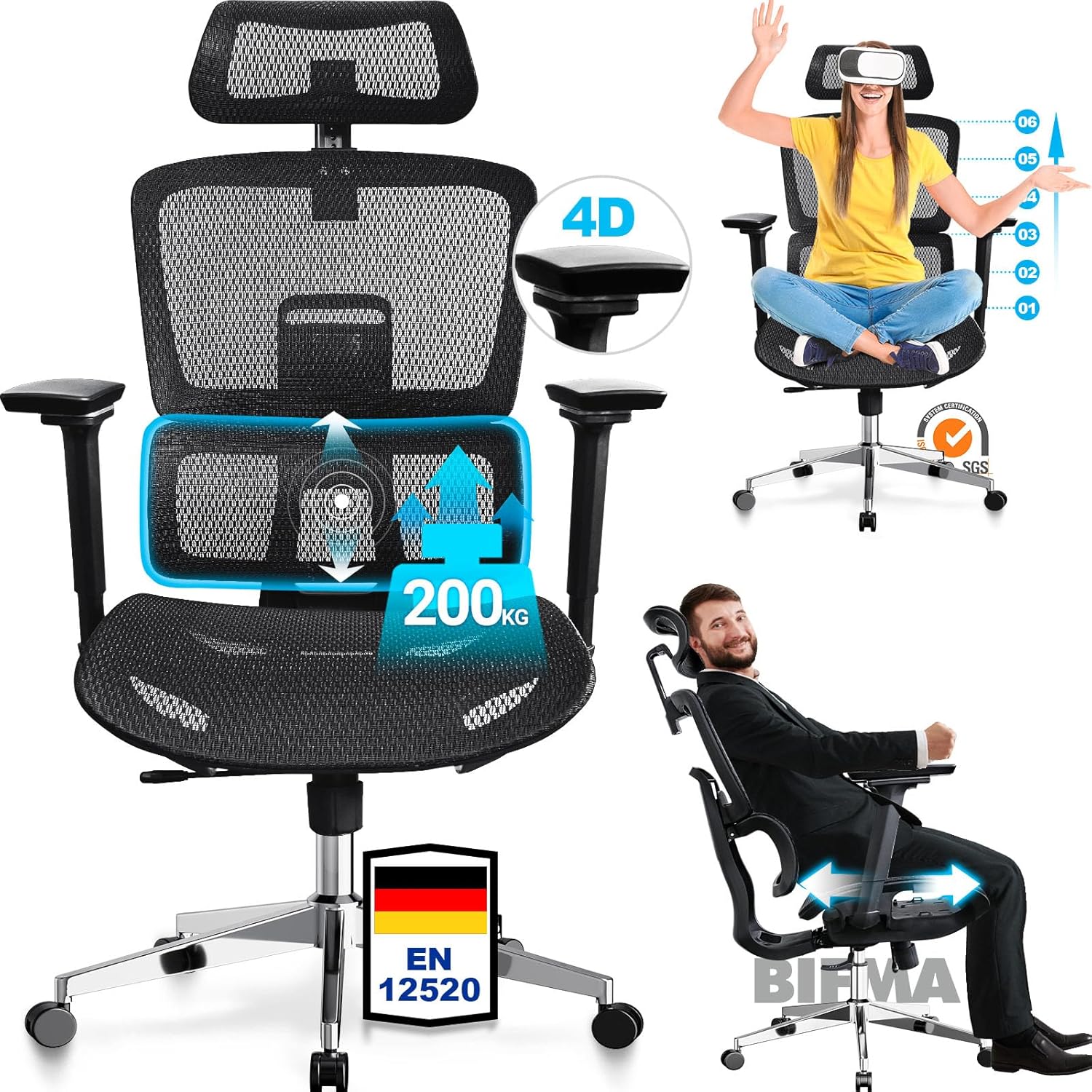

Сүрөт: Фронт view of the MELOKEA Office Chair highlighting 4D armrests, 200kg weight capacity, and EN 12520 certification. The image also shows a person using the chair with VR headset and another person demonstrating recline.

Негизги өзгөчөлүктөрү:

• Эргономикалык дизайн: Engineered to provide optimal support for the back, neck, and head, promoting a healthy posture.
• Жогорку Салмагы: Supports users up to 200 kg (440 lbs).
• 4D колтуктар: Fully adjustable armrests for personalized comfort.
• Жөнгө салынуучу арка: Multi-stage recline with locking positions.
• Adjustable Seat Depth: Allows for customization of seat depth to fit leg length.
• 2D Headrest: Adjustable headrest for neck support.
• Дем алуучу тор: High-elastic mesh design for enhanced comfort and airflow, preventing heat buildup.
• Waterfall Seat Cushion: 56 cm deep seat cushion designed to distribute pressure evenly across hips, thighs, and knees.

3. Орнотуу жана чогултуу

Assembly of the MELOKEA Office Chair typically involves attaching the base, gas lift, wheels, seat, backrest, armrests, and headrest. Please ensure all components are present before beginning assembly. Refer to the included assembly diagram for detailed steps.

General Assembly Steps (Consult provided diagram for specifics):

1. Компоненттерди таңгактан чыгаруу: Таңгактан кылдаттык менен бардык бөлүктөрүн алып салыңыз жана чийилип калбаш үчүн таза, жумшак бетке жаткызыңыз.
2. Дөңгөлөктөрдү негизге бекитүү: Беш дөңгөлөктүү дөңгөлөктөрдү жылдызчанын негизиндеги тешиктерге бекем бекитилгенге чейин киргизиңиз.
3. Газ лифтин киргизүү: Газ көтөргүч цилиндрди жылдызчанын негизинин борбордук тешигине коюңуз.
4. Механизмди отургучка бекитүү: Secure the control mechanism to the underside of the seat cushion using the provided screws. Ensure the front of the mechanism faces the front of the seat.
5. Отургучту газ лифтине туташтырыңыз: Чогултулган отургучту газ көтөргүч цилиндрге этияттык менен орнотуңуз, анын борборлоштурулганын жана туруктуу экенин текшериңиз.
6. Колтуктарды бекитүү: Secure the armrests to the seat using the designated screws.
7. Арткы таянычты бекитүү: Connect the backrest to the seat assembly using the appropriate screws.
8. Баш тирөөчтү орнотуу: Баш тирөөчтү жөлөнгүчтүн жогору жагындагы атайын уячага жылдырыңыз.
9. Акыркы текшерүү: Verify that all screws are tightened and all components are securely attached before using the chair.

Сүрөт: Diagram showing key dimensions of the MELOKEA Office Chair (e.g., seat width, backrest height, armrest height) and durability test results for seat, wheels, and gas spring.

4. Иштөө нускамалары

The MELOKEA Office Chair offers 19 individual adjustment modes to optimize your comfort and posture. Familiarize yourself with these adjustments for the best ergonomic experience.

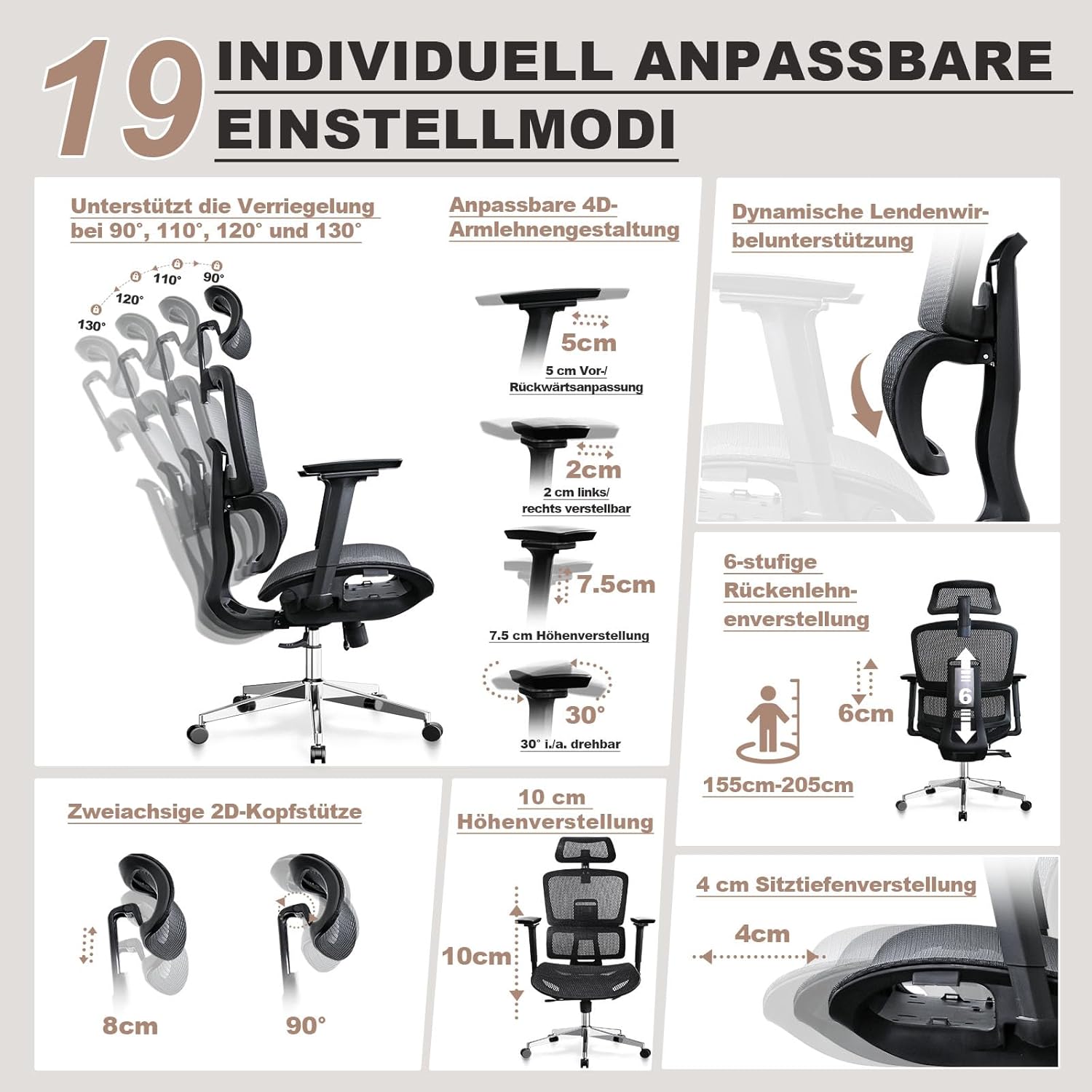

Сүрөт: Visual guide to the 19 individual adjustment modes, including recline angles (90°, 110°, 120°, 130°), 4D armrest adjustments (forward/backward, left/right, height, rotation), 6-stage backrest adjustment, 2D headrest adjustments (height, angle), and seat depth adjustment.

Adjusting Your Chair:

• Стулдун бийиктигин жөндөө: Locate the lever under the seat on the right side. Pull the lever up to raise the chair. To lower, sit on the chair and pull the lever up. Release the lever at the desired height.
• Backrest Recline & Lock: Use the lever on the left side under the seat to adjust the backrest angle. The chair supports locking at 90°, 110°, 120°, and 130° angles. Pull the lever out to recline, push it in to lock the position. When you pull the backrest to its highest position, it automatically returns to the starting position.
• 4D колтук тирөөчтү тууралоо:
  • Бийиктиги: Press the button on the side of the armrest and slide it up or down (7.5 cm adjustment range).
  • Алдыга артка: Slide the armrest pad forward or backward (5 cm adjustment range).
  • Сол оң: Slide the armrest pad left or right (2 cm adjustment range).
  • Пивот: Rotate the armrest pad inward or outward (30° rotation).
• Отуруучу тереңдикти жөндөө: Locate the lever or button under the seat. Adjust the seat forward or backward by up to 4 cm to ensure proper thigh support and leg clearance.
• 2D баш тирөөчтү тууралоо:
  • Бийиктиги: Slide the headrest up or down (10 cm adjustment range).
  • Бурч: Tilt the headrest forward or backward (90° tilt).
• Бел колдоо жөндөө: The chair features an adaptable lumbar support system. This system automatically adjusts to your lower back curve, providing continuous support.

Сүрөт: Illustration demonstrating ergonomic posture with the MELOKEA Office Chair, showing how the adjustable backrest supports the spine and relaxes the head and neck. It also highlights the EN 12520 European standard.

Сүрөт: Жакын план view of the adjustable lumbar support and the 4 cm seat depth adjustment, illustrating how these features provide comfort and pressure relief.

5. Техникалык тейлөө

Proper maintenance will extend the life and performance of your MELOKEA Office Chair.

• Тазалоо: Wipe the chair gently with a damp cloth. Avoid using harsh chemicals, abrasive cleaners, or solvents, as these can damage the mesh fabric or frame finish.
• Үзгүлтүксүз текшерүү: Periodically check all screws and fasteners to ensure they are tight. Re-tighten if necessary to maintain stability and safety.
• Caster Wheels: Keep the caster wheels clean and free of debris (hair, dust, etc.) to ensure smooth movement.
• Ашыкча жүктөөдөн качыңыз: Do not place excessive weight on the chair or use it for purposes other than its intended use as an office chair.

6. Кыйынчылыктарды

If you encounter any issues with your MELOKEA Office Chair, refer to the common problems and solutions below. If the problem persists, contact customer support.

7. Техникалык шарттар

Сүрөт: Side view of the MELOKEA Office Chair showing height adjustments (113cm-135cm), backrest height (92cm), and certifications like TÜV Rheinland, LGA Quality, and SGS. Also indicates 200kg capacity and PU wheels.

8. Кепилдик жана колдоо

MELOKEA is committed to providing high-quality ergonomic chairs. For specific warranty details, please refer to the warranty card included with your product or visit the official MELOKEA webсайт.

If you have any questions, require assistance with assembly, or need to report a defect, please contact MELOKEA customer support through the following channels:

• Онлайн колдоо: Visit the MELOKEA brand store on Amazon or the official MELOKEA webКөп берилүүчү суроолор жана байланыш формалары үчүн сайт.
• Электрондук почта колдоо: Кардарларды тейлөө электрондук почта дарегин сатып алуу документтериңизден караңыз.

Please have your model number (D060) and purchase date ready when contacting support.
