Blumfeldt 3x4m Garden Gazebo Instruction Manual

1. Киришүү

This manual provides detailed instructions for the assembly, operation, and maintenance of your Blumfeldt ShadeFortress 3x4m Garden Gazebo. Designed for versatile outdoor use, this gazebo offers protection from sun, rain, and wind, making it ideal for family gatherings, barbecues, or simply relaxing outdoors. Its robust construction with an aluminum frame and galvanized steel roof ensures durability and stability.

Image 1.1: The Blumfeldt ShadeFortress 3x4m Garden Gazebo, showcasing its overall design and tied-back curtains.

2. Коопсуздук маалыматы

• Ар дайым беседканы жалпак, туруктуу бетке чогултуңуз.
• Колдонуудан мурун, бардык туташуулардын бекем бекитилгенин текшериңиз.
• Do not use the gazebo in extreme weather conditions, such as strong winds, heavy snow, or thunderstorms. Disassemble or secure it properly to prevent damage or injury.
• Орнотуу учурунда балдарды жана үй жаныбарларын чогултуу жайынан алыс кармаңыз.
• Regularly inspect the structure for any signs of wear or damage. Replace damaged parts immediately.
• Рамкага оор нерселерди илип албаңыз.

3. Пакеттин мазмуну

Монтаждоону баштоодон мурун, төмөндө келтирилген компоненттердин бардыгы бар экенин жана бузулбаганын текшериңиз. Эгерде кандайдыр бир бөлүктөрү жок же бузулуп калса, кардарларды колдоо менен байланышыңыз.

Note: The exact number of frame and roof sections will vary based on the specific design and size. Refer to the detailed parts list in your physical manual for precise counts.

4. Орнотуу жана чогултуу

Assembly typically requires two or more people. Follow these steps carefully for a successful setup.

4.1. Аймакты даярдоо

• Choose a level, clear area for assembly, free from obstructions.
• Unpack all components and lay them out, organizing them by type.

4.2. Алкакты чогултуңуз

Begin by connecting the main aluminum frame sections. Ensure all bolts are finger-tight before fully tightening them in a later step.

Image 4.2.1: Detail of a frame connection point, illustrating the robust aluminum structure.

1. Connect the horizontal beams to the vertical posts to form the base structure.
2. Attach the upper frame sections that will support the roof.
3. Once the entire frame is loosely assembled, carefully stand it upright.
4. Using the provided tools, tighten all bolts and screws securely. Do not overtighten.

4.3. Install the Roof

The galvanized steel roof provides excellent protection. Install the panels according to the numbering or specific instructions in your physical manual.

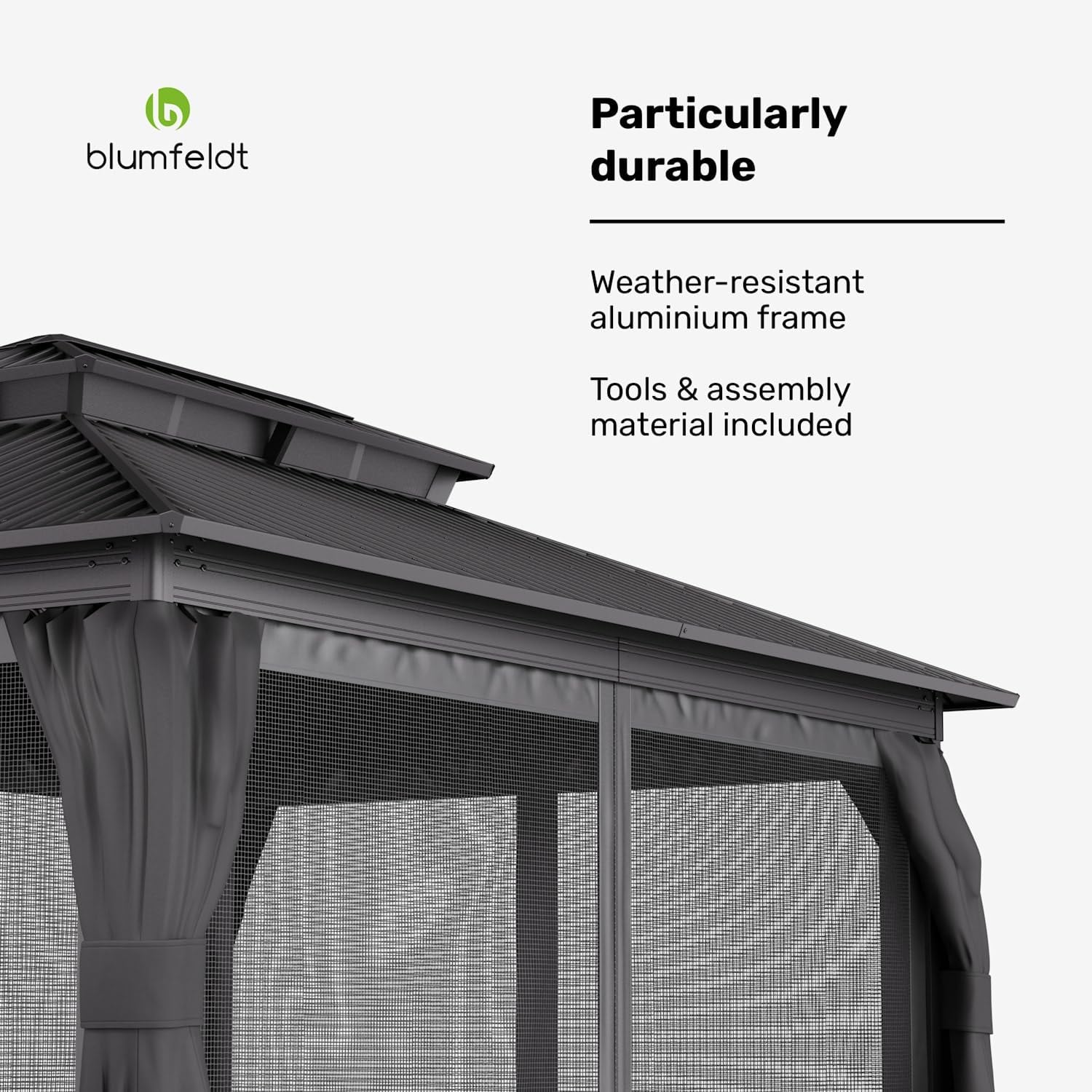

Image 4.3.1: Close-up of the galvanized steel roof, highlighting its weather-resistant design.

1. Carefully lift and position the main roof panels onto the upper frame.
2. Secure the roof panels using the designated fasteners.
3. Install the smaller upper roof section (double-roof) for optimal air circulation.

4.4. Attach Curtains and Mosquito Nets

The gazebo includes both polyester side curtains and mosquito nets for versatile use and protection.

Image 4.4.1: The gazebo with its mosquito nets fully deployed, providing insect protection.

1. Hang the polyester side curtains onto the designated tracks or hooks on the frame.
2. Attach the mosquito nets in a similar manner, ensuring they can be easily opened and closed independently of the curtains.

5. Иштөө нускамалары

Your Blumfeldt gazebo is designed for flexible use, adapting to your needs and the weather conditions.

5.1. Using the Side Curtains

• Ачык позиция: Gather the curtains and secure them to the posts using the integrated ties. This creates an open, airy space.
• Жабык абалы: Release the ties and pull the curtains along their tracks to fully enclose the gazebo. This provides privacy and protection from light rain or wind.

Image 5.1.1: The gazebo with its side curtains neatly tied back, creating an open and inviting space.

5.2. Using the Mosquito Nets

• The mosquito nets operate independently of the curtains. They can be pulled closed to keep insects out while allowing air circulation.
• When not in use, the nets can be tied back similarly to the curtains.

6. Техникалык тейлөө

Proper maintenance will extend the life of your gazebo and keep it looking its best.

• Рамканы тазалоо: Жарнама менен алюминий алкагын сүртүңүзamp кездеме жана жумшак самын. Жакшылап чайкап, кургатыңыз. Абразивдүү тазалоочу каражаттардан алыс болуңуз.
• Чатырды тазалоо: The galvanized steel roof can be cleaned with water and a soft brush. For stubborn dirt, use a mild detergent.
• Cleaning Curtains and Nets: The polyester side walls and mosquito nets can be spot cleaned with mild soap and water. For deeper cleaning, they may be removed and hand washed or machine washed on a gentle cycle with cold water, then air-dried. Check fabric care labels for specific instructions.
• Сезондук сактагыч: For prolonged periods of non-use or during harsh winter conditions, it is recommended to disassemble the gazebo and store it in a dry, protected area. Ensure all components are clean and dry before storage to prevent mold or corrosion.
• Үзгүлтүксүз текшерүү: Periodically check all bolts, screws, and connections to ensure they remain tight. Inspect fabric for tears or excessive wear.

7. Кыйынчылыктарды

8. Техникалык шарттар

• Модел: GDM26-ShadeFT 3x4
• Өлчөмдөрү (L x W x Y): 400 x 300 x 287 cm (approx. 3x4 meters)
• Салмагы: 110 кг
• Рамка материалы: Алюминий
• Чатыр материалы: иш-аракет кылууга түрткү болот
• Side Wall Material: Полиэстер
• Түсү: Dark Grey/Black
• UV коргоо: Ооба
• Суу каршылык: Суу өткөрбөйт
• Өзгөчөлүктөрү: Double roof for air circulation, integrated mosquito nets, closable side curtains.

9. Кепилдик жана колдоо

For information regarding warranty coverage, spare parts availability, or technical support, please refer to the warranty card included with your purchase or visit the official Blumfeldt website. Contact details for customer service are typically provided in the full product documentation.
