Vortex Optics Diamondback Riflescope

Introduction

The Vortex Optics Diamondback 1.75-5x32 Riflescope is engineered for precision and durability, offering clear optics and reliable performance in various conditions. This manual provides comprehensive instructions for setting up, operating, maintaining, and troubleshooting your riflescope to ensure optimal use and longevity.

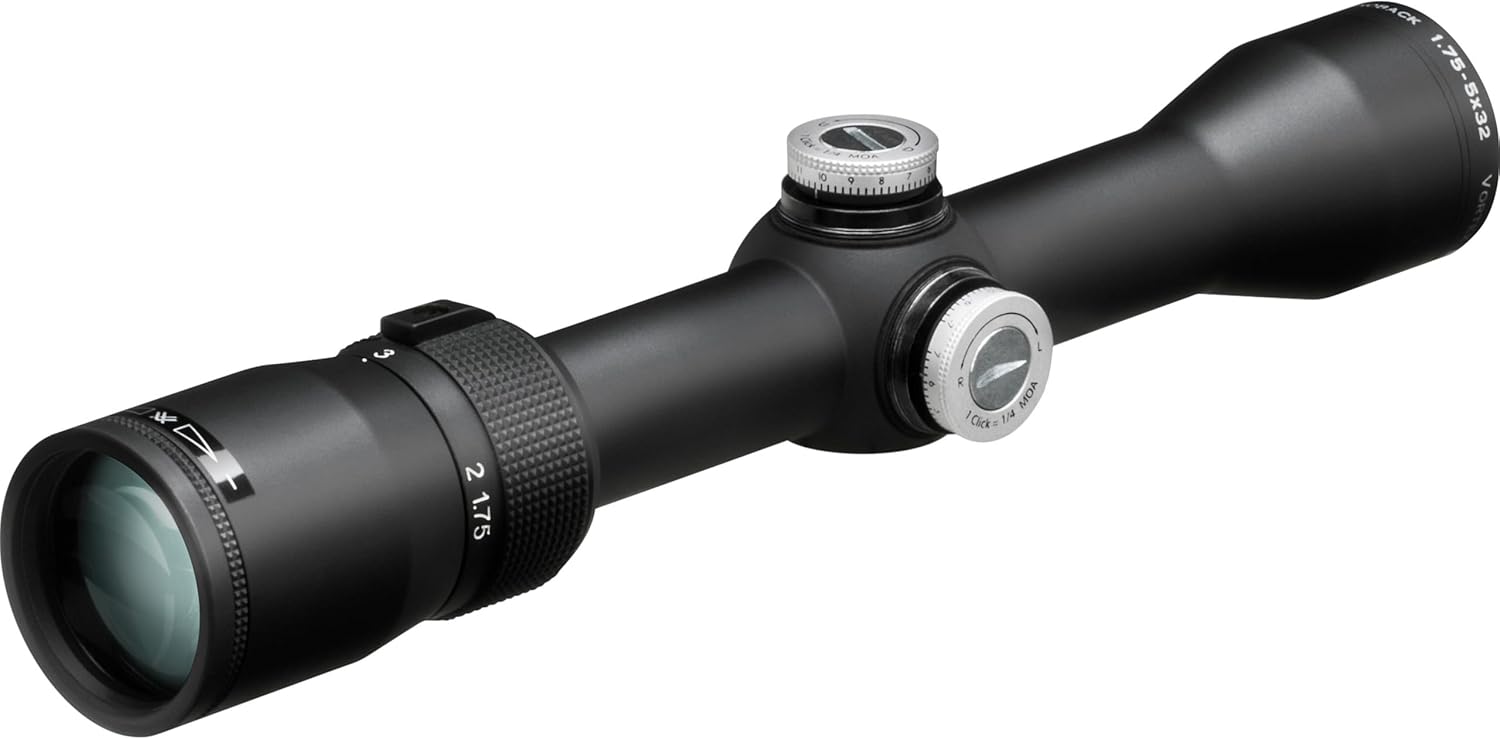

1-сүрөт: Vortex Diamondback 1.75-5x32 Riflescope.

Key features include a Dead-Hold BDC reticle for varying ranges, fully multi-coated lenses for bright images, and a robust one-piece tube design that is shockproof, waterproof, and fogproof.

Продукт бүттүview

Familiarize yourself with the main components of your Diamondback riflescope:

2-сүрөт: Main components of the Vortex Diamondback 1.75-5x32 Riflescope. Key parts include the Fast Focus Eyepiece, Reticle Focus, Magnification Adjustment Ring, Elevation Adjustment Knob, Windage Adjustment Knob, and Objective Lens.

• Объективдүү линза: The front lens of the scope, responsible for gathering light.
• Чоңойтууну жөндөө шакеги: Used to change the magnification power of the scope.
• Windage Adjustment Knob: Adjusts the reticle horizontally (left/right).
• Elevation Adjustment Knob: Adjusts the reticle vertically (up/down).
• Тез фокус окуляр: Allows for quick and easy focusing of the reticle.
• Ретикула: The aiming pattern inside the scope. This model features the Dead-Hold BDC reticle.

Жайгашуу

1. Mounting the Riflescope

Ensure your rifle is unloaded and pointed in a safe direction before mounting. The Diamondback riflescope is compatible with Weaver Mount systems. Use appropriate rings and bases for secure attachment.

1. Attach the mounting bases to your rifle according to the manufacturer's instructions.
2. Place the lower half of the rings onto the bases.
3. Carefully place the riflescope into the lower rings, ensuring proper eye relief and reticle alignment.
4. Attach the upper half of the rings and tighten the screws evenly, following the torque specifications provided by your ring manufacturer. Do not overtighten.

2. Focusing the Reticle

The fast focus eyepiece allows for quick and easy reticle focusing to ensure a sharp image of the reticle.

1. Hold the riflescope about 3-4 inches from your eye.
2. Look through the eyepiece at a plain, bright background (like a wall or the sky).
3. Quickly glance at the reticle. If it's not sharp, rotate the eyepiece until the reticle appears crisp and clear. Avoid staring at the reticle for too long, as your eye will compensate for blurriness.

3. Initial Zeroing

Initial zeroing should be performed at a safe shooting range. The metal-on-metal precision turrets allow for zero reset after sight-in.

1. Set up a target at a known distance (e.g., 25 yards for initial bore sighting).
2. Fire a three-shot group.
3. Adjust the windage and elevation knobs to move the point of impact towards the center of the target. Each click of the turret will move the point of impact by a specific amount (refer to specifications for click values).
4. Once zeroed, you can reset the turrets to '0' by lifting the turret cap, rotating it to align the '0' mark with the indicator dot, and pressing it back down.

Рифлескопту иштетүү

1. Чоңойтууну тууралоо

Rotate the magnification adjustment ring located near the eyepiece to change the magnification power. This model offers a variable magnification from 1.75x to 5x.

3-сүрөт: Magnification adjustment ring on the riflescope.

2. Шамалдын багытын жана бийиктикти тууралоо

The windage (horizontal) and elevation (vertical) adjustments are made using the turrets on the top and side of the scope body. These adjustments allow you to fine-tune your point of impact.

4-сүрөт: Windage and Elevation adjustment turrets.

3. Dead-Hold BDC Reticle

The Dead-Hold BDC (Bullet Drop Compensator) reticle is designed to help eliminate guesswork on hold-over and windage corrections. It features a series of dots or hash marks below the main crosshair that correspond to different distances, allowing for quick aiming adjustments without manipulating the turrets.

5-сүрөт: Example of the Dead-Hold BDC Reticle. Consult your ammunition's ballistic data for precise holdover points at various ranges.

Техникалык тейлөө

1. Линзаларды тазалоо

Keep your lenses clean for optimal viewing. Your riflescope comes with removable lens covers and a lens cloth.

• Brush off any loose dust or debris with a soft brush or compressed air.
• Apply a small amount of lens cleaning solution to a clean microfiber lens cloth (not directly to the lens).
• Gently wipe the lens in a circular motion from the center outwards.
• Avoid using harsh chemicals or abrasive materials, which can damage the lens coatings.

2. Жалпы кам көрүү жана сактоо

The Diamondback riflescope is designed to be shockproof, waterproof, and fogproof, ensuring reliable performance in harsh environments. However, proper care extends its lifespan.

• Store the riflescope in a cool, dry place when not in use.
• Use the provided lens covers to protect the objective and eyepiece lenses from dust and scratches.
• Температуранын кескин өзгөрүшүнө жол бербеңиз.
• Periodically check mounting screws for tightness.

Проблемаларды чечүү

If you encounter issues with your riflescope, refer to the following common problems and solutions:

Техникалык шарттар

Кепилдик жана колдоо

Vortex Optics өзүнүн өнүмдөрүнүн артында алдыңкы кепилдик менен турат:

VIP кепилдик: This product is backed by Vortex's unlimited, unconditional, lifetime, VIP Warranty. This is a fully transferable promise to repair or replace your item if it becomes damaged or defective. It does not cover loss, theft, deliberate damage, or cosmetic damage that does not hinder performance.

Кепилдик кызматы же техникалык колдоо үчүн расмий Vortex Optics компаниясына кайрылыңыз website or contact their customer service department directly. Keep your product's model number and any purchase information readily available.
