1. Киришүү
Thank you for choosing the Vortex X28W Bladeless Table Fan. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read this manual thoroughly before use and retain it for future reference.
2. Коопсуздук маалыматы
- No Exposed Blades: The bladeless design ensures safety, making it suitable for environments with children and pets.
- Кубат булагы: Use only the specified charging cable and power adapter (5V DC) to prevent damage or fire hazards.
- Суу таасири: Do not immerse the fan in water or expose it to excessive moisture. This product is for indoor use only.
- Тазалоо: Disconnect the power before cleaning. Use a soft, dry cloth. Do not use abrasive cleaners.
- Вентиляция: Ensure the fan's air inlets and outlets are not blocked during operation.
- Ремонттор: Do not attempt to disassemble or repair the fan yourself. Contact qualified service personnel for assistance.
- Батареянын коопсуздугу: The fan contains a Lithium Polymer battery. Do not expose to extreme temperatures or puncture.
3. Пакеттин мазмуну
Сураныч, пакетте төмөнкү нерселерди текшериңиз:
- Vortex X28W Bladeless Table Fan
- USB-C заряддоо кабели
- User Manual
4. Продукт бүтүп калдыview
The Vortex X28W fan features a sleek, bladeless design for safe and efficient cooling. It utilizes advanced airflow technology to provide a smooth, consistent stream of air.
Сүрөт 4.1: Алдыңкы view of the white Vortex X28W Bladeless Table Fan, showcasing its minimalist design and digital display.
Figure 4.2: Illustration highlighting the bladeless design and the path of circulating air through the fan.
Figure 4.3: Detail of the fan's control interface, indicating the digital battery level display and the main power/function button.
Сүрөт 4.4: Жакын пландан view of the Type C USB charging port, located on the lower rear section of the fan.
5. Орнотуу
- Пакеттен чыгаруу: Желдеткичти жана бардык аксессуарларды таңгактан кылдаттык менен чыгарып алыңыз.
- Жайгашкан жери: Place the fan on a stable, flat surface. Ensure there is adequate space around the air inlets (sides) and outlet (front) for optimal airflow.
- Баштапкы төлөм: Before first use, it is recommended to fully charge the fan. Connect the USB-C charging cable to the fan's charging port and the other end to a compatible USB power adapter (not included). The digital display will show the charging status.
Figure 5.1: A dark blue variant of the fan shown connected to a power source via its USB-C charging cable, illustrating the charging process.
6. Иштөө нускамалары
The Vortex X28W fan features simple touch controls.
- Күйгүзүү/өчүрүү: Press the main button (refer to Figure 4.3) once to turn the fan on. Press and hold the button for approximately 2 seconds to turn the fan off.
- Желдетүүчү ылдамдыкты жөндөө: While the fan is on, press the main button repeatedly to cycle through the 6 available fan speed levels. The digital display will indicate the current speed setting.
- Санариптик дисплей: The integrated digital display shows the current fan speed level and the battery charge percentage.

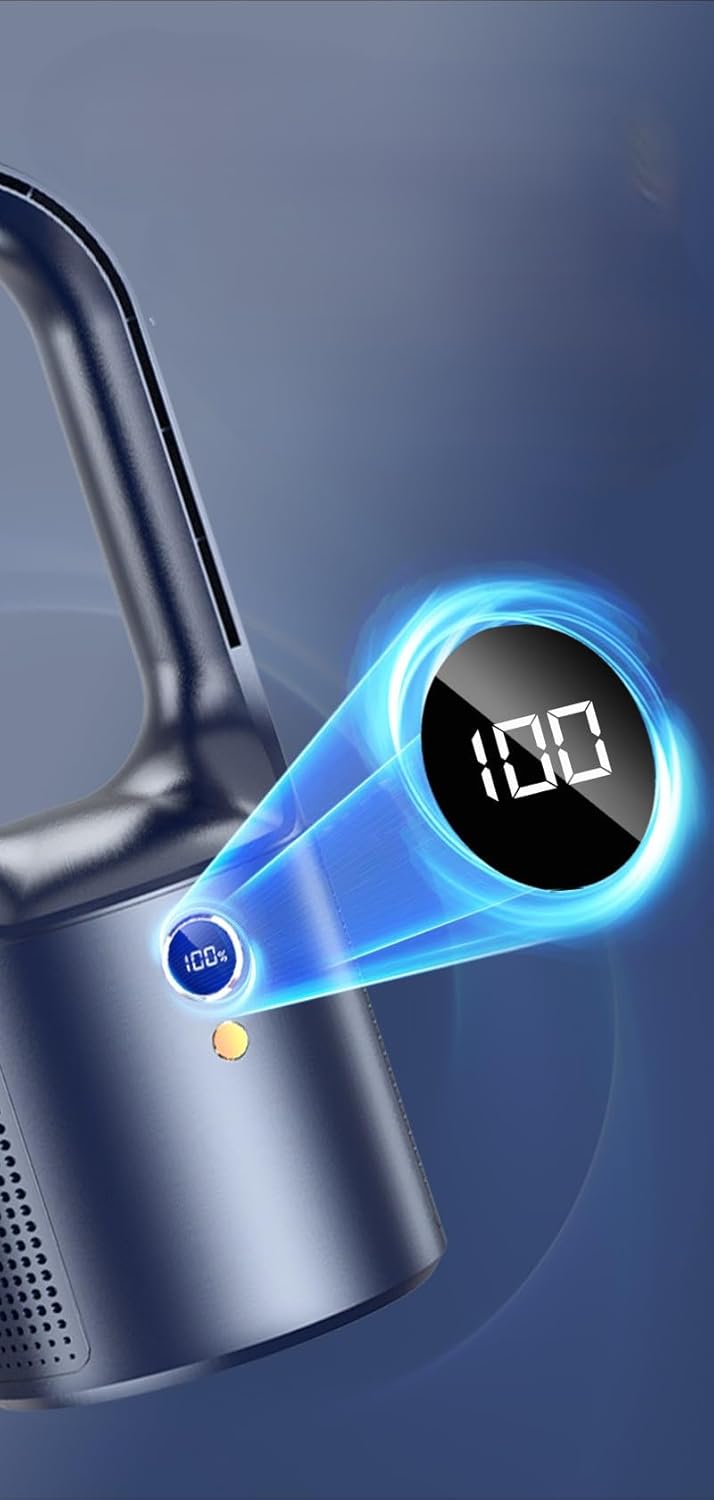

Figure 6.1: Close-up of the fan's digital display, indicating a full battery charge (100%).
6.2-сүрөт: Мисamples of the fan in typical usage scenarios, providing cooling in an office and bedroom setting.
7. Заряддоо
The Vortex X28W is equipped with a rechargeable Lithium Polymer battery.
- Connect the provided USB-C cable to the fan's charging port and to a standard USB power source (e.g., computer USB port, wall adapter).
- Санариптик дисплей батареянын кубаттуулугунун пайызын көрсөтөтtage, indicating charging progress.
- A full charge typically takes several hours. The display will show 100% when fully charged.
- Battery life varies depending on the fan speed setting. Higher speeds consume more power and will reduce operating time.
8. Техникалык тейлөө жана тазалоо
The bladeless design of the Vortex X28W makes cleaning simple.
- Өчүрүү: Always ensure the fan is turned off and disconnected from any power source before cleaning.
- Тышкы тазалоо: жумшак, кургак же бир аз колдонуу damp cloth to wipe down the exterior surfaces of the fan.
- Аба кирүүчү/чыга турган жерлер: Gently wipe the air inlet grilles and the interior of the air loop with a soft cloth to remove dust. Do not use sharp objects to clean these areas.
- Суюктуктардан алыс болуңуз: Do not spray cleaning liquids directly onto the fan. Do not use abrasive cleaners, solvents, or harsh chemicals.
Figure 8.1: A hand cleaning the surface of a dark blue fan with a soft cloth, illustrating the ease of maintenance for the bladeless design.
9. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Желдеткич күйбөйт. | Батарея түгөнүп калды. | Берилген USB-C кабелин колдонуп, желдеткичти кубаттаңыз. |
| Вентилятор иштейт, бирок аба агымы начар. | Air inlets/outlets are blocked; Fan speed is too low. | Ensure no obstructions. Increase fan speed using the control button. |
| Battery drains quickly on high settings. | High power consumption at higher speeds. | This is normal. For extended use, operate at lower speeds or keep connected to power. |
| Желдетүүчү ызы-чуу. | Operating at highest speed; Fan is on an uneven surface. | Reduce fan speed. Ensure the fan is placed on a stable, flat surface. |
10. Техникалык шарттар
- Бренд: Vortex
- Модель аты: X28W
- Электр желдеткич дизайны: Стол желдеткичи
- Кубат булагы: Батарея менен иштейт (1 литий полимердик батарейка камтылган)
- Башкаруу ыкмасы: тийүү
- Кубаттын деңгээли: 6
- Өзгөчө өзгөчөлүгү: Bladeless, Rechargeable, Cordless
- Ызы-чуу деңгээли: 36 децибел
- Ватtage: 5 ватт
- Тtage: 5 вольт (ток)
- Продукциянын өлчөмдөрү: 5"D x 5"W x 13"H (approximately 12.7cm D x 12.7cm W x 33cm H)
- Элемент Салмагы: 1.96 pounds (approximately 0.89 Kilograms)
- Ички/тышкы колдонуу: Indoor
Figure 10.1: Visual representation of the fan's dimensions, indicating a height of 340mm and a width of 138mm.
11. Кепилдик жана колдоо
Vortex products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the contact information provided with your purchase or visit the official Vortex webсайт. Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
