Mcezdy M7C-2-5-Pin Ebike LCD Display User Manual

1. Киришүү

This manual provides detailed instructions for the installation, operation, and maintenance of your Mcezdy M7C-2-5-Pin Ebike LCD Display. This display is designed to enhance your electric bike experience by providing essential riding data and control functions. Please read this manual thoroughly before using the product to ensure correct operation and to prevent damage.

2. Коопсуздук маалыматы

• Always ensure your ebike controller is compatible with the UART No. 2 protocol and the 5-pin connector of this display. Incompatibility can lead to malfunction.
• Дисплейди бөлүктөргө бөлүүгө же өзгөртүүгө аракет кылбаңыз. Бул кепилдикти жокко чыгарып, зыян келтириши мүмкүн.
• Ensure all connections are secure and waterproof before riding, especially in wet conditions. The display has an IPX65 waterproof rating, but proper connection is crucial.
• Regularly check the display and its mounting for any signs of damage or looseness.
• Дисплейди узак убакыт бою өтө жогорку температурага же түз күн нуруна дуушар кылбаңыз.
• Always prioritize road safety. Do not operate display functions that distract you from riding.

Figure 1: Compatibility Reminder. This image highlights the critical need to verify your ebike's compatibility with the UART No. 2 protocol before installation.

3. Пакеттин мазмуну

Пакетти ачкандан кийин, төмөнкү нерселердин бардыгы камтылганын текшериңиз:

• Mcezdy M7C-2-5-Pin Ebike LCD Display
• Колдонуучунун колдонмосу (бул документ)
• Fault Code Description sheet

4. Продукциянын өзгөчөлүктөрү

The Mcezdy M7C-2-5-Pin Ebike LCD Display offers a range of features designed for an optimized riding experience:

• Advanced Color LCD Display: Provides clear, vibrant visuals of riding data.
• Мыкты курулуш: Crafted with ABS+PC housing, tempered glass screen, and a durable nylon bracket for longevity and scratch resistance.
• IPX65 суу өткөрбөйт рейтинги: Offers protection against water splashes and rain.
• UART No. 2 Protocol: Ensures seamless communication with compatible ebike controllers.
• Wide Voltage Шайкештик: Supports 24V, 36V, 48V, and 60V ebike battery systems.
• Интегралдык USB заряддоо порту: Features a 5V/500mA USB port for charging mobile devices.
• Universal Handlebar Fit: Compatible with handlebar diameters of 22.2mm, 25.4mm, and 31.8mm.
• Комплекстүү маалыматтарды көрсөтүү: Shows speed, PAS level, battery status, odometer (ODO), trip distance (TRIP), voltage (VOL), current (CUR), and error codes.
• Customizable Parameters: Allows modification of wheel diameter and speed limit settings.
• Кошумча режимдер: Includes walk-assist mode and cruise control.

Figure 2: Display Features. This image illustrates the advanced color LCD, the control keypad, and the various cable connector types available for the display.

5. Орнотуу жана орнотуу

5.1 Шайкештикти текшерүү

Before installation, confirm that your ebike controller uses the UART No. 2 protocol and has a compatible 5 пин туташтыргыч. This display is specifically designed for this protocol and connector type. Refer to your ebike's controller manual for verification.

5.2 Дисплейди орнотуу

1. Choose a suitable position on your ebike's handlebar. The display's flexible bracket is compatible with handlebar diameters of 22.2mm, 25.4mm, and 31.8mm.
2. Loosen the screws on the display bracket.
3. Position the display on the handlebar and tighten the screws securely. Ensure the display is stable and does not rotate freely.

Figure 3: Handlebar Mounting. This image demonstrates the display mounted on a handlebar, highlighting its adjustable bracket for different handlebar diameters.

5.3 Кабелдерди туташтыруу

1. Locate the 5-pin waterproof cable (JL-F-Z509AG) extending from the display. The exposed cable length is approximately 150mm.
2. Connect this cable to the corresponding 5-pin connector on your ebike's controller. Ensure the connectors are aligned correctly before pushing them together.
3. Secure the connection firmly. If it is a waterproof connector, ensure the seal is properly engaged.
4. Route the cable neatly along the ebike frame, securing it with cable ties if necessary, to prevent it from interfering with moving parts or getting damaged.

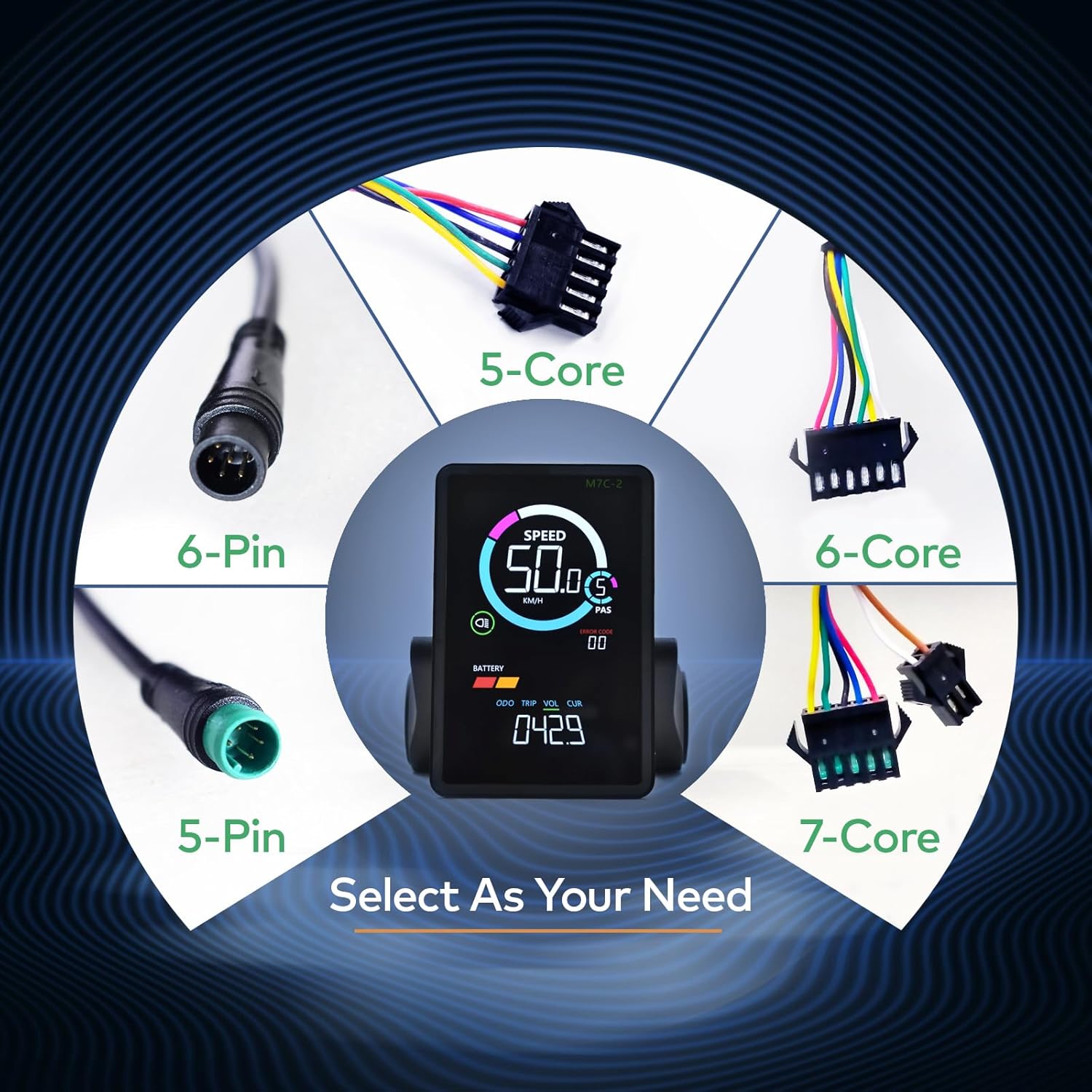

Figure 4: Cable Selection. This image displays different cable types, emphasizing the importance of selecting the correct 5-pin connector for this specific display model.

6. Иштөө нускамалары

6.1 Күйгүзүү/өчүрүү

To power on the display, press and hold the power button on the keypad. To power off, press and hold the power button again.

6.2 Display Interface Overview

Figure 5: Display Metrics. This image labels the various metrics shown on the display, including speed, PAS level, battery indicator, headlight indicator, error code, odometer, trip distance, voltage, жана учурдагы.

The display provides real-time information about your ride:

• Ылдамдыгы: Учурдагы минүү ылдамдыгы (км/саат же миль/саат).
• PAS (Pedal Assist System): Учурдагы педальга жардам берүү деңгээли.
• Батарея: Remaining battery charge level.
• Фара индикатору: Shows if the ebike's headlight is active.
• Ката коду: Displays numerical codes for system faults. Refer to the included "Fault Code Description" sheet for details.
• Көп функциялуу дисплей аянты: Cycles through Odometer (ODO), Trip Distance (TRIP), Battery Voltage (VOL), and Motor Current (CUR).

6.3 Navigating Settings

Use the keypad buttons (typically +, -, and power/mode) to navigate through display modes and adjust settings. Specific button functions may vary; refer to the detailed instructions in the included User's Manual for precise navigation.

6.4 Параметрлерди өзгөртүү

The display allows you to modify key parameters to optimize your ebike's performance:

• Колесен Диаметри: Adjust this setting to match your ebike's wheel size for accurate speed and distance readings.
• Ылдамдыктын чеги: Set the maximum assisted speed according to local regulations or personal preference.

Accessing and modifying these parameters typically involves entering a settings menu by holding specific buttons. Consult the included User's Manual for the exact procedure.

6.5 Атайын режимдер

• Басууга жардам берүү режими: Provides low-speed assistance for pushing the ebike when walking.
• Cruise Control: Maintains a set speed without continuous throttle or pedal input.

Activation of these modes is usually done via specific button combinations. Refer to the comprehensive User's Manual for detailed instructions.

6.6 USB кубаттоо порту

The display includes a 5V/500mA USB port on its side, allowing you to charge mobile devices while riding. Ensure the port cover is securely closed when not in use to maintain its waterproof integrity.

7. Техникалык тейлөө

• Тазалоо: Дисплейдин экранын жана корпусун жумшак менен сүртүңүз, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the screen or housing.
• Сууну коргоо: While the display is IPX65 waterproof, avoid submerging it in water. Ensure the USB port cover is always closed when not in use to prevent water ingress.
• Сактагыч: When not in use for extended periods, store the ebike and display in a dry, cool place away from direct sunlight.
• Туташуу текшерүү: Periodically inspect the cable connections for any signs of wear, corrosion, or looseness.

8. Кыйынчылыктарды

If you encounter issues with your Mcezdy Ebike LCD Display, consider the following common troubleshooting steps:

• Дисплей күйбөйт:
  • Check if the ebike battery is charged and properly connected.
  • Бардык дисплей кабелдери контроллерге бекем туташтырылганын текшериңиз.
  • Verify that the display's power button is being pressed and held correctly.
• Туура эмес ылдамдык/аралык көрсөткүчтөрү:
  • Check the wheel diameter setting in the display's parameters. Adjust it to match your ebike's actual wheel size.
  • Ensure the speed sensor on your ebike is clean and properly aligned.
• Көрсөтүлгөн ката коддору:

  If an error code appears on the display, refer to the dedicated "Fault Code Description" sheet included with your product. This sheet provides specific meanings for each code and recommended actions.

• USB заряддоо иштебей жатат:
  • Ensure the ebike is powered on.
  • Check the USB cable and the device being charged for proper connection.

Бул кадамдар маселени чечпесе, кошумча жардам алуу үчүн кардарларды колдоо менен байланышыңыз.

9. Техникалык шарттар

Figure 6: Product Dimensions and Electrical Specifications. This image provides key physical dimensions, cable length, compatible product models, and operating voltage range for the display.

10. Кепилдик жана колдоо

For warranty information and customer support, please refer to the specific warranty card or documentation included with your purchase. You may also contact the retailer or manufacturer directly for assistance with product inquiries, technical support, or warranty claims.

Сураныч, кепилдикке тиешелүү кызматтар үчүн сатып алганыңыздын далилин сактап коюңуз.
