1. Киришүү
The ELEKTROBOCK SN130 humidity sensor is designed for automatic control of ventilation systems, particularly in environments prone to high humidity. It effectively detects excessive moisture and activates a connected fan to maintain optimal air quality, preventing condensation and mold growth.
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your SN130 humidity sensor. Please read it thoroughly before use and retain it for future reference.
2. Коопсуздук маалыматы
WARNING: Risk of electric shock. Installation must be performed by a qualified electrician in accordance with local wiring regulations.
- Орнотуудан, техникалык тейлөөдөн же бузулууларды аныктоодон мурун ар дайым электр энергиясын өчүрүңүз.
- Do not expose the device to water splashes or extreme temperatures outside its operating range.
- Бардык байланыштар коопсуз жана туура изоляцияланганын текшериңиз.
- Бул аппарат үй ичинде колдонуу үчүн гана иштелип чыккан.
- Түзмөктү өз алдынча оңдоого же өзгөртүүгө аракет кылбаңыз. Тейлөө үчүн квалификациялуу адистерге кайрылыңыз.
3. Продукт бүтүп калдыview
The ELEKTROBOCK SN130 is an intelligent humidity sensor that automatically manages ventilation based on ambient humidity levels. It is ideal for bathrooms, laundry rooms, cellars, and other areas where excess moisture is a concern.
Негизги өзгөчөлүктөрү:
- Automatic humidity detection and fan activation.
- Adjustable humidity threshold (20% to 95% RH).
- Manual override button for 10-minute fan operation.
- Prevents mold and condensation damage.
- Compatible with devices up to 10 A.
Image 3.1: The ELEKTROBOCK SN130 Humidity Sensor in a bathroom setting, illustrating its function to detect excessive humidity and automatically activate a fan.
4. Орнотуу жана орнотуу
The SN130 humidity sensor is designed for wall mounting. Ensure the installation location is free from direct water spray and within the operating temperature and humidity ranges.
Компоненттер камтылган:
- SN130 Humidity Sensor unit
- Дубалга орнотуу плитасы
- Монтаждоо үчүн бурамалар
Орнотуу кадамдары:
- Электр энергиясын өчүрүү: Before starting, ensure the main power supply to the installation area is turned off at the circuit breaker.
- Монтаждоо:
- Select a suitable wall location, away from direct heat sources or drafts that could affect humidity readings.
- Дубалдагы бургулоо чекиттерин белгилөө үчүн берилген монтаждоочу пластинаны шаблон катары колдонуңуз.
- Drill holes and secure the mounting plate to the wall using the supplied screws.
- Зымдар:
Refer to the connection diagram below for proper wiring. The SN130 requires a 230V power supply and provides a potential-free contact output to control the fan.
Image 4.1: Detailed wiring diagram for the SN130 sensor. Connect the 230V power supply (Live and Neutral) to the 'LN' terminals and the 230V fan to the 'OUT' terminals using appropriate connectors.
- Connect the 230V power supply (Live and Neutral) to the terminals marked LN.
- Connect the 230V fan to the output terminals marked OUT. Ensure correct polarity if specified by the fan manufacturer.
- Бардык байланыштар бекем жана коопсуз экендигин текшериңиз.
- Attach Sensor Unit: Carefully attach the SN130 sensor unit to the mounted plate, ensuring it clicks securely into place.
- Күчтү калыбына келтирүү: Орнотуу аяктагандан жана бардык туташуулар текшерилгенден кийин, автоматтык өчүргүчтөгү кубаттуулукту калыбына келтириңиз.
5. Иштөө нускамалары
The SN130 operates automatically once installed and configured. It features an adjustable humidity setting and a manual override function.
Сүрөт 5.1: Алдыңкы view of the SN130 showing the humidity setting dial, LED status indicator, and manual ON button.
Нымдуулук жөндөөсү:
- The large central dial allows you to set the desired humidity threshold (RH%).
- Turn the dial to adjust the humidity level between 20% and 95% RH.
- When the ambient humidity exceeds this set value, the sensor will activate the connected fan.
- The fan will turn off automatically when the humidity drops below the set value, accounting for the 5% hysteresis.
LED Статус көрсөткүчү:
- A small LED indicator (usually red) is located on the top left of the unit.
- This LED illuminates when the fan is active, indicating that the humidity threshold has been exceeded or the manual override is engaged.
Manual Override (ON Button):
- Press the "ON" button (located on the bottom right) to manually activate the fan.
- This will run the fan for a fixed duration of 10 minutes, regardless of the current humidity level.
- This feature is useful for immediate ventilation needs, such as after a shower.
6. Техникалык тейлөө
The ELEKTROBOCK SN130 humidity sensor requires minimal maintenance to ensure optimal performance.
- Тазалоо: Periodically wipe the sensor's exterior with a soft, dry cloth. Do not use abrasive cleaners, solvents, or excessive moisture.
- Сенсор аянты: Ensure the sensor's ventilation openings are not obstructed by dust or debris. Gently clean if necessary.
- Колдонуучу тейлей турган бөлүктөр жок: The internal components are not user-serviceable. Do not open the casing.
7. Кыйынчылыктарды
If you experience issues with your SN130 humidity sensor, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Fan does not turn on automatically. |
|
|
| Күйөрман тынымсыз иштейт. |
|
|
| Manual ON button does not work. |
|
|
8. Техникалык шарттар
Below are the detailed technical specifications for the ELEKTROBOCK SN130 Humidity Sensor:

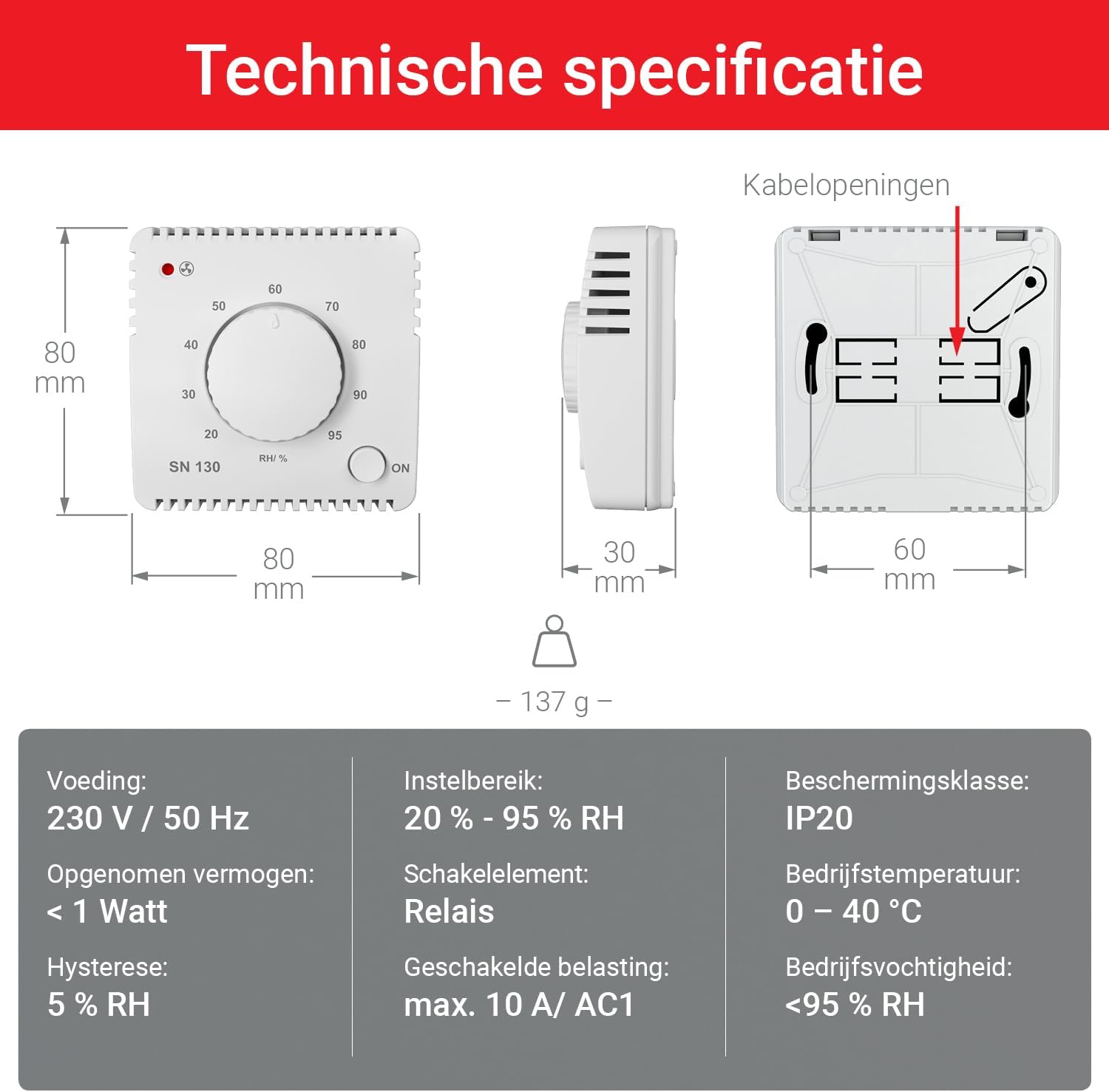

Image 8.1: Diagram illustrating the physical dimensions and key technical specifications of the SN130 sensor.
| Параметр | Нарк |
|---|---|
| Модель номери | SN130 |
| Өндүрүүчү | Elektrobock |
| Электр камсыздоо | 230 V / 50 Hz (AC) |
| Энергияны керектөө | < 1 Ватт |
| Нымдуулукту орнотуу диапазону | 20% - 95% RH |
| Гистерезис | 5% RH |
| Которуу элементи | Эстафета |
| Max Switched Load | 10 A / AC1 |
| Коргоо классы | IP20 |
| Иштөө температурасы | 0 - 40 °C |
| Иштөө нымдуулугу | <95% RH (конденсатсыз) |
| Өлчөмдөрү (L x W x Y) | 80 x 30 x 80 мм (болжол менен 8 x 3 x 8 см) |
| Салмагы | 137 грамм |
| Материал | Пластик |
| Түс | Ак |
| Келип чыккан өлкө | Чех Республикасы |
9. Кепилдик жана колдоо
Elektrobock products are manufactured to high-quality standards. For warranty information, please refer to the terms and conditions provided at the point of purchase or visit the official Elektrobock webсайт.
If you encounter any issues not covered in the troubleshooting section or require further assistance, please contact Elektrobock customer support or your local distributor. Have your product model (SN130) and purchase details ready when contacting support.
Онлайн ресурстар: For additional information, FAQs, or updated manuals, please visit the official Elektrobock webсайт.
