GardePro SP300 Solar Panel User Manual

1. Киришүү

The GardePro SP300 Solar Panel is designed to provide continuous power to compatible GardePro trail cameras, reducing the need for frequent battery changes. This manual provides detailed instructions for the proper setup, operation, and maintenance of your SP300 solar panel to ensure optimal performance.

This solar panel is compatible with GardePro trail camera models including E6P, E6PCF, E8P, E8PWF, X50P, X60P, X60PMB, and X60PLMB.

2. Пакеттин мазмуну

Пакетиңизде бардык буюмдар бар экенин текшериңиз:

• GardePro SP300 Solar Panel
• Кронштейн орнотуу
• Монтаждоо бурамалар
• 13-foot DC Power Cable (integrated)

3. Продукциянын өзгөчөлүктөрү

• Жогорку натыйжалуулугу: Designed for effective solar energy conversion.
• Чыгуу күчү: Maximum 3.5 Watts.
• Output Voltage: 6.6 вольт.
• Чыгуу ток: Максималдуу 0.53 Amps.
• DC сайгыч: Standard 5.5 x 2.1mm connector for camera compatibility.
• Кабелдин узундугу: 13 feet (approximately 3.96 meters) for flexible placement.
• Суу өткөрбөйт рейтинги: IP65 for outdoor durability against dust and water jets.
• Иштөө температурасы: -4 ° F ден 140 ° F (-20 ° Cден 60 ° C).
• Монтаждоо: Features a 1/4-20 tripod base for versatile installation.
• Материал: Constructed from durable ABS.

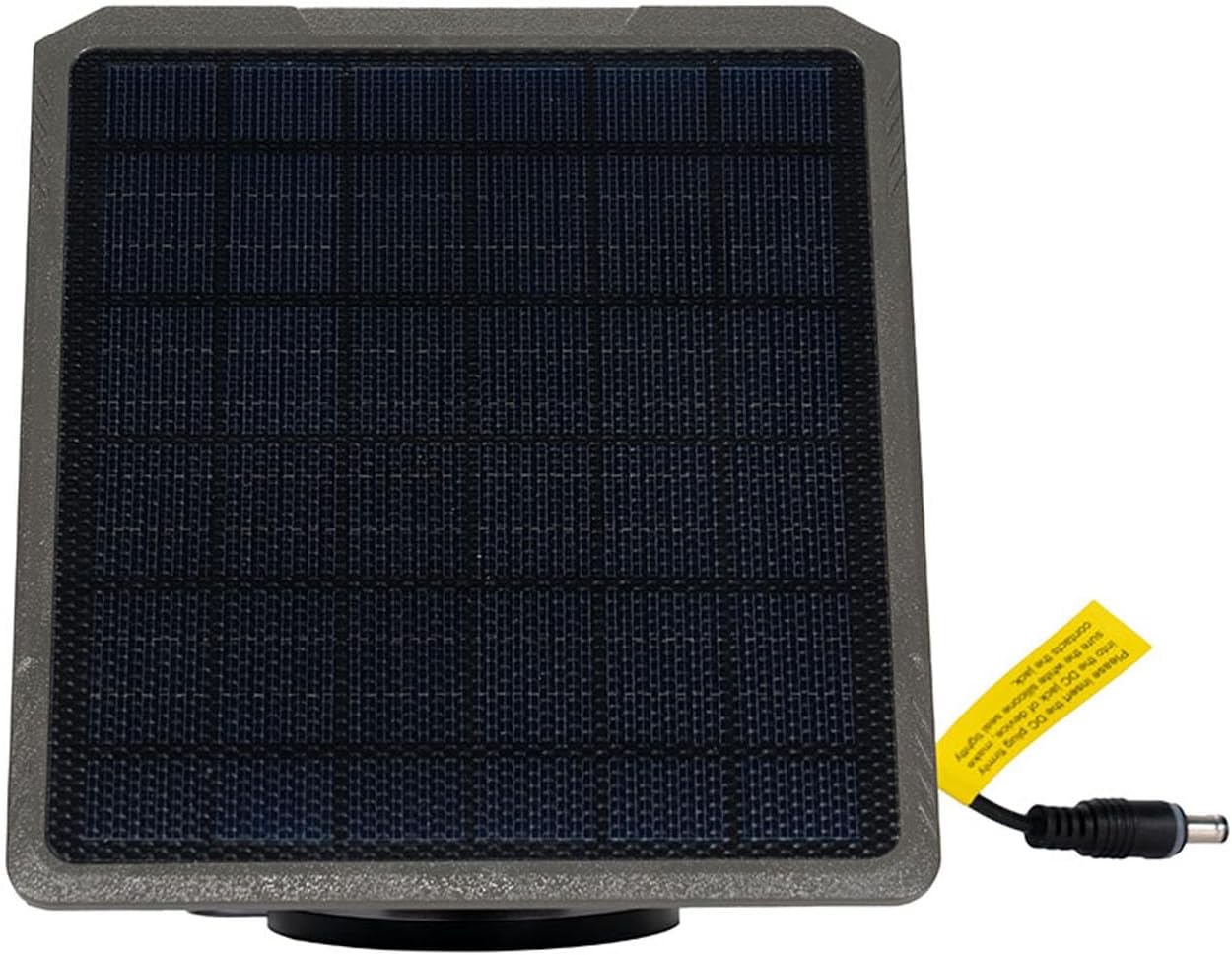

Сүрөт 1: Алдыңкы view of the GardePro SP300 Solar Panel, showing the solar cells and the attached DC power cable with its plug.

4. Орнотуу жана орнотуу

Proper installation ensures maximum charging efficiency and longevity of your solar panel.

4.1 Орнотуу ордун тандоо

Select a location that receives direct sunlight for the majority of the day. Avoid areas with heavy shade from trees, buildings, or other obstructions. The solar panel should be positioned to face the sun's path, typically south in the Northern Hemisphere, for optimal exposure.

4.2 Күн панелин орнотуу

The SP300 solar panel comes with a mounting bracket and screws, utilizing a 1/4-20 tripod base for attachment.

1. Монтаждык кронштейнди бекитиңиз: Secure the mounting bracket to a stable surface such as a tree, post, or wall using the provided screws. Ensure the bracket is firmly attached.
2. Күн панелин жайгаштырыңыз: Connect the solar panel to the mounting bracket. Adjust the angle of the panel to maximize direct sunlight exposure. The bracket allows for rotation and tilt adjustments.
3. Панелди коргоо: Tighten any adjustment screws on the bracket to lock the solar panel in its desired position.

Image 2: The GardePro SP300 Solar Panel installed on a tree, positioned above a compatible GardePro trail camera, both secured with straps.

4.3 Connecting to the Trail Camera

The solar panel features a 13-foot DC power cable with a 5.5 x 2.1mm plug.

1. Locate the external power input port on your compatible GardePro trail camera. This port is typically a circular DC jack.
2. Insert the DC plug from the solar panel's cable firmly into the camera's power input port. Ensure a secure connection.
3. Route the cable neatly to prevent tripping hazards or damage from wildlife. Use cable clips or ties if necessary.

Image 3: A GardePro SP300 Solar Panel and a GardePro trail camera are shown mounted on a tree trunk in a wooded environment, demonstrating a typical outdoor setup.

5. Операция

Once installed and connected, the GardePro SP300 Solar Panel will automatically begin charging the internal battery of your compatible trail camera whenever sufficient sunlight is available. The camera's battery status can typically be monitored through the camera's display or mobile application, depending on the model.

The solar panel is designed to provide a trickle charge, maintaining the camera's battery level and extending its operational time significantly.

6. Техникалык тейлөө

Regular maintenance helps ensure the optimal performance and longevity of your solar panel.

• Тазалоо: Periodically inspect the solar panel surface for dirt, dust, leaves, or other debris. Clean the surface gently with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the panel.
• Туташуу текшерүү: Ensure the DC plug connection to the camera remains secure and free from corrosion.
• Кабелдик текшерүү: Check the power cable for any signs of wear, cuts, or damage. Replace if necessary to prevent power loss or short circuits.
• Монтаждоо туруктуулугу: Verify that the mounting bracket and solar panel are still securely attached and have not shifted due to wind or other environmental factors.

7. Кыйынчылыктарды

If your GardePro SP300 Solar Panel is not performing as expected, consider the following:

• Camera Battery Not Charging:
  • Күн нурунун таасири: Is the solar panel receiving sufficient direct sunlight? Adjust its position if necessary to avoid shade.
  • Панелдин тазалыгы: Is the solar panel surface clean? Dirt or debris can significantly reduce charging efficiency.
  • Кабель туташуу: Is the DC plug securely connected to the camera's power input port?
  • Кабелдин бузулушу: Inspect the power cable for any visible damage. A damaged cable may prevent power transfer.
  • Камеранын шайкештиги: Ensure your trail camera model is compatible with the SP300 solar panel.
• Үзгүлтүксүз заряддоо:
  • This can occur in areas with partial shade or rapidly changing light conditions. Try to relocate the panel to a more consistently sunny spot.

8. Техникалык шарттар

9. Кепилдик жана колдоо

GardePro products are manufactured to high-quality standards. For warranty information, technical support, or any questions regarding your SP300 Solar Panel, please contact GardePro customer service. Refer to the official GardePro webБайланыш маалыматы үчүн сайтка же сатып алуу документтериңизге кайрылыңыз.

Сиз, адатта, колдоо маалыматын таба аласыз GardePro Store on Amazon же алардын кызмат адамы webсайт.
