Candy Rapidò CI 3E7L0W2 Integrated Dishwasher User Manual

1. Киришүү

This manual provides essential information for the safe and efficient use of your Candy Rapidò CI 3E7L0W2 integrated dishwasher. Please read these instructions carefully before installation, operation, or maintenance. Keep this manual for future reference.

The Candy Rapidò CI 3E7L0W2 dishwasher is designed for modern households, offering a 13 place setting capacity, 5 customizable programs, and Wi-Fi connectivity for remote control via the hOn app. It features a quiet operation at 47 dB, delayed start options, and indicators for salt and cycle completion.

2. Орнотуу жана орнотуу

2.1 Пакеттен чыгаруу

Бардык таңгактоочу материалдарды кылдаттык менен алып салыңыз. Ташуу учурунда идиш жуугучта бузулуу белгилерин текшериңиз. Ар кандай зыянды дароо сатуучуга билдириңиз.

2.2 Positioning and Dimensions

The Candy Rapidò CI 3E7L0W2 is an integrated dishwasher designed to fit into standard kitchen cabinetry. Ensure the installation area meets the required dimensions for proper fit and ventilation.

• Бийиктиги: Adjustable between 81.8 cm and 90 cm
• Туурасы: 59.7 см
• Тереңдик: 55.5 см
• Салмагы: Болжол менен 32 кг

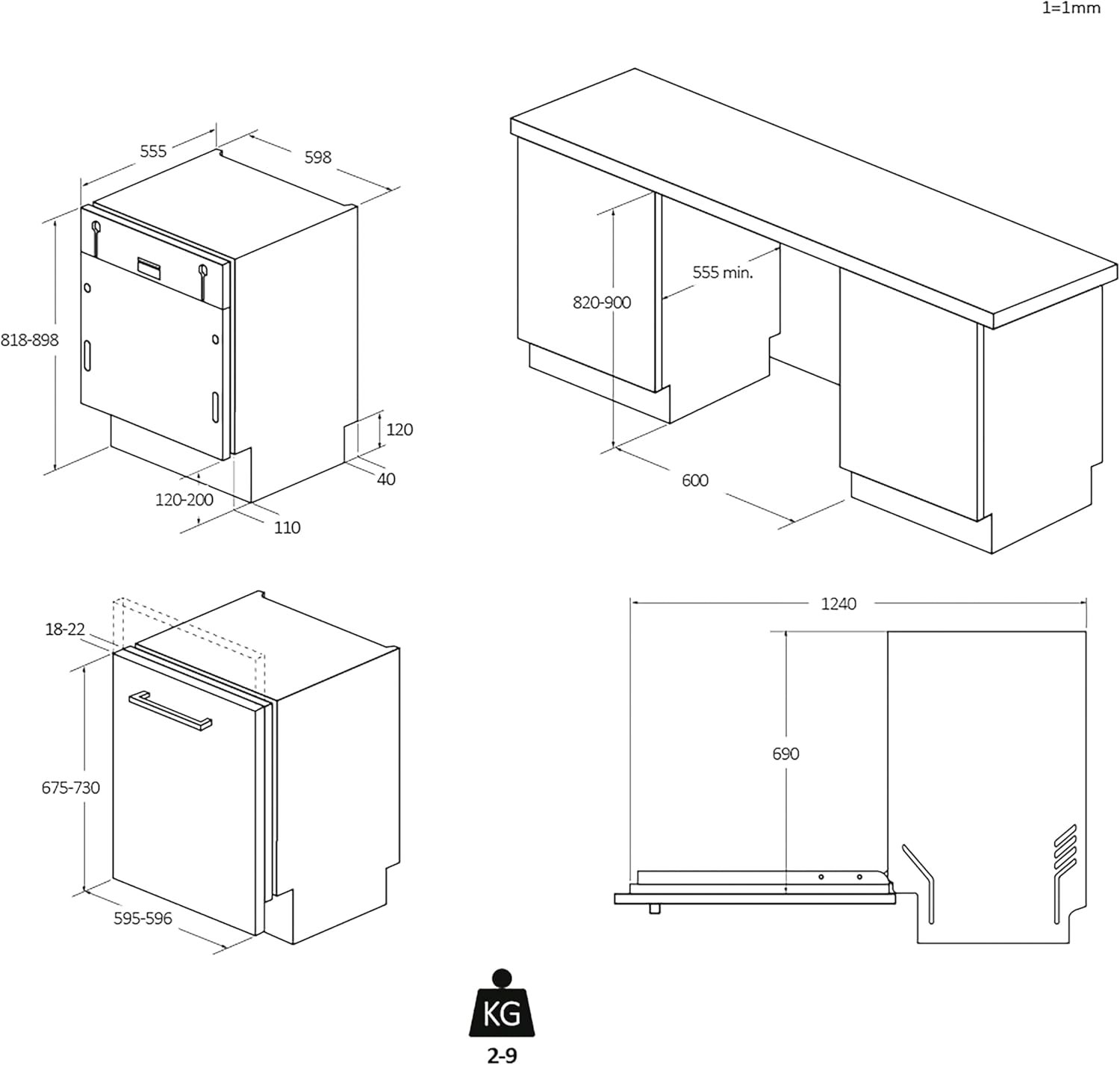

Refer to the technical diagram for precise measurements and installation clearances.

The dishwasher is designed for built-in installation. Ensure adequate space for water inlet, drain hoses, and electrical connections. The adjustable height feature allows for seamless integration with various countertop heights.

2.3 Электр жана суу байланыштары

Ensure the dishwasher is connected to a grounded electrical outlet (230 Volts). Water inlet and drain hoses must be securely connected according to local plumbing codes. Consult a qualified technician for installation if you are unsure.

3. Иштөө нускамалары

3.1 Башкаруу панелинин үстүнөview

The dishwasher features a digital control panel for easy program selection and monitoring.

3.2 Идиш жуугучка жүктөө

Proper loading ensures optimal cleaning results. The dishwasher accommodates 13 place settings.

• Чоңураак нерселерди төмөнкү себетке салыңыз.
• Стакандарды, чөйчөктөрдү жана майда буюмдарды үстүнкү себетке салыңыз.
• Буюмдардын чачыраткыч түтүктөрүн тосуп албашын текшериңиз.
• Use the cutlery basket for forks, knives, and spoons.

3.3 Программаны тандоо

The dishwasher offers 5 wash programs to suit various needs:

• Кадимки: Күнүмдүк кирдеген идиштерге.
• Интенсивдүү: Катуу булганган казан-аяктар үчүн.
• Тез: Тез жууганды талап кылган бир аз кир идиштер үчүн.
• Назик: Айнек идиш сыяктуу морт буюмдар үчүн.
• Economic (Eco): For energy-efficient washing of normally soiled dishes.

Select the desired program using the control panel. The estimated cycle duration for the Eco program is 3 hours and 54 minutes.

3.4 Өзгөчөлүктөр

• Wi-Fi туташуусу: Connect your dishwasher to the hOn app on your smartphone to control cycles remotely, monitor status, and access additional features.
• Кечигип баштоо: Program the wash cycle to start after 3, 6, or 9 hours, allowing you to take advantage of off-peak electricity rates or have dishes ready at a convenient time.
• Туз көрсөткүчү: An indicator light will illuminate when the salt reservoir needs refilling, ensuring optimal water softening.
• End Cycle Indicator: The dishwasher provides an indication when the wash cycle is complete.
• Тынч иштөө: With a noise level of only 47 dB, the dishwasher operates quietly, suitable for open-plan living spaces or night-time use.

4. Техникалык тейлөө

Үзгүлтүксүз техникалык тейлөө идиш жуугуч машинаңыздын узак жана натыйжалуулугун камсыздайт.

4.1 Чыпкаларды тазалоо

The dishwasher filters should be cleaned regularly to prevent blockages and ensure effective washing. Refer to the detailed instructions in the full product manual for filter removal and cleaning procedures.

4.2 Туз жана чайкоочу каражатты кайра толтуруу

Monitor the salt and rinse aid indicators on the control panel. Refill the salt reservoir with dishwasher salt and the rinse aid dispenser with rinse aid as needed. These are crucial for preventing water spots and ensuring proper drying.

4.3 Сырткы жана ички тазалоо

Идиш жуугучтун сыртын жумшак, г менен сүртүңүзamp cloth. For the interior, periodically run a dishwasher cleaning cycle with a specialized cleaner to remove grease and limescale buildup.

5. Кыйынчылыктарды

If you encounter issues with your dishwasher, consult the following common troubleshooting tips before contacting service.

• Идиш жуугуч иштебей жатат: Кубат шнуру бекем сайылганын, эшик толугу менен жабылганын жана суу менен камсыздоо күйгүзүлгөнүн текшериңиз.
• Таза эмес идиштер: Ensure dishes are loaded correctly, spray arms are not blocked, filters are clean, and sufficient detergent is used. Check water hardness settings and salt levels.
• Суу агып кетпейт: Check the drain hose for kinks or blockages, and ensure the drain filter is clean.
• адаттан тыш үндөр: Verify that dishes are not interfering with spray arms or other internal components.

For persistent problems, refer to the comprehensive troubleshooting guide in the full product manual or contact customer support.

6. Техникалык шарттар

Detailed technical specifications for the Candy Rapidò CI 3E7L0W2 dishwasher.

For more detailed product information, visit the official EPREL database: https://eprel.ec.europa.eu/qr/1950079

7. Кепилдик жана колдоо

7.1 Кепилдик маалыматы

This product is covered by the manufacturer's warranty. For specific details regarding warranty terms and conditions, please refer to the documentation provided with your purchase or contact Candy customer service. Standard return policies apply for products purchased through retailers.

7.2 Кардарларды колдоо

For technical assistance, spare parts, or service requests, please contact Candy customer support. You can find contact information on the official Candy webсайтында же кепилдик документтеринде.

Өндүрүүчү: Кенди

Webсайт: corporate.haier-europe.com

Телефон: +3903920861
