1. Киришүү
This manual provides detailed instructions for the installation, operation, and maintenance of your Run Bison LED High Bay Light with Motion Sensor. This high-performance lighting fixture is designed for commercial and industrial applications, offering adjustable power output, selectable color temperature, and integrated motion sensing capabilities for enhanced energy efficiency.
The compact design and high light efficiency make it suitable for various indoor and semi-indoor environments, including warehouses, factories, gyms, supermarkets, school auditoriums, toll stations, indoor stadiums, and automobile exhibition halls.
Figure 1.1: Run Bison LED High Bay Light with Motion Sensor.
2. Коопсуздук маалыматы
Please read all instructions carefully before installation and operation. Failure to do so may result in electric shock, fire, or other hazards.
- Орнотуудан, тейлөөдөн же тазалоодон мурун электр кубаты өчүрүлгөнүн текшериңиз.
- Орнотуу жергиликтүү электр эрежелерине жана эрежелерине ылайык квалификациялуу электрик тарабынан жүргүзүлүшү керек.
- Do not operate the fixture if it is damaged.
- Аспап күйүп турганда жарык булагына түздөн-түз көз тийбеңиз.
- This fixture is rated IP65 for waterproof and dustproof design, suitable for damp locations, but not for submersion.
- Ensure the mounting structure can support the weight of the fixture.
3. Пакеттин мазмуну
Пакетти ачканда бардык компоненттер бар экенин жана бузулбаганын текшериңиз:
- LED UFO High Bay Light (1 unit)
- Pre-assembled Hook (1 unit)
- Installation accessories (screws, anchors, etc.)
4. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | Бизонду чуркап барыңыз |
| Модель номери | LJC-UFO-26/277-8150C-30ED-S |
| Power (Adjustable) | 100 Вт / 120 Вт / 150 Вт |
| Luminous Flux (Adjustable) | 15000лм / 18000лм / 22500лм |
| Түс температурасы (CCT) | 3000K (жылуу ак) / 4000K (муздак ак) / 5000K (күндүзгү) |
| Тtage | 120-277В AC |
| Караңгылык | 0-10V Өнүгүү |
| Beam Angle | 90° |
| Кыймыл сенсорунун диапазону | 30FT ~ 49FT |
| Материал | Aluminum Alloy Body, Polycarbonate Shade |
| Коргоо рейтинги | IP65 (Суу өткөрбөйт жана чаң өткөрбөйт) |
| Өмүр | 50,000 саат |
| Продукциянын өлчөмдөрү (L x W x Y) | 10.24" x 10.24" x 6.4" |
| Элемент Салмагы | 6.83 фунт |
| Сертификаттар | UL, DLC, FCC |
5. Орнотуу жана орнотуу
The Run Bison LED High Bay Light is designed for easy installation with a pre-assembled hook for hanging mount. Ensure the power is off before beginning installation.
5.1 Физикалык орнотуу
- Identify a suitable mounting location with a sturdy structure capable of supporting the fixture's weight.
- Securely attach the pre-assembled hook to the mounting point.
- Hang the LED High Bay Light onto the secured hook.
- Connect the electrical wiring according to local electrical codes. This fixture supports 120-277V AC input.
Figure 5.1: Product Dimensions. The fixture measures 10.24 inches in diameter and 6.4 inches in height, including the hook.
5.2 Suggested Installation Height
The optimal installation height depends on the selected wattage to achieve desired light coverage and intensity:
- 100 Вт: 10-13 feet (approx. 26ft diameter coverage)
- 120 Вт: 13-16 feet (approx. 33ft diameter coverage)
- 150 Вт: 16-20 feet (approx. 39ft diameter coverage)

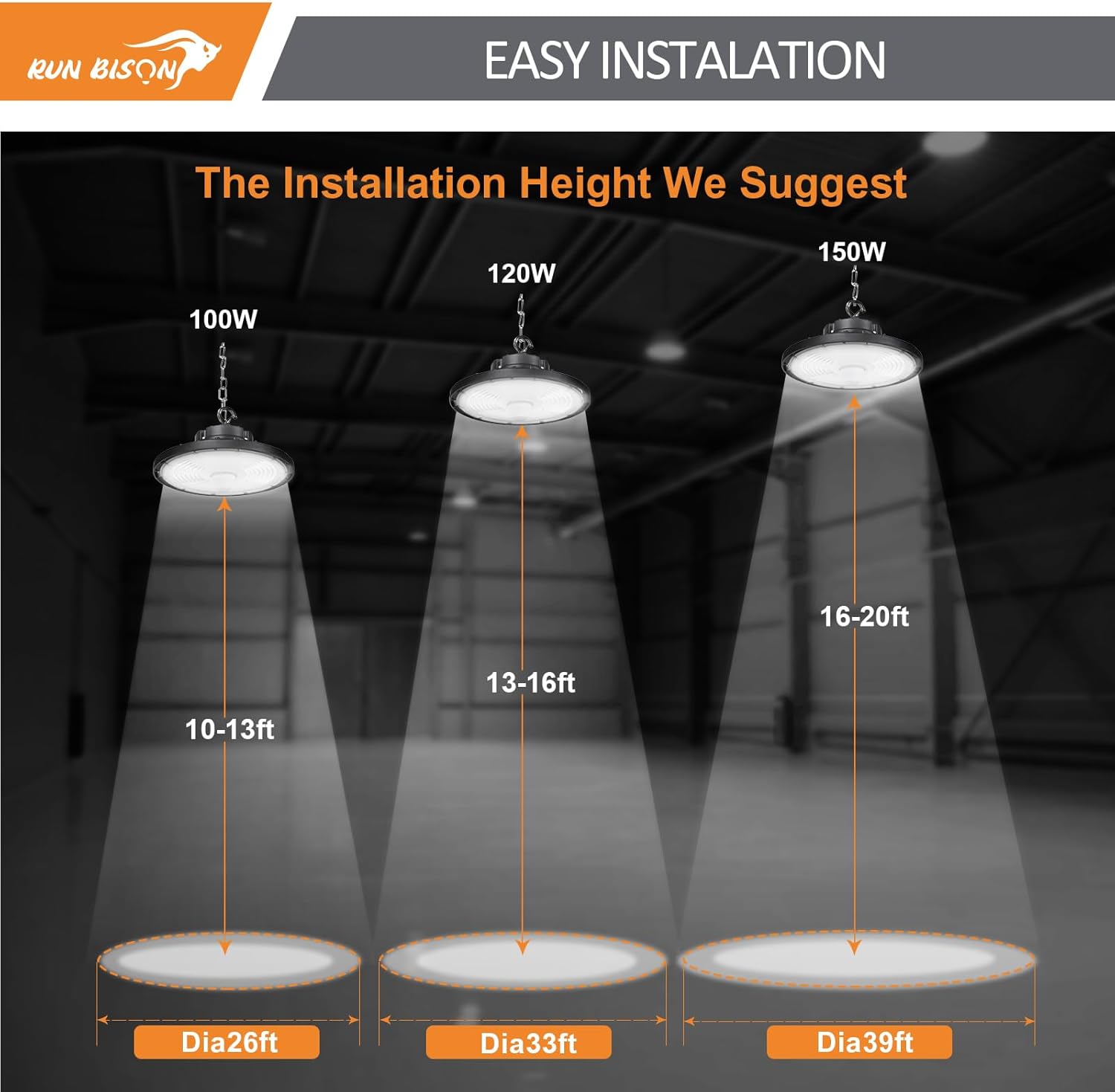

Figure 5.2: Recommended Installation Heights based on Wattagд. Жогорку ватtages allow for greater installation heights and wider light distribution.
5.3 Motion Sensor Installation
The motion sensor is pre-installed within the fixture. For final setup, simply screw the motion sensor component to the bottom of the luminaire. This ensures proper alignment and functionality.
Figure 5.3: Motion Sensor Installation. The sensor easily screws into the designated port at the bottom of the light fixture.
6. Иштөө нускамалары
Your LED High Bay Light offers adjustable power output and color temperature to suit various lighting needs.
6.1 Adjustable Power and Color Temperature (CCT)
The fixture features easy-to-use slider switches to select your desired wattage and color temperature. These switches are typically located on the driver housing or accessible upon opening a designated compartment.
- Кубат тандоо: Choose between 100W, 120W, or 150W to adjust brightness and energy consumption.
- CCT тандоо: Select 3000K (Warm White), 4000K (Cool White), or 5000K (Daylight) to match the ambient lighting requirements of your space.
Figure 6.1: Adjustable Brightness and Wattage. The light offers 15000lm/18000lm/22500lm and 100W/120W/150W options.
Figure 6.2: Selectable Color Temperature. Choose between 3000K (Warm White), 4000K (Cool White), and 5000K (Daylight) to set the desired ambiance.
6.2 0-10V Dimming
The fixture supports 0-10V dimming, allowing for smooth adjustment of brightness across your space. Connect to a compatible 0-10V dimmer switch (sold separately) for this functionality. The UGR (Unified Glare Rating) of less than 28 ensures a comfortable visual experience even at high brightness levels.
Figure 6.3: Excellent Brightness. The fixture provides up to 22500 lumens, ensuring ampчоң аймактар үчүн жарыктандыруу.
7. Motion Sensor Configuration
The integrated PIR (Passive Infrared) motion sensor provides intelligent and energy-saving operation.
7.1 Sensing Range and Default Settings
The motion sensor has a sensing range of 30 to 49 feet. The factory default settings for the motion sensor are:
- аныктоо аймагы: 30FT ~ 49FT
- Кармап туруу убактысы: 5 minutes (The light remains at full brightness after motion is detected.)
- Dimming Behavior: When movement leaves the induction area, the light will dim to 30% brightness after 5 minutes, and then turn off completely after an additional 60 minutes (total 65 minutes after last detection).
- Баштоо убакыты: 40-second startup time after power-on.
Figure 7.1: Motion Sensor Activated. The sensor detects movement within a 30-49 foot range, activating the light.
7.2 Customization (Optional)
The motion sensor mode can be customized using a remote controller (sold separately). This allows for adjustment of detection area, hold time, and dimming levels to better suit specific application requirements.
8. Техникалык тейлөө
The Run Bison LED High Bay Light is designed for durability and minimal maintenance.
- Тазалоо: Periodically wipe the fixture with a soft, dry cloth to remove dust and debris. Do not use abrasive cleaners or solvents.
- Текшерүү: Арматуранын бузулуу, бош байланыштар же эскирүү белгилерин үзгүлтүксүз текшерип туруңуз. Кандайдыр бир көйгөйлөрдү тез арада чечип туруңуз.
8.1 Durable Design Features
The fixture incorporates several features to ensure long-term performance:
- Мыкты курулуш: Aluminum alloy body with a black anti-corrosion coating for resistance to harsh environments.
- Натыйжалуу жылуулук диссипациясы: Active cooling heat sink with a thermal conductivity of 2.0 ensures optimal operating temperature and extends LED lifespan.
- IP65 рейтинги: Certified waterproof and dustproof, making it suitable for demanding indoor and semi-indoor locations.
Figure 8.1: Design to Last. Highlights water resistance, excellent heat dissipation, and high/low temperature resistance for robust performance.
9. Кыйынчылыктарды
If you encounter issues with your LED High Bay Light, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жарык күйбөйт. | No power supply, loose wiring, faulty switch, motion sensor not detecting. | Check power connection. Ensure wiring is secure. Test the switch. Verify motion sensor is not obstructed and is detecting movement. |
| Жарык ыраатсыз жылтылдап же күңүрттөйт. | Unstable power supply, incompatible dimmer, faulty wiring. | Ensure stable power. Use a compatible 0-10V dimmer. Check wiring for loose connections. |
| Motion sensor not responding or light stays on. | Sensor obstructed, incorrect sensitivity settings, continuous motion in detection area. | Clear any obstructions around the sensor. Adjust sensor settings with optional remote. Ensure no constant motion is present. |
| Incorrect color temperature or wattage. | Slider switches set incorrectly. | Adjust the CCT and wattage slider switches on the fixture to your desired setting. |
Эгерде бул чечимдерди колдонуп көргөндөн кийин да көйгөй чечилбесе, Run Bison кардарларды колдоо кызматына кайрылыңыз.
10. Кепилдик жана колдоо
The Run Bison LED High Bay Light is backed by a 5 жылдык өндүрүүчү кепилдик, сапатын жана ишенимдүүлүгүн камсыз кылуу.
This product has undergone rigorous testing and holds UL/DLC/FCC quality certifications, confirming its compliance with safety and performance standards.
For professional technical guidance, fast replacement service, or any other inquiries, please contact Run Bison customer support through the retailer where the product was purchased or visit the official Run Bison store online.
We are committed to providing best-in-class products and customer service.
