Introduction
Thank you for choosing CINOTON Permanent Outdoor Lights. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your smart RGBW+IC eaves lights. These lights are designed for year-round outdoor use, offering a wide range of customizable lighting options for daily accent lighting and festive decorations.

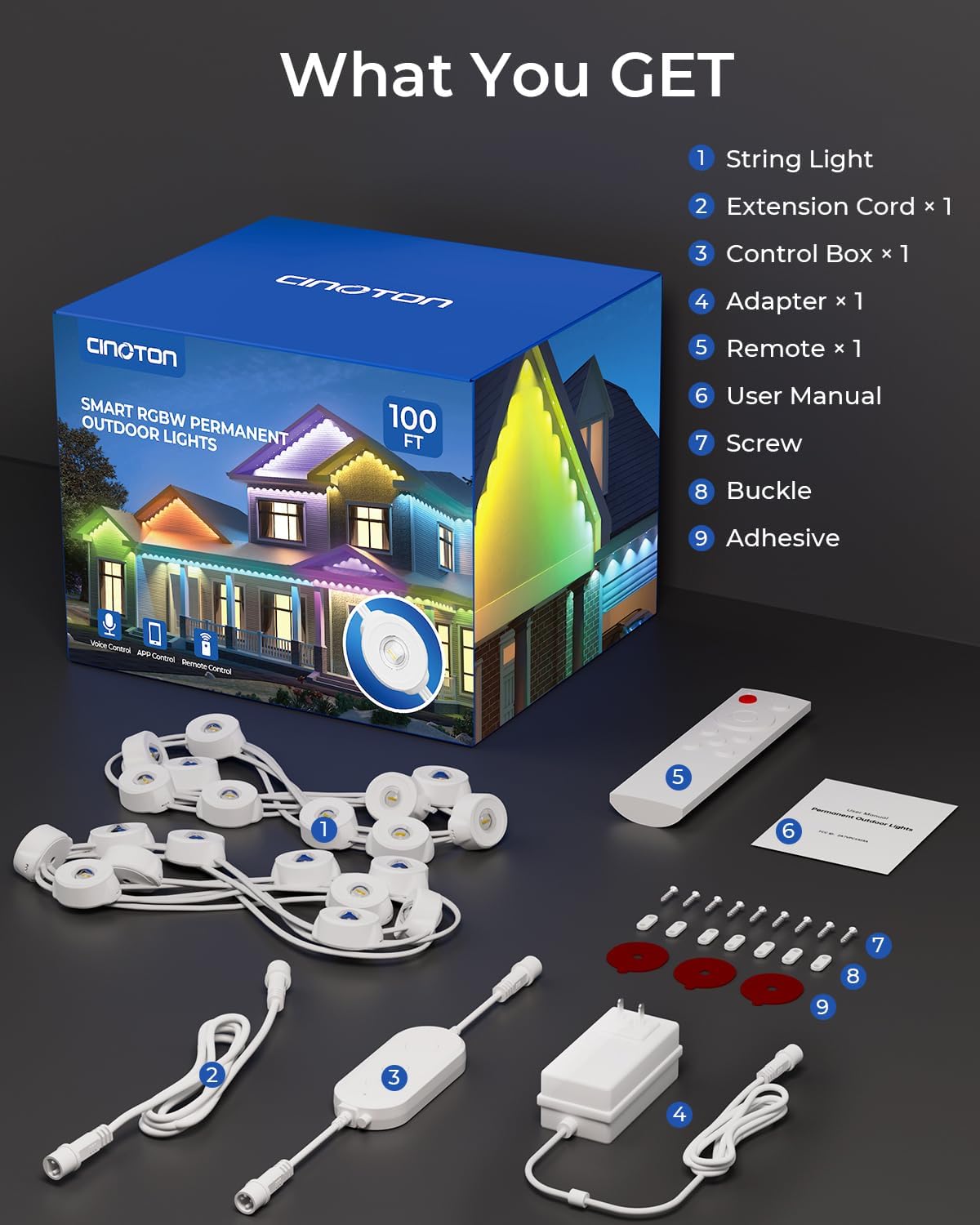

Пакеттин мазмуну
Төмөндө тизмеленген нерселердин баары пакетиңизге камтылганын текшериңиз. Эгерде кандайдыр бир нерселер жок болсо же бузулса, кардарларды колдоо менен байланышыңыз.
- 25ft Permanent Outdoor Lights x 4 (Total 100ft)
- Башкаруу кутусу x 1
- Кубат адаптери x 1
- Remote x 1 (AAA batteries not included)
- 12ft Extension Cable x 1
- Accessory Clips x 1 bag
- Screws x 1 bag
- Колдонуучунун колдонмосу x 1
- Ыкчам орнотуу колдонмосу x 1
Орнотуу жана орнотуу
Follow these steps for proper installation of your CINOTON Permanent Outdoor Lights. Ensure safety by using a stable ladder and having assistance if needed.
- Макетиңизди пландаштырыңыз: Before installation, plan the desired path for your lights. The lights are designed to be permanent and are not cuttable. Consider the length needed for each section of your house.
- Бетти тазалоо: Thoroughly clean the installation surface (e.g., eaves, walls) with a damp cloth to ensure optimal adhesion of the 3M adhesive strips. For certain surfaces like tin siding, glass cleaner may provide better results than rubbing alcohol.
- Connect Light Segments: Connect the 25ft light segments together. Align the arrows on the connectors and twist to secure. Use the provided 12ft extension cable if additional length is needed between segments.
- Test Lights Before Mounting: Before permanently mounting, connect the entire light string to the control box and power adapter. Plug it into an outlet to test all lights and ensure they function correctly. This also allows you to familiarize yourself with the app and remote control.
- Жарыктарды орнотуу: Peel off the 3M adhesive backing from each light puck and firmly press it against the cleaned surface. For enhanced security and long-term stability, use the provided accessory clips and screws to secure each light.
- Оптималдуу жайгаштыруу: For the best lighting effects, install the lights approximately 2-4 inches away from the wall. This allows for a wider and more even glow.
Видео: Бүттүview of the CINOTON Permanent Outdoor Lights, including unboxing, component identification, and basic installation steps. This video demonstrates how to connect the light segments and power adapter, and how to secure the lights to the eaves of a house.
Иштөө нускамалары
Your CINOTON Permanent Outdoor Lights offer multiple control methods for a personalized lighting experience.
1. Smart Life App Control
The Smart Life APP provides the most comprehensive control over your lights. Download the app from your device's app store.
- Жупташтыруу: Press and hold the switch on the control box or remote for 3-5 seconds to enter pairing mode (lights will flash). Open the Smart Life APP, search for nearby devices, and follow the on-screen instructions to add your lights.
- Түс тандоо: Колдонмодогу түс дөңгөлөгүн колдонуп, 16 миллион түстүн ичинен тандаңыз.
- алсыздатуу: Adjust brightness from 1% to 100% for both colored and 2700K warm white lights.
- Сахна режимдери: Select from 111 preset scenes for various occasions (e.g., Halloween, Christmas, Easter, daily decor). You can also create and customize your own unique lighting patterns.
- Музыка синхрондоштуруу: Utilize the built-in microphone to synchronize light effects with music, creating a dynamic party atmosphere.
- Таймер жана График: Set schedules to automatically turn lights on/off at specific times.
Video: Demonstration of the CINOTON Permanent Outdoor Lights RGBW, showcasing various color changes and effects controlled via the Smart Life App. This video highlights the dynamic capabilities of the lights.
2. Алыстан башкаруу
The included remote control provides basic functions for quick adjustments.
- Күйгүзүү/өчүрүү
- Adjust Brightness (Dim/Dim+)
- Cycle through fixed colors (Red, Green, Blue, Warm White, Cool White)
- Activate Auto Mode (cycles through various effects)
- Music Mode activation
3. Үн менен башкаруу
Integrate your lights with smart home assistants for convenient voice commands.
- Compatible with Alexa and Google Assistant.
- Enable the CINOTON skill/action in your smart assistant app.
- Use commands like "Alexa, turn on the permanent outdoor lights" or "Hey Google, set outdoor lights to red."
Video: A light show demonstration for CINOTON Permanent Outdoor Lights, illustrating various dynamic scene modes and color transitions. This video highlights the versatility of the lights for different festive and daily settings.
Техникалык тейлөө
Your CINOTON Permanent Outdoor Lights are designed for durability and minimal maintenance.
- Аба ырайынын туруктуулугу: The string lights are IP67 waterproof, and the control box & adapter are IP65-rated, ensuring protection against rain, sun, and snow. They operate effectively in temperatures ranging from -4°F to 140°F (-20°C to 60°C).
- Материалдын туруктуулугу: Made with anti-UV material to prevent degradation from sun exposure.
- Тазалоо: Periodically wipe down the light pucks and cables with a soft, damp cloth to remove dirt and debris. Ensure power is disconnected before cleaning.
- Non-Cuttable: The permanent outdoor lights are uncuttable. Do not attempt to shorten the light strings, as this will damage the product and void the warranty.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жарыктар күйбөйт | No power, loose connection, faulty adapter/control box. | Check power outlet. Ensure all connections are secure. Test individual components if possible. |
| Remote/App not controlling lights | Not paired, remote batteries low, app connectivity issue. | Ensure lights are in pairing mode. Replace remote batteries. Check Wi-Fi connection for app control. |
| Желим кармабайт | Surface not clean, improper application, extreme weather. | Ensure surface is clean and dry before applying. Apply firm pressure. Use provided clips and screws for added security. |
| Lights not displaying desired effects | Incorrect app settings, mode selection. | Verify settings in the Smart Life App. Ensure the correct scene or color is selected. |
Техникалык шарттар
- Модель номери: C5107-B
- Жарык түрү: RGBW+IC LED
- Ачык түс: Multicolor (16 Million Colors) + 2700K Warm White
- LED саны: 60
- Узундугу: 100ft (4 x 25ft segments)
- Суу өткөрбөйт рейтинги: IP67 (String Lights), IP65 (Control Box & Adapter)
- Иштөө температурасы: -4°F – 140°F (-20°C – 60°C)
- Контролдоо ыкмалары: Smart Life App, Remote Control, Voice Control (Alexa, Google Assistant)
- Өзгөчөлүктөр: 111 Preset Scenes & DIY, Dimmable, Music Sync, Individual Control (IC)
- Тtage: 36 вольт
- Ватtage: 60 Ватт
- Luminous Flux (White): 50 Lumens
- Plug Format: US-Style
Кепилдик жана колдоо
For warranty information or technical support, please refer to the contact details provided in the Quick Installation Guide included in your package. You may also visit the CINOTON official webкошумча жардам үчүн сайт.
Коопсуздук маалыматы
- Орнотуудан, тейлөөдөн же тазалоодон мурун ар дайым электр энергиясын өчүрүңүз.
- Жарык жиптерди кеспеңиз.
- Ensure the power adapter is installed in a weather-protected location if not IP65 rated.
- Балдар жетпеген жерде сактаңыз.
- Do not attempt to repair damaged components. Contact customer support.
