Introduction
This instruction manual provides essential information for the safe and efficient installation, operation, and maintenance of your Ledvion 1M LED Track Lighting System. Please read this manual thoroughly before installation and retain it for future reference.
Коопсуздук маалыматы
- Always disconnect power at the main circuit breaker before installation, maintenance, or lamp алмаштыруу.
- Орнотуу квалификациялуу электрик тарабынан же жергиликтүү электр эрежелерине ылайык жүргүзүлүшү керек.
- Ensure the track system is securely mounted to a suitable surface.
- Максималдуу ваттан ашпаңызtage or current rating of the track system.
- Avoid direct contact with hot lamps. Allow them to cool before handling.
- Бул продукт ички колдонуу үчүн гана иштелип чыккан.
Продукт бүттүview
The Ledvion 1M LED Track Lighting System offers a modern and flexible lighting solution for various indoor environments. This single-phase track system includes two adjustable spotlights with GU10 fittings, allowing for customizable illumination.
Негизги өзгөчөлүктөрү:
- Modern and Flexible Design: Provides contemporary and versatile lighting for any room.
- Ыңгайлаштырылган жарыктандыруу: Compatible with GU10 lamps, allowing selection of desired light intensity and color temperature.
- Оңой орнотуу: Designed for straightforward setup in kitchens, living rooms, offices, or retail spaces.
- Energy-Efficient and Dimmable: Supports energy-saving LED lamps and can be adjusted with an external dimmer for optimal ambiance.
- Ар тараптуу колдонмо: Ideal for homes, offices, and shops, providing tailored lighting where needed.

Үстүбүздөгү чыгым view of the Ledvion 1-meter black LED track lighting system, featuring two adjustable spotlights emitting warm white light.
Кутуда эмне бар
Орнотууну баштоодон мурун бардык компоненттер бар экенин жана бузулбаганын текшериңиз.

Үстүбүздөгү чыгым view of all components included in the Ledvion track lighting package: the 1-meter track, two spotlights, two GU10 bulbs, two anti-glare grids, mounting screws, wall anchors, and a power connector.
- 1x 1-Meter Track Rail (Black)
- 2x Track Spotlights (Black, GU10 fitting)
- 2x GU10 LED Lamps (2700K, 5W)
- 2x Anti-Glare Grids (Optional)
- 1x Power Connector
- Монтаждоочу жабдуулар (буроолор жана дубал анкерлери)
Орнотуу жана орнотуу
Follow these steps for proper installation of your Ledvion track lighting system.
- Пландын макети: Determine the desired location for your track rail. Ensure it is within reach of a power source.
- Орнотуу пункттарын белгилөө: Hold the track rail against the ceiling or wall and mark the drilling points for the mounting screws.
- Бургулоо тешиктери: Drill pilot holes at the marked points and insert wall anchors if necessary.
- Mount Track Rail: Securely attach the track rail to the ceiling or wall using the provided screws.
- Туташуу кубаты: Install the power connector at one end of the track. Connect the electrical wiring from your power source to the power connector. Ensure all connections are secure and insulated. For more complex setups, optional power feeders and connectors (I-connector, X-connector, T-connector) are available.
- Install Spotlights: Insert the GU10 LED lamps into the spotlights. Then, align the spotlights with the track and use the plug-and-play locking system to secure them. Rotate the locking mechanism to fix the spotlight in place.
- Adjust Spotlights: Once installed, adjust the angle and rotation of each spotlight to direct light as desired.
- Күчтү калыбына келтирүү: Орнотуу аяктагандан кийин жана бардык туташуулар коопсуз болгондон кийин, негизги өчүргүчтөгү кубатту калыбына келтириңиз.

A visual guide demonstrating the simple plug-and-play installation of the Ledvion track spotlights, showing how they easily lock into the track system.

An illustration showing various optional accessories for the Ledvion track lighting system, including power feeders, X-connector, T-connector, and a pendant spot with adjustable cord, indicating system expandability.
Иштөө нускамалары
Жарыктын багытын тууралоо:
Each spotlight can be independently adjusted to direct light precisely where needed. The spotlights can be tilted up to 350 degrees and rotated 90 degrees along the track.

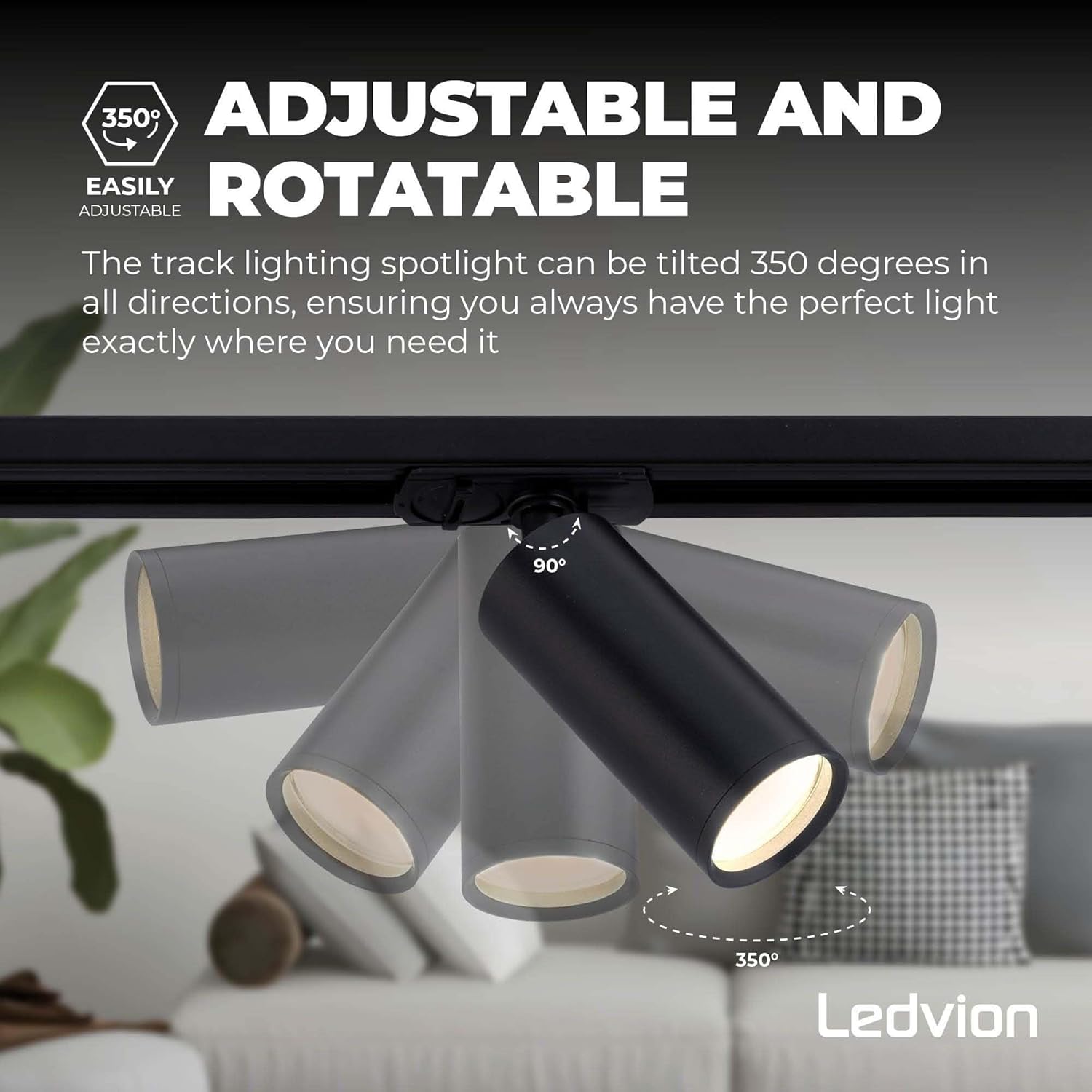

An animated graphic illustrating the Ledvion track spotlight's adjustability, showing it can be tilted 350 degrees and rotated 90 degrees to direct light precisely.
Караңгылоо функциясы:
This track lighting system is compatible with external dimmers. If you have an external dimmer installed, you can adjust the light intensity by operating the dimmer switch. Ensure that the GU10 lamps used are dimmable.
Optional Anti-Glare Grid:
The included anti-glare grids can be easily added or removed from the spotlights to prevent glare and enhance visual comfort.

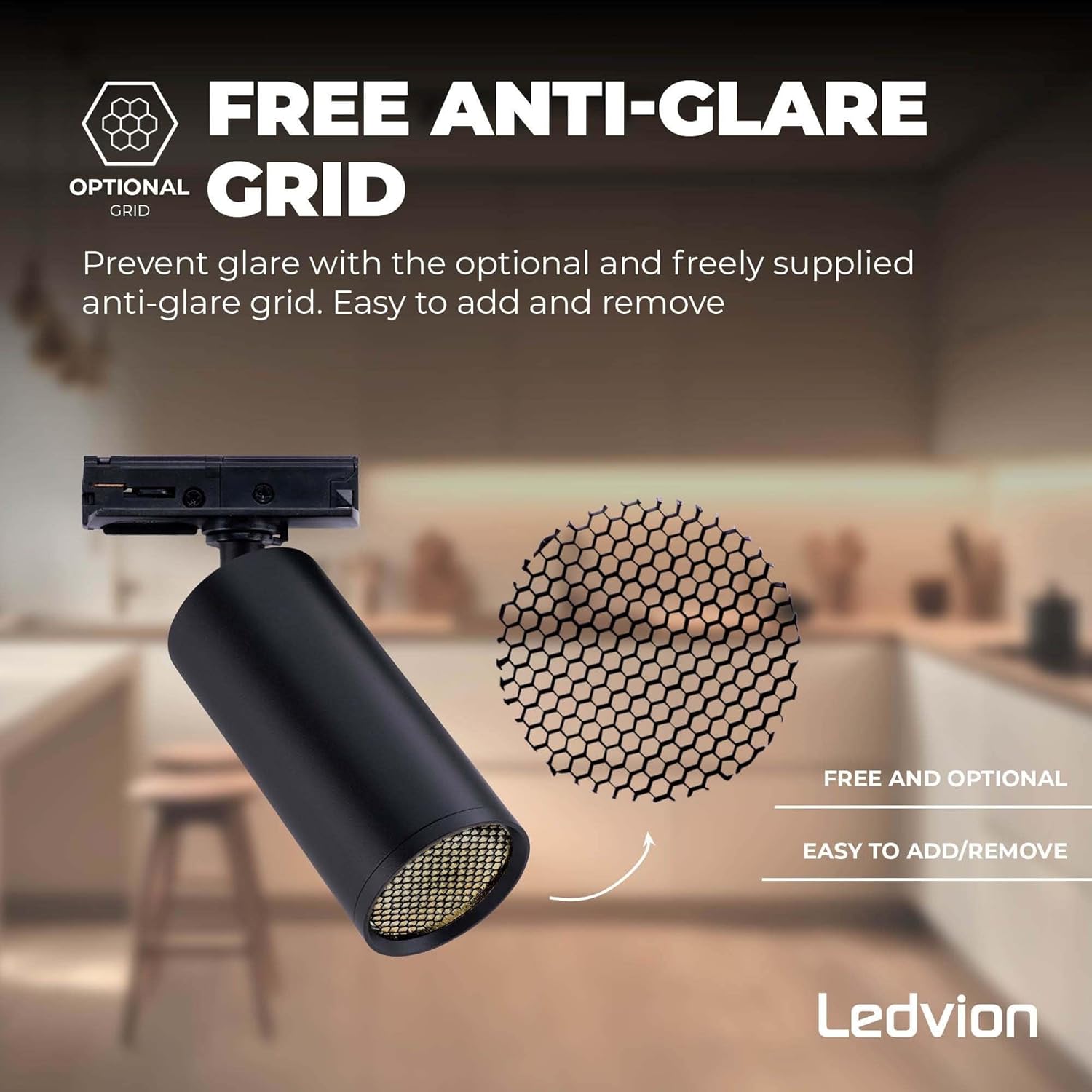

A Ledvion spotlight shown with an optional anti-glare grid, designed to reduce light glare and improve visual comfort. The grid is easy to add and remove.
Техникалык тейлөө
Тазалоо:
To clean the track and spotlights, ensure the power is off. Use a soft, dry cloth to wipe away dust. For stubborn marks, a slightly damp кездемени колдонсо болот, андан кийин дароо кургатыңыз. Абразивдүү тазалоочу каражаттарды же эриткичтерди колдонбоңуз.
Lamp Алмаштыруу:
алмаштыруудан мурун алamp, turn off the power and allow the lamp to cool completely. Gently twist the GU10 lamp counter-clockwise to remove it. Insert the new GU10 lamp by aligning the pins and twisting clockwise until secure. Ensure the replacement lamp matches the specifications (GU10 base, appropriate wattage, and dimmable if using a dimmer).
Проблемаларды чечүү
- Жарык күйбөйт:
- Электр булагы кошулганын жана өчүргүч күйүп турганын текшериңиз.
- Ensure the spotlight is correctly inserted and locked into the track.
- Verify that the GU10 lamp is properly seated and not faulty. Try replacing it with a known working lamp.
- Жаркылдаган жарык:
- Ensure the GU10 lamp is fully inserted and making good contact.
- Эгерде диммерди колдонсоңуз, анын LED l менен шайкеш келишин текшериңизamps and that the lamps themselves are dimmable.
- Бошогон зым байланыштарын текшериңиз.
- Караңгылык маселелери:
- Confirm that both the dimmer switch and the GU10 lamps are designed for dimming.
- Some dimmers have a minimum load requirement; ensure the total wattagе сиздин лamps meets this.
Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | Ледвион |
| Модель номери | LVT10001_1m2s_2700K |
| Продукциянын өлчөмдөрү (L x W x Y) | 105 x 15 x 5 см |
| Элемент Салмагы | 1.08 килограмм |
| Материал | Алюминий |
| Лампалар саны | 2 |
| Тtage | 230 вольт |
| Ватtage (лампа үчүн) | 5 Watts (as per title, 3 Watts in some specs) |
| Luminous Flux (per bulb) | 240 Lumen |
| Түс температурасы | 2700 Кельвин (жылуу ак) |
| Энергия эффективдүүлүгү классы | D |
| Орнотуу түрү | Track Mounting |
| Өзгөчө колдонуулар | Home, Offices, Shops |
| Ички/тышкы колдонуу | Indoor |
| Келип чыккан өлкө | Кытай |
| EPREL продукт маалымат | View EPREL маалымат базасы |

An image displaying the key dimensions of the Ledvion track lighting system, including the 1000mm track length, 150mm total spotlight height, 115mm spotlight body height, and 50mm spotlight diameter.

The EU energy label for Ledvion model LVB10002_1, indicating an energy efficiency class D and 3 kWh/1000h consumption, with a QR code for more information.
Кепилдик жана колдоо
Ledvion products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official Ledvion website. For technical support, troubleshooting assistance, or inquiries about replacement parts, please contact Ledvion customer service through their official channels.
