1. Киришүү
This manual provides comprehensive instructions for the safe installation, efficient operation, and proper maintenance of your Ledvion LED Track Lighting System. Please read this manual thoroughly before installation and retain it for future reference.
The Ledvion LED Track Lighting System offers a modern and versatile solution for illuminating various spaces. Its flexible design allows for customized light placement and ambiance creation.
2. Негизги өзгөчөлүктөрү
- Modern and Flexible Illumination: This track lighting system with GU10 sockets provides a contemporary and adaptable way to light any room, allowing you to easily create your desired atmosphere.
- Customizable Light Selection: The track lighting can be used with or without the desired lamps (color temperature) to fully adjust light intensity and color temperature to your needs.
- Жөнөкөй орнотуу: Designed for easy installation in kitchens, living rooms, or other areas. Spotlights can be positioned precisely where light is needed.
- Energy Efficient and Dimmable: The electrified track fixture with GU10 sockets is suitable for energy-saving LED lamps and can be controlled with an external dimmer, allowing for perfect lighting adjustment for any occasion.
- Ар тараптуу колдонмо: This elegant and energy-efficient lighting solution is ideal for homes, offices, and retail spaces, providing optimal personalized lighting in every room.
3. Кутуда эмне бар
The Ledvion LED Track Lighting System (SKU: LVT10001_3m7s_2700K) package includes the following components:
- Track sections (3 meters total, typically in segments)
- 7 x Spotlights with GU10 sockets
- 7 x GU10 LED lamps (2700K, 3W)
- 7 x Anti-glare grids (optional to install)
- Монтаждоочу жабдыктар (бурамалар, дубал сайгычтар)
- Connectors (e.g., straight, L-shaped, power feeder)

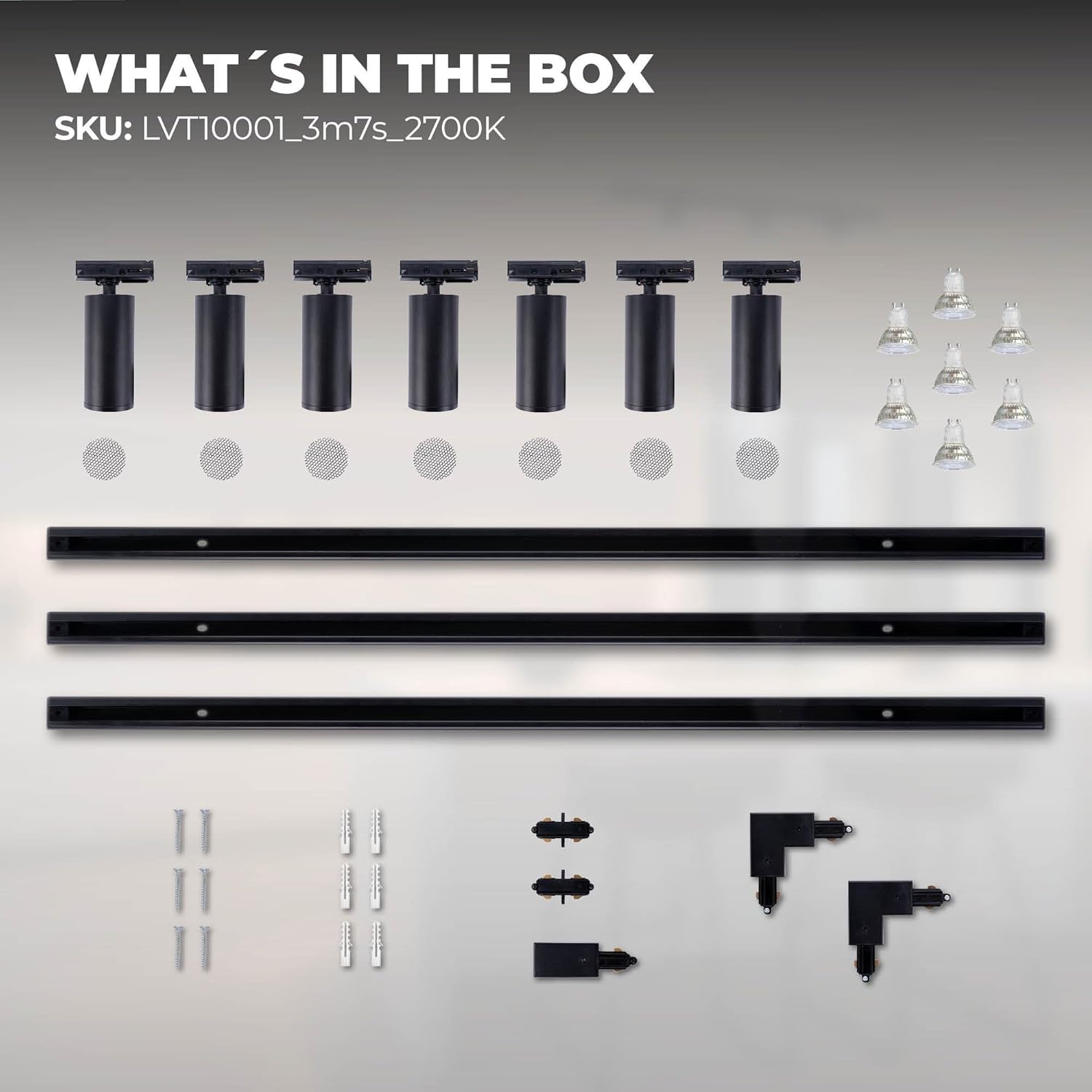

Image: All components included in the Ledvion LED Track Lighting System package, showing track sections, spotlights, lamps, anti-glare grids, and various connectors.
4. Орнотуу жана орнотуу
Биринчи коопсуздук: Before beginning any installation, ensure the power supply to the installation area is turned off at the main circuit breaker. Consult a qualified electrician if you are unsure about any steps.
4.1 Planning Your Layout
Plan the desired layout of your track lighting system. Consider the length of the track (3 meters) and the placement of the 7 spotlights to achieve optimal illumination for your space. The system is designed for single-phase track systems.
Сүрөт: Мисample installation of the Ledvion track lighting system in a modern living room, demonstrating potential layout and light distribution.
4.2 Mounting the Track
- Mark the desired mounting points on the ceiling or wall for the track sections.
- Drill pilot holes and insert the provided wall plugs.
- Secure the track sections using the provided screws. Ensure the track is firmly attached and level.
- Connect multiple track sections using the appropriate connectors (straight, L-shaped, etc.) if your design requires it. Ensure secure electrical and mechanical connections.
Сүрөт: жакын план view of the black track lighting system, illustrating the connection point of a spotlight to the track.
4.3 Кубатты туташтыруу
Connect the power feeder to the track system and to your main electrical supply. Ensure all electrical connections are secure and comply with local electrical codes. It is advisable that the power connection is located at one of the track ends.
4.4 Installing Spotlights and Lamps
- Insert the GU10 LED lamps into the spotlight fixtures.
- Attach the spotlights to the track using the plug-and-play locking system. Simply align the spotlight connector with the track, push it in, and rotate the locking mechanism to secure it.
- Reposition spotlights as needed by unlocking, sliding, and relocking them.
Image: Step-by-step diagram illustrating the effortless plug-and-play installation process for attaching spotlights to the track, including locking and unlocking mechanisms.
Image: Various optional accessories for the track system, such as power feeders with cover plates or I-connectors, X-connectors, T-connectors, and a pendant spot with adjustable cord, allowing for system expansion.
4.5 Optional Anti-Glare Grid Installation
The system includes optional anti-glare grids. These can be easily added or removed from the front of the spotlight to reduce glare and enhance visual comfort.
Image: A spotlight demonstrating the optional anti-glare grid, which can be easily added or removed to prevent glare.
5. Иштөө нускамалары
5.1 Күйгүзүү/өчүрүү
Once installed, turn on the power supply at the main circuit breaker or wall switch to activate the track lighting system.
5.2 Прожекторлорду тууралоо
Each spotlight can be tilted 350 degrees in all directions and rotated 90 degrees, allowing you to direct the light precisely where it is needed. Gently adjust the spotlight head to achieve your desired lighting angle.
Image: A visual representation of the spotlight's adjustability, highlighting its 350-degree tilt and 90-degree rotation capabilities for precise light direction.
5.3 Күңүрттөө функциясы
If connected to a compatible external dimmer switch, you can adjust the brightness of the LED lamps to create different ambiances. Refer to your dimmer's instructions for specific operation.
6. Техникалык тейлөө
Тейлөөдөн мурун: Always turn off the power supply to the track lighting system at the main circuit breaker before performing any maintenance or cleaning.
- Тазалоо: Wipe the track and spotlights with a soft, dry, or slightly damp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз, анткени алар финишке зыян келтириши мүмкүн.
- Lamp Алмаштыруу: To replace a GU10 LED lamp, gently twist and pull the old lamp out of the spotlight fixture. Insert the new GU10 lamp by aligning the pins and twisting it into place. Ensure the replacement lamp has the correct wattage жана тtage.
- Текшерүү: Periodically check all connections and mounting points to ensure they remain secure.
7. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жарыктар күйбөйт. | No power supply; faulty lamp; loose connection. | Check circuit breaker. Ensure power feeder is correctly connected. Replace lamp. Check spotlight connection to track. |
| Жарыктар өтө күңүрт. | Туура эмес лamp ватtage; dimmer setting too low; incompatible dimmer. | Verify installed lamp ватtage (this model includes 3W lamps, not 5W as sometimes advertised). Adjust dimmer. Ensure dimmer is compatible with LED lamps. |
| Lights flicker or turn off intermittently. | Loose connection; faulty lamp; incompatible dimmer. | Check all connections, especially where spotlights meet the track. Replace the flickering lamp. Ensure dimmer is compatible with LED lamps. |
| Spotlight does not stay in position. | Locking mechanism not engaged; worn mechanism. | Ensure the spotlight's locking mechanism is fully engaged. If persistent, contact support. |
8. Техникалык шарттар
| Бренд | Ледвион |
| Модель номери | LVT10001_3m7s_2700K |
| Продукциянын өлчөмдөрү (пакеттелген) | 105 x 25 x 20 см |
| Track Length | 3000 мм (3 метр) |
| Spotlight Diameter | 50 мм |
| Spotlight Height | 115 mm / 150 mm (approx.) |
| Материал | Алюминий |
| Түс | Black (Track and Spotlights) |
| Жарыктардын саны | 7 |
| Тtage | 230 вольт |
| Лампанын түрү | LED (GU10 socket) |
| Luminous Flux (per lamp) | 450 люмен |
| Ватtage (per lamp) | 3 ватт |
| Түс температурасы | 2700 Кельвин (жылуу ак) |
| Стилди которуу | Dimmable (with external dimmer) |
| Power Source | Электр зымдары |
| Энергия натыйжалуулугунун рейтинги | D |
| Элемент Салмагы | 3.62 килограмм |
| Келип чыккан өлкө | Кытай |
Image: Energy efficiency label for Ledvion track lighting, showing a 'D' rating. For more details, scan the QR code or visit the EPREL маалымат базасы.
Image: Diagram illustrating the dimensions of the track and spotlights, including track length (3000mm), spotlight height (115mm and 150mm), and diameter (50mm).
9. Кепилдик жана колдоо
For warranty information and customer support, please refer to the documentation included with your product or contact Ledvion directly. You can also visit the official Ledvion store on Amazon for more information: Ledvion Store.
Manufacturer: Ledvion, distributed by Tecvion B.V., Made in P.R.C.
Image: Product information label from Ledvion packaging, showing manufacturer details and compliance marks.
