Brookstone BK650 Massage Chair Instruction Manual

1. Коопсуздук боюнча маанилүү маалымат

Please read all instructions carefully before using your Brookstone BK650 massage chair. Retain this manual for future reference.

This massage chair has a maximum weight capacity of 320 pounds. Ensure the chair is placed on a hard, flat surface and is not near any tripping hazards. Do not use the massage chair while operating any other machinery or appliances.

2. Продукт бүтүп калдыview

The Brookstone BK650 is a full-body massage chair designed to provide a comprehensive and relaxing massage experience. It features advanced 3D L-Track technology, heat therapy, zero gravity recline, and voice control for ease of use.

2.1-сүрөт: Негизги view of the Brookstone BK650 Massage Chair.

Сүрөт 2.2: Алдыңкы view of the Brookstone BK650 Massage Chair, highlighting its ergonomic design.

2.3-сүрөт: Каптал view of the Brookstone BK650 Massage Chair, showing its sleek profile.

3. Орнотуу жана чогултуу

The Brookstone BK650 massage chair comes in two boxes. Careful handling is required during unboxing and assembly.

3.1 кутудан чыгаруу

1. The chair comes in 2 boxes.
2. Open the large box and remove all packing materials.
3. Lift the box up and over the chair to expose the main unit.
4. Carefully remove the chair from the bottom box and take off the remaining packing material.

3.2 Footrest Assembly

1. Remove the footrest from the small box and remove its packing material.
2. Cut and remove the zip tie from the footrest.
3. Remove packing material from the chair base.
4. Remove the cotter pin and bolt from the link rod and set them aside.
5. Remove the two clips from the chair base and set them aside.
6. Move the footrest close to the chair base.
7. Engage the link rod with the footrest joint, then insert the bolt and lock with the cotter pin.
8. Connect all wires between the footrest and the chair base.
9. Hang the footrest on the support lugs of the chair base and lock with the two clips.
10. Zip the zipper between the seat pad and footrest cushion to secure.

3.3 Баштапкы кубаттуулук

1. Attach the remote to the remote holder on the side of the chair.
2. Plug the chair into a power outlet and turn it on using the main power switch.

Figure 3.1: Fully assembled product dimensions. Dimensions are 59.5"D x 30.7"W x 50"H. Chair weight is 244 lbs, and weight capacity is 320 lbs. Minimum door width for entry is 31".

4. Иштөө нускамалары

The Brookstone BK650 offers a variety of features for a personalized massage experience.

4.1 Негизги өзгөчөлүктөрү

• 3D L-Track Technology: The micro-chipped massage robot follows the curve of your spine, massaging from the neck down to the glutes.

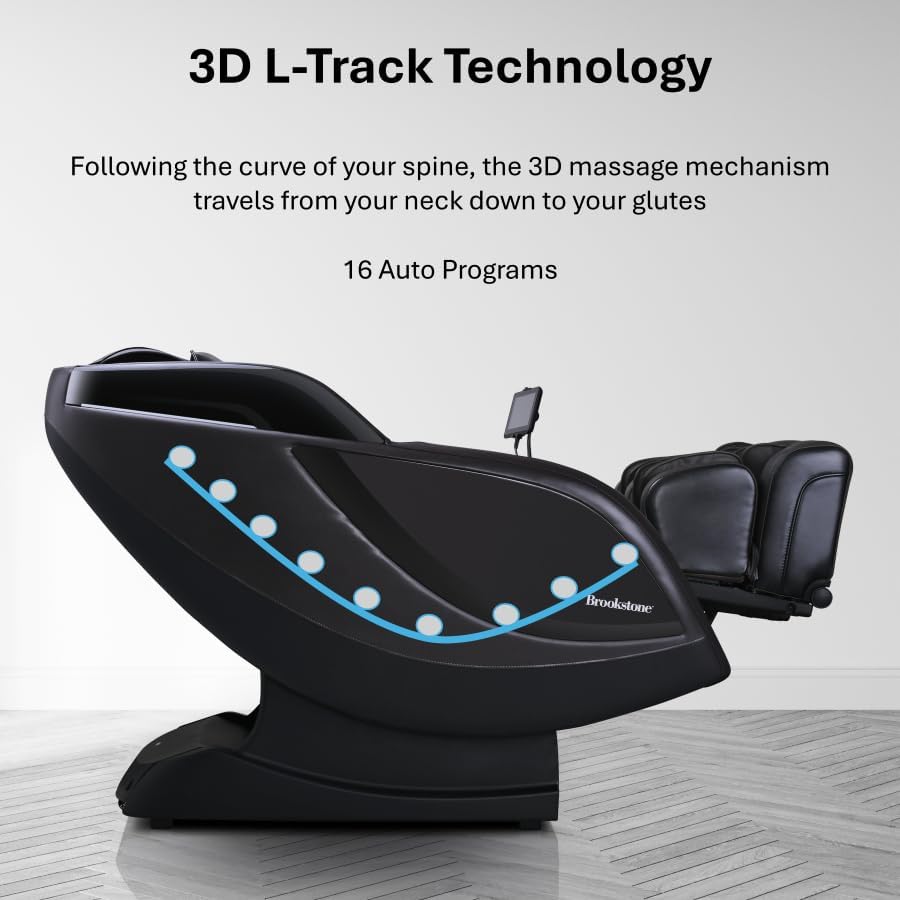

Figure 4.1: Illustration of the 3D L-Track Technology, showing the massage mechanism's path from neck to glutes.

• 16 Auto Programs: Choose from a range of pre-set programs, from gentle to vigorous, or create your own custom massage.
• Lumbar/Leg Heat Therapy: Soothing heat therapy is available for the lumbar area and legs to help relax muscles.

Figure 4.2: Depiction of heat therapy zones (lumbar and legs) and dual action sole rollers for foot massage.
• Үн менен башкаруу: Adjust settings and programs using voice commands for an uninterrupted massage experience.
• Wired 7” Touch Screen: Navigate programs and settings with ease. The tablet supports 5 languages.

4.2 Massage Types and Additional Features

Figure 4.3: ашыкview of available massage types and other integrated features.

• Types of Massage:
  • Shiatsu
  • Камыртуу
  • Кол чаап
  • Таптоо
  • Kneading-Tapping
  • Rolling
• Башка өзгөчөлүктөр:
  • Back Scanning Technology
  • Хромотерапия жарыктандыруу
  • Bluetooth Speaker
  • Үн менен башкаруу
  • USB порту

5. Техникалык тейлөө

To ensure the longevity and optimal performance of your massage chair, follow these simple maintenance guidelines:

• Продукцияга кам көрүү боюнча көрсөтмөлөр: Wipe Clean. Use a soft, damp cloth to clean the surface of the chair. Avoid harsh chemicals or abrasive cleaners.
• Электр шнурунун бузулушуна дайыма текшерип туруңуз.
• Keep the chair in a dry environment, away from direct sunlight and extreme temperatures.

6. Кыйынчылыктарды

If you encounter any issues with your Brookstone BK650 massage chair, please refer to the following common troubleshooting tips. For more complex problems, contact customer support.

• Отургуч электр кубаты менен иштебей жатат: Ensure the power cord is securely plugged into both the chair and a working electrical outlet. Check the main power switch on the chair.
• Массаж функциялары иштебейт: Verify that all connections, especially those made during assembly, are secure. Restart the chair by unplugging it for 30 seconds and plugging it back in.
• адаттан тыш үндөр: Minor operational noises are normal. If you hear loud or unusual grinding/clunking sounds, discontinue use and contact support.
• Remote/Tablet unresponsive: Ensure the remote is properly connected to its holder and that its cable is not damaged. Try restarting the chair.

7. Техникалык шарттар

8. Кепилдик жана колдоо

The Brookstone BK650 massage chair comes with a standard warranty:

• 1 year in-home service
• 2 жылдык бөлүктөрү

For product service or customer support, please refer to the contact information provided with your purchase or visit the official Brookstone webсайт.
