hygger Submersible Aquarium LED Light (Model HG135-14W) Instruction Manual

1. Киришүү

Thank you for choosing the hygger Submersible Aquarium LED Light. This manual provides essential information for the safe and efficient operation of your new aquarium light. Please read these instructions carefully before use and retain them for future reference.

2. Продукциянын өзгөчөлүктөрү

• 24/7 Табигый режим: Simulates a natural day-night cycle with gradual changes from warm orange dawn to bright full-spectrum midday light and starry blue night light. Customizable start and end times.
• DIY режими: Offers 5 timer options (4H, 6H, 8H, 10H, 12H), 9 customizable lighting colors (full spectrum white, red, green, blue, pink, purple, cyan, orange, and gradient), and 10 adjustable brightness levels.
• Excellent Waterproof Design: Fully submersible and designed to operate underwater. Equipped with two powerful suction cups for secure placement.
• Жогорку сапаттагы LED мончоктор: Features super bright 6500K white LEDs combined with RGB 5050 and 2835 lamp beads for intense light, enhancing fish and plant colors.
• Separable Adapter: Allows for easy replacement of the adapter without needing to replace the entire light unit.

3. Пакеттин мазмуну

Пакетке төмөнкүлөр кирет:

• hygger Submersible Aquarium LED Light (Model HG135-14W)
• External Controller with Timer and Dimmer
• Кубаттуу адаптер
• Suction Cups (2x) for mounting
• Adjustable Brackets (2x) for tank rim mounting

4. Орнотуу жана орнотуу

1. Монтаждоо кронштейндерин бекитүү: Choose between the metal brackets for rim mounting or suction cups for submersible/internal mounting.
   • For rim mounting: Slide the adjustable metal brackets onto the ends of the light fixture. Place the light securely on the aquarium rim.
   • For submersible mounting: Attach the suction cups to the light bar and press firmly onto the desired clean, dry surface inside the aquarium (e.g., bottom, side).
2. Жарыкты жайгаштырыңыз: Place the light in your desired location within or above the aquarium. Ensure it is stable and does not obstruct any equipment or fish movement.
3. Туташуу кубаты: Connect the light bar to the external controller, and then connect the controller to the power adapter. Plug the power adapter into a suitable electrical outlet. Ensure a drip loop is formed to prevent water from traveling along the cord to the outlet.

5. Иштөө нускамалары

Your hygger aquarium light features an external controller for easy operation and customization.

5.1 Controller Overview

5.2 Күйгүзүү/өчүрүү

• Кубат баскычын басыңыз (⑂) once to turn the light on.
• Кубат баскычын басып, кармап туруңуз (⑂) for 3 seconds to turn the light off.

5.3 Brightness Adjustment (10 Levels)

• каалаган режимде, басыңыз + жарыктыгын жогорулатуу үчүн баскыч.
• басыңыз - button to decrease brightness.
• There are 10 adjustable brightness levels, from 10% to 100%.

5.4 Color Selection (9 Colors)

• басыңыз M button to cycle through 9 preset colors: full spectrum white, red, green, blue, pink, purple, cyan, orange, and a gradient cycle.

5.5 24/7 Natural Mode

• This mode simulates a natural day-night cycle.
• To activate: Press the "24/7" button on the controller.
• The light will gradually transition through dawn (orange), daytime (full spectrum), sunset (orange), and moonlight (blue).
• The light will slowly turn on and off over 15 minutes to avoid startling fish.
• You can customize the start and end times for this mode. Refer to the controller's display for time settings.

5.6 DIY Mode (Custom Timer and Color)

• To activate: Press the "DIY" button on the controller.
• Select desired timer duration (4H, 6H, 8H, 10H, or 12H).
• Choose from 9 colors and 10 brightness levels to create your custom lighting schedule.
• The light will operate at 10% brightness when the set time is reached.

5.7 Power-Off Memory Function

• The light retains its last settings even after a power interruption. However, the internal clock may reset if power is lost for an extended period.

6. Техникалык тейлөө

• Тазалоо: Жарык берүүчү лампаны жумшак, d менен үзгүлтүксүз сүртүп туруңузamp cloth to remove any water spots or algae buildup. Ensure the light is unplugged before cleaning.
• Текшерүү: Periodically check the power cord and connections for any signs of damage. If any damage is found, discontinue use immediately and replace the damaged component.
• Адаптер алмаштыруу: If the power adapter is damaged, it can be replaced separately without replacing the entire light unit. Use only a compatible hygger replacement adapter.

7. Кыйынчылыктарды

8. Техникалык шарттар

• Модел: HG135-14W
• Күч: 14 Вт

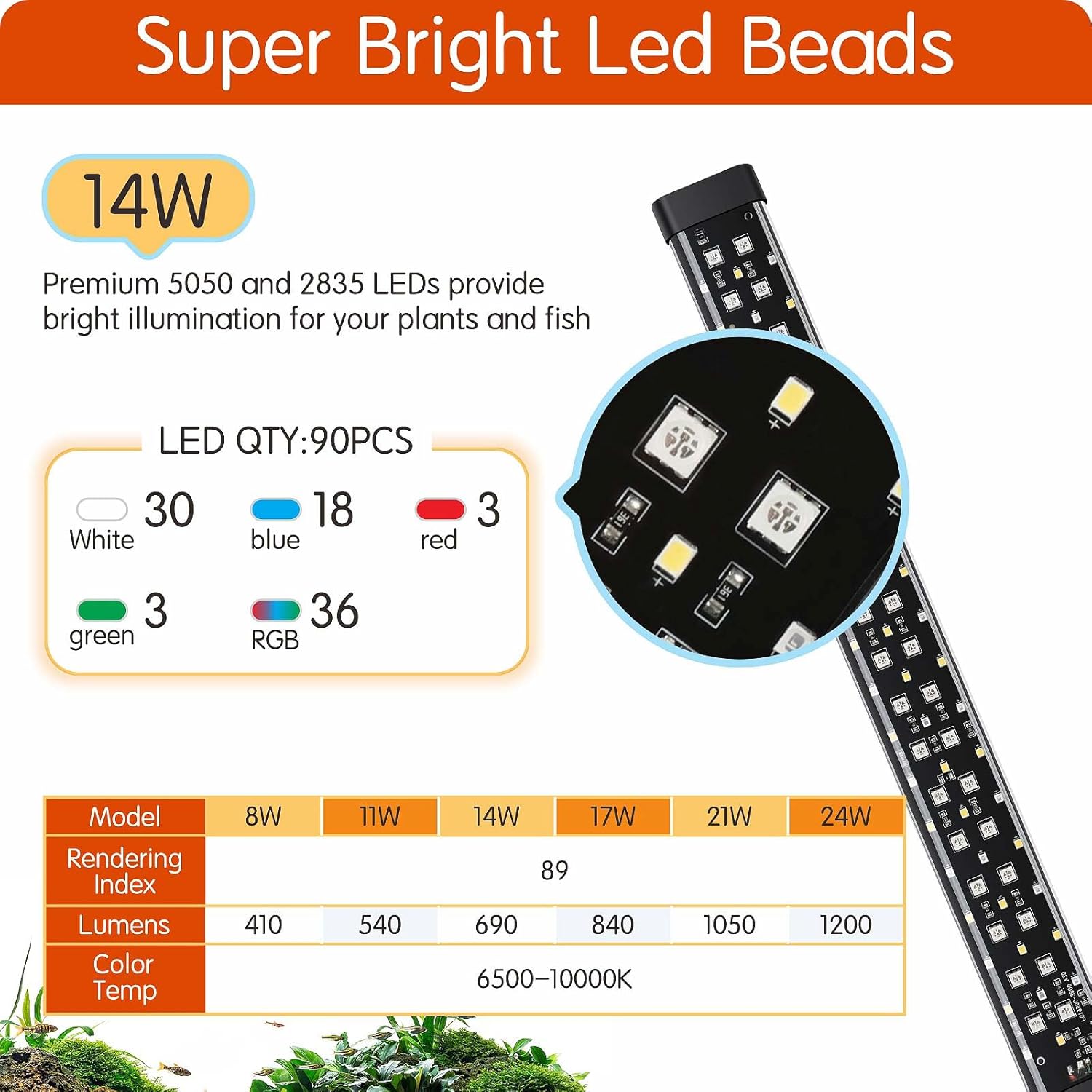

• LED саны: 90 PCS (WHITE: 30 PCS / BLUE: 18 PCS / RED: 3 PCS / GREEN: 3 PCS / RGB: 36 PCS)
• CRI: 89
• Application (for Fish Tank Length): 41-68см
• Электр шнурунун узундугу: 1.5m + 0.34m + 1.45m
• Киргизүү көлөмүtage: AC100-240V
• Output Voltage: DC 20V
• Келвин: 6500K
• Люмен: 690
• Материал: Plastic (Base), Acrylic or Polycarbonate (Shade)
• Суу өткөрбөйт рейтинги: Submersible (implied by "Sommergibile" and "Excellent waterproof design")

9. Расмий продукт Videos

10. Кепилдик жана колдоо

For warranty information and customer support, please refer to the product packaging or contact hygger customer service directly. Keep your purchase receipt as proof of purchase.
