Introduction
Thank you for choosing the B.K.Licht Magnetic Battery-Powered LED Wall Light. This manual provides essential information for the safe and efficient use of your new light. Please read these instructions carefully before installation and operation, and retain them for future reference.
Сүрөт: алдыңкы view of the B.K.Licht Magnetic Battery-Powered LED Wall Light, showcasing its sleek black design and illuminated LED.
Коопсуздук нускамалары
- Ensure the product is not exposed to water or excessive moisture. This product is rated IP20 for indoor use only.
- Жарыкты бөлүктөргө бөлүүгө же өзгөртүүгө аракет кылбаңыз. Бул кепилдикти жокко чыгарып, коопсуздукка коркунуч келтириши мүмкүн.
- Keep the light away from heat sources and direct sunlight to prevent battery damage.
- Use only the provided USB-C cable for charging. Do not use damaged cables or chargers.
- Dispose of the battery according to local regulations. Do not incinerate or expose to high temperatures.
- Бул продукт оюнчук эмес. Балдар жетпеген жерде сактаңыз.
Пакеттин мазмуну
Пакетте бардык компоненттер бар экенин текшериңиз:
- 1x B.K.Licht Magnetic Battery-Powered LED Wall Light
- 1x Magnetic Base Plate (for screw or adhesive mounting)
- 1x USB-C заряддоо кабели
- Mounting Hardware (screws and wall plugs)
- Adhesive Pad (for magnetic base plate)
Продукт өзгөчөлүктөрү
- Versatile Color Temperature (CCT): Choose between Warm White (2700K), Neutral White (4000K), and Daylight White (6500K) to suit different lighting needs.
- Жөнгө салынуучу жарыктык: The touch dimmer offers 3 levels of brightness: 100%, 50%, and 15%.
- Long Operation & Fast Charging: Up to 14 hours of light at the lowest setting. Fully charges in approximately 2 hours via USB-C.
- Magnetic & Flexible Design: The light attaches magnetically to its base, allowing for 360° rotation and easy removal for charging or repositioning.
- Кош орнотуу параметрлери: The base can be mounted using screws or the included adhesive pad.
- Compact & Elegant: Dimensions of 95 x 80 x 45 mm (H x W x L) in a robust black metal housing.
Image: Illustration highlighting the integrated battery, touch dimming function, and USB-C charging port of the wall light.

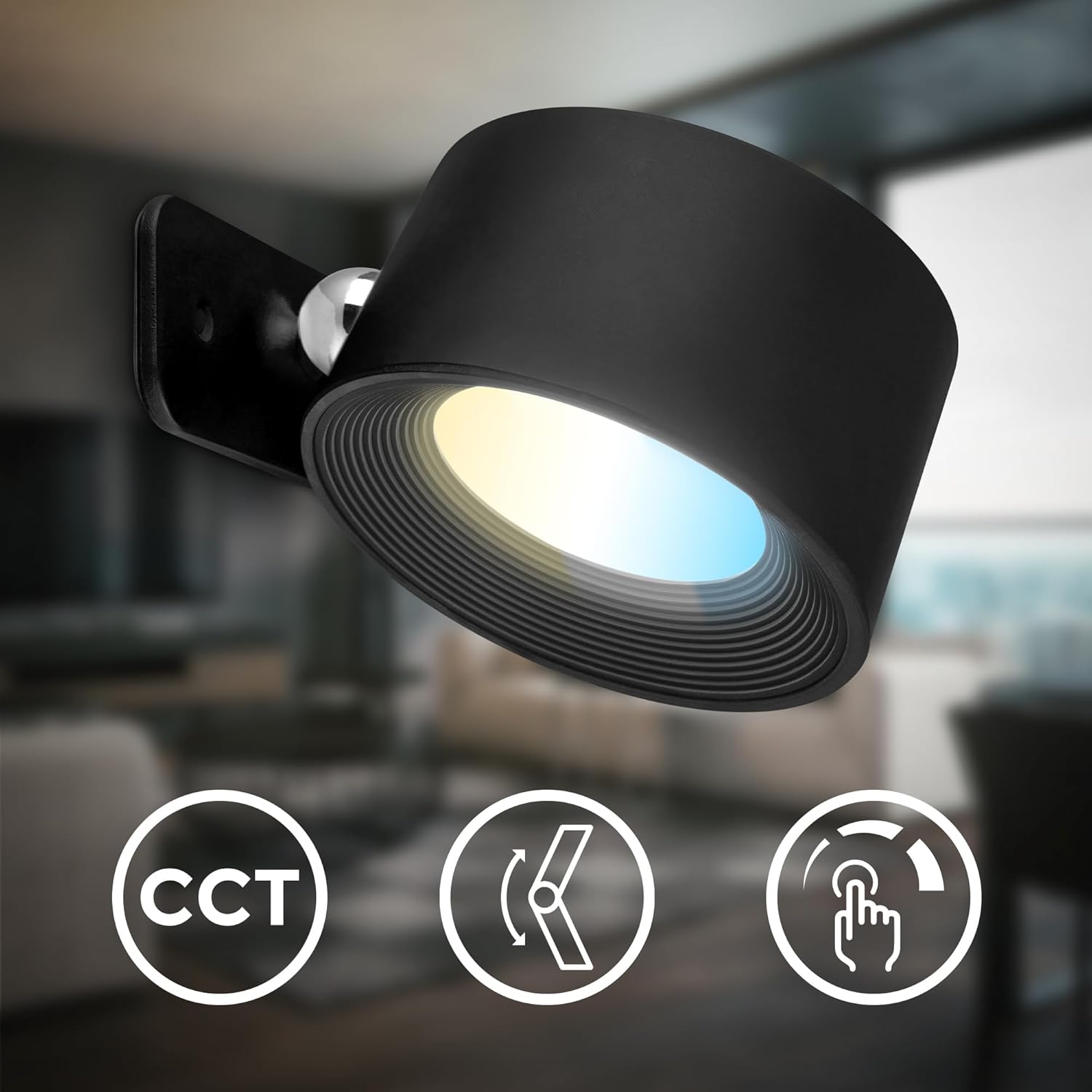

Image: Visual representation of the light's adjustable color temperature (CCT), 360-degree rotation capability, and touch dimming feature.
Орнотуу жана орнотуу
The magnetic base plate offers two installation methods:
Method 1: Adhesive Mounting
- Clean the desired wall surface thoroughly to ensure it is dry and free of dust or grease.
- Peel off the protective film from the adhesive pad and firmly press it onto the back of the magnetic base plate.
- Press the magnetic base plate firmly onto the cleaned wall surface for at least one minute.
- Allow the adhesive to cure for 24 hours before attaching the light to ensure maximum adhesion.
- Once cured, attach the light magnetically to the base plate.
Image: Diagram illustrating both adhesive (Stick It) and screw (Drill) installation methods for the magnetic base plate.
Method 2: Screw Mounting
- Дубалга ылайыктуу жерди тандаңыз.
- Mark the positions for drilling using the magnetic base plate as a template.
- Белгиленген жерлерге тешиктерди бургула жана дубал тыгындарын киргизгиле.
- Secure the magnetic base plate to the wall using the provided screws.
- Attach the light magnetically to the base plate.
The light can be rotated 360 degrees on its magnetic ball joint to direct illumination as needed.
Image: The wall light attached to its magnetic base, demonstrating its 360-degree rotational capability.
Иштөө нускамалары
The light is controlled via a single touch button located on the back of the light module.
- Күйгүзүү/өчүрүү: Press and hold the touch button for approximately 2 seconds to turn the light ON or OFF.
- Жарыктыкты жөндөө: With the light ON, short press the touch button to cycle through the 3 brightness levels: 100%, 50%, and 15%.
- Change Color Temperature (CCT): Double-tap the touch button quickly to switch between Warm White (2700K), Neutral White (4000K), and Daylight White (6500K).
Image: Visual guide demonstrating the three brightness levels (100%, 50%, 15%) adjustable via touch control.
Image: The wall light displaying different color temperatures, from warm yellow to cool blue light, indicating CCT adjustment.
Батареяны заряддоо
The wall light is equipped with an integrated Lithium-ion battery.
- To charge, detach the light from its magnetic base.
- Connect the provided USB-C cable to the charging port on the light and to a standard USB power adapter (not included).
- A charging indicator light (if present) will show the charging status. Refer to the product for specific indicator behavior.
- Толук кубаттоо болжол менен 2 саатты талап кылат.
- The light can operate for up to 14 hours on the lowest brightness setting after a full charge.
Сүрөт: Жакын план view of the wall light showing the USB-C charging port and indicating the presence of an integrated battery.
Техникалык тейлөө
- Тазалоо: Лампаны жумшак, кургак чүпүрөк менен сүртүңүз. Абразивдүү тазалоочу каражаттарды же эриткичтерди колдонбоңуз.
- Батареяга кам көрүү: Батареянын иштөө мөөнөтүн узартуу үчүн, бат-баттан батарейканы толук зарядсыздандырбаңыз. Жарыкты дайыма колдонууда болбосо да, үзгүлтүксүз заряддаңыз.
- Сактагыч: If storing the light for an extended period, charge it to about 50% and store in a cool, dry place. Recharge every 3-6 months.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жарык күйбөйт. | Батарея түгөнүп калды. | USB-C кабелин колдонуп жарыкты заряддаңыз. |
| Light does not hold position or sags. | Magnetic attachment not strong enough or base not securely mounted. | Ensure the light is fully seated on the magnetic ball. If using adhesive, ensure 24-hour curing time was observed and the surface is clean. If screw-mounted, ensure screws are tightened. |
| Батареянын иштөө мөөнөтү кыска. | Operating at high brightness levels; battery not fully charged; aging battery. | Reduce brightness. Ensure a full 2-hour charge. Battery capacity naturally decreases over time. |
| Cannot change color temperature or brightness. | Incorrect operation; temporary software glitch. | Refer to "Operating Instructions" for correct button presses. Try turning the light off and on again. |
Техникалык шарттар
- Бренд: B.K.Licht
- Модель номери: BKL1597
- Өлчөмдөрү (L x W x Y): 9.5 x 8 x 4.5 см
- Салмагы: 240 г
- Материал: Металл
- Түсү: Кара
- Жарык булагы: Интегралдык LED
- Жарык агымы: 450 Lumen
- Түс температурасы (CCT): 2700K (Жылуу ак), 4000K (Нейтралдуу ак), 6500K (Күндүзгү ак)
- Өчүрүүчү: Yes, 3 levels (100%, 50%, 15%)
- Батарея: 1x Lithium-ion (included)
- Заряддоо порту: USB-C
- Заряддоо убактысы: Болжол менен 2 саат
- Максималдуу иштөө убактысы: Up to 14 hours (at lowest setting)
- IP рейтинги: IP20 (Ичинде гана колдонуу)
- Которуу түрү: тийүү
- Тастыктоо: CE, RoHS
Image: Diagram showing the precise dimensions of the wall light: 95mm height, 80mm width, and 45mm depth.
Image: EU Energy Label for the B.K.Licht LSPT01015B, indicating an energy efficiency class of G and 2 kWh/1000h consumption. For more details, visit eprel.ec.europa.eu/qr/1961703.
Кепилдик жана колдоо
B.K.Licht products are designed for quality and reliability. For warranty information or technical support, please refer to the retailer where you purchased the product or visit the official B.K.Licht website. Please have your model number (BKL1597) and proof of purchase ready when contacting support.
