1. Киришүү
The Einhell GP-CR 36/45 Li E BL-Solo cordless tiller is a powerful and agile tool designed for loosening soil in medium to large gardens and flowerbeds, excluding lawns. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your tiller.
As part of the Einhell Power X-Change range, this device is compatible with all Power X-Change batteries and chargers. The tool is driven by the Einhell PurePOWER Brushless motor, which offers enhanced power and a longer operating time compared to conventional carbon brush motors.
Figure 1: Einhell Cordless Tiller GP-CR 36/45 Li E BL-Solo.
2. Коопсуздук эскертүүлөрү
WARNING: Read all safety warnings and instructions before operating this product. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
- Always wear appropriate protective clothing and safety equipment when operating the tiller. This includes sturdy footwear, long trousers, and eye protection.
- Keep hands and feet away from moving parts, especially the rotating blades.
- Do not run the tiller backward.
- Allow the tiller to stop completely and ensure the blades are stationary before performing any adjustments, cleaning, or maintenance.
- Always remove the battery pack before cleaning, adjusting, or storing the tiller.
- Store the tiller and battery in a cool, dry place, out of reach of children, when not in use.
- Inspect the tiller before each use for any signs of damage or wear. Do not operate a damaged tiller.
- Ensure the work area is clear of stones, roots, and other debris that could be thrown by the blades or cause damage to the machine.
- Operate the tiller only in daylight or good artificial light.
3. Продукциянын өзгөчөлүктөрү
The GP-CR 36/45 Li E BL-Solo tiller incorporates several features designed for efficiency and user comfort:
- Power X-Change системасы: Fully compatible with all Einhell Power X-Change batteries and chargers.
- PurePOWER Brushless Motor: Provides increased power and extended operating time compared to conventional motors, backed by a 10-year warranty upon online registration.
- Twin-Pack Dual Technology: Allows the use of up to four Power X-Change batteries (2x 18V pairs for 36V operation) for enhanced power and extended runtime.
- Robust Metal Blades: Equipped with 4 to 6 durable metal blades, offering a working width of 30 to 45 cm and an adjustable working depth of up to 23 cm. Blades can be mounted or dismounted without tools.
- Adjustable Brake Skid: Allows precise adjustment of working depth and control over traction.
- Эргономикалык жана бүктөлүүчү туткасы: Contributes to user comfort and enables compact storage.
- Height-Adjustable Wheels: For easy maneuverability and transport.
- LED батареянын абалынын көрсөткүчү: Provides optimal control over the battery charge level.
- Коопсуздук өзгөчөлүктөрү: Includes a 2-point safety switch to prevent unintentional starting and a blade guard for protection against thrown debris.
Figure 2: Key features of the Einhell Cordless Tiller.
Figure 3: PurePOWER Brushless motor benefits.
4. Орнотуу
4.1 Иштетүү тутуму
Assemble the handle components according to the diagrams in your product packaging. Ensure all locking mechanisms are securely fastened. The handle is foldable for storage; ensure it is locked in the operating position before use.

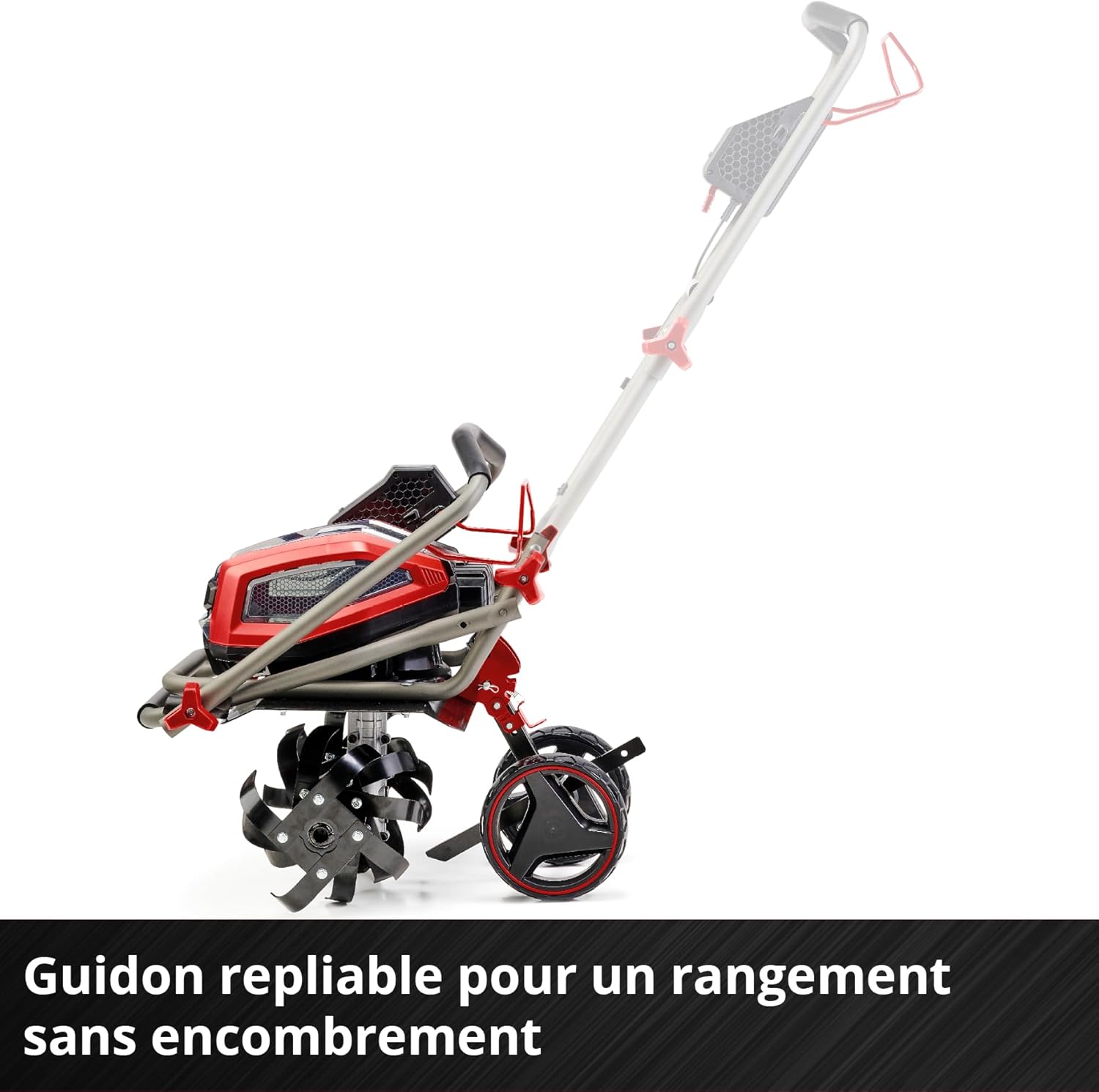

Figure 4: Foldable handle for compact storage.
4.2 Бычактарды орнотуу жана жөндөө
The tiller comes with 4 to 6 metal blades. These can be installed or removed without tools to adjust the working width (30 to 45 cm) as needed. Ensure blades are securely attached before operation.
Figure 5: Tool-free removable metal blades.
4.3 дөңгөлөктү жөндөө
The tiller features height-adjustable wheels for easy transport and maneuverability. Adjust the wheel height to suit your terrain and transport needs.
Figure 6: Wheels with tool-free folding mechanism for transport.
4.4 Батареяны орнотуу
The GP-CR 36/45 Li E BL-Solo requires Power X-Change batteries (not included). For optimal performance and runtime, utilize the Twin-Pack dual technology by inserting two 18V batteries into each of the two battery slots (total of four batteries).
Figure 7: Twin-Pack dual battery technology for 36V power.
Figure 8: Batteries and charger are sold separately.
5. Иштөө нускамалары
5.1 Баштоо жана токтотуу
To start the tiller, engage the 2-point safety switch and then press the operating lever. To stop, release the operating lever. Always ensure the area is clear before starting.
5.2 Adjusting Working Depth
The working depth can be adjusted up to 23 cm using the height-adjustable brake skid. Adjusting the skid allows you to control how deep the blades penetrate the soil and the traction effort required.
Figure 9: Height-adjustable brake skid for depth control.
5.3 Батареянын абалынын көрсөткүчү

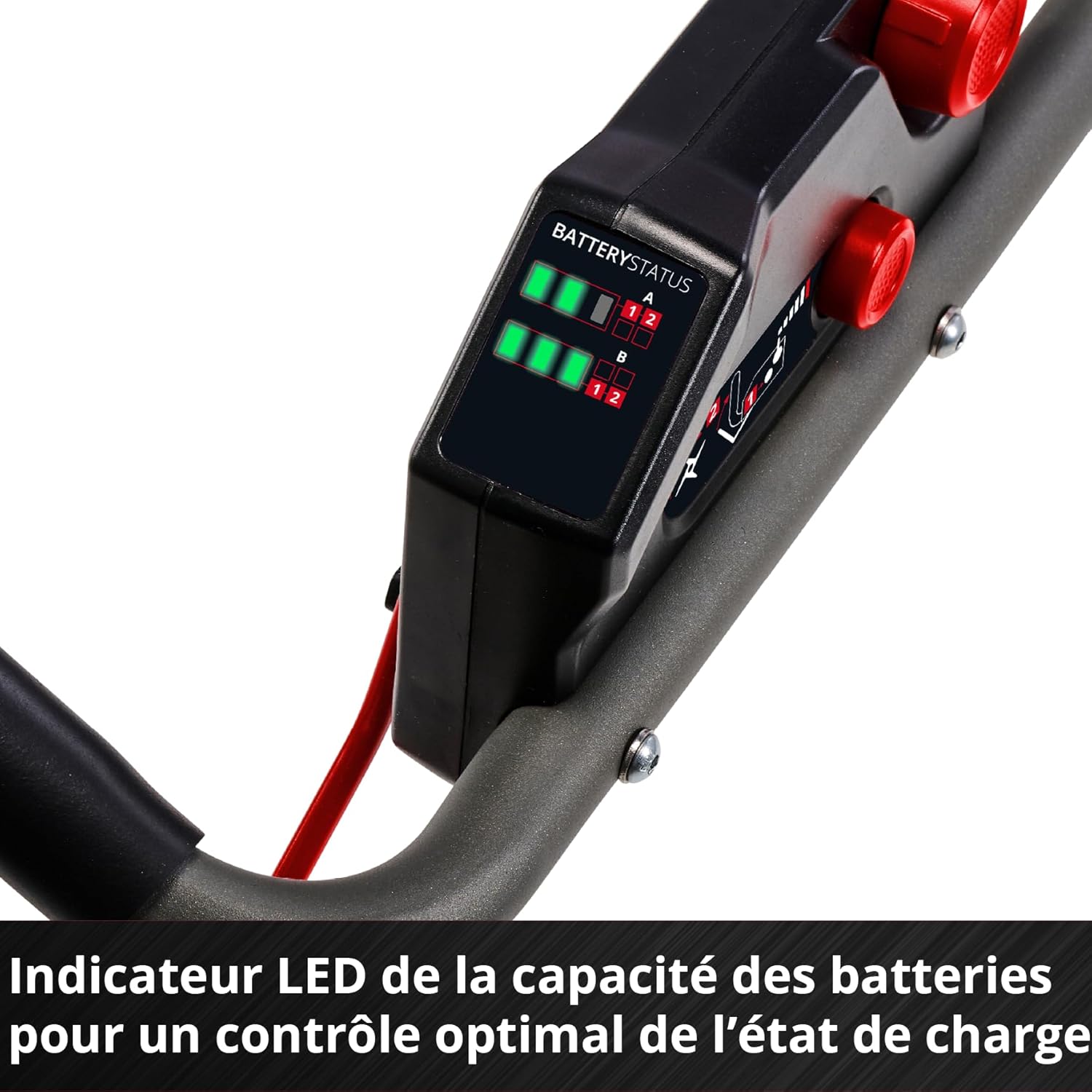

The tiller is equipped with an LED indicator on the handle to display the current charge level of the batteries. Monitor this indicator to ensure sufficient power for your task.
Figure 10: LED battery capacity indicator.
5.4 Иштөө убактысы жөнүндө маалымат
The operating time varies depending on the battery capacity and rotation speed. Refer to the following charts for estimated maximum runtimes:
Maximum Runtime per Charge (2 Batteries, Min. Rotation Speed)
Figure 11: Runtime with 2 batteries at minimum speed.
Maximum Runtime per Charge (2 Batteries, Max. Rotation Speed)
Figure 12: Runtime with 2 batteries at maximum speed.
Maximum Runtime per Charge (4 Batteries, Min. Rotation Speed)
Figure 13: Runtime with 4 batteries at minimum speed.
Maximum Runtime per Charge (4 Batteries, Max. Rotation Speed)
Figure 14: Runtime with 4 batteries at maximum speed.
6. Техникалык тейлөө
Regular maintenance ensures the longevity and optimal performance of your cordless tiller.
- Тазалоо: After each use, clean the tiller thoroughly. Remove soil, debris, and plant residues from the blades, housing, and wheels. Use a brush or damp cloth. Do not use high-pressure cleaners or immerse the device in water.
- Бычак текшерүү: Regularly check the blades for wear, damage, or dullness. Replace worn or damaged blades promptly. Ensure all blade fasteners are tight.
- Батареяга кам көрүү: Store batteries in a cool, dry place. Do not expose them to extreme temperatures. Charge batteries fully before storage and periodically during long storage periods to maintain their health.
- Сактагыч: When not in use, store the tiller in a dry, secure location, out of reach of children. The foldable handle allows for compact storage.
7. Кыйынчылыктарды
Бул бөлүмдө сиз кыргычта кездешүүсү мүмкүн болгон жалпы маселелер каралат.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Руль иштетпейт | Battery not inserted correctly or discharged; Safety switch not engaged; Operating lever not pressed. | Ensure batteries are fully charged and correctly inserted. Engage the safety switch and press the operating lever simultaneously. |
| Reduced performance or short runtime | Batteries not fully charged; Blades are dull or obstructed; Operating in very dense or hard soil. | Charge batteries fully. Clean blades and remove any obstructions. Consider pre-watering hard soil. |
| Ашыкча термелүү | Blades are bent or damaged; Debris caught in blades. | Stop the tiller, remove batteries, and inspect blades. Clear any debris. Replace damaged blades. |
| Бычактар айланбайт | Obstruction in blades; Motor overload protection activated. | Stop the tiller, remove batteries, and clear any obstructions. Allow the motor to cool down if overload protection was triggered. |
8. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Модель номери | 3431220 |
| Power Source | Battery Powered (Power X-Change 36V, requires 2 or 4 x 18V batteries) |
| Мотор түрү | PurePOWER Brushless |
| Working Width | 30 - 45 cm (adjustable) |
| Иштөө тереңдиги | Up to 23 cm (adjustable) |
| Blades саны | 4 or 6 (metal, tool-free removable) |
| Продукциянын өлчөмдөрү (L x W x Y) | 116.3 x 21 x 118.5 см |
| Салмагы | 23.65 кг |
| Материал | Металл |
| Түс | Кара / Кызыл |
9. Кепилдик жана колдоо
9.1 Кепилдик маалыматы
The Einhell PurePOWER Brushless motor is covered by a 10 жылдык кепилдик upon online registration. Please refer to the official Einhell website or your purchase documentation for full warranty terms and conditions for the entire product.
9.2 Кардарларды колдоо
For technical assistance, spare parts, or further information, please visit the official Einhell webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз. Сиз да зыярат кылсаңыз болот Einhell Brand Store on Amazon for product details and accessories.
