Маанилүү коопсуздук эскертүүлөрү
Сураныч, чогултуу жана колдонуу алдында бардык нускамаларды кунт коюп окуп чыгыңыз. Бул колдонмону келечекте маалымат алуу үчүн сактаңыз.
- Always ensure the user's weight does not exceed the maximum recommended weight capacity of 200 кг to avoid stability issues and potential damage.
- Be cautious when using the "unlimited levitation" (recline) function to prevent potential injuries. Ensure adequate space around the chair.
- Чогултуу учурунда кичинекей бөлүктөрүн балдардан алыс кармаңыз.
- Стулга турбаңыз.
- Regularly check all bolts and screws to ensure they are tightened.
Продукт бүттүview
The MELOKEA ReliefBack Master Ergonomic Office Chair is designed to provide superior comfort and support for extended periods of sitting. It features advanced ergonomic adjustments to adapt to various body types and preferences, promoting healthy posture and reducing discomfort.

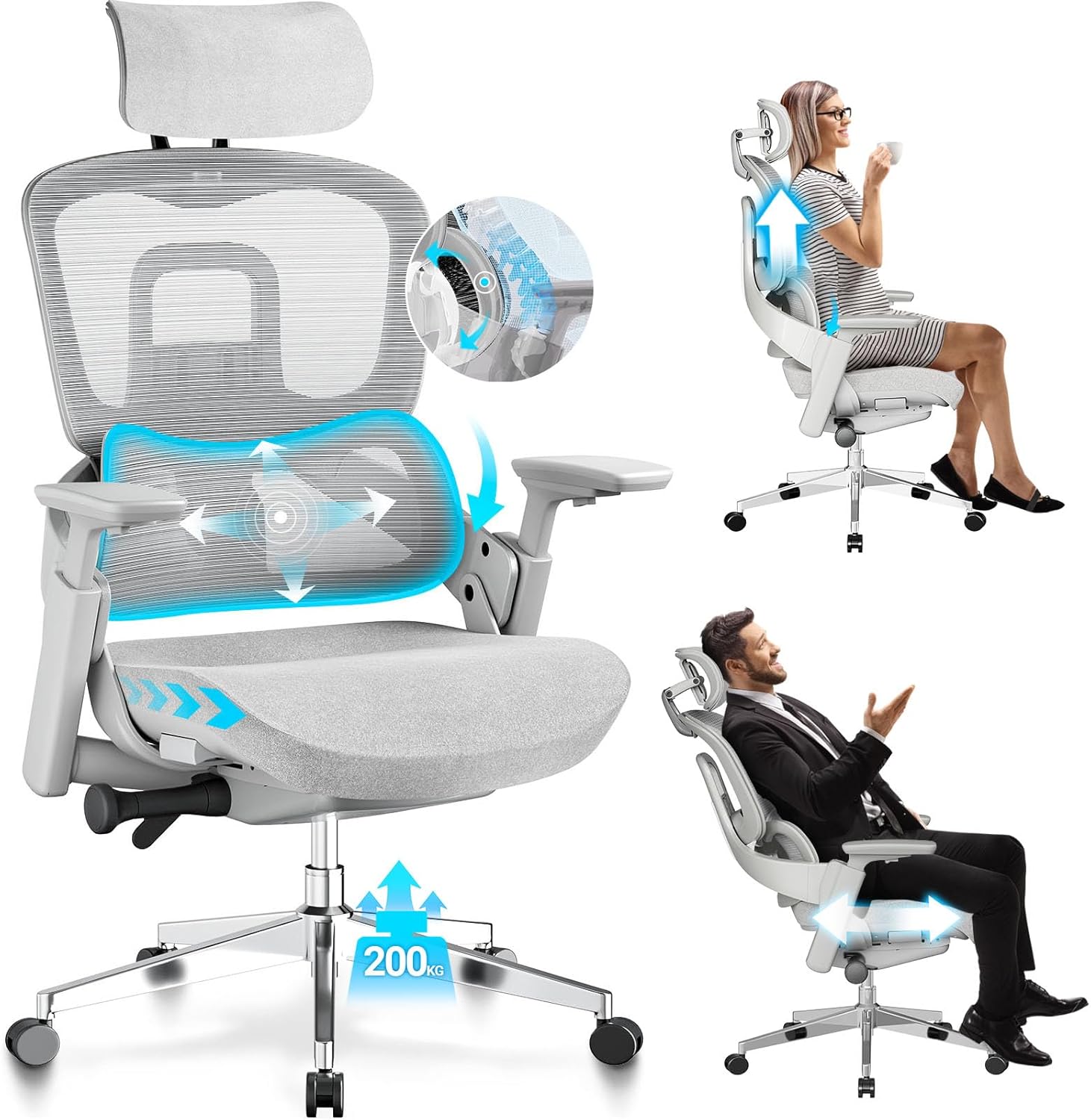

Figure 1: ашыкview of the MELOKEA ReliefBack Master Ergonomic Office Chair, showcasing its key adjustable features and robust design.
Key features include Seat-Back Synchronization, 2nd Generation Flexback Adaptive Lumbar Support, Unlimited Levitation recline, and comprehensive 3D headrest and 4D armrest adjustments.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | MELOKEA |
| Модель номери | F043 |
| Түс | Боз |
| Продукциянын өлчөмдөрү (L x W x Y) | 71 x 67 x 50 см |
| Элемент Салмагы | 29 килограмм |
| Материал | Aluminum, Polyurethane Foam, Mesh + Cotton |
| Максималдуу салмак боюнча сунуш | 200 килограмм |
| отургуч материал түрү | Полиуретан пено |
| Артка стили | Артка ачуу |
| Сунушталган Колдонуулар | Office |
Figure 2: Detailed dimensions of the MELOKEA ReliefBack Master Ergonomic Office Chair, providing measurements for height, width, and depth.
Орнотуу жана чогултуу
The MELOKEA ReliefBack Master chair is designed for quick and easy assembly, often taking as little as 10 minutes thanks to its pre-assembled components and EasyLock system. Only a few screws are required.
- Компоненттерди таңгактан чыгаруу: Таңгактан бардык бөлүктөрүн этияттык менен алып салыңыз. Таңгактоо тизмесинде көрсөтүлгөн бардык компоненттердин бар экенин текшериңиз.
- Дөңгөлөктөрдү тиркөө: Insert the chair wheels into the base.
- Арка таянычын туташтыруу: Align the backrest with the seat mechanism and secure it using the provided 4 screws. Tighten firmly.
- Газ лифтин киргизүү: Газ көтөргүч баллонду отургучтун негизинин борбордук тешигине салыңыз.
- Орундукту бекитүү: Чогултулган отургучту жана аркалыкты газ көтөргүч цилиндрге этияттык менен коюңуз. Бекитүү үчүн бекем басыңыз.
- Акыркы текшерүү: Колдонуудан мурун бардык байланыштар бекем жана отургучтун туруктуу экенин текшериңиз.
Иштөө нускамалары
Your MELOKEA chair offers a range of adjustments to customize your seating experience. Familiarize yourself with these features for optimal comfort and ergonomic support.
1. Seat-Back Synchronization Technology
This technology ensures seamless coordination between the seat and backrest. As the backrest reclines, the seat cushion dynamically moves forward, maintaining consistent lumbar support and alignment with your body's movements. This helps relieve lower and upper back pain, and hip discomfort.

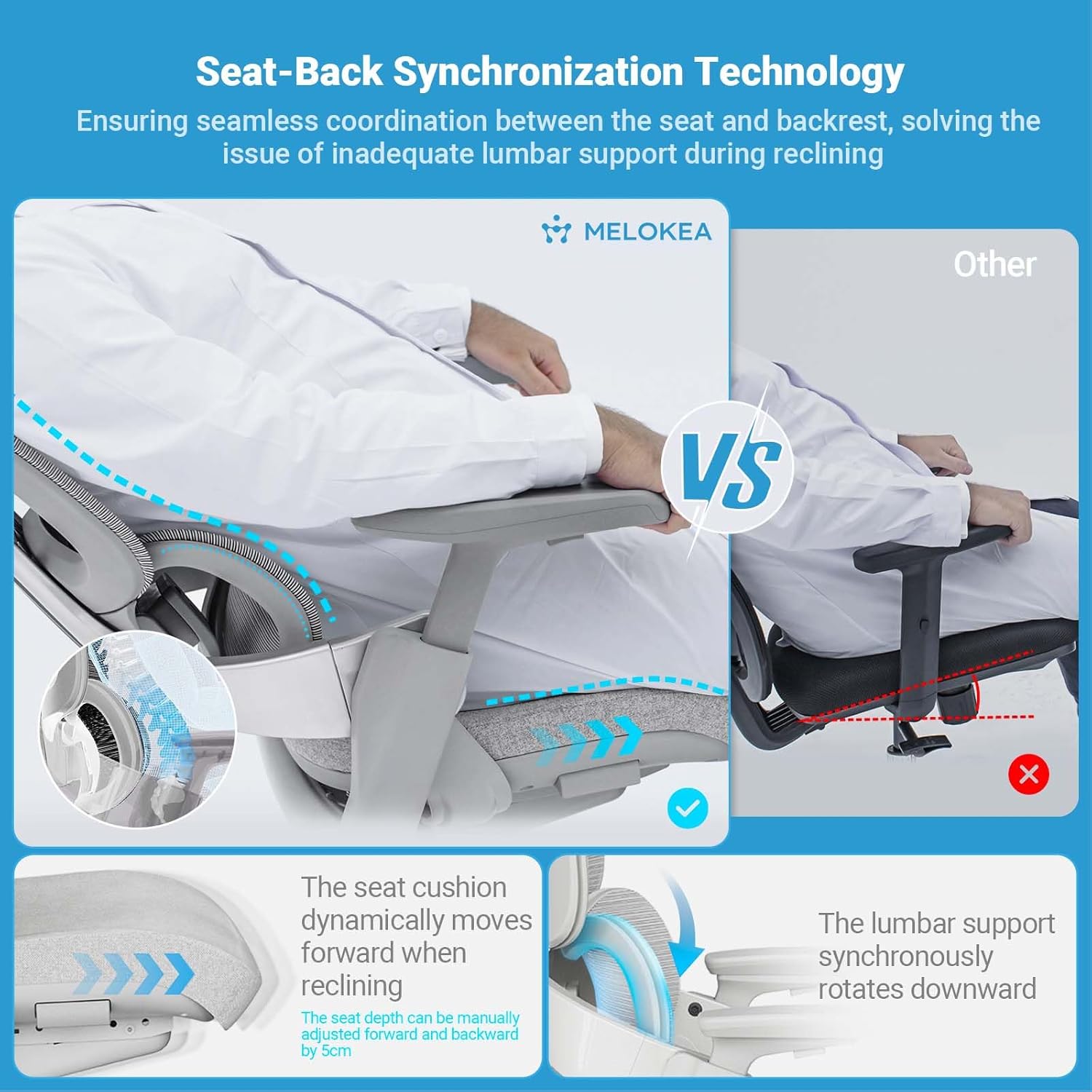

Figure 3: Illustration of the Seat-Back Synchronization, showing how the seat cushion moves forward as the backrest reclines to maintain ergonomic support.
2. Adaptive Lumbar Support (2nd Gen Flexback)
The innovative adaptive lumbar support adjusts dynamically up, down, left, and right within a 0-15° range, responding to your lower back movements. It provides continuous support regardless of your sitting posture or body rotation.
Figure 4: Visual representation of the adaptive lumbar support, highlighting its dynamic adjustment capabilities for continuous back protection.
3. Unlimited Levitation (Recline)
Enjoy unlimited levitation at any desired angle without manual insertion or detachment. The chair offers five levels of maximum tilt adjustment. You can also adjust the tilt tension to match your personal preferences. Note: The seat tilt does not support locking, but allows for easy hovering at any angle.
Figure 5: Diagram illustrating the unlimited levitation recline function and the mechanism for adjusting tilt tension and maximum tilt levels.
4. Adjustable Features: Headrest, Armrests, Seat Depth, Backrest Height
- 3D Headrest: Adjust the headrest up to 12 cm in height, 7 cm in forward/backward position, and pivot it 90°.
- 4D колтуктар: The extra-wide armrests offer multiple adjustment options: forward/backward glide, height adjustment, lateral movement, and a 15-degree pivot.
- Отуруунун тереңдиги: The seat depth can be customized by 50 mm to accommodate different leg lengths.
- 4-Level Backrest Adjustment: Allows for precise positioning of lumbar and upper back support, ensuring an optimal fit for your height.
6-сүрөт: Детальдуу view of the 4D adjustable armrests and 3D extra-wide headrest, showing their various ranges of motion for personalized comfort.
5. Waterfall Edge Seat Cushion
The seat cushion features a waterfall edge design, composed of molded foam and a thick latex layer. This design helps relieve thigh pressure, improves blood circulation, and enhances overall posture, ensuring a soft, comfortable, and hygienic seating experience.

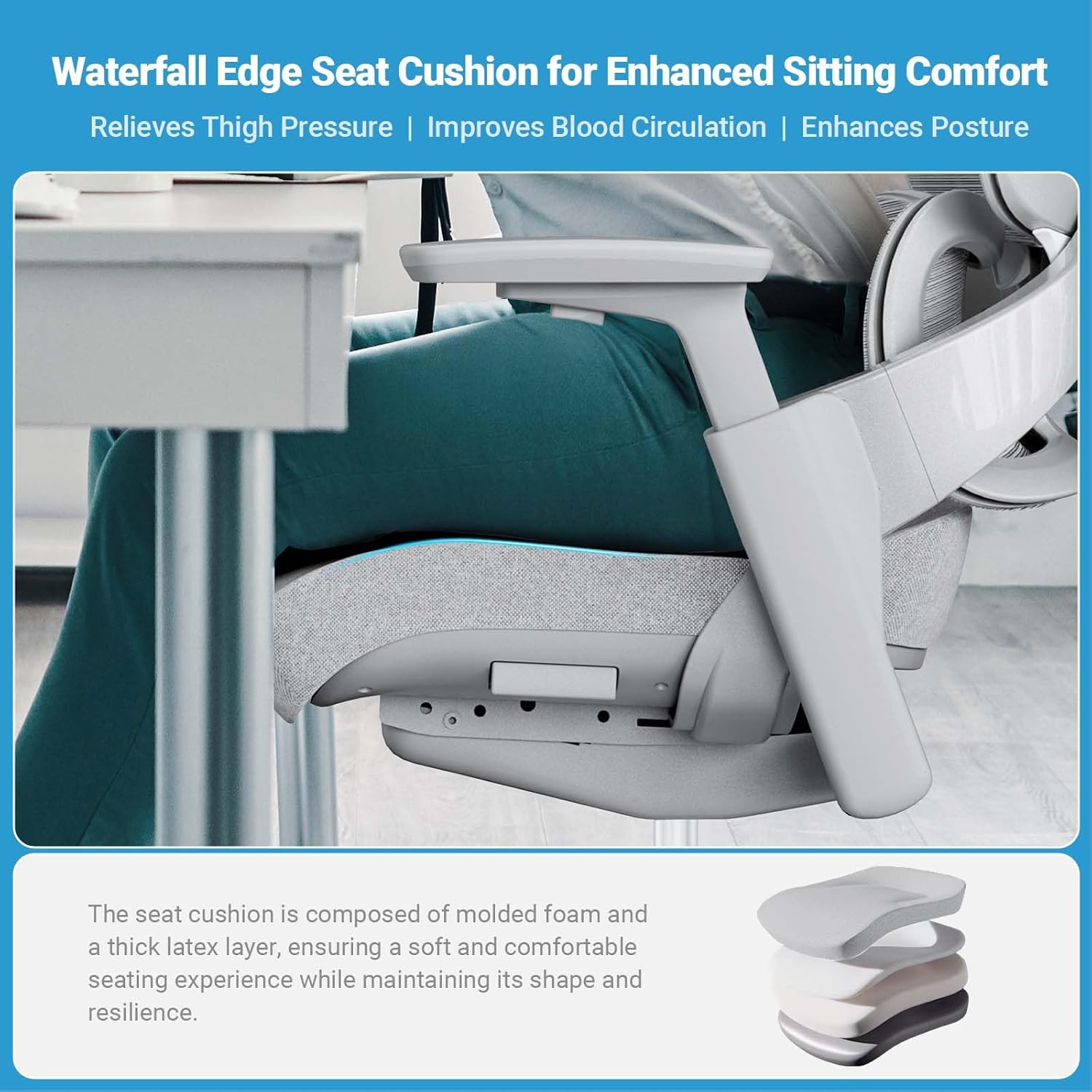

Figure 7: Close-up of the waterfall edge seat cushion, illustrating its layered construction for enhanced comfort and support.
Техникалык тейлөө жана кам көрүү
Proper care will extend the life and maintain the appearance of your MELOKEA office chair.
- Тазалоо: For mesh and fabric surfaces, use a soft cloth dampened with mild soap and water. Avoid harsh chemicals or abrasive cleaners. For aluminum parts, wipe with a dry or slightly damp кездеме.
- Latex Cushion: The integrated antibacterial latex cushion is designed for hygiene. Avoid exposing it to direct sunlight or extreme temperatures.
- Үзгүлтүксүз текшерүү: Periodically check all screws, bolts, and moving parts to ensure they are secure and functioning correctly. Tighten any loose fasteners.
- Ашыкча жүктөөдөн качыңыз: 200 кг максималдуу салмак жөндөмдүүлүгүн ашпаңыз.
Проблемаларды чечүү
If you encounter any issues with your MELOKEA chair, please refer to the following common troubleshooting tips:
- Chair Squeaks or Wobbles: Ensure all assembly screws are tightly secured. Apply a small amount of silicone lubricant to moving parts if necessary, avoiding contact with fabric.
- Gas Lift Not Adjusting Height: Check if the height adjustment lever is fully engaged. Ensure no obstructions are preventing the gas lift from moving freely.
- Backrest Does Not Stay in Position (Recline): The "unlimited levitation" feature allows for free movement and pausing at any angle, but does not feature a locking mechanism for the recline. Ensure the tilt tension is adjusted to your preference.
- Armrests Adjust Too Easily: While 4D armrests offer extensive movement, if they feel excessively loose, check for any visible loose connections.
- Headrest Constantly Adjusts: The 3D headrest is designed for dynamic movement. If it does not hold a position you expect, ensure you are using its full range of motion for adjustment.
If the problem persists after attempting these solutions, please contact MELOKEA customer support for further assistance.
Durability and Standards
The MELOKEA ReliefBack Master chair is built with high-quality materials and undergoes rigorous testing to ensure durability and reliability. It meets stringent international standards for office furniture.
- Сертификаттар: SGS certified and BIFMA tested.
- Стандарттарга шайкештиги: Meets all requirements of EN 1335-1:2020 and BIFMA standards for durability and stability.
- Сыноо: Components are tested for endurance, including headrest (120,000 times), seat durability (100,000 times), armrest resistance (60,000 times), backrest fatigue (120,000 times), tilting mechanism endurance (300,000 times), gas spring endurance (120,000 times), and chair leg test (100,000 times).
Figure 8: Illustration detailing the various durability and quality tests performed on the MELOKEA chair components, ensuring long-lasting performance.
Кепилдик жана колдоо
MELOKEA is committed to providing high-quality ergonomic chairs and excellent customer service.
- Кепилдик: Your MELOKEA chair comes with a 5 жылдык кепилдик, exceeding industry standards. This warranty covers manufacturing defects and significant material failures under normal use.
- Кардарларды тейлөө: As a global provider with over 20 years of experience, MELOKEA's dedicated customer service team is available to assist you. For any inquiries, issues, or warranty claims, please contact us through the retailer's platform or the official MELOKEA website. We aim to resolve inquiries within 24 hours.
