Xtreme Multicolored LED Strip Lights
User Manual
Brand: XTREME DIGITAL LIFESTYLE ACCESSORIES | Model: XLS7-1007-MCW
Introduction
Transform your living space or event with the Xtreme Multicolored LED Strip Lights. This extensive 100-foot strip provides a generous length of vibrant illumination, making it perfect for large areas like walls, ceilings, or furniture. With 15 distinct colors and 4 dynamic flashing modes (Flashing, Strobe, Fade, and Smooth), you can effortlessly create the perfect ambiance for any occasion, from lively parties to cozy, relaxing evenings. The LED strip is powered via a built-in plug, offering great convenience. This ensures easy installation and operation in various settings without the need for additional power converters. The strip's cut-and-reconnect feature allows for customizable length adjustments, so you can tailor the strip to fit your specific needs and space requirements. Installation is simple with the adhesive backing, which securely sticks to any clean, flat surface. Additionally, the dimmable feature lets you adjust the brightness to your liking, providing versatile lighting options for any setting. Included with the lights is a remote control that allows you to conveniently manage colors, modes, and brightness from a distance. Whether you're aiming to enhance your home decor, create a festive atmosphere, or simply add a splash of color, the Xtreme Multicolored LED Strip Lights offer a blend of flexibility, functionality, and vibrant illumination to meet all your lighting needs.
Кутуда эмне бар
Сураныч, орнотууну баштоодон мурун бардык компоненттер бар экенин текшериңиз.
- 100ft LED Strip
- 12V кубаттуу адаптер
- Ийкемдүү туташтыргычтар
- Set of Strip Mounting Clips and 2 Cable Mounting Clips
- Remote with 2 AAA Batteries (batteries may not be included, please check packaging)
- User Manual
Орнотуу жана орнотуу
Бетти даярдоо
Ensure the surface where the LED strip will be installed is clean, dry, and smooth. Dust, dirt, or moisture can compromise the adhesive backing's effectiveness.
Applying the LED Strip
- Этияттык менен LED тилкесин жайыңыз.
- Peel off a small section of the adhesive backing from the start of the strip.
- Press the exposed adhesive firmly onto your desired surface, working your way along the strip, peeling off more backing as you go. Apply even pressure to ensure good adhesion.
Cutting and Reconnecting the Strip

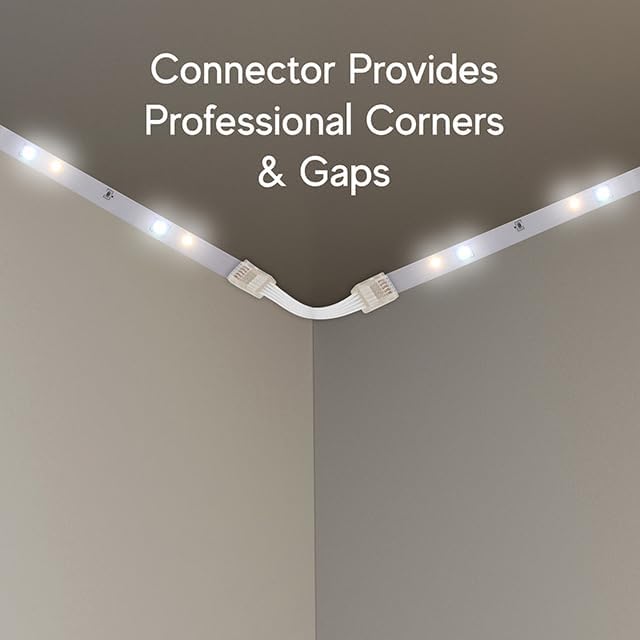

The LED strip can be cut to your desired length at designated cut marks, usually indicated by a scissor icon or copper pads. Use the included flexible connectors to reattach cut sections or to navigate corners.
- Identify the cut marks on the LED strip.
- Using sharp scissors, cut precisely along the designated line.
- To reconnect, open the clasp of a flexible connector. Align the copper pads of the LED strip with the pins inside the connector. Close the clasp firmly to secure the connection.
Power Connection
Connect the LED strip to the provided 12V power adapter. Plug the power adapter into a standard electrical outlet. The built-in plug design simplifies this process.
Иштөө нускамалары
The Xtreme LED Strip Lights are controlled using the included remote control.
Алыстан башкаруу функциялары
- КҮЙГҮЗҮҮ/ӨЧҮРҮҮ: Жарыктарды күйгүзүңүз же өчүрүңүз.
- Түс тандоо: Choose from 15 distinct colors using the color buttons.
- Жарыктыкты жөндөө: Use the dimmable feature to increase or decrease the light intensity.
- Режим тандоо: Select from 4 dynamic flashing modes:
- Flash: Rapidly cycles through colors.
- Строб: Flashes a single color on and off.
- Өчүү: Түстөрдүн ортосунда жылмакай өтүү.
- түздө: Gradually changes colors with a softer transition.
- Ак жарык параметрлери: Buttons for Cool White, Soft White, and Warm White are available for dedicated white light settings.
Ensure the remote control has working batteries (2x AAA, not always included) and is pointed towards the receiver on the LED strip for optimal performance.
Техникалык тейлөө
To ensure the longevity and optimal performance of your Xtreme LED Strip Lights, follow these maintenance guidelines:
- Тазалоо: Чаңды кетирүү үчүн LED тилкесин кургак, жумшак чүпүрөк менен акырын сүртүңүз. Суюк тазалоочу каражаттарды же абразивдүү материалдарды колдонбоңуз.
- Суу каршылык: This product is designed for indoor use only and is Сууга чыдамдуу эмес. Avoid exposure to water, high humidity, or outdoor elements.
- Колдонуу: Avoid bending the LED strip sharply, especially at points other than the designated cut marks, as this can damage the internal circuitry.
- Сактагыч: Эгерде чырактарды сактап жатсаңыз, алардын таза, кургак жана бузулуп калбашы үчүн бош оролгонун текшериңиз.
Проблемаларды чечүү
If you encounter issues with your Xtreme LED Strip Lights, please refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жарыктар күйбөйт. | Электр кубаты жок, туташуу бош, кубат адаптери бузулган. | Ensure the power adapter is securely plugged into a working outlet and the strip. Check if the power adapter is functioning. |
| Пульт иштебей жатат. | Dead batteries, remote not pointed at receiver, faulty remote. | Replace batteries (2x AAA). Ensure clear line of sight to the strip's receiver. If issues persist, contact support. |
| Sections of the strip are not lighting up or show incorrect colors. | Poor connection at cut/reconnect points, damaged section of the strip. | Check all flexible connectors to ensure they are properly secured and making good contact with the copper pads. Ensure cuts were made precisely at designated marks. If a section is damaged, it may need to be isolated or replaced. |
| Adhesive backing not sticking. | Surface not clean/dry, improper application. | Ensure the surface is thoroughly cleaned and dry before application. Apply firm, even pressure during installation. For difficult surfaces, consider using additional mounting clips (if not already used). |
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | XTREME САНАРИПТИК ЖАШОО ТАРЗЫ АКСЕССУАРЛАРЫ |
| Модель номери | XLS7-1007-MCW |
| Түс | Multicolor (RGBW) |
| Узундук | 100 фут |
| LED саны | 900 |
| Power Source | Электр зымдары |
| Башкаруу ыкмасы | Алыстан башкаруу |
| Өзгөчөлүктөр | Remote Controlled, Dimmable, Adjustable, Blinking, Color Changing |
| Ички/тышкы колдонуу | Ичинде гана |
| Сууга туруктуулук деңгээли | Сууга чыдамдуу эмес |
| Элемент Салмагы | 13.3 унция |
| UPC | 805106237806 |
Кепилдик жана колдоо
For warranty information or technical support regarding your Xtreme Multicolored LED Strip Lights, please contact XTREME DIGITAL LIFESTYLE ACCESSORIES directly through their official webсайт же кардарларды тейлөө каналдары. Сатып алуунун далили катары сатып алуу дүмүрчөгүңүздү сактап коюңуз.
For further assistance, you may visit the XTREME DIGITAL LIFESTYLE ACCESSORIES Store on Amazon: XTREME DIGITAL LIFESTYLE ACCESSORIES Store
